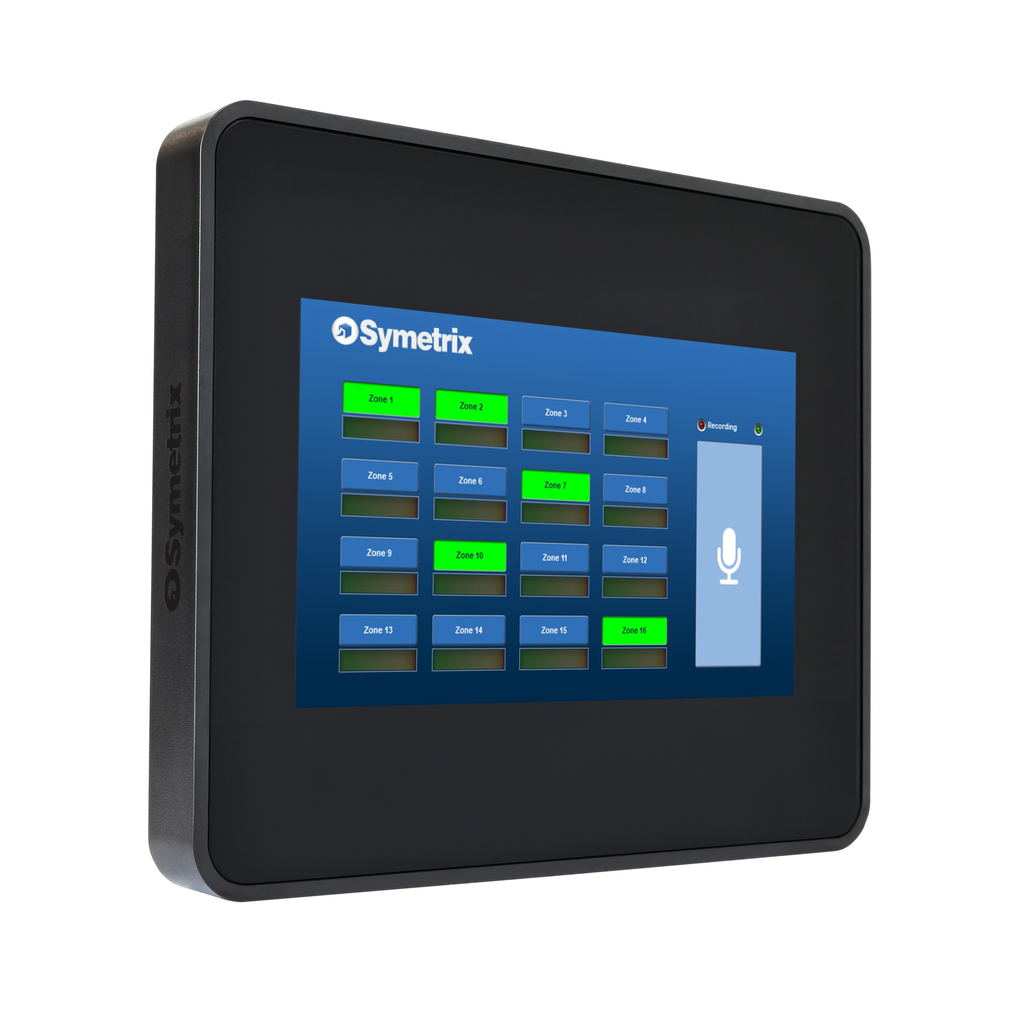

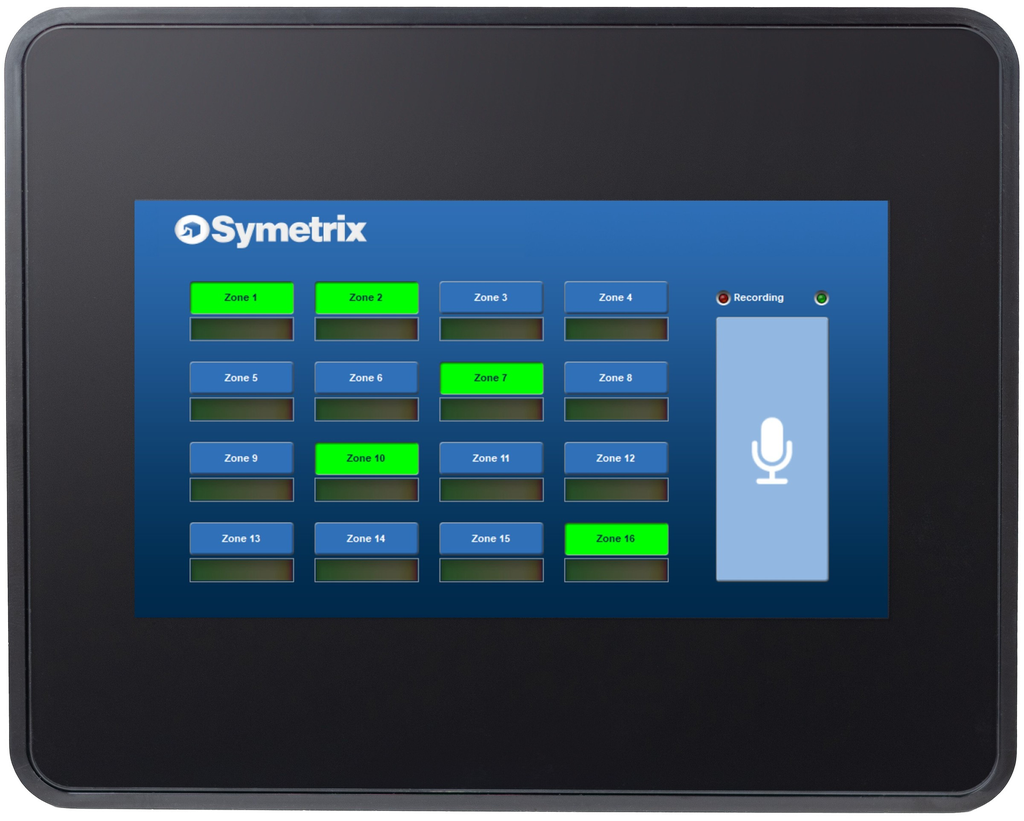

T-Series
Quickly design, create, test, and simulate a variety of control screens off-line using SymVue interface authoring on its own or as part of Composer software with no extra hardware or licensing required.
Design Control Screens with any language and font, custom controls, backgrounds, logos and more to suit specific user requirements.
Interact easily with Control Screens on bright, high resolution panels.
Keep installation simple with single cable connectivity utilize power over Ethernet eliminating the need for external power supplies.
Configuration
- Programmable with Symetrix Composer software
- Interface design and creation with SymVue authoring software
- Batch configuration of multiple units
Power and Mounting
- PoE+ powered
- Fits US and Euro double-gang wall and junction boxes
- Optional tabletop stand accessory
Key features
- 5-inch 1280×720 resolution high-definition touchscreen
- Best-in-class brightness of 500 nits
- Optional tabletop stand accessory
Specifications
| Compatibility | Symetrix Composer-managed products |
| Display Brightness | 500 nits |
| Display Orientation | Landscape |
| Display Resolution | 1280 x 720 pixels |
| Display Type | Capacitive touch full color TFT LCD |
| Display Viewing Angle | ±80° horizontal, ±80° vertical |
| Ethernet Cable | Standard CAT5e or CAT6. Maximum device to device length: 100 m |
| Power | Power Requirement: PoE+, IEEE 802.3at compliant, 25.5W max |
| Maximum Devices per System | 128 units per Site File |
| Environmental | Ambient Operating Temperature: 0° – 40° C (32° – 104° F). Avoid prolonged exposure to direct sunlight or strong ultraviolet light. |
| Form Factor | Double-gang US or Euro wall mount |
| Optional Accessories | Tabletop Stand |
| Product Weight | 0.95 lbs (0.43 kg) |
| Shipping Weight | 1.25 lbs (0.57 kg) |
| Space Required | Double-gang US or Euro wall box. Depth does not include connector allowance. Allow at least 3-inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
