Features

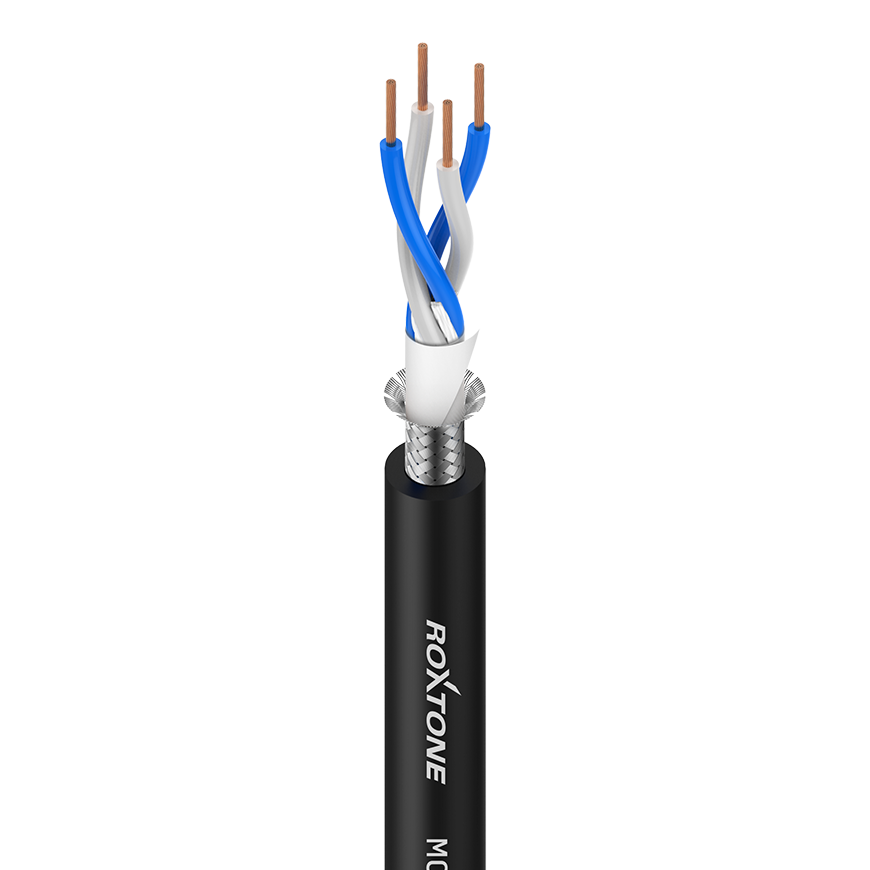

- Noise-free due to the crossover connection of 4 individual wires
- Very low capacitance when 4 conductors to be wired crossover
- Very good transmission safety and linear sound transmission
- The shields are super flexible and offer outstanding noise rejection
Technical Data
| Jacket, diameter | PVC 6.2 mm |
| AWG | 24 |
| No. of inner conductors | 4 x 0.22 mm² |
| Copper strand per conductor | 28 x 0.10 mm |
| Conductor insulation | PE 1.40 mm |
| Shielding | tin plated copper braided shielding with 128 x 0.10mm |
| Shielding factor | 95 % |
| Temperature range | min. -20°C |
| Temperature range | max. +70°C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 49 pF |
| Capac. cond./shield. per 1 m | 92 pF |
| Cond. resistance per 1 m | 80 mΩ |
| Shield. resistance per 1 m | 23.2 mΩ |
