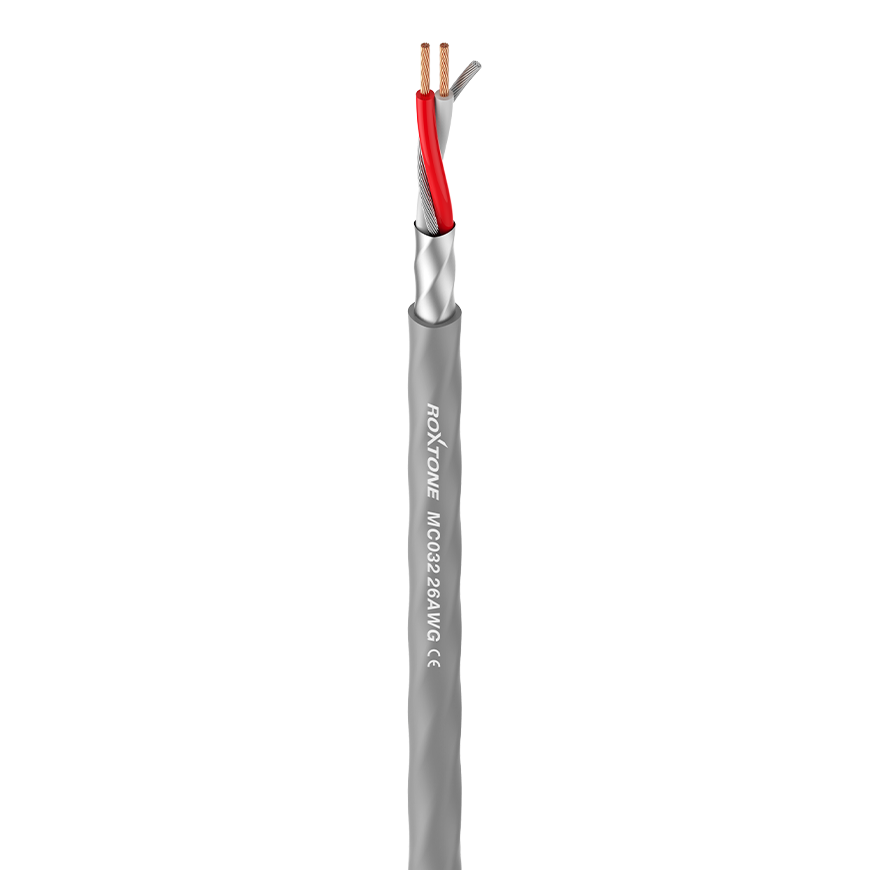

Features
- Very thin PVC jacket with a diameter of 3.3 mm, suitable for the wiring inside thecabinet, save more space
- Durability due to the special robust PVC jacket
- Use special LLDPE for the insulation, ensure a good electrical performanceand tensile strength
- Wonderful shielding 100% provided by AL fleece and drain wire
- Highly flexible due to a professional stranded wire technology
Technical Data
| Jacket, diameter | PVC 3.3 mm |
| AWG | 26 |
| No. of inner conductors | 2 x 0.18 mm² |
| Copper strand per conductor | 16 x 0.12 mm |
| Conductor insulation | LLDPE 1.20 mm |
| Drain Wire | 25 x 0.12 mm Tin copper |
| Shielding | AL fleece |
| Shielding factor | 100% |
| Temperature range | min. -20°C |
| Temperature range | max. +70°C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 65 pF |
| Capac. cond./shield. per 1 m | 134 pF |
| Cond. resistance per 1 km | 97.5 mΩ |
| Shield. Resistance per 1 m | 56.2 mΩ |
| Length | 100m |
