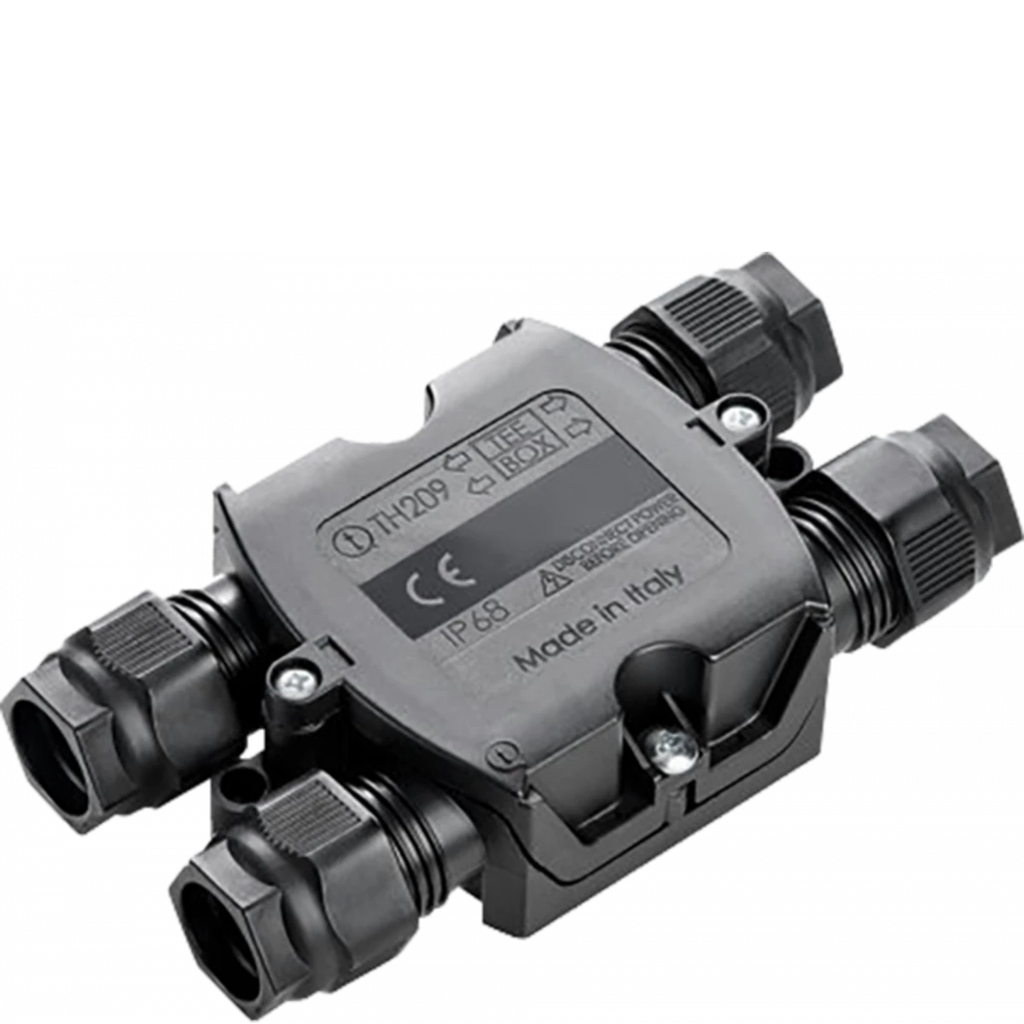

4-way junction box, type 'H', waterproof up to IP68 (5 m maximum depth under water for 3 hours) for fixed and re-inspectable connections.
The sleeve seals offer the best protection and a wide range of uses, it is suitable for 3-pole cable connections indoors and outdoors, permissible cable diameters from 6 to 13.5mm and conductor cross-sections from 0.5 mm² to 6 mm², with Linear Terminal Block Included.
Free of halogen and silicone materials.
Mechanical impact resistance grades IK08.
Key features
- 4-way junction box
- Connection: 3-Pole Screw
- Cable diameter: 6-13.5mm
- Conductor cross-sections: 0,5-6 mmq
- Linear Terminal Block Included
- IK08
- IP66/IP68 (5m/3h).
