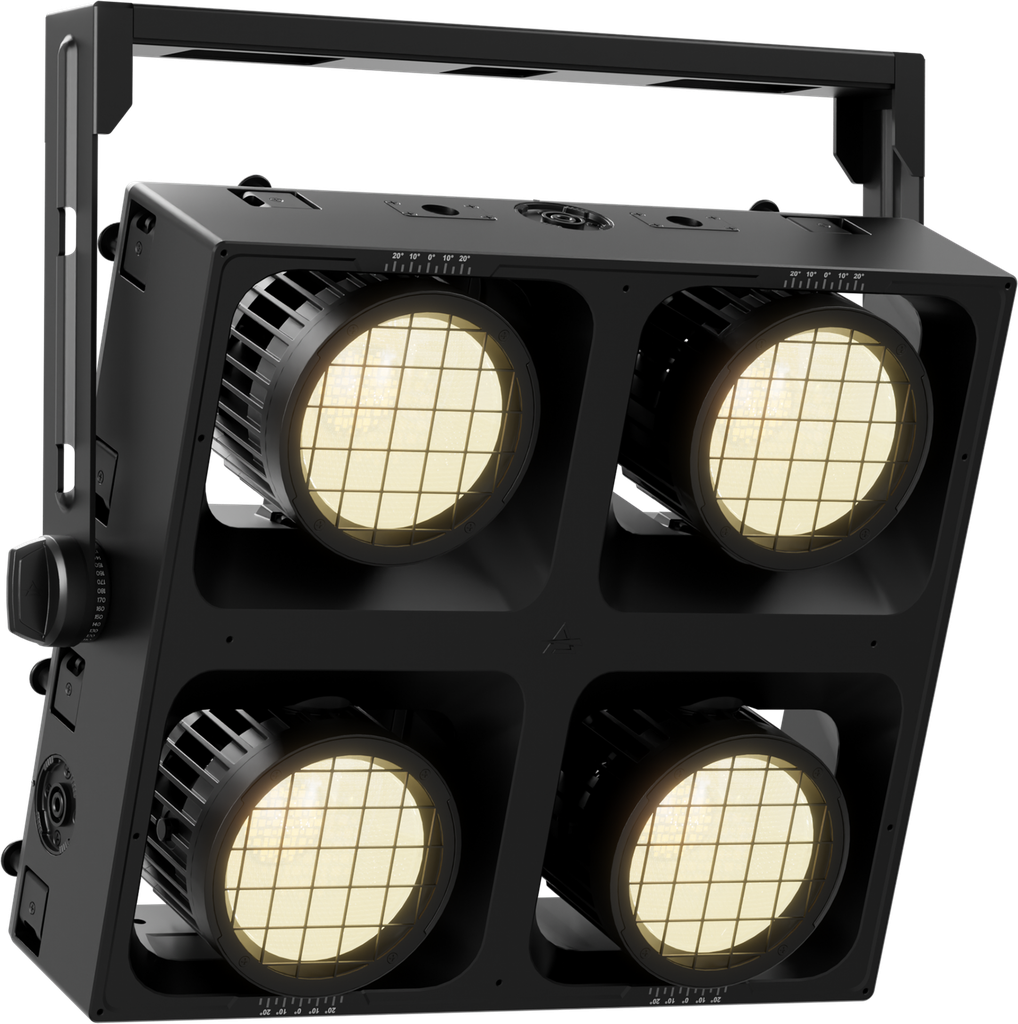

Prolights SUNRISE4FLXVW

IP65 modular LED blinder with 4x300W Variable White + Amber LED sources

QUOTE ONLY

Price on request

Add to wishlist

View on Manufacturer Website

SKU: SUNRISE4FLXVW

CATEGORY: Strobes, Pixels and Blinders

BRAND: Prolights

DELIVERY For orders above AED 1,000

WARRANTY 2 years

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

SunRise 4FLXVW reimagines the classic 4-lite blinder as a powerful, LED fixture with IP65-rated protection for reliable indoor and outdoor use.

Extreme output, precise CCT control, and authentic tungsten behaviour, indoors or outdoors.

Powered by 4 independent 300 W Variable White + Amber LED pods, it delivers over 67'000 lumens with smooth CCT control and natural dim-to-warm fidelity. Each pod offers ±20° manual pan, allowing precise beam orientation and balanced coverage exactly where it's needed.

Featuring the proven FLX modular mechanics, SunRise 4FLXVW is engineered for speed on site. The rugged die-cast magnesium housing and tool-free, fast-lock rigging let fixtures snap together horizontally, vertically, or in mixed-axis arrays. Build lines, matrices, or wide white-light walls in minutes, on the floor or flown with the included cam-lock yoke.

Designed for professionals who demand power, precision, and speed, SunRise 4FLXVW transforms modular lighting into a focused white-light performance tool.

IP65 modular LED blinder with 4 x 300 W Variable White + Amber, over 67'000 lumens

Fully tunable white light with authentic tungsten dim-to-warm emulation

Independent ±20° pan adjustment on each LED pod

Tool-free modular rigging, compatible with SunBlast FLX and SunRise 2FLX

SunRise 4FLXVW reimagines the classic 4-lite blinder as a powerful, LED fixture with IP65-rated protection for reliable indoor and outdoor use.

Extreme output, precise CCT control, and authentic tungsten behaviour, indoors or outdoors.

Designed for professionals who demand power, precision, and speed, SunRise 4FLXVW transforms modular lighting into a focused white-light performance tool.

Features:
IP65 modular LED blinder with 4 x 300 W Variable White + Amber, over 67'000 lumens
Fully tunable white light with authentic tungsten dim-to-warm emulation
Independent ±20° pan adjustment on each LED pod
Tool-free modular rigging, compatible with SunBlast FLX and SunRise 2FLX

LIGHT SOURCE

Source:

4 x 300
W

Variable White + Amber LED
Source CCT:

K

dedicated variable CCT channel (2700-6500 K)
Luminous flux:

67'740

@Full
Lux:

3'161
lx

@5 m full
CRI:

>97,5 @3.200 K - >95,7 @5.600 K
R9:

>87,2 @3.200 K - >84,3 @5.600 K
TLCI:

97 @3.200 K - 98 @5.600 K
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle:

52
°
Field angle:

95
°

COLOUR SYSTEM

Colour mixing:

tunable white
CCT:

CCT control range from 2.700K to 6.500K
Tungsten Emulation:

dimming with warm color shift simulation

DYNAMIC EFFECTS

Static mode:

selection of static dimmer and color temperature
Manual mode:

manual adjustment of dimmer and strobe

CONTROL

Supported Protocols:

DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX (optional)
DMX channels:

1 to 18
ch

modular and user-customizable DMX architecture (MCA)
Pixel control:

pixel2pixel control
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface

MOVEMENT

Pan:

+/- 20
°

with manual regulation

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

6

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

1000 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO (not included) or via Ethernet with DMX-Workshop

CONNECTIONS

Power connection:

Seetronic powerCON waterproof IN connector
Signal connection:

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection:

Seetronic IP65 Art-Net

RJ45 IN/OUT
EtherFlow:

Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

1'350
W
Output (at 230V):

2

units on a single power line
Standby power:

28 W
Power factor:

> 0,94

PHYSICAL

IP rating:

IP65 for temporary outdoor use
Cooling:

forced-air with low-noise fan
Housing:

Weatherproof IP65 construction with die-cast magnesium alloy
Finish:

black
Operating temperature:

Ta

-20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD):

542x489x191
mm
Weight:

15,9 kg
kg

INSTALLATION

Suspension and fixing:

hanging bracket for floor stand. Also can fit the fast quick lock OMEGA bracket
Bracket system:

Several brackets available for simply array mounting - see available accessories
Hardware on-board:

fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of multiple fixtures
Other:

pan directional adjustment for each pod
