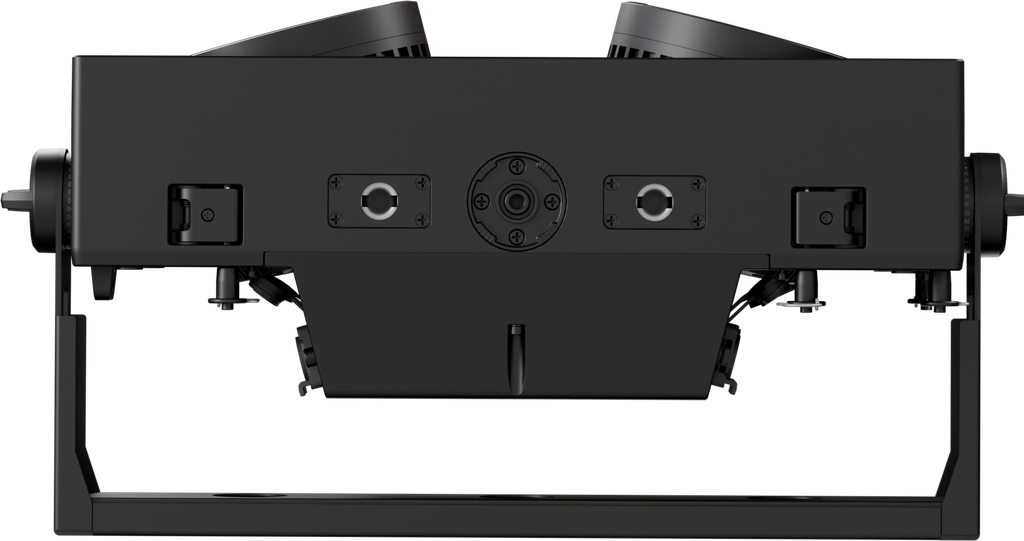

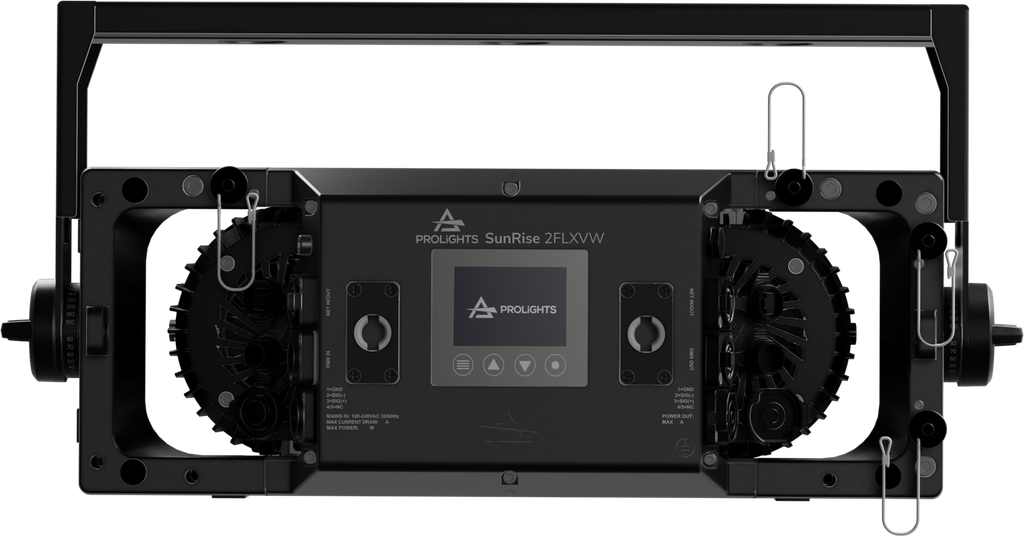

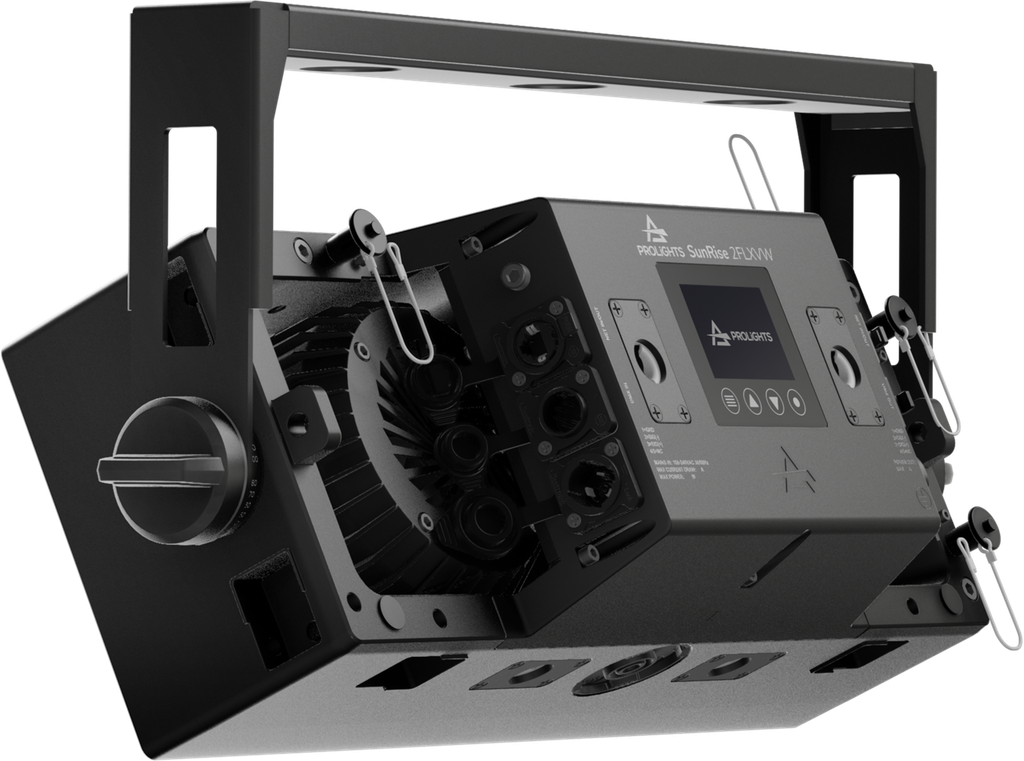

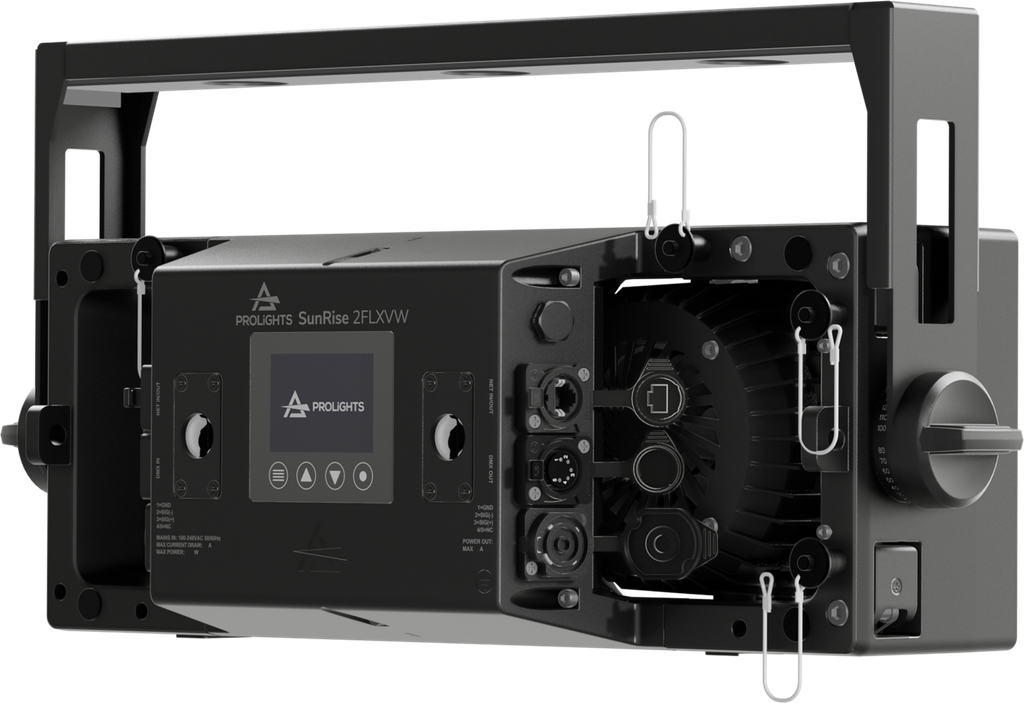

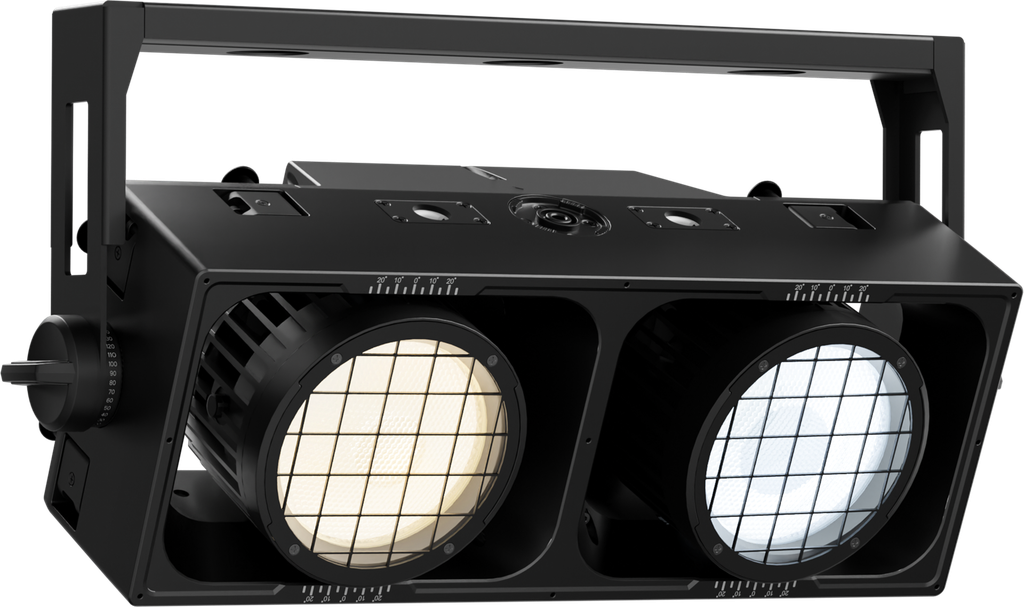

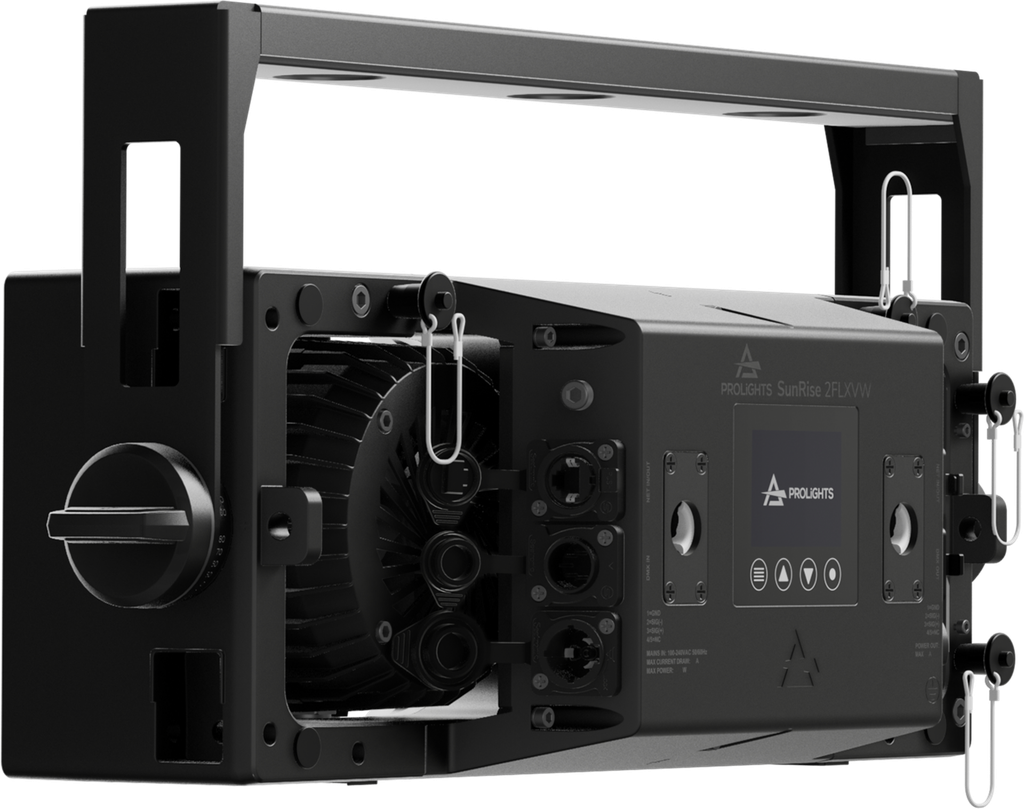

The Sunrise 2FLXVW is a versatile modular lighting fixture, combining the functionalities of a blinder, strobe, and washlight with high output, ideal for large-scale indoor and outdoor stages, thanks to its IP65 rating.
At the core of this fixture are 2x 300W Variable White + Amber LED sources, offering individual control and pan directional adjustment for each pod. This design enables the Sunrise 2FLXVW to deliver intense light flux with advanced CCT control. It excels in producing a fully tunable white light, effectively emulating the output and dim-to-warm characteristics of classic DWE lamps and incandescent fixtures.
The true strength of the Sunrise 2FLXVW is in its modular design. It is equipped with on-board fast-lock and tool-free mechanics on both vertical and horizontal axes. This flexibility allows for innovative rigging options, from creative fixture arrays on the floor to suspended configurations using the included yoke with camlocks. The Sunrise 2FLXVW's adaptability and powerful performance make it an exceptional choice for professionals seeking a more dynamic and creative blinder in their stages.
The Sunrise 2FLXVW is a versatile modular lighting fixture, combining the functionalities of a blinder, strobe, and washlight with high output, ideal for large-scale indoor and outdoor stages, thanks to its IP65 rating.
At the core of this fixture are 2x 300W Variable White + Amber LED sources, offering individual control and pan directional adjustment for each pod. This design enables the Sunrise 2FLXVW to deliver intense light flux with advanced CCT control. It excels in producing a fully tunable white light, effectively emulating the output and dim-to-warm characteristics of classic DWE lamps and incandescent fixtures.
The true strength of the Sunrise 2FLXVW is in its modular design. It is equipped with on-board fast-lock and tool-free mechanics on both vertical and horizontal axes. This flexibility allows for innovative rigging options, from creative fixture arrays on the floor to suspended configurations using the included yoke with camlocks. The Sunrise 2FLXVW's adaptability and powerful performance make it an exceptional choice for professionals seeking a more dynamic and creative blinder in their stages.
Features:IP65 modular LED blinder with 2x300W Variable White + Amber LED sources, delivering over 37,000 lumens
Tungsten emulation with dimm-to-warm emulation
Pan adjustment of each Pod and on board
Tool-free modular rigging mechanics on horizontal and vertical axes, fully compatible with Sunblast FLX
- Source:2 x 300WVariable White + Amber LED
- Source CCT:Kdedicated variable CCT channel (2700-6500 K)
- Luminous flux:37'184@Full
- Luminous flux:36'783lm @3.200 K - 36'074lm@5.600 K
- Lux:1'663lx@5 m full
- Lux:1'649lx @3.200 K - 1606lx @5.600 Klx@5 m
- CRI:>97 @3.200 K - >98 @5.600 K
- R9:>97 @3.200 K - >95 @5.600 K
- TLCI:98 @3.200 K - 99 @5.600 K
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:54°
- Field angle:93°
- Colour mixing:tunable white
- CCT:CCT control range from 2.700K to 6.500K
- Tungsten Emulation:dimming with warm color shift simulation
- White presets:2.700 K ~ 6.500K
- Static mode:selection of static dimmer and color temperature
- Manual mode:manual adjustment of dimmer and strobe
- Supported Protocols:DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX (optional)
- DMX channels:1 to 18chmodular and user-customizable DMX architecture (MCA)
- Pixel control:pixel2pixel control
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Pan:+/- 20°with manual regulation
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:6selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:1000 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO (not included) or via Ethernet with DMX-Workshop
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:IP65Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:IP65 Seetronic Art-NetRJ45 IN/OUT
- EtherFlow:Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):630W
- Output (at 230V):3units on a single power line
- Standby power:4,3 W
- Power factor:> 0,94
- IP rating:IP65 for temporary outdoor use
- Cooling:forced-air with low-noise fan
- Housing:Weatherproof IP65 construction with die-cast magnesium alloy
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):542x173x192mm
- Weight:9,9kg
- Suspension and fixing:hanging bracket for floor stand. Also can fit the fast quick lock OMEGA bracket
- Bracket system:Several brackets available for simply array mounting - see available accessories
- Hardware on-board:fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of multiple fixtures
- Other:pan directional adjustment for each pod
- Compliance:CE, RCM, FCC, cTUVus
