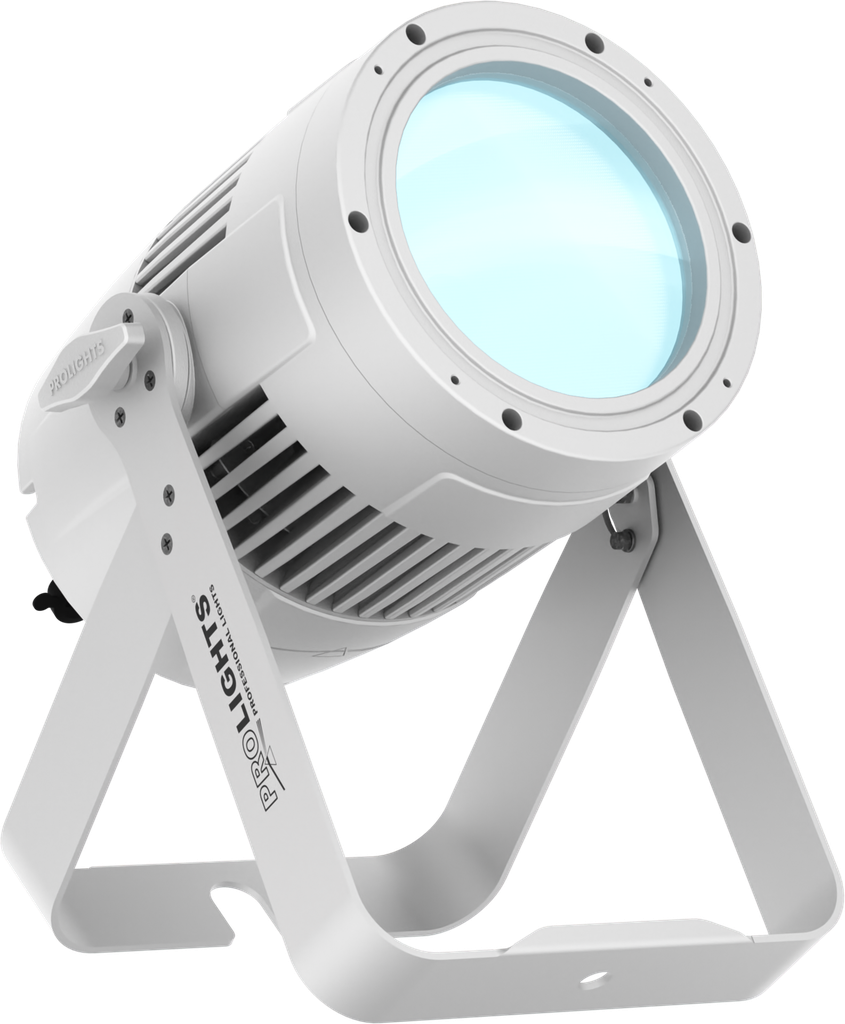

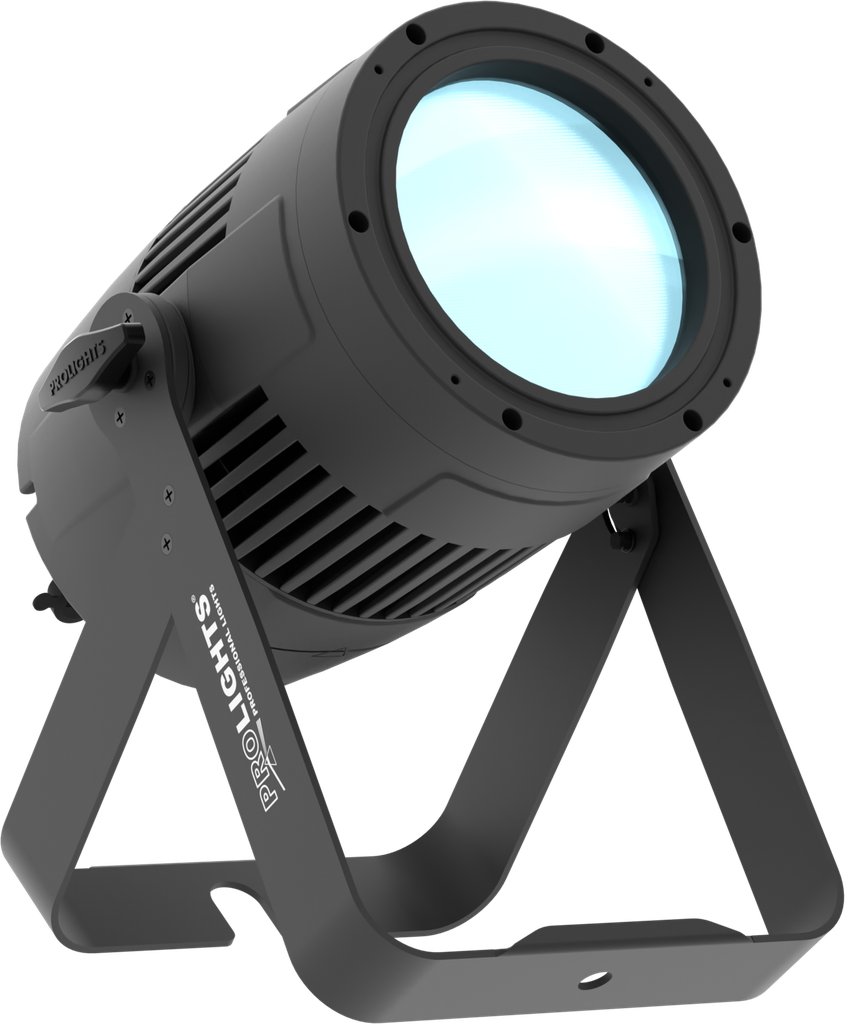

StudioCob PlusDY2 is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.
StudioCob PlusDY2 is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.
Features:IP65 rated connectors for easy use both indoor and outdoor
150W 5.000 K COB LED source with HD dimming and high CRI
Flexible lens options of 19° - 37° - 53,8°
LIGHT SOURCE
- Source:150WWhite COB LED
- Source CCT:5.100K
- Luminous flux:(19°) 9'822 lm; (37°) 8'595
- Lux:(19°) 2'337 lx; (37°) 600lx@5 m full
- CRI:> 83
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:(on-board) 19°, (inc) 37°, (opt) 53,8°
- Field angle:(on-board) 36,5°, (inc) 75,5°, (opt) 77,6°
- Lens type:parabolic reflector in combination with HD fresnel lens
- Additional optics:flood (without lens)
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512, RDM
- DMX channels:1 / 2 / 5ch
- Display:LCD high resolution colour display
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)

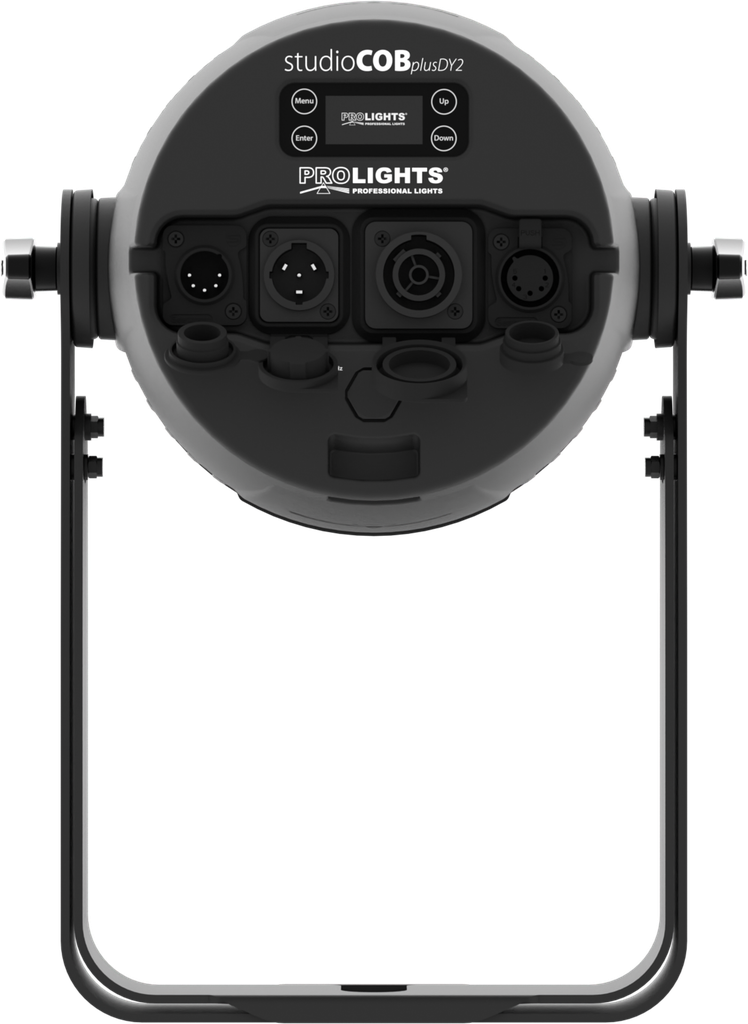

CONNECTIONS
- Power connection:Seetronic powerCON waterproof IN/OUT connectors
- Signal connection:Seetronic XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):165W
- Output (at 230V):15units on a single power line
- Power factor:> 0.96
PHYSICAL
- IP rating:IP65 for temporary outdoor use
- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):258x354x257mm
- Weight:4,95kg
INSTALLATION
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
