DISCONTINUED
This product is no longer part of our range.

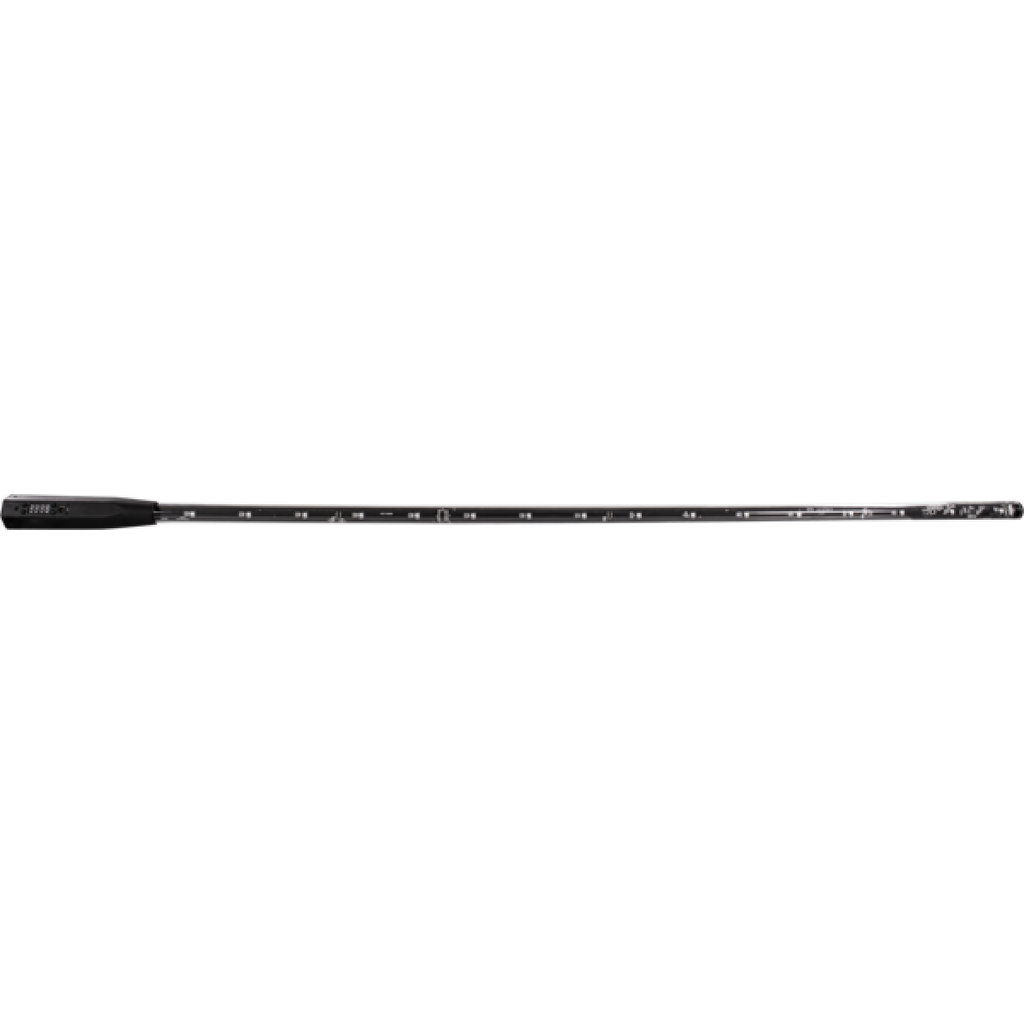

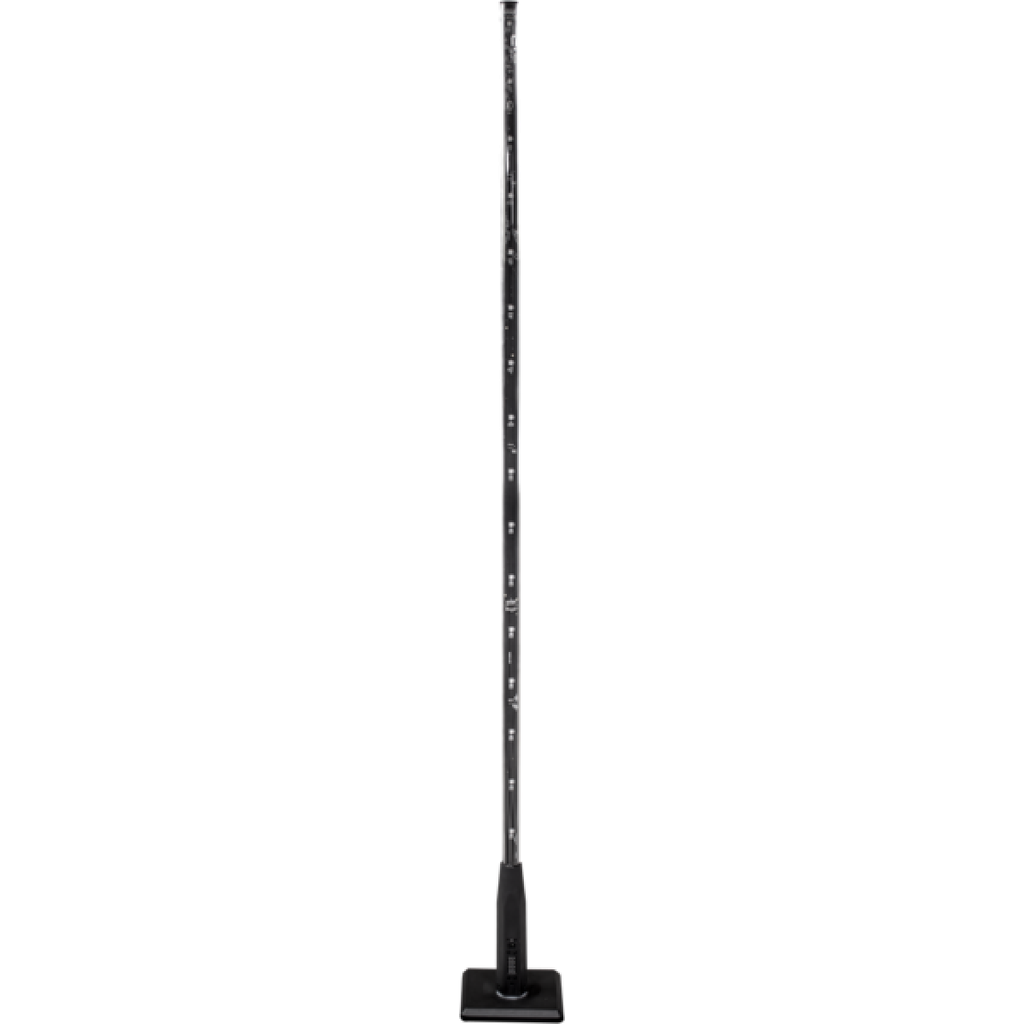

SMARTTUBE32 is a portable set of 4 acrylic LEDs tubes truly adding the 3rd dimension in the creation of visual shows through its tubular shapes and capacity to project at 360°. Each tube is equipped with 2 lines of 16 RGB / FC LEDs, a lithium integrated battery pack and a built-in Wi-Fi module for cable-free operation. LED technology allows these lights to create striking effects with dynamic colour changes and powerful, synchronised operations. The internal battery lasts 6 hours on full output while the charging time is only 4 hours. The transmission of the DMX signal is via Wi-Fi, the transmission unit WIFIBOX is compatible with any DMX controller or through the SmartColors app availabe on both IOS and Android.
Key features
- 32 SMD5050 RGB / FC high-efficiency LEDs
- Viewing angle: 360°
- Long lasting battery life: 10 h in colour changing mode / 6 h in full
- Wireless operated: through proprietary wireless DMX protocol or SmartColors App for IOS and Android devices
Specifications
| Source | 32 W RGB SMD5050 LED |
| Luminous flux | 128,4 |
| Lux | 14,8 lx @1 m full |
| Source life expectancy | > 50.000 h |
| Beam angle | 360° |
| Colour wheel | virtual colour wheel with macros |
| Macros | several pre-built pixel macros with adjustable speed |
| Static mode | selection of static colour |
| Manual mode | manual adjustment of colour |
| Auto mode | built-in programs with execution speed adjustment |
| Sound mode | music activation through internal microphone and sensitivity control |
| Supported Protocols | DMX512 |
| DMX channels | 3 / 8 / 48 / 50 ch |
| Pixel control | pixel2pixel control |

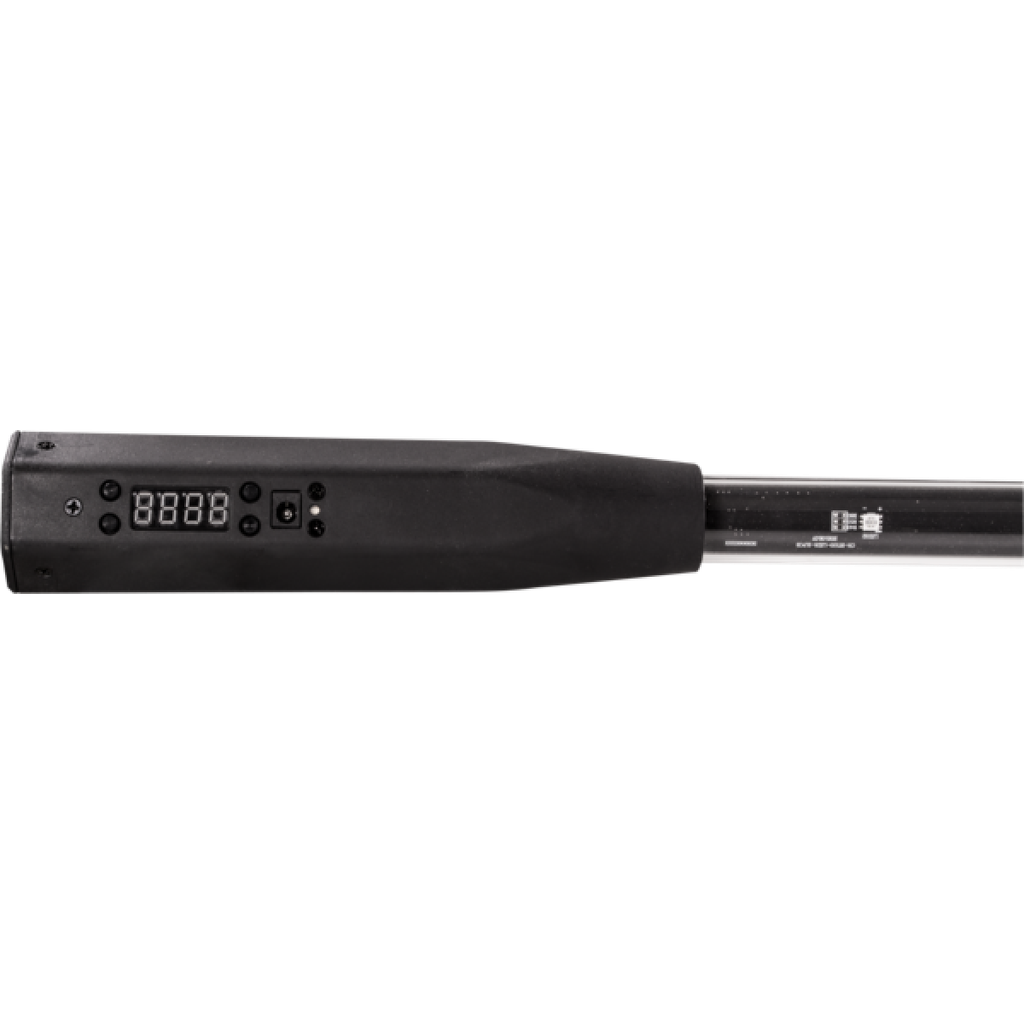

| Display | LED display user interface |
| IR | infrared sensor controlled by remote |
| Dimmer | linear 0 - 100% electronic dimmer |
| Strobe / shutter | 1 - 28 Hz, electronic |
| Battery | 11,1 V lithium |
| Battery life in colour change mode up to | 8 h |
| Battery life in single colour mode up to | R 9,5 h / G 9 h / B 9 h |
| Battery life in full-mode up to | 6 h |
| Recharge connection | power cable |
| Recharge time | 4 h (max) |
| Power connection | IEC IN/OUT connectors |
| Wireless Connection | integrated WIBOX, WDBOX proprietary protocol |
| Mains power supply | DC 15V |
| Max power consumption (230V) | 4,1 W |
| IP rating | IP20 |
| Housing | Acrylic tube, black PCB |
| Finish | black |
| Dimensions (WxHxD) | 160x1520x160 mm |
| Weight | 1,3 kg |
| Compliance | CE, UKCA |
