Prolights SMARTBATPG2PACK

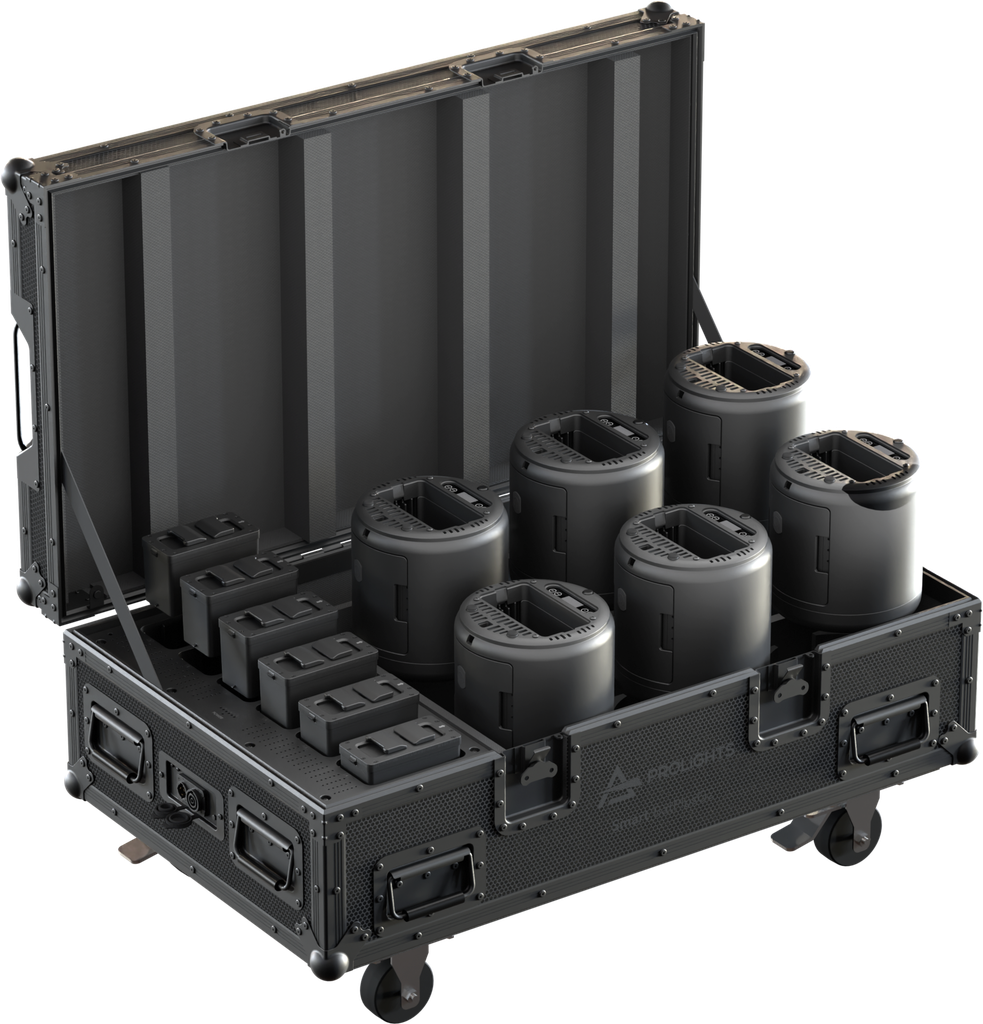

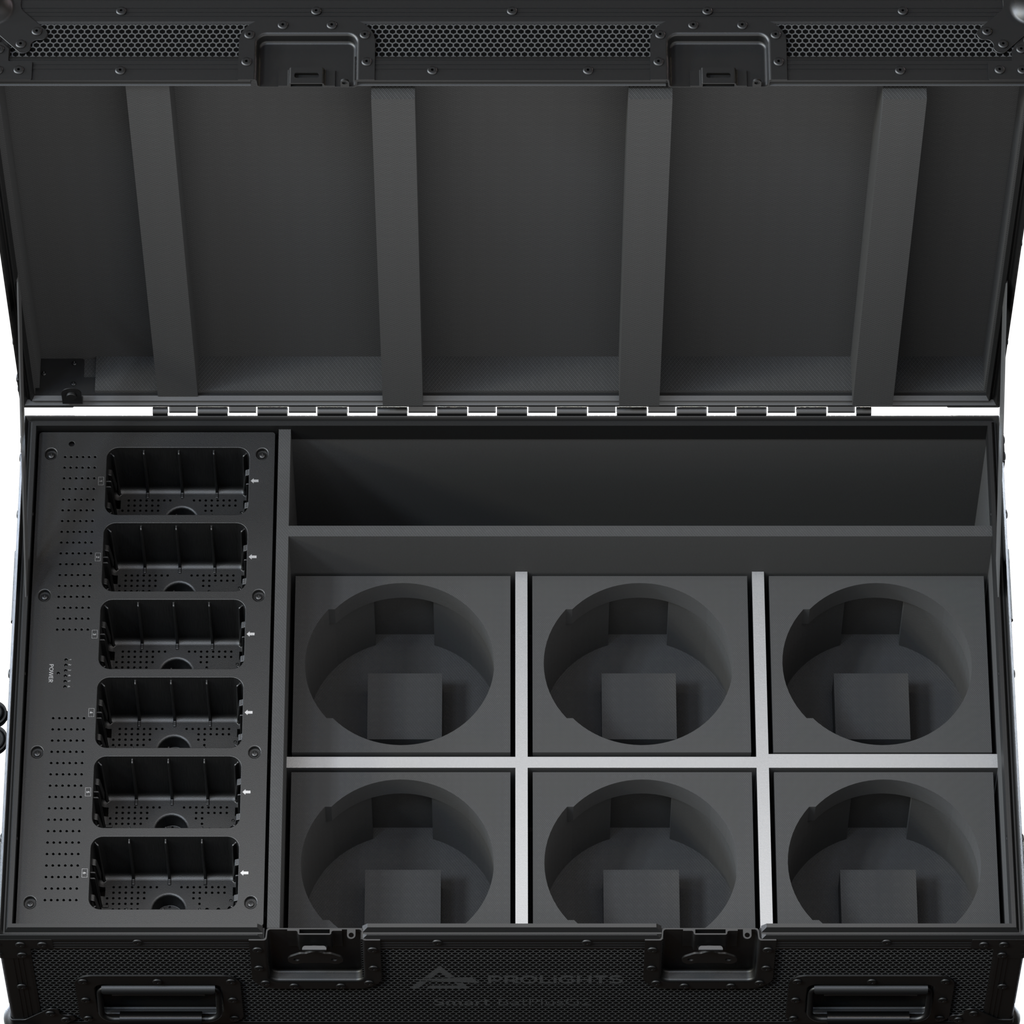

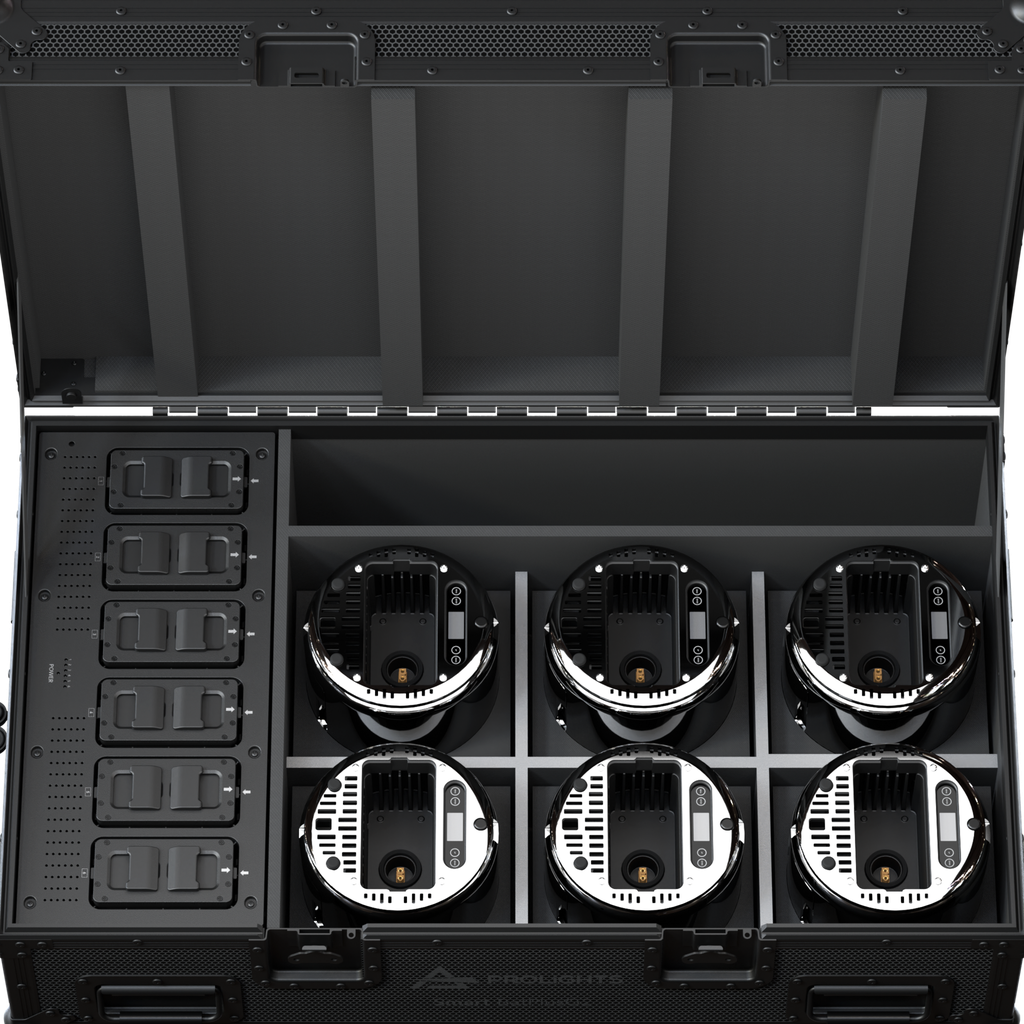

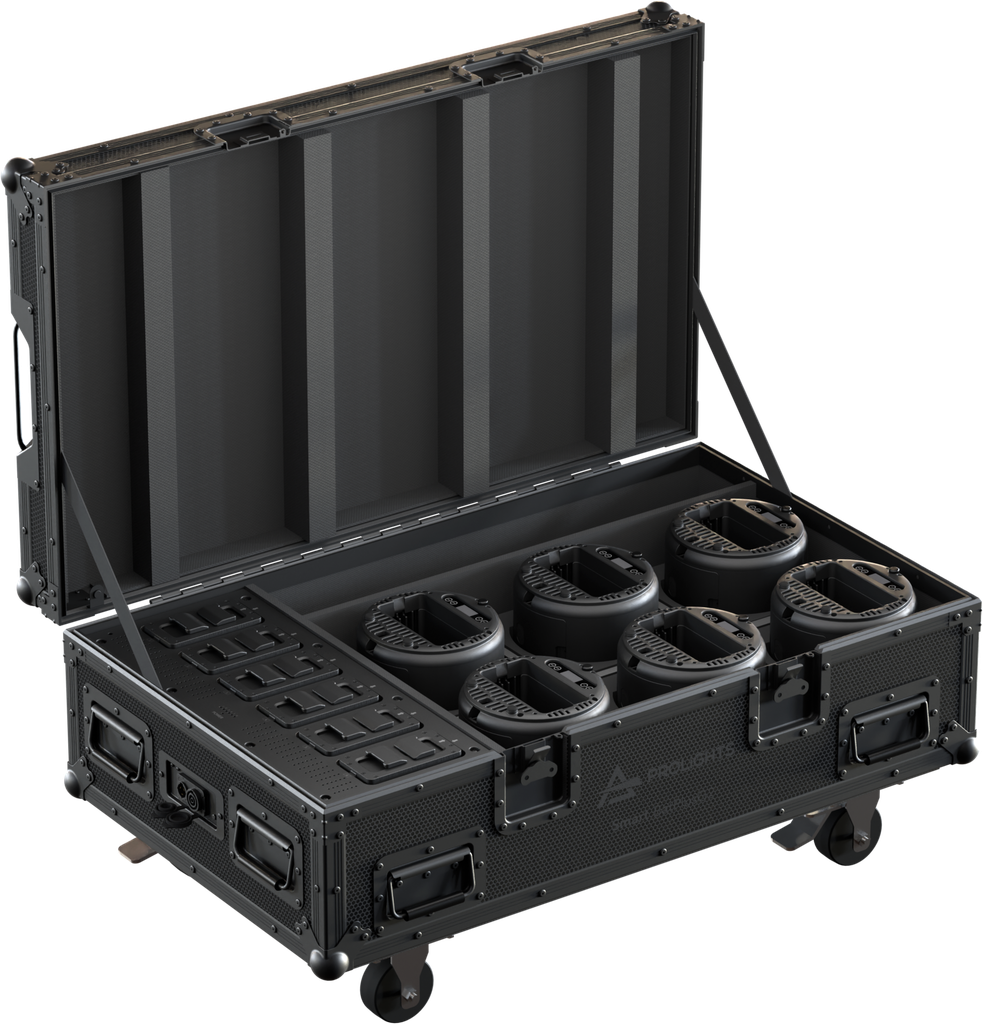

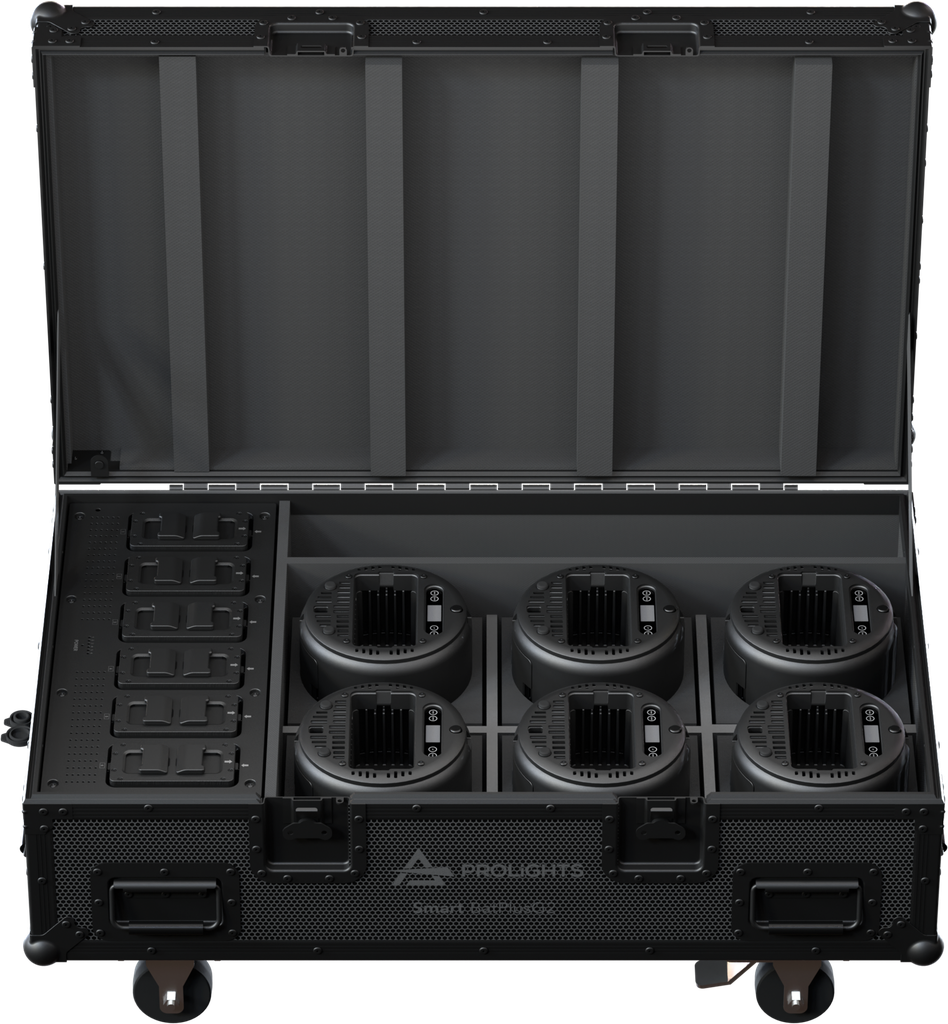

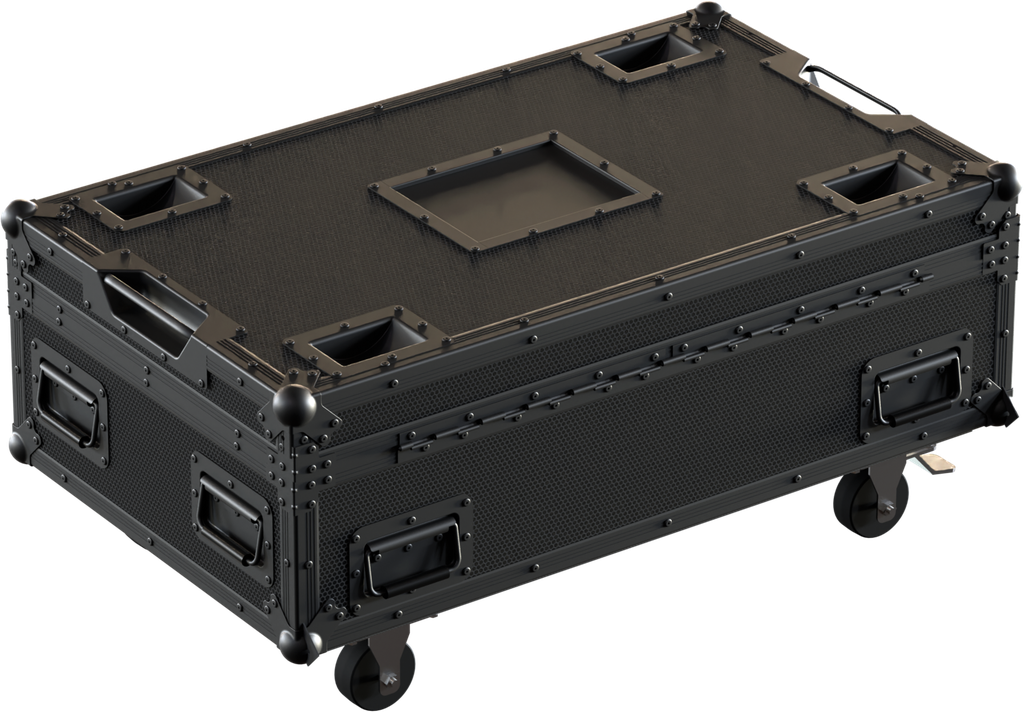

Kit of 6 x SMARTBATPLUSG2, batteries and DC charger for 6 batteries included

QUOTE ONLY

Add to wishlist

View on Manufacturer Website

SKU: SMARTBATPG2PACK

CATEGORY: Battery Operated

BRAND: Prolights

DELIVERY For orders above AED 1,000

WARRANTY 2 years

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

The Smart BatPlusG2 is a high-end version of the iconic Smart Bat uplighters designed with enhanced output and battery performance, IP65 with a stunning new look.

The clever mechanical design of the Smart BatPlusG2 allows turning the unit from an uplighter into a spot/flood light by combining filters, using the suspension yoke or floor bracket without compromising the aesthetics of the fixture.

The Smart BatPlus G2 introduces new features such as interchangeable batteries and easy covers with multiple colours, making it possible to change its look as desired.

The 4x20W RGB + Warm White LED emitters are Spektra™ calibrated and guarantee incredibly high-quality white CCT reproduction (CRI>93) and boosted output when operated directly through mains.

The Smart BatPlusG2 is very user-friendly - it can be used wirelessly with a built-in battery, CRMX/W-DMX and RDM control, or wired through the PSU and XLR connectors (bypassing the battery).

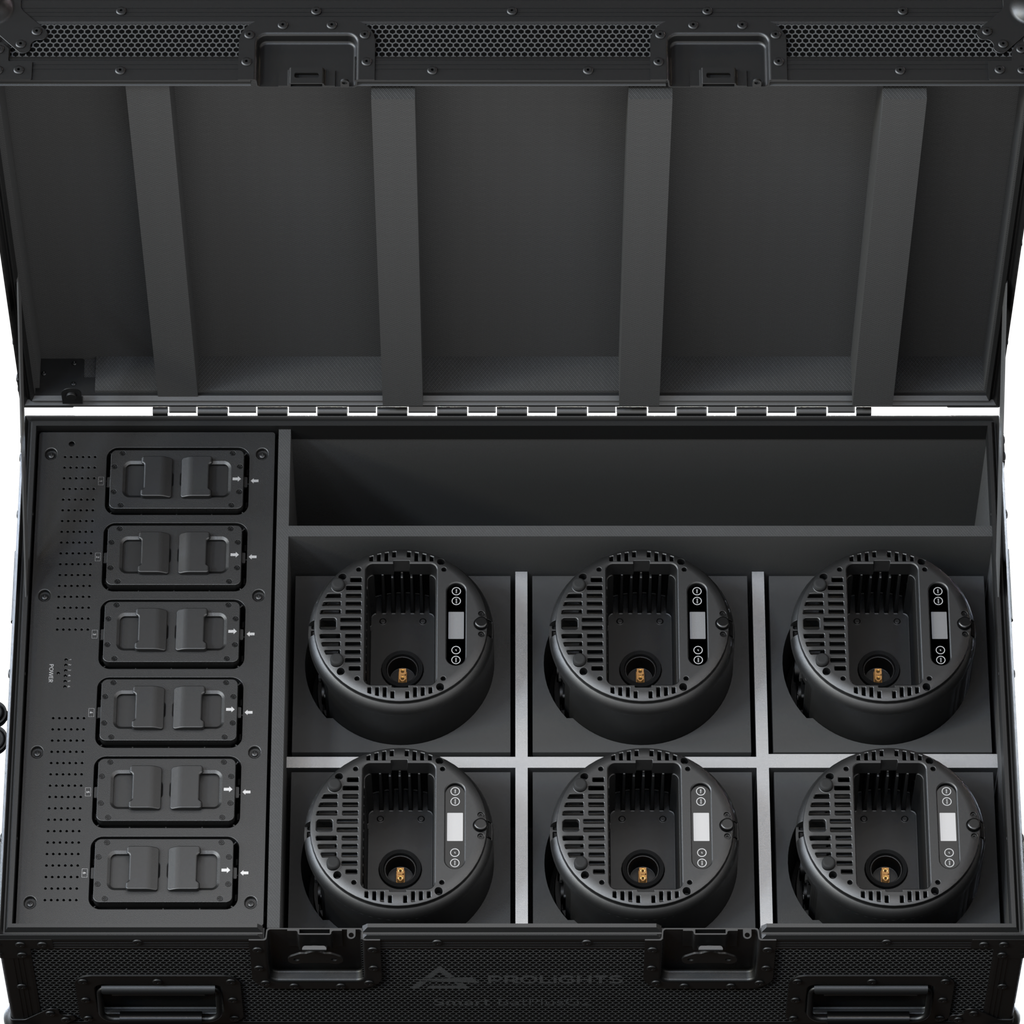

The pack includes:
- 6 x SMARTBATPLUSG2 (including 1 x filter frame, 1 x half top hat, 1 x SBPG2BAT, 1 x connector cover plate)

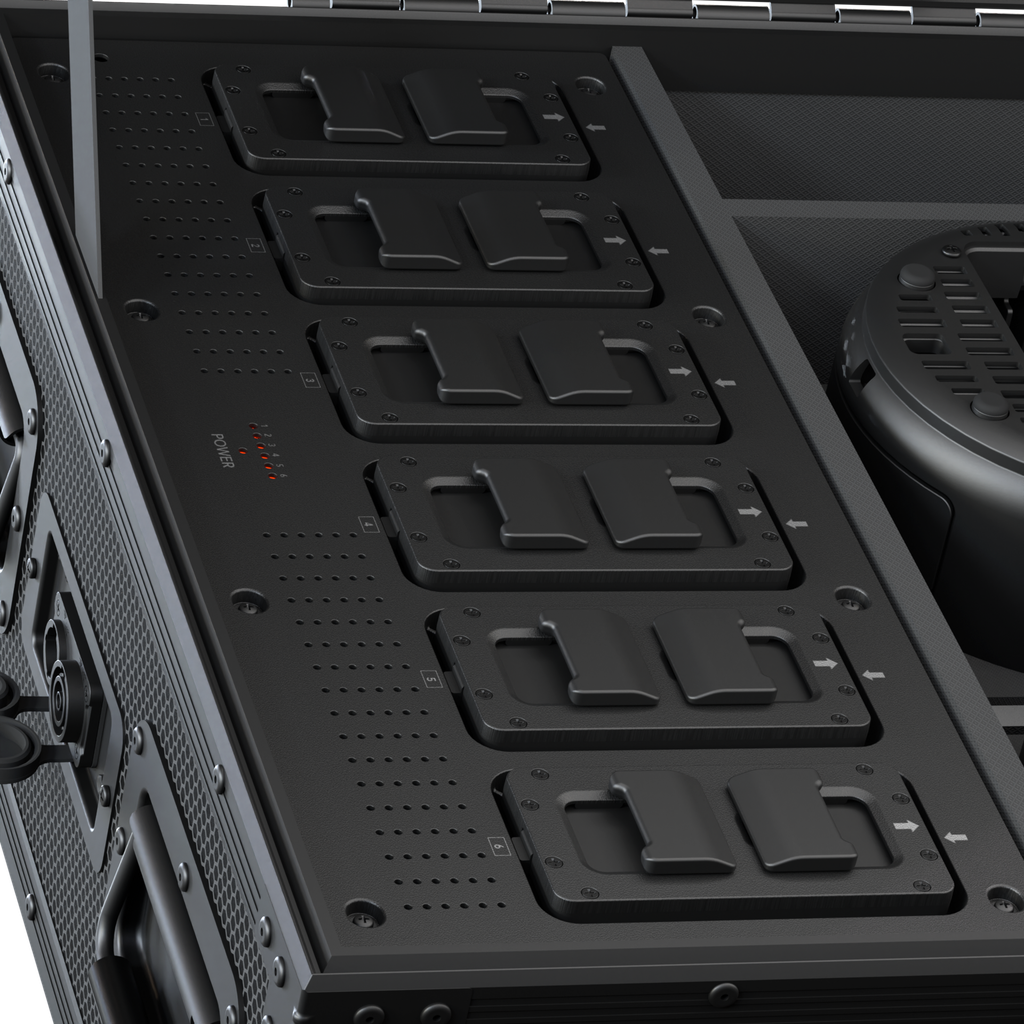

- 6 slot battery recharge
- power cable Neutrik powerCON TRUE1 IN - bare end
- user manual

Multipurpose design: uplighter/spotlight, customizable colored covers

Wireless DMX (CRMX+W-DMX) / wired control, battery/PSU power

4x20W RGB + Warm White calibrated LED source with high CRI (>93)

Interchangeable battery and magnetic holographic filters for multiple beam angles

The Smart BatPlusG2 is a high-end version of the iconic Smart Bat uplighters designed with enhanced output and battery performance, IP65 with a stunning new look.

The Smart BatPlus G2 introduces new features such as interchangeable batteries and easy covers with multiple colours, making it possible to change its look as desired.

The 4x20W RGB + Warm White LED emitters are Spektra™ calibrated and guarantee incredibly high-quality white CCT reproduction (CRI>93) and boosted output when operated directly through mains.

The Smart BatPlusG2 is very user-friendly - it can be used wirelessly with a built-in battery, CRMX/W-DMX and RDM control, or wired through the PSU and XLR connectors (bypassing the battery).

Features:
Multipurpose design: uplighter/spotlight, customizable colored covers
Wireless DMX (CRMX+W-DMX) / wired control, battery/PSU power
4x20W RGB + Warm White calibrated LED source with high CRI (>93)
Interchangeable battery and magnetic holographic filters for multiple beam angles

LIGHT SOURCE

Source:

4x20
W

RGB + Warm White LED
Luminous flux:

3'102

@Full
Lux:

1'723
lx

@5 m without filter
CRI:

94 @3.200 K; 92 @5.600 K
R9:

96 @3.200 K; 96 @5.600 K
TLCI:

92 @5.600 K
TM30 Rf:

93 @3.200 K; 91 @5.600 K
TM30 Rg:

105 @3.200 K; 106 @5.600 K
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

10
°
Additional optics:

filters to achieve 20°, 40°, 60°, 10°x60°

COLOUR SYSTEM

Colour mixing:

RGBWW
CCT:

CCT control through dedicated DMX channel
White presets:

2'800K - 10'000
K
Colour wheel:

virtual colour wheel with macros
Macros:

built-in white presets

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer and color control
Static mode:

selection of static colour
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM, CRMX + WDMX
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
IR:

infrared sensor controlled by remote
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

BATTERY

Battery:

removible 21,6
V

lithium
Estimated battery life:

up to 3 / 6 / 8 / 12 / 16 / 18 h (selectable)
Recharge connection:

Battery Pack fast-charge in Case
Recharge time:

4
h (max)
Battery level indicator:

shown on display
Other:

Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through the quick charger connector

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

IP65

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
