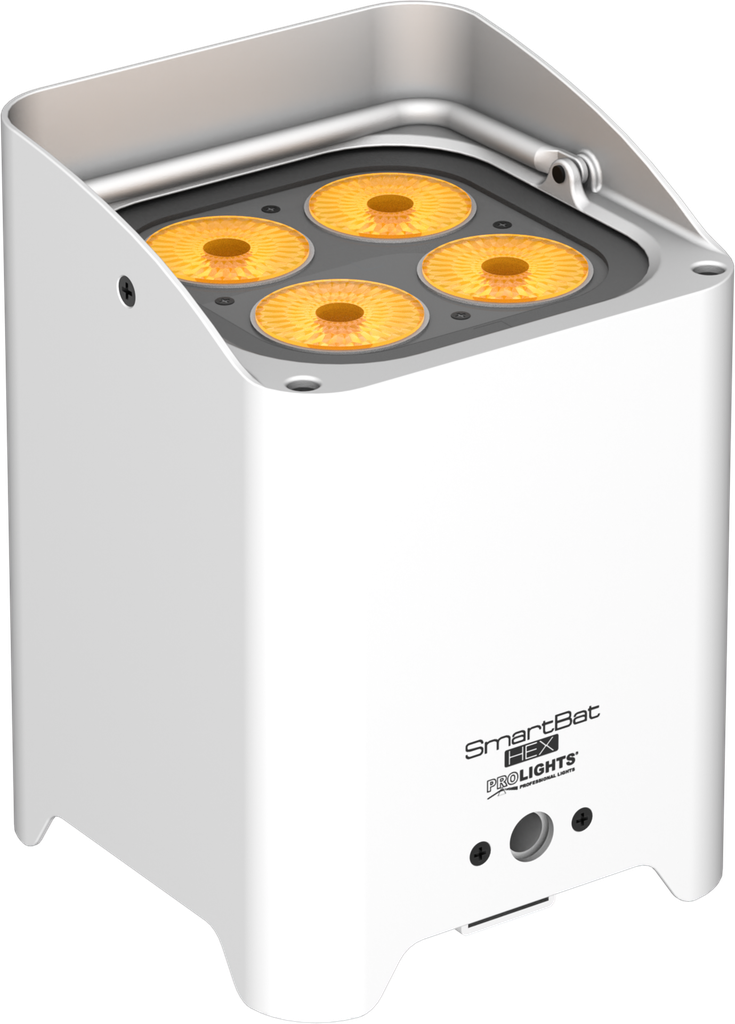

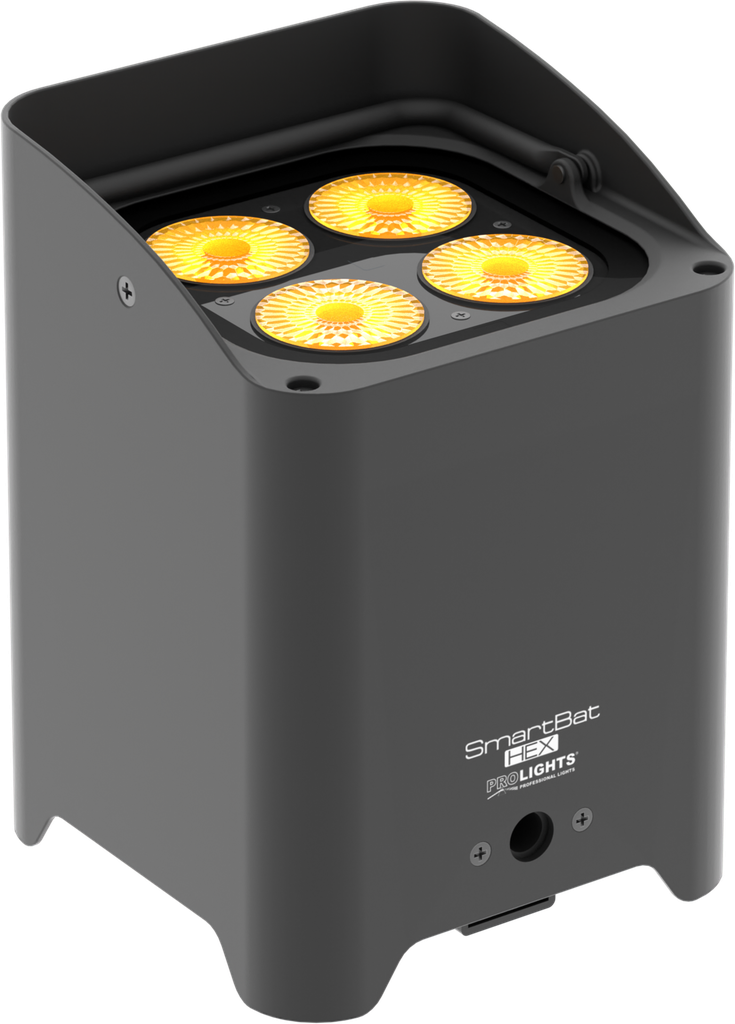

Smart BatHEX is a wireless luminaire designed to compleely change the rules in the field of battery operated fixtures for event lighting, merging performance and good-design in a compact size and price that makes it affordable for every kind of event. It can be remotely controlled through proprietary wireless DMX protocol, the SmartColors mobile spp or through the IR controller - making it suitable for users of all levels.
Smart BatHEX is a wireless luminaire designed to compleely change the rules in the field of battery operated fixtures for event lighting, merging performance and good-design in a compact size and price that makes it affordable for every kind of event. It can be remotely controlled through proprietary wireless DMX protocol, the SmartColors mobile spp or through the IR controller - making it suitable for users of all levels.
Features:Wireless operated: through proprietary wireless DMX protocol or the SmartColors app (IOS and Android devices)
Long lasting battery life: 12h in colour changing mode / 8 h in FULL
Available in black or white

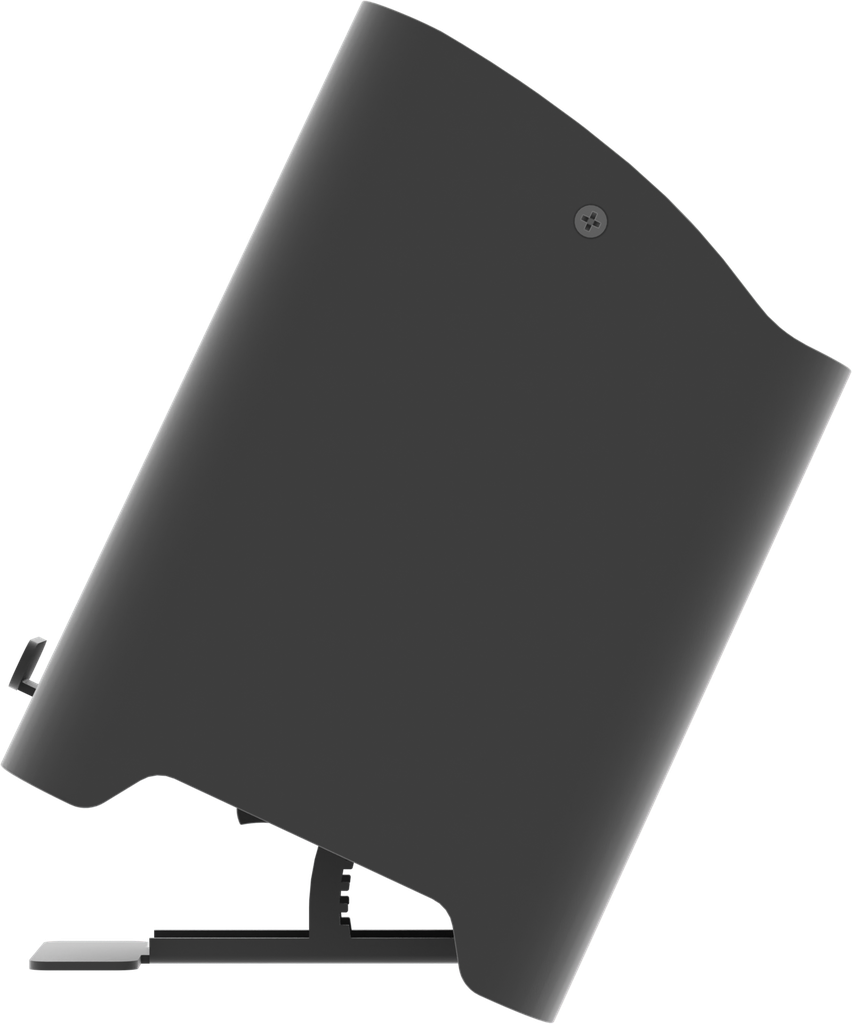

Adjustable foot support for tilt regulation (up to 20°)
- Source:4x12WRGBWAP LEDs
- Luminous flux:1'007
- Lux:805,5lx@3 m full
- Source life expectancy:> 50.000 h
- Beam angle:23°
- Lens diameter:42mm
- Additional optics:25° and 45° optional
- Colour mixing:RGBWAP / FC
- White presets:3.200 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:built-in white presets
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Sound mode:music activation through internal microphone and sensitivity control
- Supported Protocols:DMX512
- DMX channels:6 / 8 / 12ch

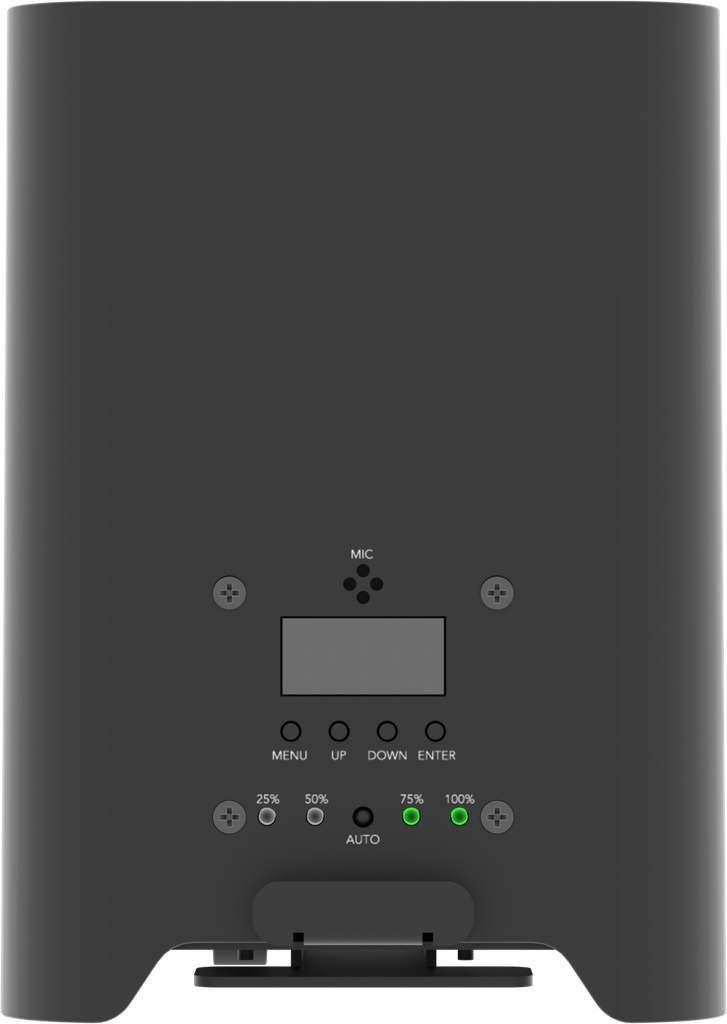

- Display:LED display user interface
- IR:infrared sensor controlled by remote
- Master/Slave:for synchronised operation of more units linked in a chain
- Tilt:(up to) 20°with adjustable foot support
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 25Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Battery:24Vlithium
- Battery life in colour change mode up to:12h
- Battery life in full-mode up to:8h
- Recharge connection:power cable
- Recharge time:5h (max)
- Battery level indicator:LED battery status indicator

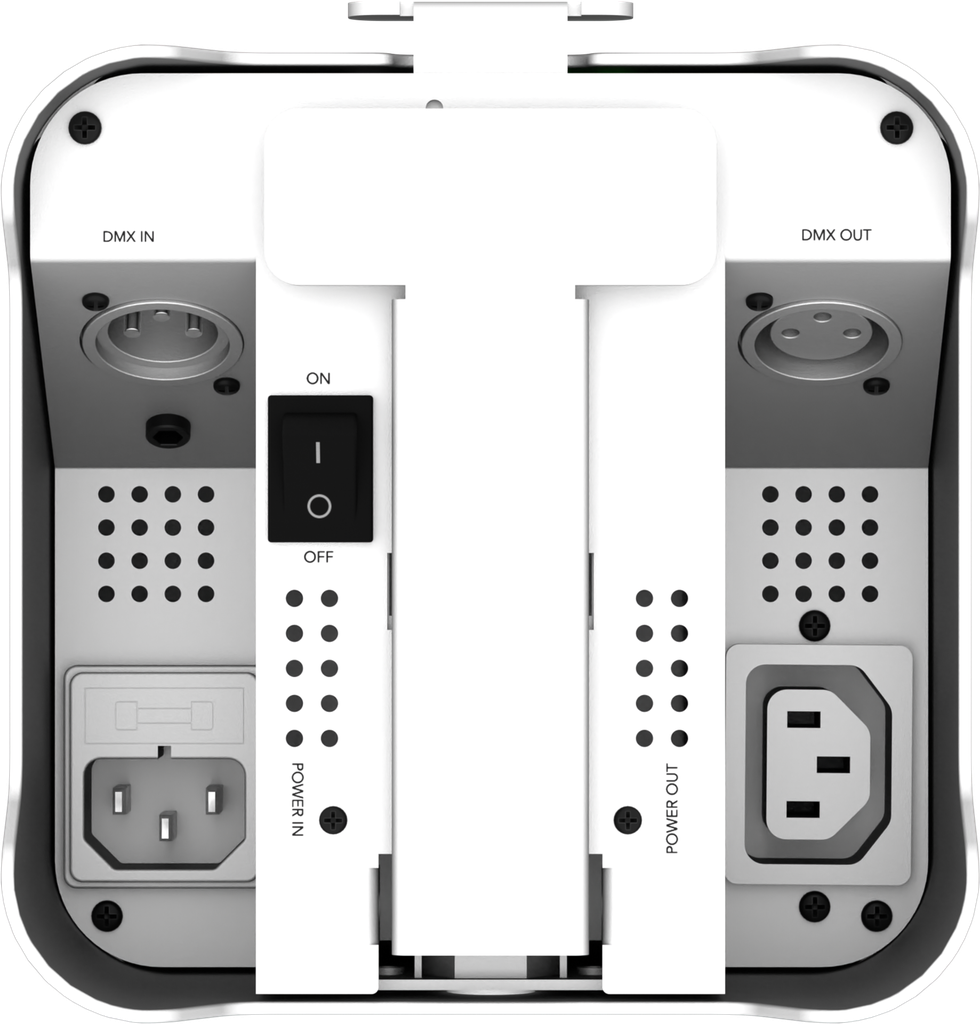

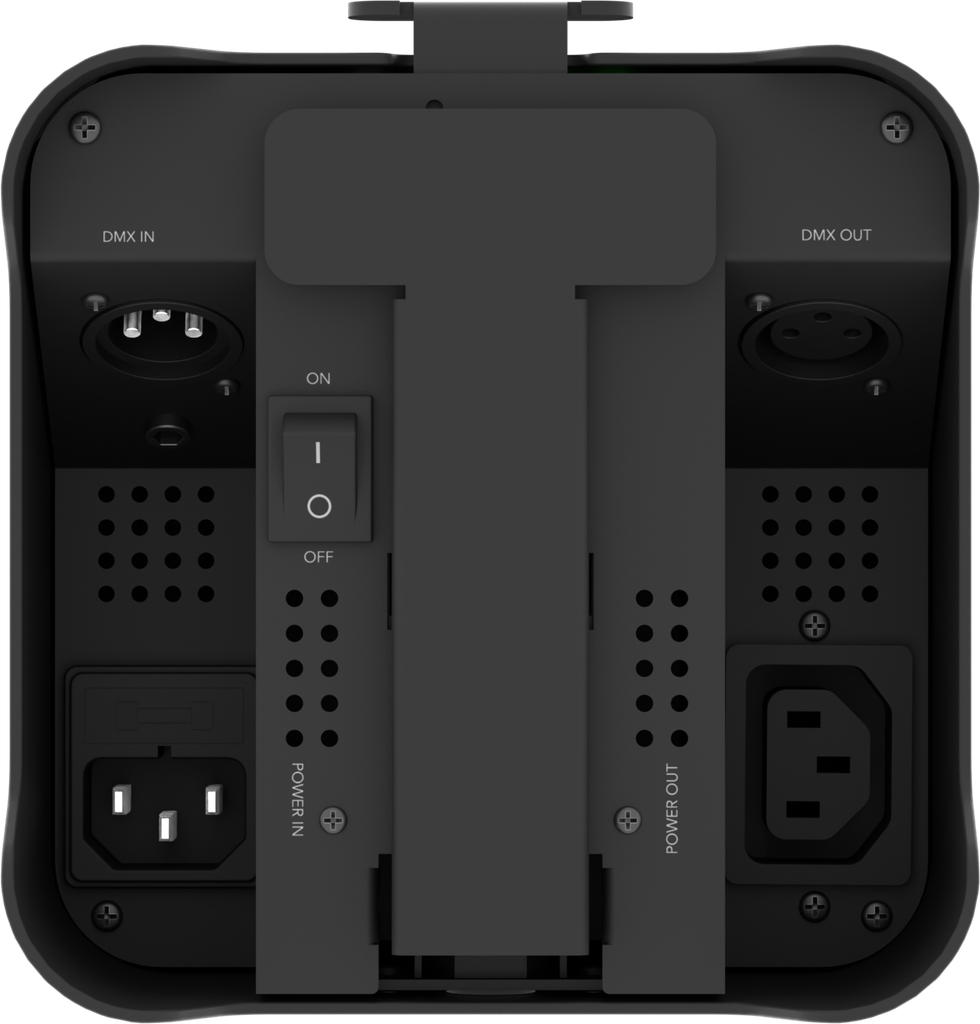

- Power connection:IEC IN/OUT connectors
- Signal connection:XLR 3p IN/OUT connectors
- Wireless Connection:integrated WIBOX, WDBOX proprietary protocol
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):35W
- Max power consumption (120V):36W
- IP rating:IP33
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black or white finishing
- Operating temperature:Ta0 to +40 °C (+32 to +104 °F)
- Dimensions (WxHxD):138x186x145mm
- Weight:3,4kg
- Compliance:CE, UKCA, RCM
