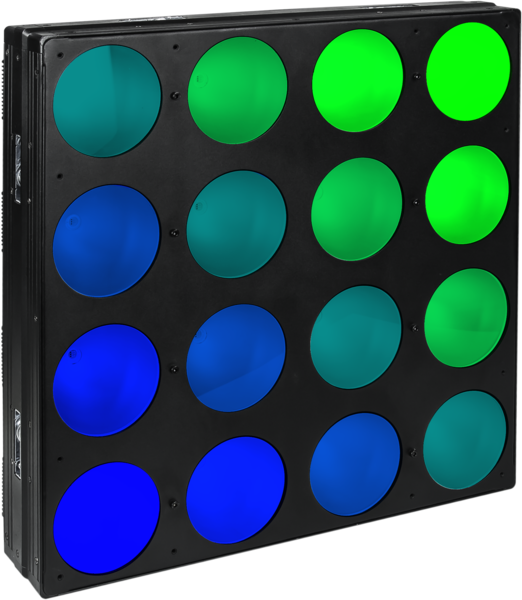

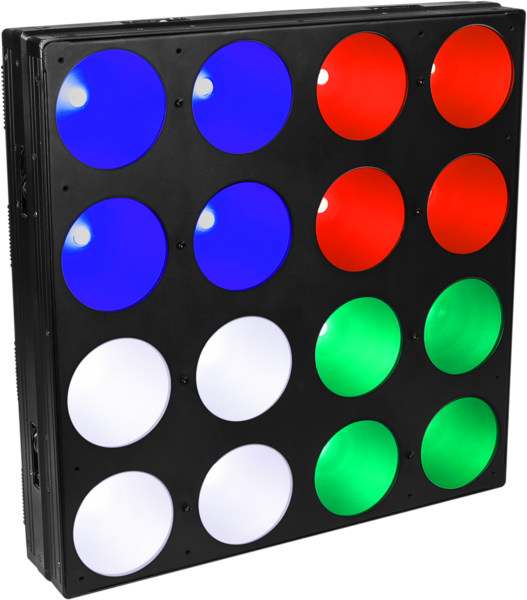

PIXPAN16 is a LED matrix consisting of 16x30 W RGB / FC COB LEDs, conceived to revolutionize the concept of pixel-control applied to lighting by LED sources.
The special optics reflectors in combination with 30 W COB (chip-on-board) LEDs give PIXPAN16 an unprecedented light output capable of impressing and dazzling the audience. Mechanical components of PIXPAN16 consist of locks and coupling inserts, allowing a highly versatile use in suspension on truss, stacked on the floor or in low-res LED wall composition.
PIXPAN16 is a LED matrix consisting of 16x30 W RGB / FC COB LEDs, conceived to revolutionize the concept of pixel-control applied to lighting by LED sources.
The special optics reflectors in combination with 30 W COB (chip-on-board) LEDs give PIXPAN16 an unprecedented light output capable of impressing and dazzling the audience. Mechanical components of PIXPAN16 consist of locks and coupling inserts, allowing a highly versatile use in suspension on truss, stacked on the floor or in low-res LED wall composition.
16(4x4 matrix)x 30W COB RGB / FC LEDs
LED + parabolic reflector featuring wide beam coverage like classic DWE lamps
Pixel control: individual control of each single LEDs
Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background colours, dimmer fade, speed and rotation
- Source:16x30WRGB COB LED
- Luminous flux:5'251
- Lux:827lx@3 m full
- Source life expectancy:> 30.000 h
- Beam angle:47°
- Field angle:79°
- Pixel pitch:115mm
- Lens type:parabolic reflector in combination with HD fresnel lens
- Colour mixing:RGB / FC
- White presets:2.800 K -10.000K
- Colour wheel:virtual colour wheel with macros
- Pixel patterns:pre-programmed static and dynamic patterns
- FX generator:adjustable foreground/background colour, index, speed, direction
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Sound mode:music activation through internal microphone and sensitivity control
- Supported Protocols:DMX512
- DMX channels:3 / 5 / 7 / 48ch
- Pixel control:pixel2pixel control
- Display:LCD display
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 25Hz, electronic

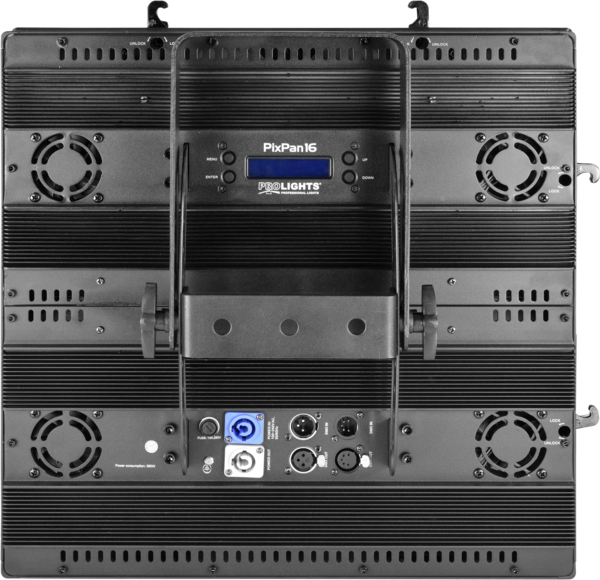

- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:DMX 3p + 5p IN/OUT
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):390W
- Output (at 230V):5units on a single power line
- IP rating:IP44
- Cooling:forced-air with low-noise fan
- Housing:Sturdy aluminium profile
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):460x460x360mm
- Weight:8kg
- Suspension and fixing:bracket for truss rigging and hardware for connection of more units
- Hardware on-board:on board mechanics for rigging to the ceiling
- Compliance:CE, UKCA
