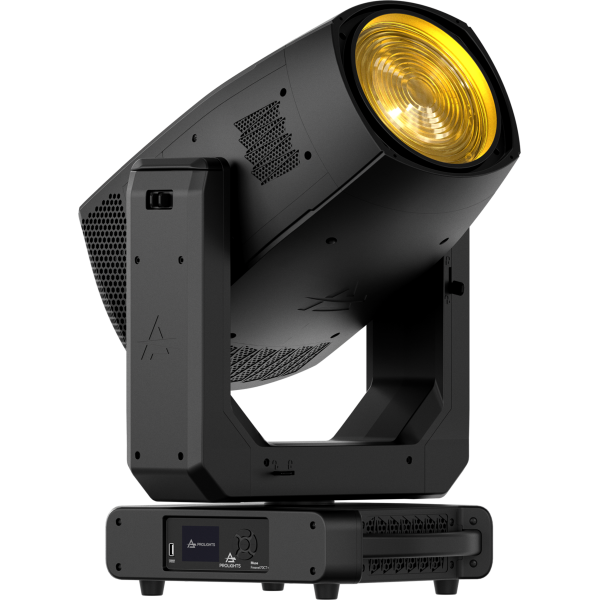

Prolights Muse Fresnel70CT+

The Muse Fresnel70CT+ is a purpose-designed moving Fresnel, engineered from the ground up rather than adapted from a profile platform. It is an ideal moving key light for theatre and TV applications. Drawing on the optical tray of the PROLIGHTS static LED Fresnel range, it combines a 1,500 W-rated 6-colour LED engine, operated at 1,000 W to ensure consistent output over time and boosted colors , with a 200 mm (8") Fresnel lens, delivering up to 29,000 lm.

The result on stage is authentic Fresnel behaviour: a single, clean shadow with a clear cut and the natural fall-off of an 8 kW tungsten unit - only here, every feature is remote. A motorised 10°-60° zoom, a 4-blade internal framing system with blade swivel and module rotation, an indexed rotating ovalizer, linear frost and a motorised iris give complete control over beam shape, all working in combination.

Colour is driven by Spektra OS, so the fixture works seamlessly alongside the Muse Profile70CT+ and the PROLIGHTS CT+ static range, for consistent colour across the rig. A linear CCT channel from 2'200K to 15'000K, plus/minus green tint, gel and tungsten emulation, and a dedicated 5-filter colour wheel extend the palette beyond the native gamut.

Light quality is engineered for camera and key-light work, with CRI up to 99, R9 up to 97 and TLCI up to 97, 16-bit dimming and a choice of dimming curves. Absolute encoders on pan and tilt allow reset without movement - ideal when rigged inside a limited set.

With Silent and Fan-Off modes, full connectivity - DMX, RDM, Art-Net, sACN and built-in CRMX, plus the EtherFlow pass-through Ethernet switch - and a compact 29 kg body, the Muse Fresnel70CT+ delivers the power, precision and refinement demanded by high-end theatre, TV and film productions.

1000W 6-colour LED source, with 200 mm Fresnel lens and up to 29'000 lm

Authentic Fresnel behaviour with single clean shadow, natural fall-off and motorised 10°-60° zoom

Advanced beam shaping with 4-blade framing system, indexed rotating ovalizer, frost, iris and colour wheel

Premium light quality with CRI up to 99, R9 up to 97, TLCI up to 97 and silent operation

Absolute pan and tilt encoders enabling stationary reset, instant position recovery after power cycles and precise repeatability in live and studio environments

The Muse Fresnel70CT+ is a purpose-designed moving Fresnel, engineered from the ground up rather than adapted from a profile platform. It is an ideal moving key light for theatre and TV applications. Drawing on the optical tray of the PROLIGHTS static LED Fresnel range, it combines a 1,500 W-rated 6-colour LED engine, operated at 1,000 W to ensure consistent output over time and boosted colors , with a 200 mm (8") Fresnel lens, delivering up to 29,000 lm.

The result on stage is authentic Fresnel behaviour: a single, clean shadow with a clear cut and the natural fall-off of an 8 kW tungsten unit - only here, every feature is remote. A motorised 10°-60° zoom, a 4-blade internal framing system with blade swivel and module rotation, an indexed rotating ovalizer, linear frost and a motorised iris give complete control over beam shape, all working in combination.

Colour is driven by Spektra OS, so the fixture works seamlessly alongside the Muse Profile70CT+ and the PROLIGHTS CT+ static range, for consistent colour across the rig. A linear CCT channel from 2'200K to 15'000K, plus/minus green tint, gel and tungsten emulation, and a dedicated 5-filter colour wheel extend the palette beyond the native gamut.

Light quality is engineered for camera and key-light work, with CRI up to 99, R9 up to 97 and TLCI up to 97, 16-bit dimming and a choice of dimming curves. Absolute encoders on pan and tilt allow reset without movement - ideal when rigged inside a limited set.

With Silent and Fan-Off modes, full connectivity - DMX, RDM, Art-Net, sACN and built-in CRMX, plus the EtherFlow pass-through Ethernet switch - and a compact 29 kg body, the Muse Fresnel70CT+ delivers the power, precision and refinement demanded by high-end theatre, TV and film productions.

Features:
1000W 6-colour LED source, with 200 mm Fresnel lens and up to 29'000 lm
Authentic Fresnel behaviour with single clean shadow, natural fall-off and motorised 10°-60° zoom
Advanced beam shaping with 4-blade framing system, indexed rotating ovalizer, frost, iris and colour wheel
Premium light quality with CRI up to 99, R9 up to 97, TLCI up to 97 and silent operation
Absolute pan and tilt encoders enabling stationary reset, instant position recovery after power cycles and precise repeatability in live and studio environments
