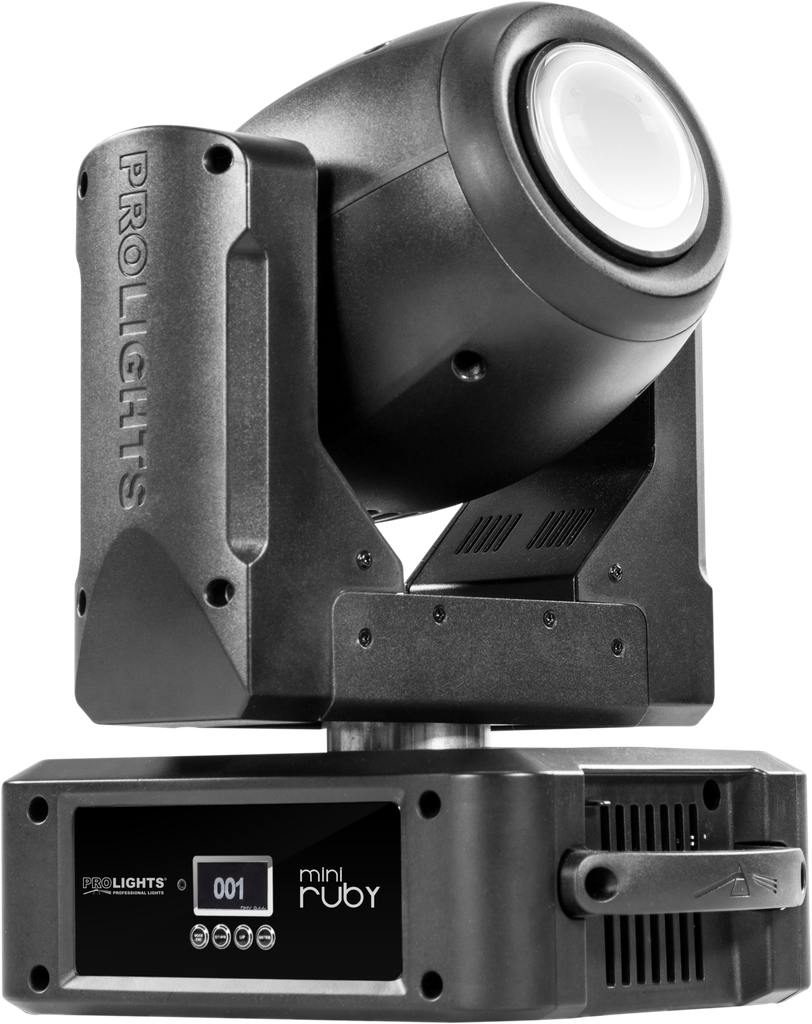

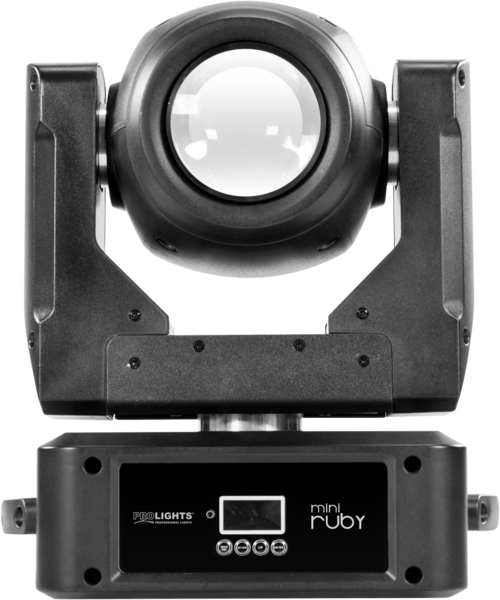

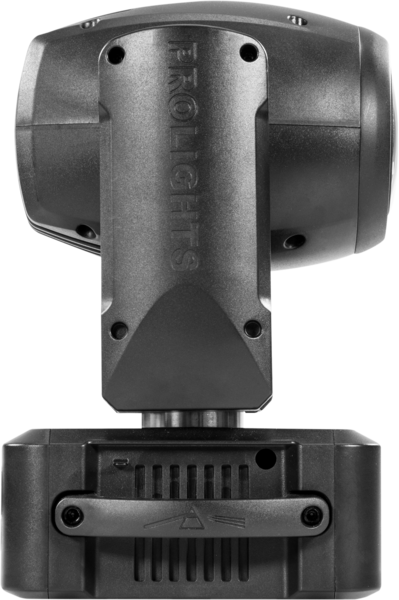

Mini Ruby is an ultra-compact beam light that harnesses all the power of its Osram Sirius 132W lamp into a tight, bright and sharp 3,5° beam. Its small form factor is designed to allow the users to apply a discharge beam light in tight locations or low ceilings bringing a big punch to a small space.
Mini Ruby is an ultra-compact beam light that harnesses all the power of its Osram Sirius 132W lamp into a tight, bright and sharp 3,5° beam. Its small form factor is designed to allow the users to apply a discharge beam light in tight locations or low ceilings bringing a big punch to a small space.
Features:9 position colour wheel.
Compact, lightweight design for use in small spaces.
Rotating 8 facet prism.
LIGHT SOURCE
- Source:132WS Osram Sirius HRI
- Source CCT:9.200K
- Luminous flux:5'150

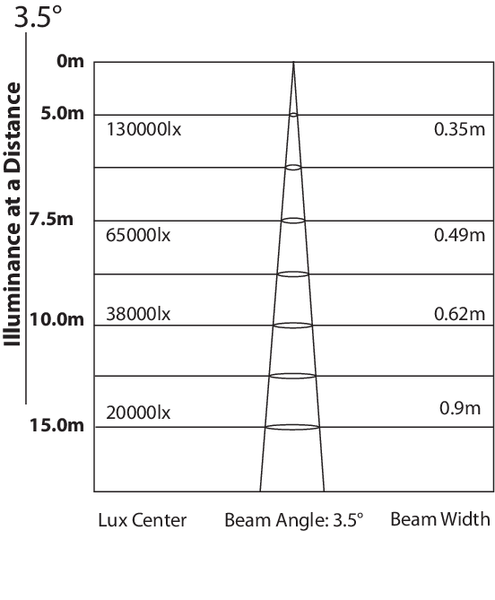

- Lux:98'792lx@5 m full
- CRI:60
- Source life expectancy:6.000 h
OPTICS
- Beam angle:3,5°
- Field angle:3,5°
- Lens diameter:80mm
- Lens type:high-quality glass lens optics
COLOUR SYSTEM
- Colour wheel:9colour filters
DYNAMIC EFFECTS
- Circular prism:8-fwith bi-directional rotation
CONTROL
- Supported Protocols:DMX512, RDM
- DMX channels:7 / 9ch
- Display:LCD display
- Hibernation:power safe mode when lost DMX
- Master/Slave:for synchronised operation of more units linked in a chain
MOVEMENT
- Pan:540 / 630°- 8/16-bit resolution
- Tilt:265°- 8/16-bit resolution
- Position feedback:automatic repositioning after external movement
ELECTRONICS
- Strobe / shutter:1 - 28flash(s), mechanical
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)

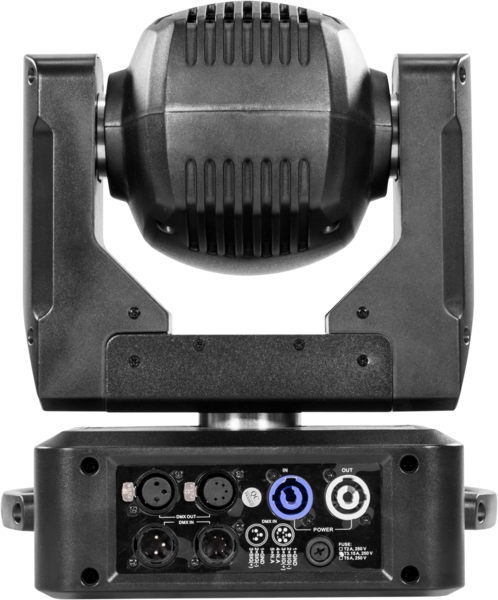

CONNECTIONS
- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:Amphenol XLR 3p + 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):176W
- Output (at 230V):12units on a single power line
- Max power consumption (120V):176W
PHYSICAL
- IP rating:IP30
- Cooling:heat pipe with low-noise fan
- Housing:Aluminium structure with high-resistance polycarbonate cover
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)

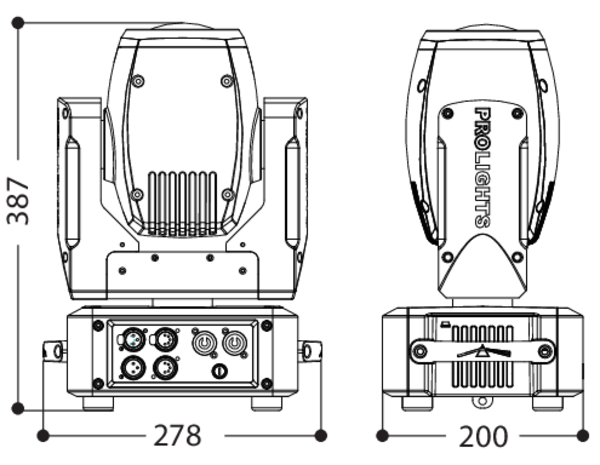

- Dimensions (WxHxD):278x387x200mm
- Weight:7,6kg
INSTALLATION
- Suspension and fixing:any position with quick-lock omega brackets
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA
