The HaluPix DUO is a dual layer LED matrix that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit offers high-power, long-throw white beams alongside high-brightness video and strobe features, with full pixel-level control. This integration facilitates diverse and dynamic lighting setups, suitable for a variety of professional stages and TV applications.
Each unit of HaluPix DUO is a 50x50cm (20x20 inches) building block. It comprises two distinct layers of light sources: 441 (21x21) RGB+WW pixels with a 120° beam spread, and 49 (7x7) WarmWhite 4° beam sources. The total power draw is 500W, which can be distributed between either or both groups of light sources according to user preference. Additionally, each emitter is individually pixel controllable, enabling the display of video content on either one or both sources. This offers exceptional brightness and unmatched colors.
The modular frame of HaluPix DUO, akin to LED tile structures, allows seamless interlocking of multiple units. This maintains a consistent pixel pitch across both source groups when using several devices. The frame is designed for versatility, supporting various configurations such as flat or curved, hanging or ground stacking.
HaluPix DUO also excels as an all-weather lighting solution. Its IP65-rated design ensures reliability and durability in both indoor and outdoor applications, protecting against water and dust.
In terms of connectivity, HaluPix DUO comes with an integrated power supply and user interface. It supports a variety of lighting protocols including DMX, RDM, sACN, Art-Net and RDMnet, offering unparalleled flexibility for any setup.

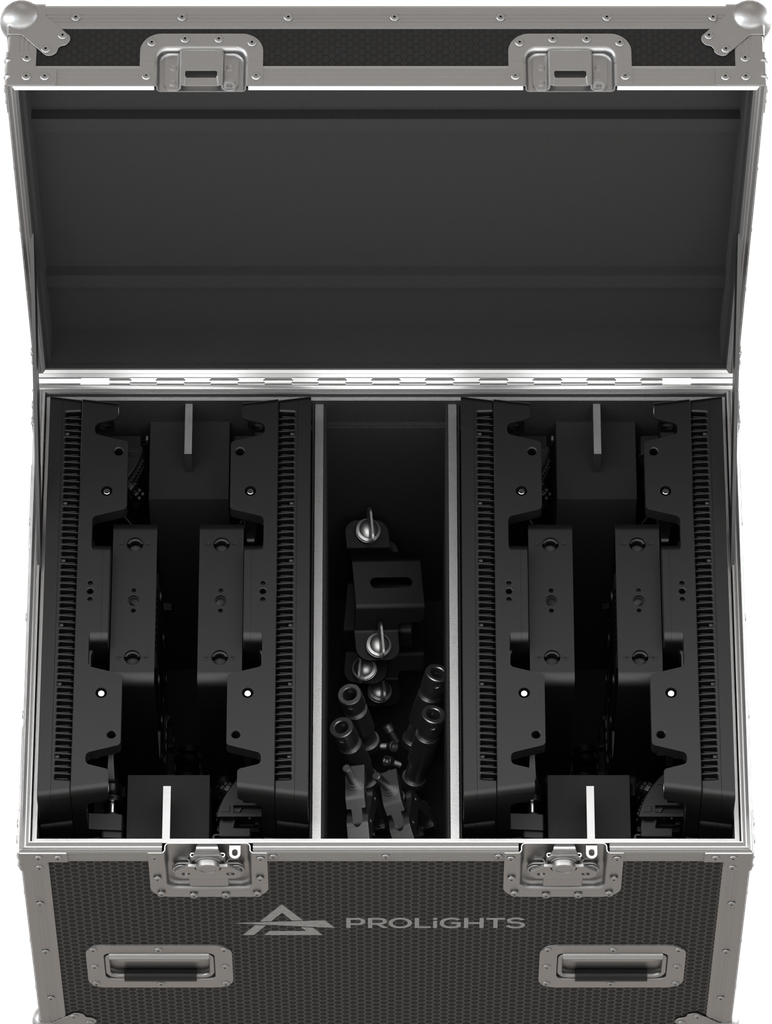

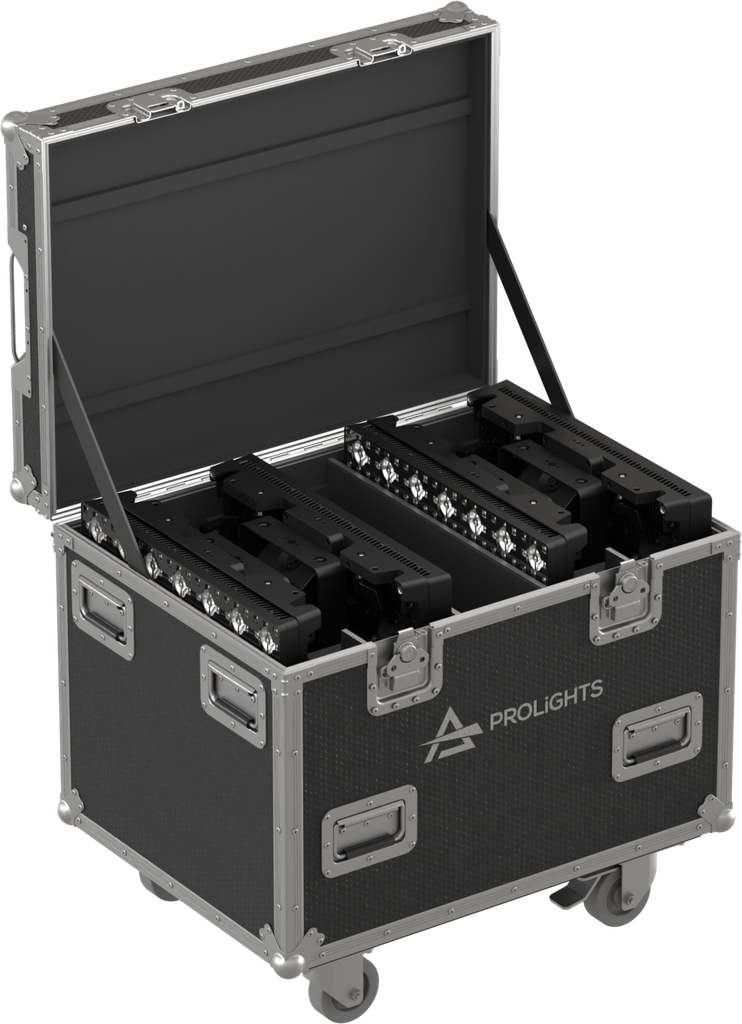

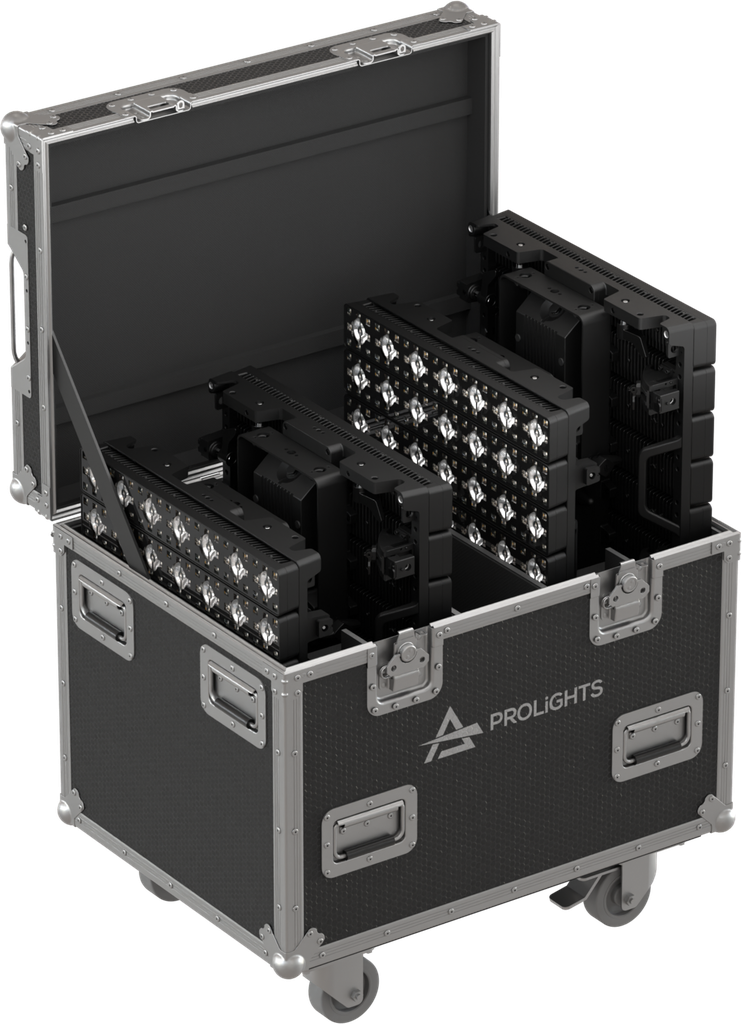

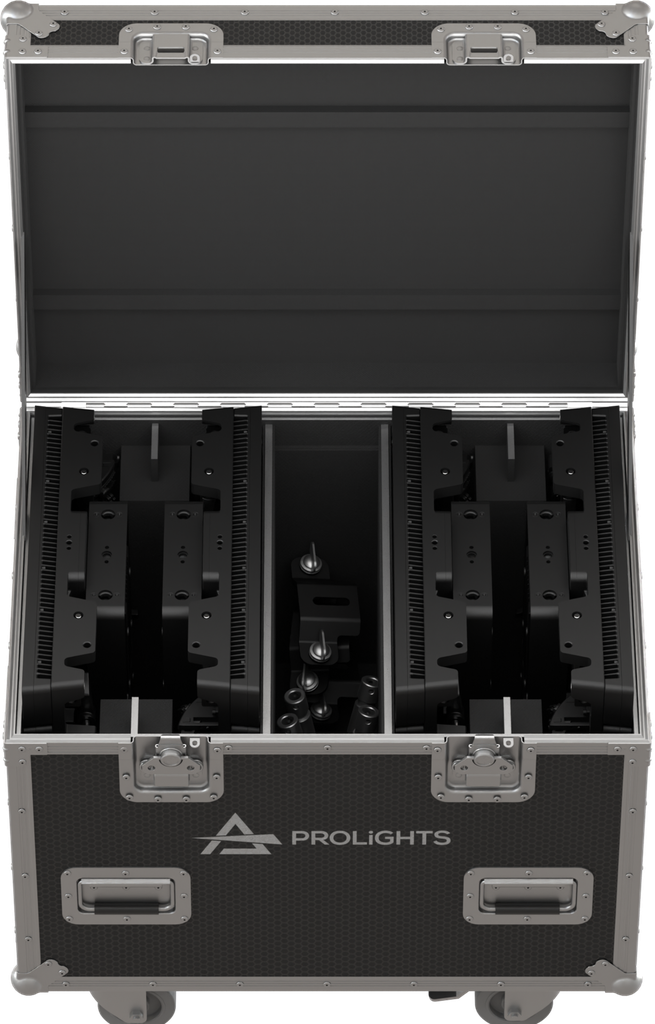

The pack includes:
- 4 x HALUPIXDUO

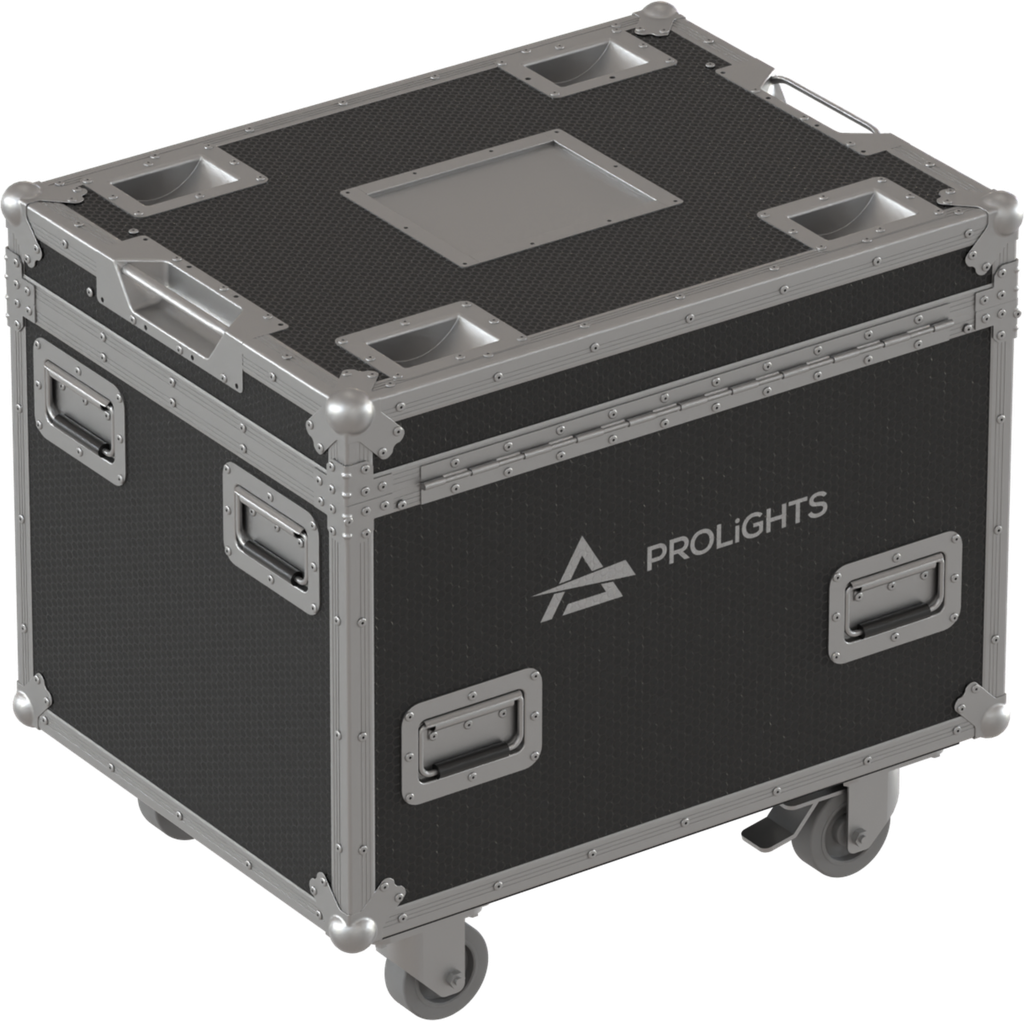

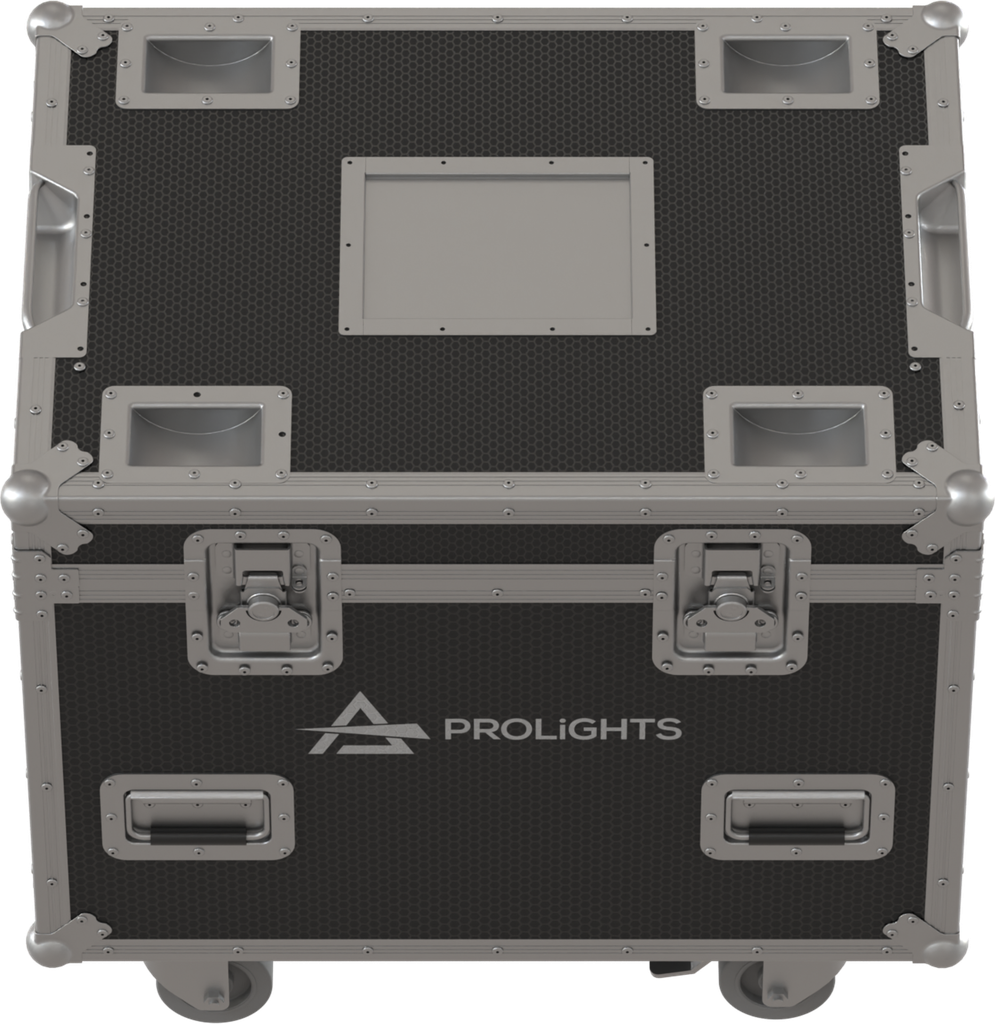

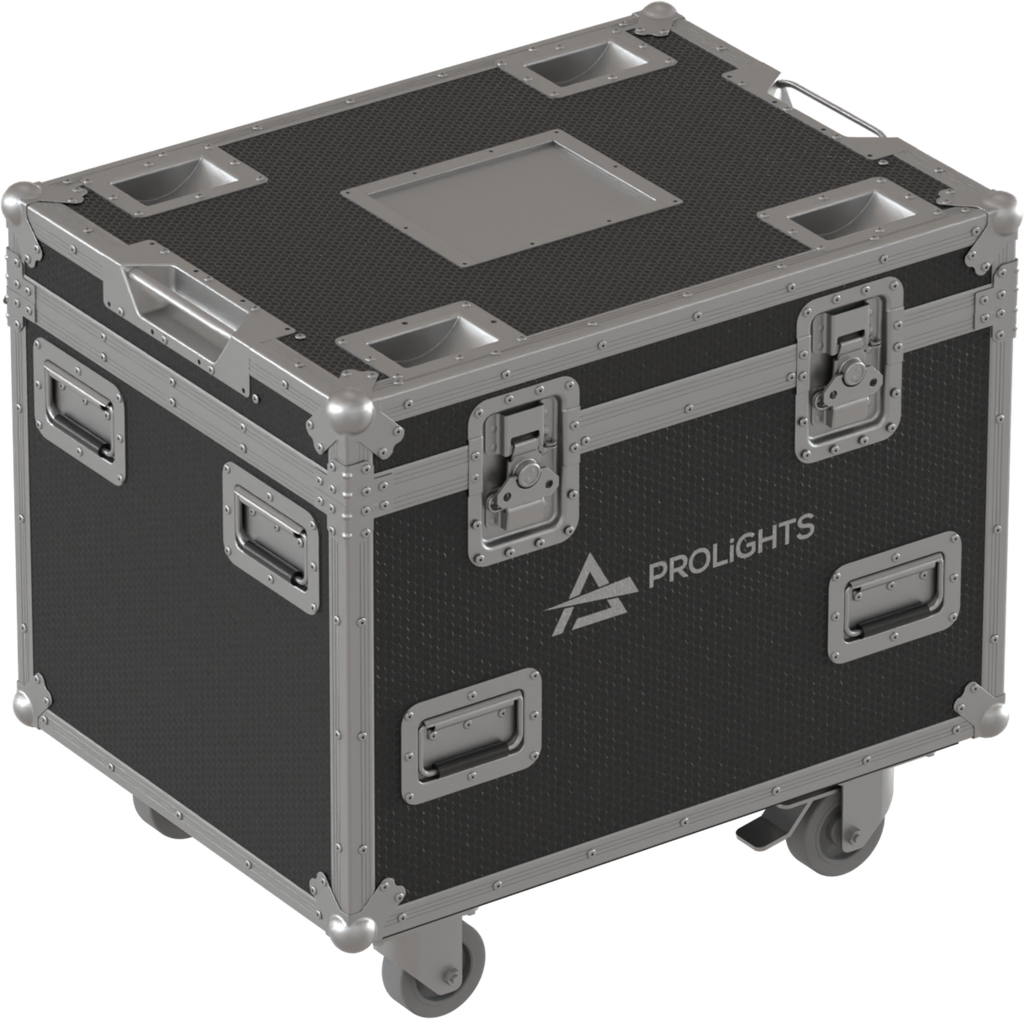

- 1 x flight case (FCLHALUPIXDUO)
- 4 x power cables
HALUPIXDUOPACK weight: 108 kg
The HaluPix DUO is a dual layer LED matrix that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit offers high-power, long-throw white beams alongside high-brightness video and strobe features, with full pixel-level control. This integration facilitates diverse and dynamic lighting setups, suitable for a variety of professional stages and TV applications.
Each unit of HaluPix DUO is a 50x50cm (20x20 inches) building block. It comprises two distinct layers of light sources: 441 (21x21) RGB+WW pixels with a 120° beam spread, and 49 (7x7) WarmWhite 4° beam sources. The total power draw is 500W, which can be distributed between either or both groups of light sources according to user preference. Additionally, each emitter is individually pixel controllable, enabling the display of video content on either one or both sources. This offers exceptional brightness and unmatched colors.
The modular frame of HaluPix DUO, akin to LED tile structures, allows seamless interlocking of multiple units. This maintains a consistent pixel pitch across both source groups when using several devices. The frame is designed for versatility, supporting various configurations such as flat or curved, hanging or ground stacking.
HaluPix DUO also excels as an all-weather lighting solution. Its IP65-rated design ensures reliability and durability in both indoor and outdoor applications, protecting against water and dust.
In terms of connectivity, HaluPix DUO comes with an integrated power supply and user interface. It supports a variety of lighting protocols including DMX, RDM, sACN, Art-Net and RDMnet, offering unparalleled flexibility for any setup.
The pack includes:
- 4 x HALUPIXDUO
- 1 x flight case (FCLHALUPIXDUO)
- 4 x power cables
HALUPIXDUOPACK weight: 108 kg
- Light source:7 x 7 4° 2700K LEDs + 21 x 21 120° RGB+WW LEDs
- Luminous flux:11'388 lm (total)@Full
- Luminous flux:7'391 lm (beam layer) | 12'555 lm (pixel layer)@Full
- Lux:(total) 23'686lx@5 m full
- Lux:(beam layer) 51'268 lx | (pixel layer) 173lx@5 m full
- CRI:(beam layer) > 80 @2700K; (pixel layer) 94 @3200K; 91,5 @5600K
- R9:(pixel layer) 94,8 @3200K; 95,8 @5600K
- Source life expectancy:> 30.000 h
- Beam angle:(beam layer) 3,6°; (pixel layer) 116°
- Field angle:(beam layer) 6,8°; (pixel layer) 155°
- Pixel pitch:(BEAMs) 72 mm | (PIXELs) 24mm
- Additional optics:available optional optics for beam LEDs 12°, 24°
- Colour mixing:(beam layer) Warm White (2700K), (pixel layer)RGB + Warm White
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built pixel macros with adjustable speed
- Control Resolution:16-bit dimmer and color control
- Pixel patterns:pre-programmed static and dynamic pixel patterns
- FX generator:adjustable foreground/background colour, index, speed, direction
- Static mode:selection of static dimmer, colors and color temperature
- Supported Protocols:DMX512, RDM, ArtNet, RDMnet, sACN (IGMP v2), CRMX (optional)
- DMX channels:from 12 channels to 1855chmodular and user-customizable DMX architecture (MCA)
- Pixel control:pixel2pixel control
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:up to 6independent selectable dimmer curves per source
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO (not included) or via Ethernet with DMX-Workshop
- Power connection:Seetronic powerCON waterproof IN/OUT connectors
- Signal connection:IP65Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:Seetronic Ethernet IP in/out connectors
- EtherFlow:Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):500W
- Output (at 230V):4units on a single power line
- Output (at 120V):2units on a single power line
- Standby power:14,8 W
- Power factor:> 0,94
- IP rating:IP65 for temporary outdoor use
- Cooling:fan-free with natural convection
- Housing:Weatherproof IP65 construction with magnesium alloy
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):500x500x133mm
- Weight:108kg
- Suspension and fixing:spigot for tripod use, bracket for truss rigging and hardware for connection of more units
- Bracket system:spigot for tripod use and bracket for truss rigging
- Hardware on-board:on board mechanics for modular assembly of multiple fixtures
- Curve configurations:-10° to +15°with onboard mechanics - back accessories for ground applications compatible with KAPPAX Ledwall (refer to the user manual for details)
- Compliance:CE, RCM, FCC, cTUVus
