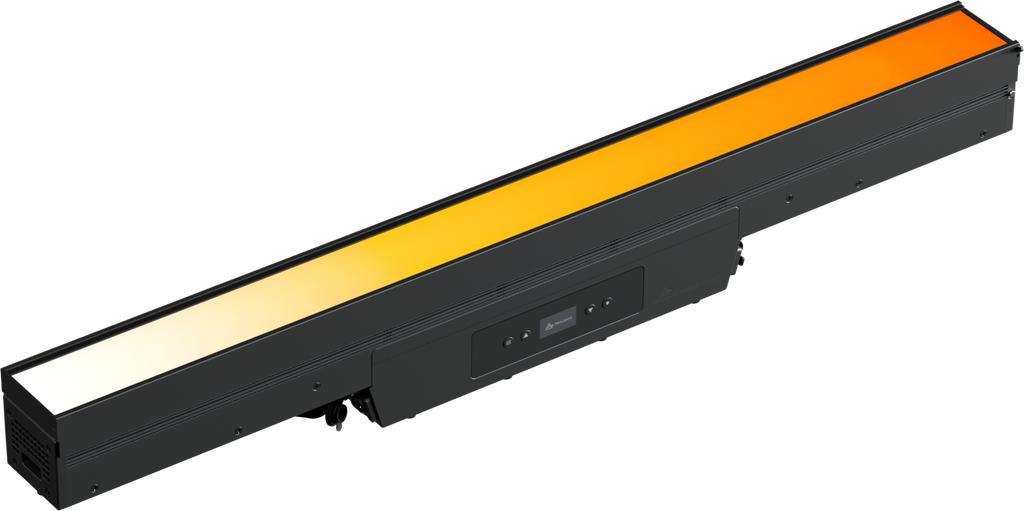

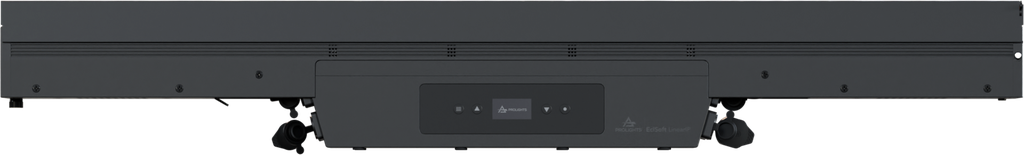

The EclSoft Linear is an IP65 rated linear soft light, with all the main features of the successful EclPanel range, in a new form factor and waterproof design.
Each of its 15 pixels can be controlled individually through DMX/RDM, Ethernet protocols, Wireless DMX (CRMX and W-DMX), or the built-in cinema effects engine.
The EclSoft Linear has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT linear and CCT presets with +/- green shift, source emulation and industry-standard colour gels.
There are several accessories available for the EclSoft Linear, including optical filters and beam shaping accessories.

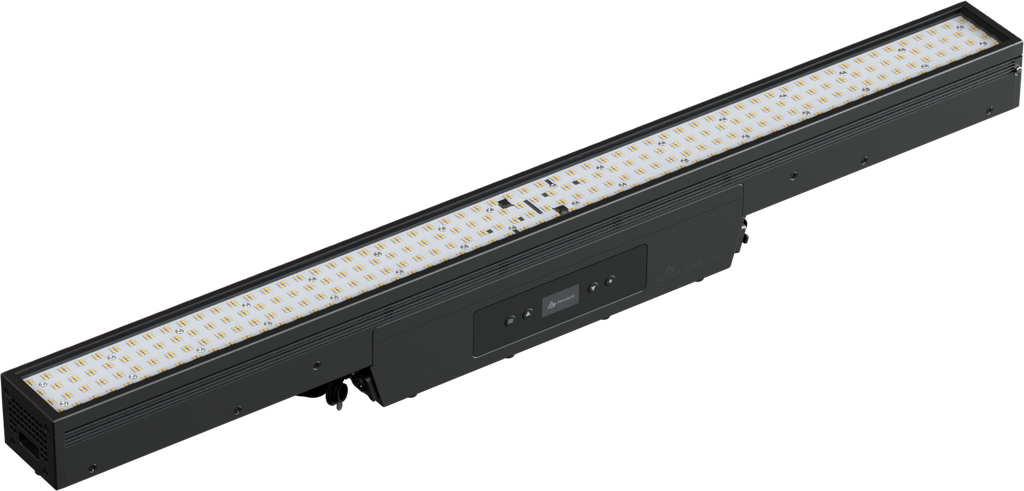

The 230W RGB + Warm White LED engine producing nearly a 13,000 lumen output, whilst keeping perfectly mixed colours and precise white tones, from tungsten to daylight, maintaining a high CRI, TLCI and TM-30 values.
The onboard driver, built-in power supply, easy rigging and cabling make this fixture the perfect tool for every film, TV or touring production.
The EclSoft Linear is an IP65 rated linear soft light, with all the main features of the successful EclPanel range, in a new form factor and waterproof design.
Each of its 15 pixels can be controlled individually through DMX/RDM, Ethernet protocols, Wireless DMX (CRMX and W-DMX), or the built-in cinema effects engine.
The EclSoft Linear has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT linear and CCT presets with +/- green shift, source emulation and industry-standard colour gels.
There are several accessories available for the EclSoft Linear, including optical filters and beam shaping accessories.
The 230W RGB + Warm White LED engine producing nearly a 13,000 lumen output, whilst keeping perfectly mixed colours and precise white tones, from tungsten to daylight, maintaining a high CRI, TLCI and TM-30 values.
The onboard driver, built-in power supply, easy rigging and cabling make this fixture the perfect tool for every film, TV or touring production.
Features:230W RGB + Warm White engine, producing nearly a 13,000 lumen output
CRI > 92 R9 > 96; TLCI > 87
15 individually controlled pixels with built-in cinema effects engine
DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)
- Source:230WRGB + Warm White LEDs
- Luminous flux:12'994@4.000 K with LD filter
- Lux:220lx@5 m full
- CRI:92 @3.200 K; 93 @5.600 K
- R9:96 @3.200 K; 92 @5.600 K
- TLCI:89 @5.600 K
- TM30 Rf:91 @3.200 K; 90 @5.600 K
- TM30 Rg:107 @3.200 K; 106 @5.600 K
- Source life expectancy:> 50.000 h
- Beam angle:103°
- Field angle:155°
- Lens type:high-quality glass lens optics
- Additional optics:Mountable Medium Density diffusion filter (included)
- Colour mixing:RGB + Warm White
- CCT:CCT control, + / - green correction, tungsten emulation
- White presets:2,800 K - 10,000Kwith 28 K resolution
- Colour wheel:virtual colour wheel with macros
- Control Resolution:16-bit dimmer and color control
- Pixel patterns:pre-programmed pixel macros and cinema lighting effects
- Special features:linear crossfade channel from any white to any colour; virtual CTO on colours
- Supported Protocols:DMX512, RDM, ArtNet, sACN, CRMX
- Pixel control:15section control
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 36000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)

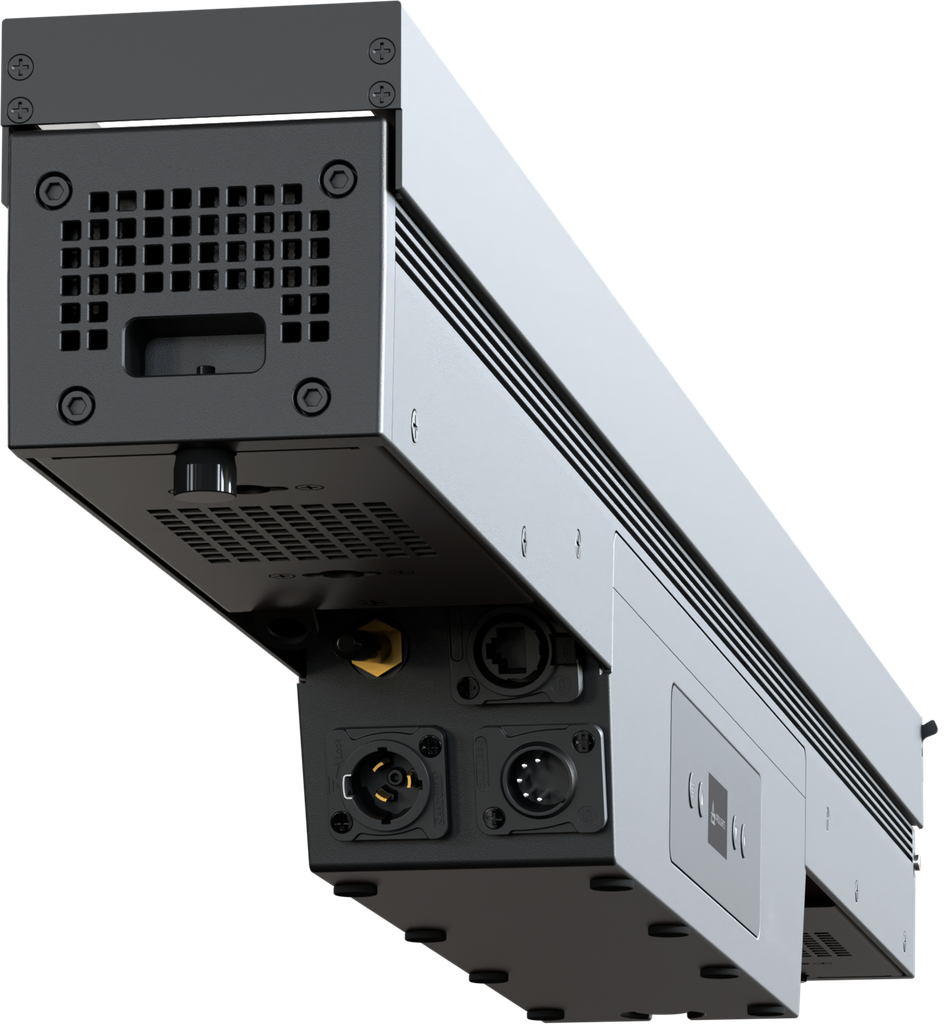

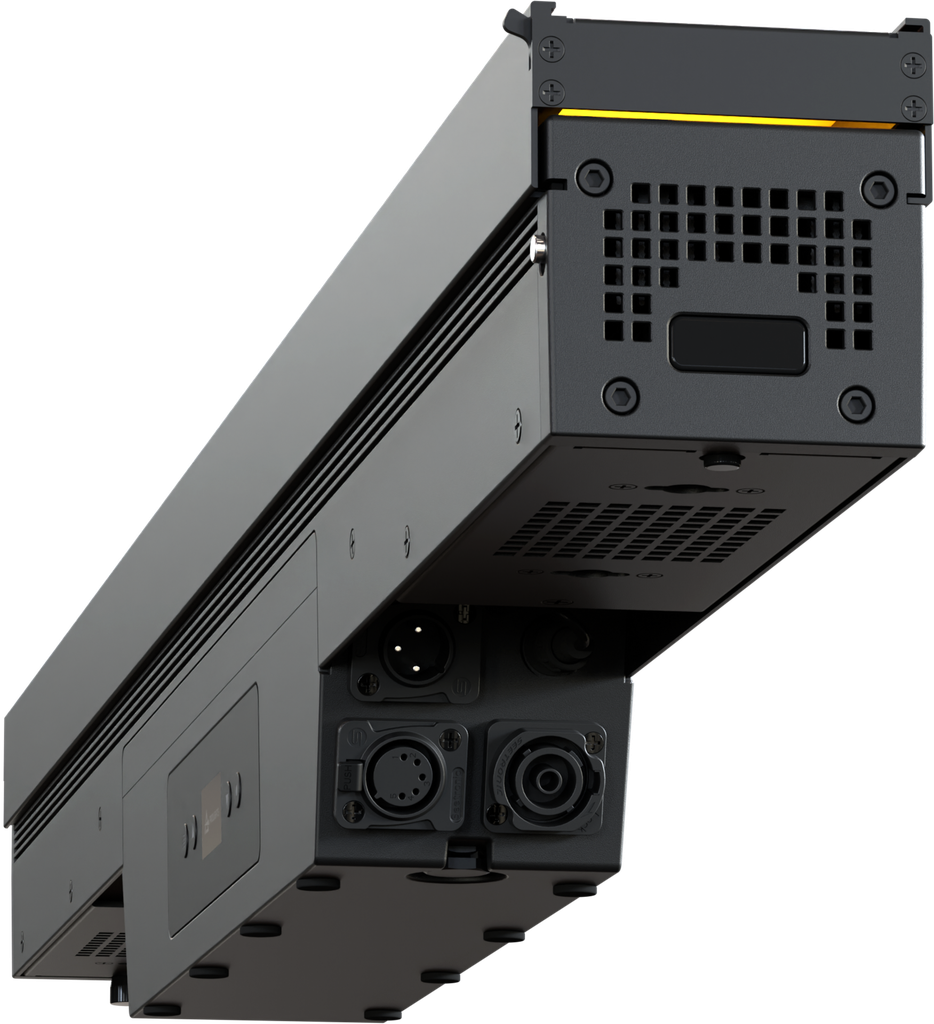

- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:Seetronic Ethernet IP IN connector
- Low Voltage DC connector:XLR 3p for 48V
- Mains power supply:100-240V - 50/60Hz
- Low Voltage DC mains:48Vdc
- Max power consumption (230V):250W
- Output (at 230V):9units on a single power line
- Power factor:>0,97
- IP rating:IP65 for temporary outdoor use (*)

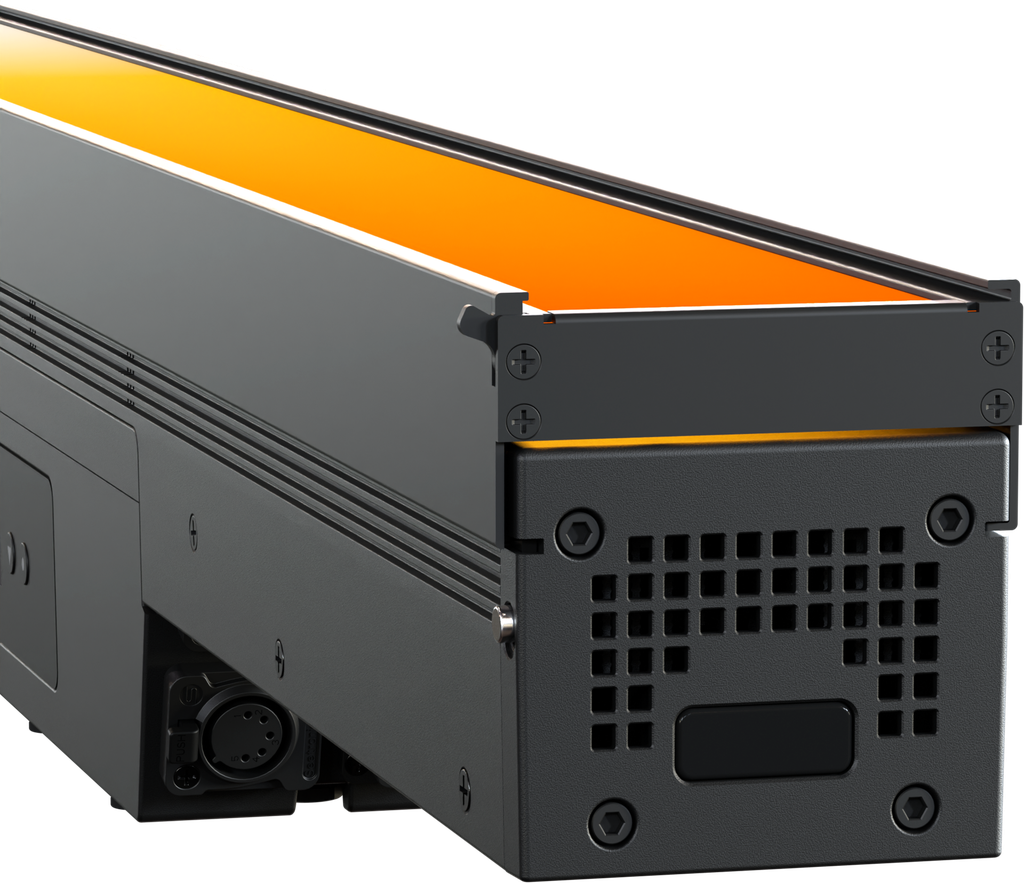

- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):1000x143x87mm
- Weight:7,1kg
- Suspension and fixing:bracket for hanging and positioning
- Compliance:CE, UKCA, RCM, cTUVus, FCC
- NOTE:Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
