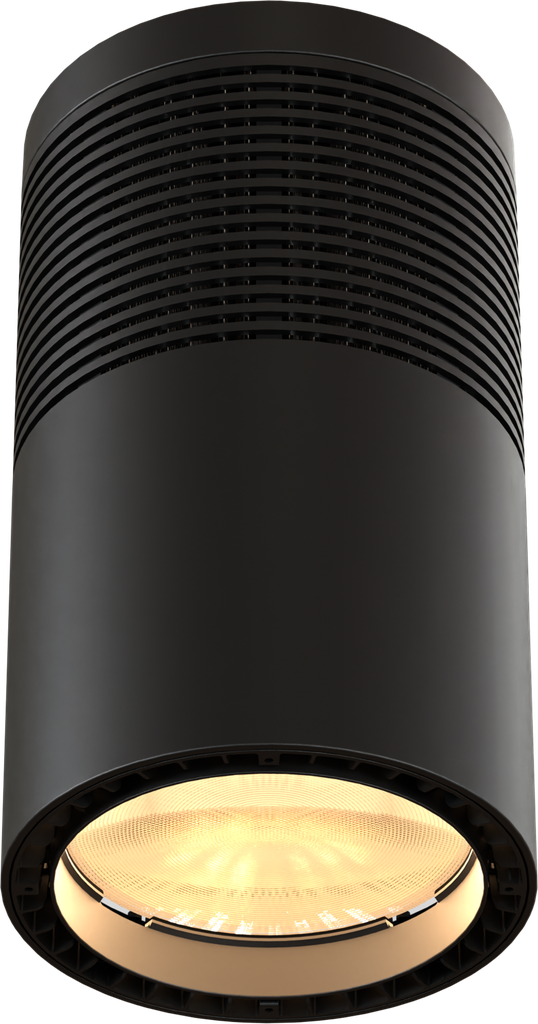

Prolights ECLPENDANTVWBK

200W Variable White LED source innovative pendant light, black

QUOTE ONLY

Add to wishlist

View on Manufacturer Website

SKU: ECLPENDANTVWBK

CATEGORY: Pendant

BRAND: Prolights

DELIVERY For orders above AED 1,000

WARRANTY 2 years

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

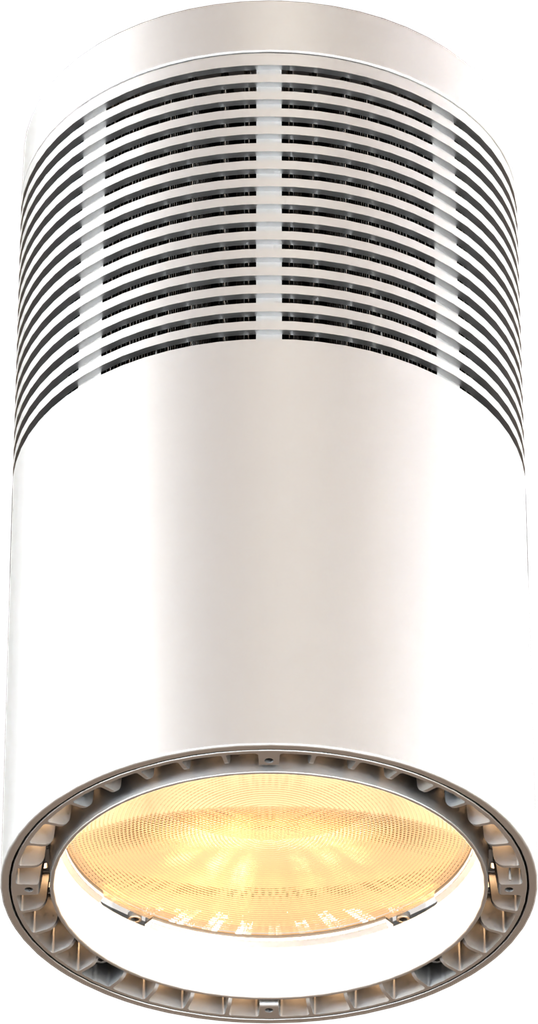

The EclPendant VW is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.

This innovative series of pendant lights come with a full range of optics, accessories, mounting options and control.

The EclPendant VW has a 200-Watt LED source Variable White that have high-quality light output, a consistent colour temperature and unmatched durability.

Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).

The EclPendant VW was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant VW series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.

The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.

The EclPendant VW has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product

200W LED source power, Variable White with passive cooling

AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)

Extensive mounting option possibilities, optics and accessories are all easily changeable

The EclPendant VW is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.

This innovative series of pendant lights come with a full range of optics, accessories, mounting options and control.

The EclPendant VW has a 200-Watt LED source Variable White that have high-quality light output, a consistent colour temperature and unmatched durability.

Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).

The EclPendant VW has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product

Features:
200W LED source power, Variable White with passive cooling
AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
Extensive mounting option possibilities, optics and accessories are all easily changeable

LIGHT SOURCE

Source:

200
W

Variable White LED
Source CCT:

2'700K - 6'500K
K
Luminous flux:

(2'700K) 9'919 lm; (6'500K) 12'487 lm; (FULL) 14'571
Lux:

(2'700K) 1'956 lx; (6'500K) 2'529 lx; (FULL) 2'933
lx

@5 m
CRI:

95,9 @2'700K; 96,3 @6'500K; 95,1 @ full
R9:

95 @2'700K; 95 @6'500K; 79,9 @ full
TLCI:

97 @2'700K; 96 @6'500K; 97 @ full
TM30 Rf:

95,2 @2'700K; 90,8 @6'500K; 92,6 @ full
TM30 Rg:

104,2 @2'700K; 100,4 @6'500K; 104 @ full
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle:

20
°
Field angle:

40
°
Lens diameter:

157
mm
Lens type:

fresnel lens
Other:

see available accessories

COLOUR SYSTEM

Colour mixing:

tunable white
CCT:

linear CCT control
Macros:

built-in white presets

DYNAMIC EFFECTS

Static mode:

selection of static dimmer and color temperature
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DALI Type8,

DMX512, RDM, CRMX
DMX channels:

1 / 2 / 5 / 9 / 13
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Other:

16bit control of dimmer and colour

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1-30

Hz, electronic
Selectable PWM:

600 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

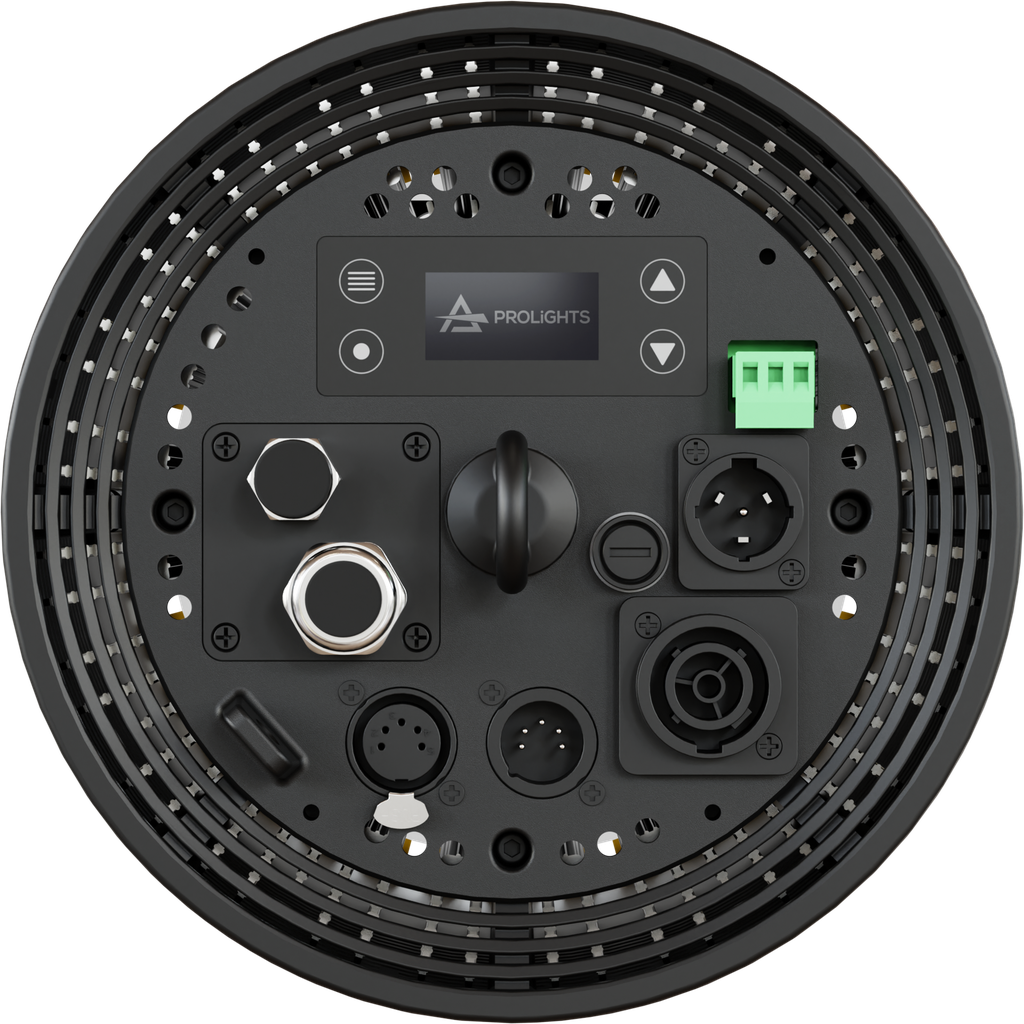

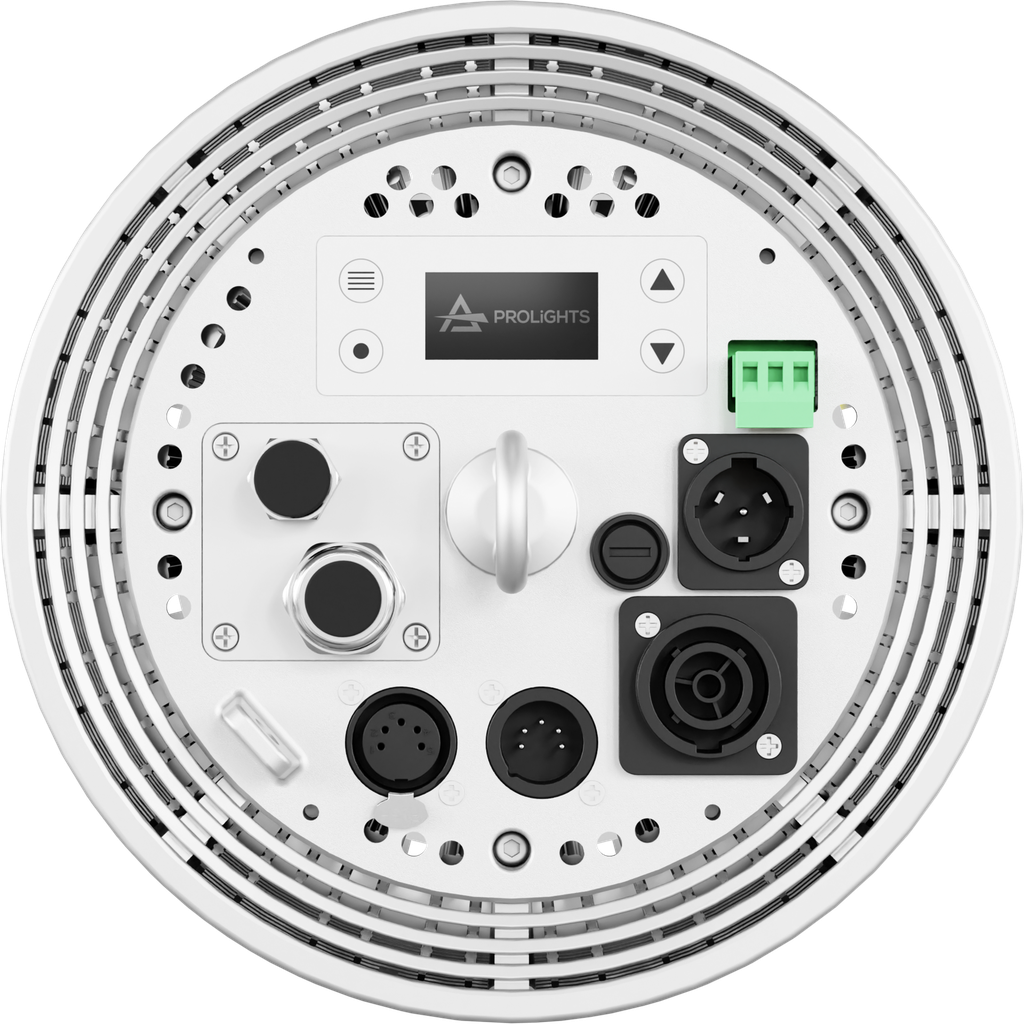

CONNECTIONS

Power connection:

screw terminal block,

Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection:

screw terminal block,

Amphenol XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Low Voltage DC connector:

DC 48V through screw terminal block
