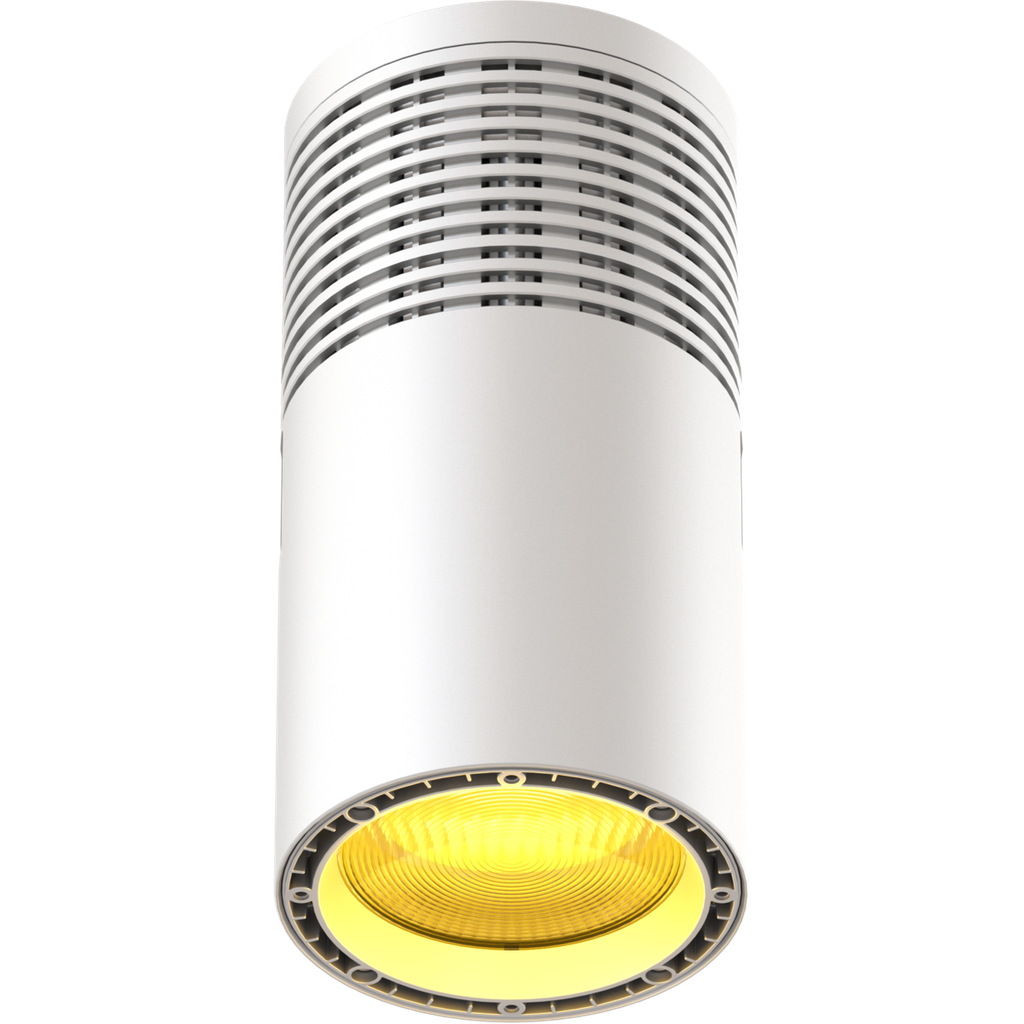

Prolights ECLPENDANTSFCWH

50W RGB+WarmWhite House light with passive cooling, white

QUOTE ONLY

Add to wishlist

View on Manufacturer Website

SKU: ECLPENDANTSFCWH

CATEGORY: Pendant

BRAND: Prolights

DELIVERY For orders above AED 1,000

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

The EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue. This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single color (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform color, and remarkable durability.

Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.

User-friendly settings are manageable via the unit's onboard GUI, enhancing its functionality. The fixture's wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.

Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.

* Please note: The hanging bracket is not included with the product.

House light with 50W RGB + Warm White LED source with passive cooling

100-240 VAC or 48 VDC power input. Control via DALI, DMX, RDM

Extensive mounting option, optics and accessories available

Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.

* Please note: The hanging bracket is not included with the product.

Features:
House light with 50W RGB + Warm White LED source with passive cooling
100-240 VAC or 48 VDC power input. Control via DALI, DMX, RDM
Extensive mounting option, optics and accessories available

LIGHT SOURCE

Source:

50
W

RGB + Warm White LEDs
Source CCT:

2'800K - 10'000K; WW LED: 3.200K
K
Luminous flux:

2'637

@Full
Lux:

513
lx

@5 m full
CRI:

92,3 @Full; 93,2 @3200K; 92,8 @5600K
R9:

97,1 @Full; 96,2 @3200K; 92,5 @5600K
TLCI:

91 @Full; 80 @3200K; 89 @5600K
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle:

20
°
Field angle:

40
°
Lens diameter:

100
mm
Lens type:

fresnel lens
Other:

see available accessories

COLOUR SYSTEM

Colour mixing:

RGB + Warm White
CCT:

CCT control, + / - green correction, tungsten emulation
Colour wheel:

gel filters included
Macros:

several pre-built macros with adjustable speed

DYNAMIC EFFECTS

Static mode:

selection of static dimmer, colors and color temperature
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DALI Type8,

DMX512, RDM, CRMX (optional)
DMX channels:

UNO / DUO / Basic / Standard / Extended
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Other:

16bit control of dimmer and colour

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1-30

Hz, electronic
Selectable PWM:

600 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

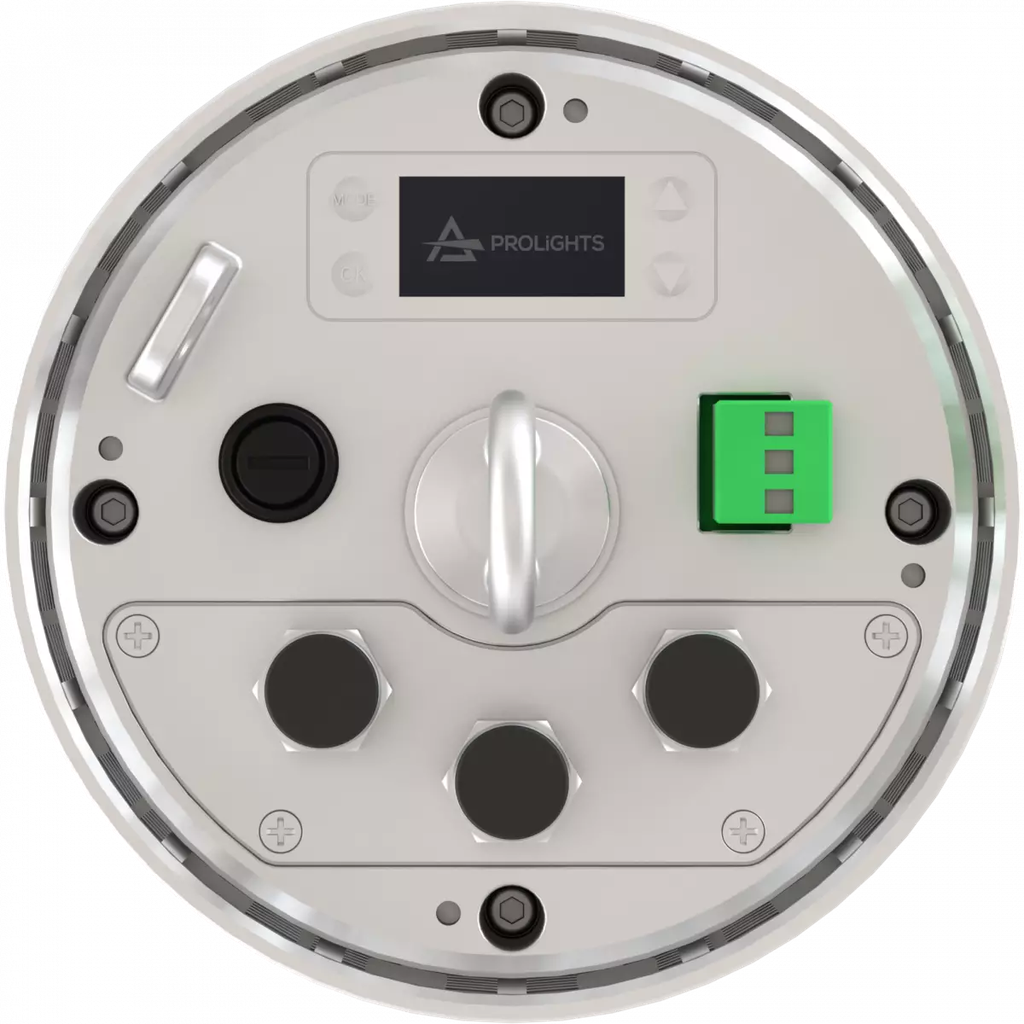

CONNECTIONS

Power connection:

Screw terminal block
Signal connection:

Screw terminal block
Wireless Connection:

optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible (Order code SP018409)

ELECTRICAL
