Prolights ECLPARIPSVWBK

IP65 single source 60W VariableWhite LED spotlight, 15° optics included, black

QUOTE ONLY

Add to wishlist

View on Manufacturer Website

SKU: ECLPARIPSVWBK

CATEGORY: Pars & Washes

BRAND: Prolights

DELIVERY For orders above AED 1,000

WARRANTY 2 years

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

The EclPar IPSVW is an ultra compact and fan free IP-rated single source LED spotlight, tailored for accent lighting and nearfield projection which seamlessly integrates anywhere,

This fixture is powered by a 60W Variable White LED source, capable of producing up to 3,500 fixture lumens with high efficiency and advanced control.

EclPar IPSVW excels in delivering superior white light reproduction, boasting high CRI and TM30 values.

Its compact and fan-free design renders the EclPar IPSVW an indispensable tool for both indoor and outdoor venues, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

60W Variable White LED delivering high CRI, TLCI, TM30 values

Flex lens system: 15° on-board - 30° , 60° and asymmetric optional

IP65 & fan-free for exterior application

The EclPar IPSVW is an ultra compact and fan free IP-rated single source LED spotlight, tailored for accent lighting and nearfield projection which seamlessly integrates anywhere,

This fixture is powered by a 60W Variable White LED source, capable of producing up to 3,500 fixture lumens with high efficiency and advanced control.

EclPar IPSVW excels in delivering superior white light reproduction, boasting high CRI and TM30 values.

Features:
60W Variable White LED delivering high CRI, TLCI, TM30 values
Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
IP65 & fan-free for exterior application

LIGHT SOURCE

Source:

60
W

Variable White LED
Luminous flux:

(15°) 3'438, (30°) 3'117, (60°) 3'258

@Full
Lux:

(15°) 1'840, (30°) 458, (60°) 169
lx

@5 m full
CRI:

96,9 @full; 96,2 @3'200K; 98 @5'600K
R9:

91,2 @3'200K; 96,4 @5'600K
TLCI:

99 @full; 98 @3'200K; 99 @5'600K
TM30 Rf:

94,2 @full; 95,2 @3'200K; 93,4 @5'600K
TM30 Rg:

102,3 @full; 103,1 @3'200K; 100,5 @5'600K
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

(on-board) 15° - (opt) 30°, 60
°
Field angle:

(on-board) 23
°
Lens diameter:

100
mm
Lens type:

parabolic reflector in combination with HD fresnel lens
Additional optics:

(opt) 30°, 60°
Other:

possible to mount lens both on the internal side and on the external side

COLOUR SYSTEM

Colour mixing:

tunable white
CCT:

CCT control through dedicated DMX channel
White presets:

2.700 K ~ 6.500
K
Macros:

built-in white presets

DYNAMIC EFFECTS

Static mode:

selection of static dimmer and color temperature
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
DMX channels:

1 / 2 / 4 / 5 / 9 / 11
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

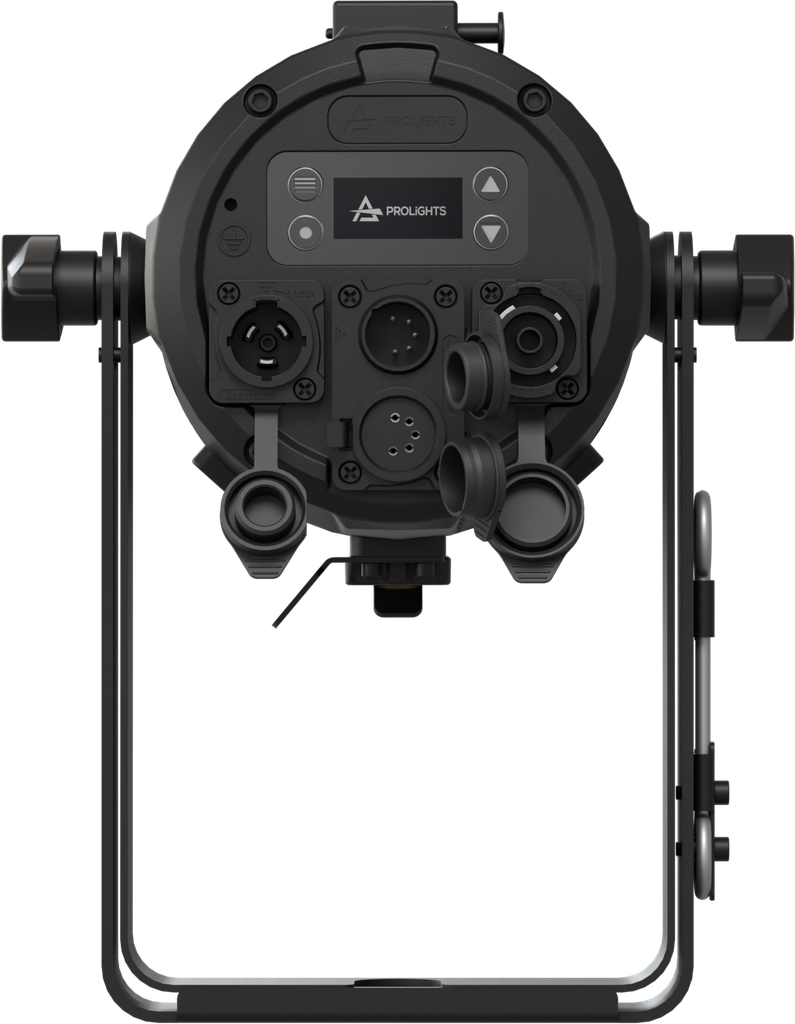

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

65
W
Standby power:

1,7 W
Power factor:

> 0,93

PHYSICAL

IP rating:

IP65 for temporary outdoor use
Cooling:

fan-free with natural convection
Housing:

Sturdy die-cast aluminium body
Finish:

black
Operating temperature:

Ta

-20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD):

211x284x248
mm
Weight:

2,8
kg

INSTALLATION

Suspension and fixing:

double hanging bracket suitable for safe hanging and for floor positioning
Other:

Front mount holder for accessories as barn door, filter frame

CERTIFICATIONS / REPORTS
