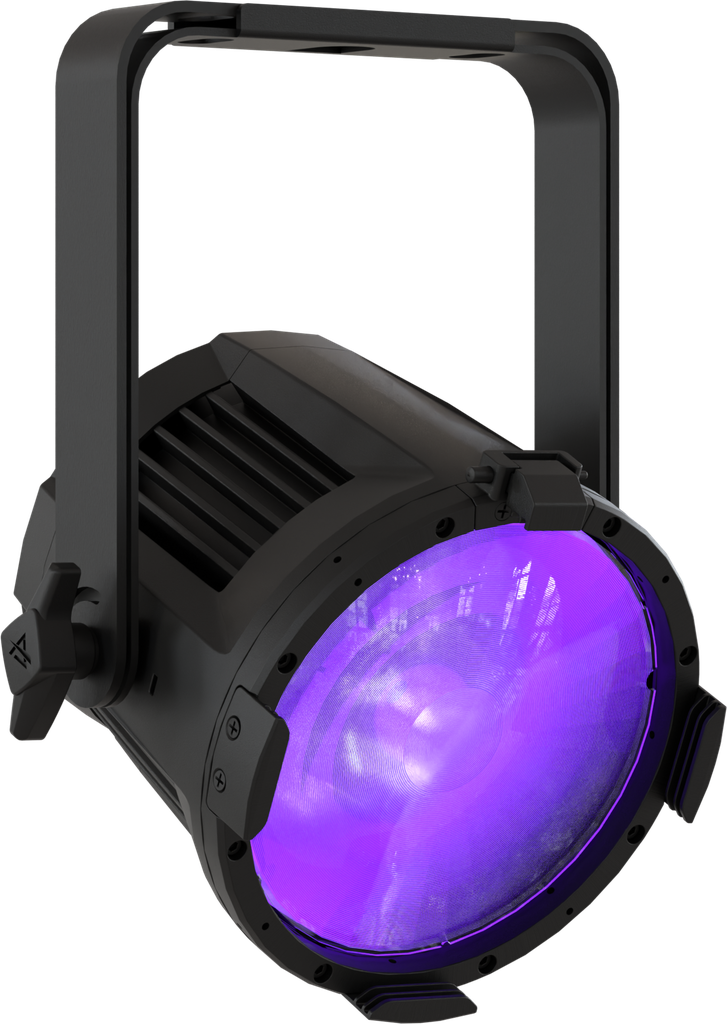

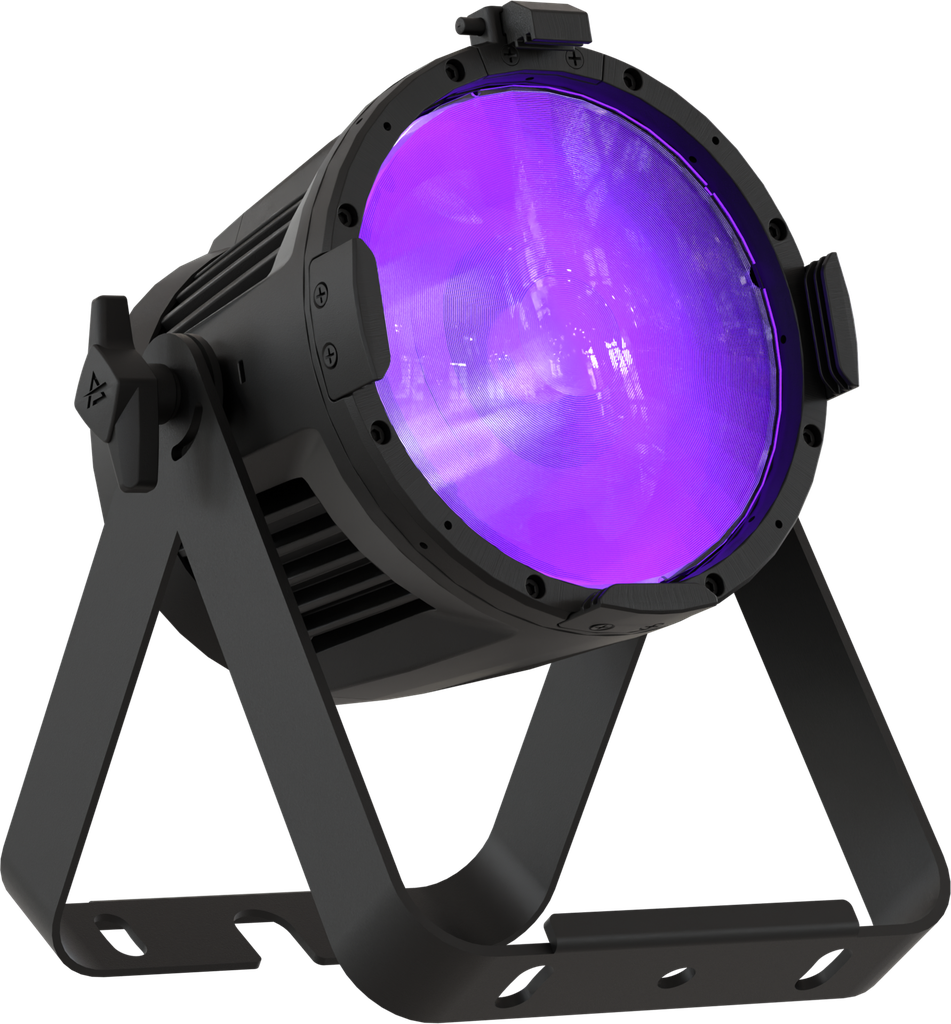

EclPar IPMUV is an all-weather, IP65-rated, single-source UV LED spotlight engineered for professional use. It features a 80W ultraviolet LED at a 365 nm wavelength, delivering true UV output with no visible light spectrum.
Its rugged construction makes the EclPar IPMUV a reliable workhorse for outdoor and dusty environments, while the IP silent fan is ideal for indoor venues where quiet operation and true UV performance are required.
Its flexible optical system supports interchangeable lenses ranging from an optional 15° narrow beam to a 40° wide beam (included). These lenses can be quickly mounted on the front of the fixture for fast beam adjustments, or installed behind its tempered front glass for long-term outdoor use.
EclPar IPMUV is an all-weather, IP65-rated, single-source UV LED spotlight engineered for professional use. It features a 80W ultraviolet LED at a 365 nm wavelength, delivering true UV output with no visible light spectrum.
Its rugged construction makes the EclPar IPMUV a reliable workhorse for outdoor and dusty environments, while the IP silent fan is ideal for indoor venues where quiet operation and true UV performance are required.
Its flexible optical system supports interchangeable lenses ranging from an optional 15° narrow beam to a 40° wide beam (included). These lenses can be quickly mounted on the front of the fixture for fast beam adjustments, or installed behind its tempered front glass for long-term outdoor use.
Features:80W UV LED source (365nm) without visible light spectrum
Flex-Lens optics: 40° lens fitted, 15° lens optional
DMX, RDM, optional CRMX signal
- Source:80WUV LED
- Other:Output: 4'637 mW with 40° lens; 22'862 mW with 15° lens; wavelength 365 nm with no visible light spectrum
- Source life expectancy:6.000 h
- Beam angle:(on-board) 40° - (opt) 15°
- Lens diameter:172mm
- Lens type:parabolic reflector in combination with HD fresnel lens
- Additional optics:(opt) 15°
- Other:possible to mount lens both on the internal side and on the external side
- Colour mixing:UV
- Supported Protocols:DMX512, RDM, CRMX (optional)
- DMX channels:1 / 2 / 3 / 4ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 40000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):80W
- Output (at 230V):20units on a single power line
- Standby power:1.3 W
- Power factor:> 0,93
- IP rating:IP65 for temporary outdoor use
- Cooling:forced-air with IP-rated low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):262x327x213mm
- Weight:4,1kg
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Other:Front mount holder for accessories as barn door and full snoot
- Compliance:CE, RCM
- NOTE:Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
