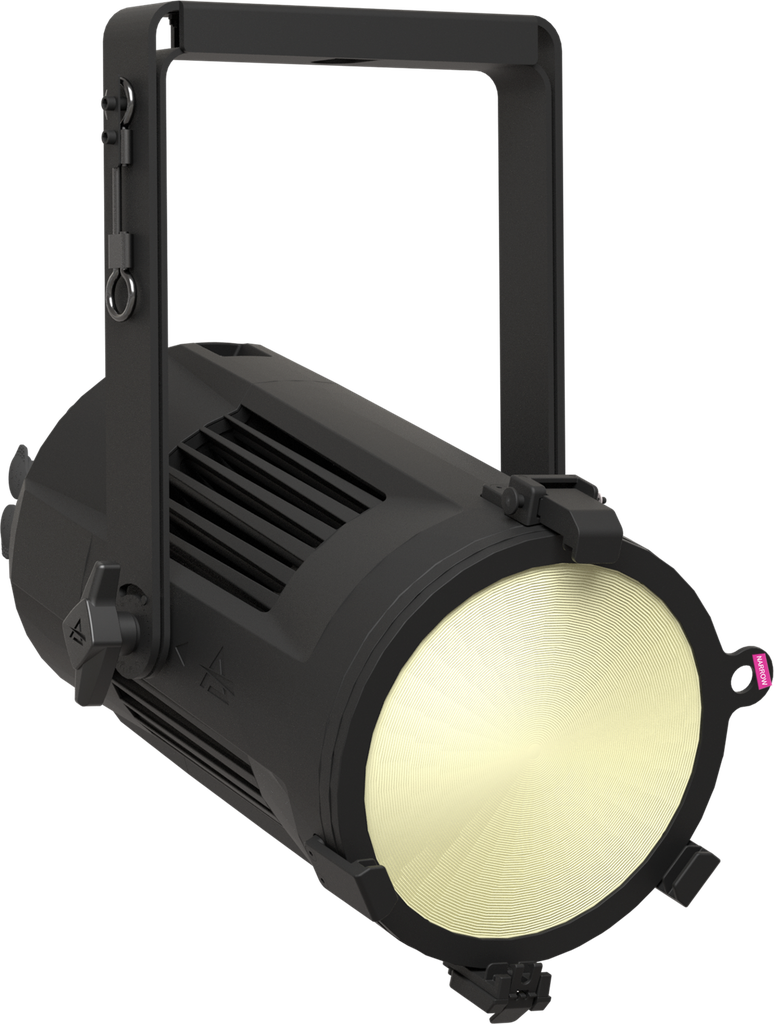

Prolights ECLPARIPLVWBK

IP65 single source 300W VariableWhite LED spotlight, 15° optics included, black

QUOTE ONLY

Add to wishlist

View on Manufacturer Website

SKU: ECLPARIPLVWBK

CATEGORY: Pars & Washes

BRAND: Prolights

DELIVERY For orders above AED 1,000

WARRANTY 2 years

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

The EclPar IPLVW stands as a high-performance, IP-rated single source LED spotlight, tailored for grand-scale events such big shows, large exhibitions, and high-ceiling studio applications.

This robust fixture is powered by a 300W Variable White light source, capable of producing up to 20,000 fixture lumens with remarkable efficiency and advanced control.

EclPar IPLVW excels in delivering superior white light reproduction with variable CCT, boasting high output and high CRI and TM30 values.

Its compact and silent design renders the EclPar IPLVW an indispensable tool for both indoor and outdoor stages, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

300W Variable White LED delivering high CRI, TLCI, TM30 values

Flex lens system: 15° on-board - 30° , 60° and asymmetric optional

IP65 for exterior application

The EclPar IPLVW stands as a high-performance, IP-rated single source LED spotlight, tailored for grand-scale events such big shows, large exhibitions, and high-ceiling studio applications.

This robust fixture is powered by a 300W Variable White light source, capable of producing up to 20,000 fixture lumens with remarkable efficiency and advanced control.

EclPar IPLVW excels in delivering superior white light reproduction with variable CCT, boasting high output and high CRI and TM30 values.

Features:
300W Variable White LED delivering high CRI, TLCI, TM30 values
Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
IP65 for exterior application

LIGHT SOURCE

Source:

300
W

Variable White LED
Luminous flux:

(15°) 20'098, (30°) 20'803, (60°) 21'867

@Full
Lux:

(15°) 5'032, (30°) 2'999, (60°) 1'286
lx

@5 m full
CRI:

97,1 @full; 97,6 @3.200K; 98,7 @5.600K
R9:

98,1 @3.200K; 99 @5.600K
TLCI:

99 @full; 98 @3.200K; 99 @5.600K
TM30 Rf:

95,5 @full; 96,3 @3.200K; 95,4 @5.600K
TM30 Rg:

101,9 @full; 102,3 @3.200K; 100,9 @5.600K
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

(on-board) 15° - (opt) 30°, 60
°
Field angle:

(on-board) 35
°
Lens diameter:

172
mm
Lens type:

parabolic reflector in combination with HD fresnel lens
Additional optics:

(opt) 30°, 60°
Other:

possible to mount lens both on the internal side and on the external side

COLOUR SYSTEM

Colour mixing:

tunable white
CCT:

CCT control through dedicated DMX channel
White presets:

2.700 K ~ 6.500
K
Macros:

built-in white presets

DYNAMIC EFFECTS

Static mode:

selection of static dimmer and color temperature
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
DMX channels:

1 / 2 / 4 / 5 / 9 / 11
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Stand Alone:

3

RGB backlight push-encoders
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

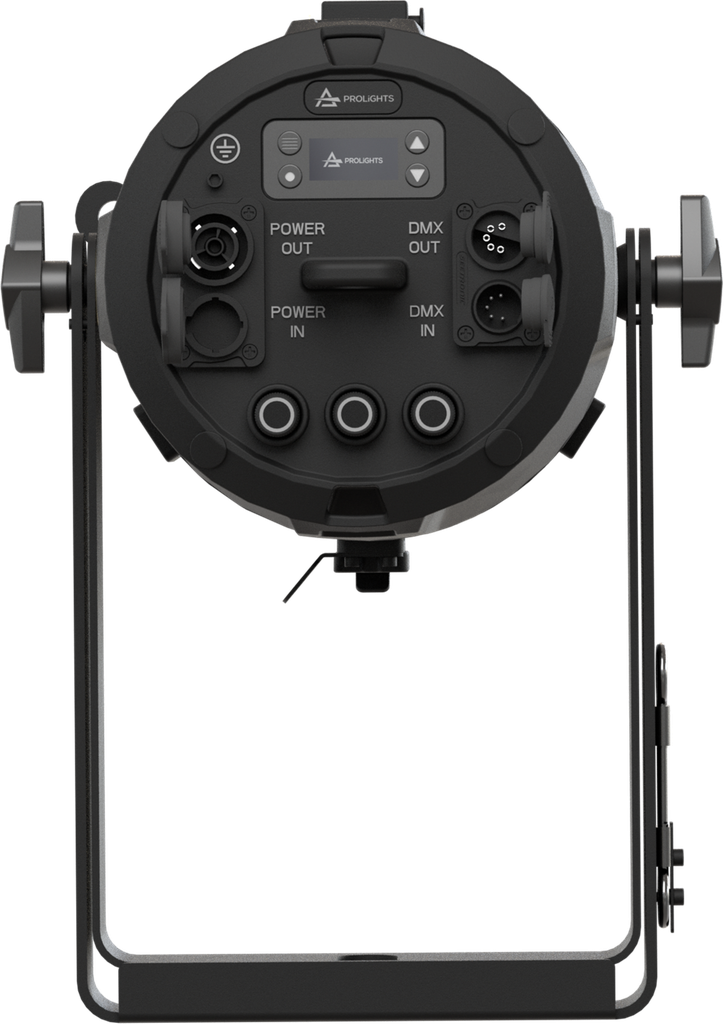

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

340
W
Output (at 230V):

6

units on a single power line
Standby power:

2,2 W
Power factor:

> 0,94

PHYSICAL

IP rating:

IP65 for temporary outdoor use
Cooling:

forced-air with IP-rated low-noise fan
Housing:

Sturdy die-cast aluminium body
Finish:

black
Operating temperature:

Ta

-20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD):

275x402x382
mm
Weight:

8,35
kg

INSTALLATION

Suspension and fixing:

hanging bracket with quick lock system designed for use with OMEGA bracket or floor stand (accessory), hanging system through eye bolt
Other:

Front mount holder for accessories as barn door, filter frame

CERTIFICATIONS / REPORTS
