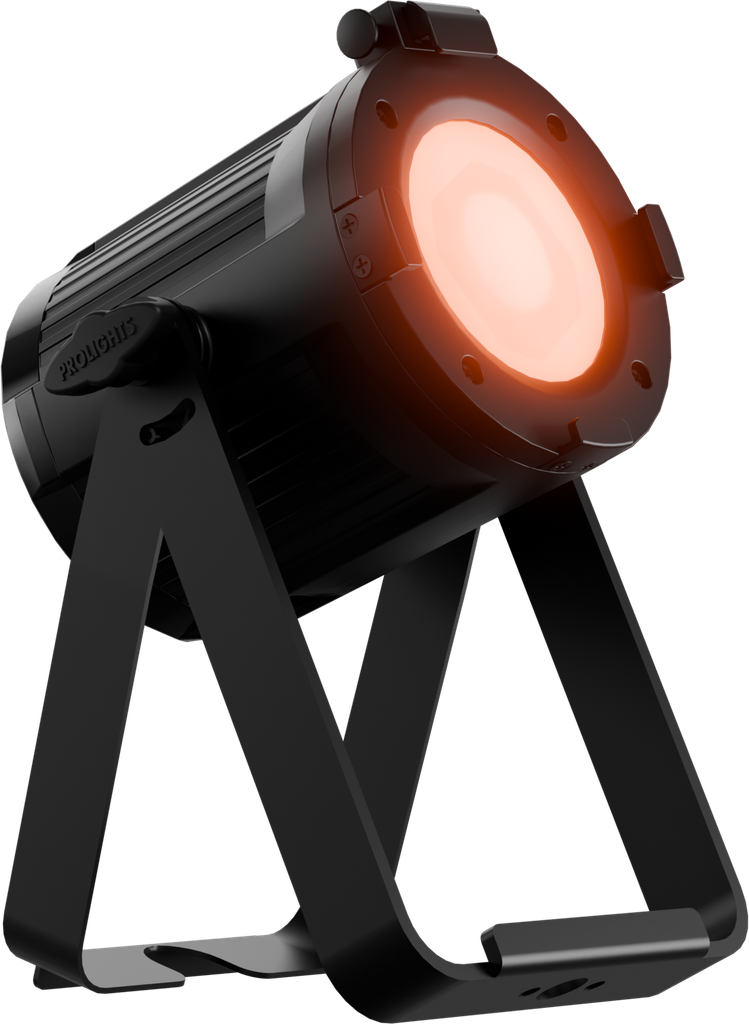

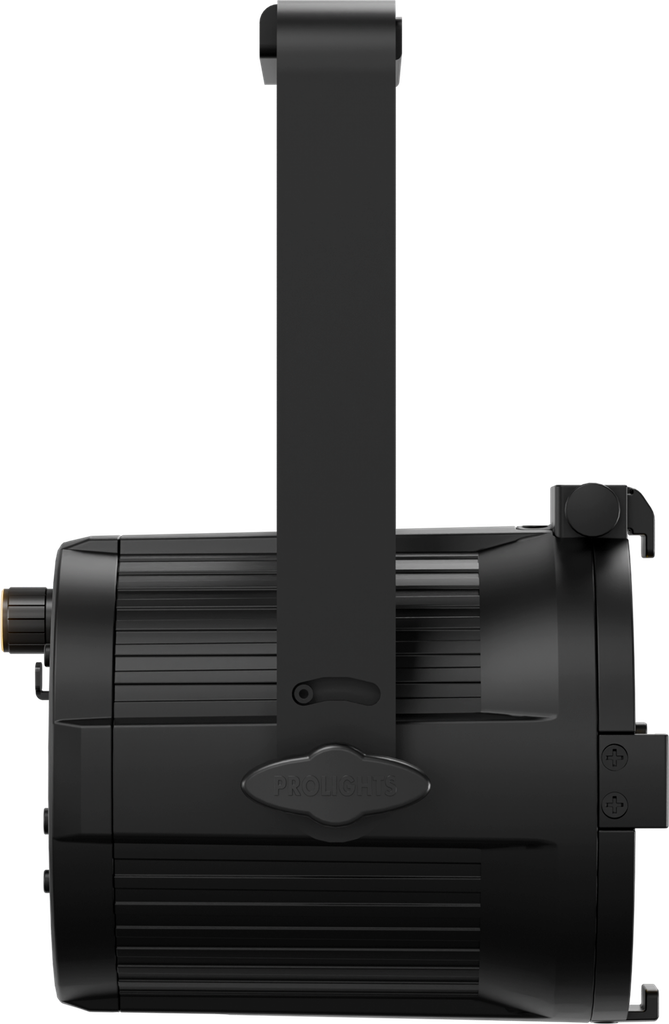

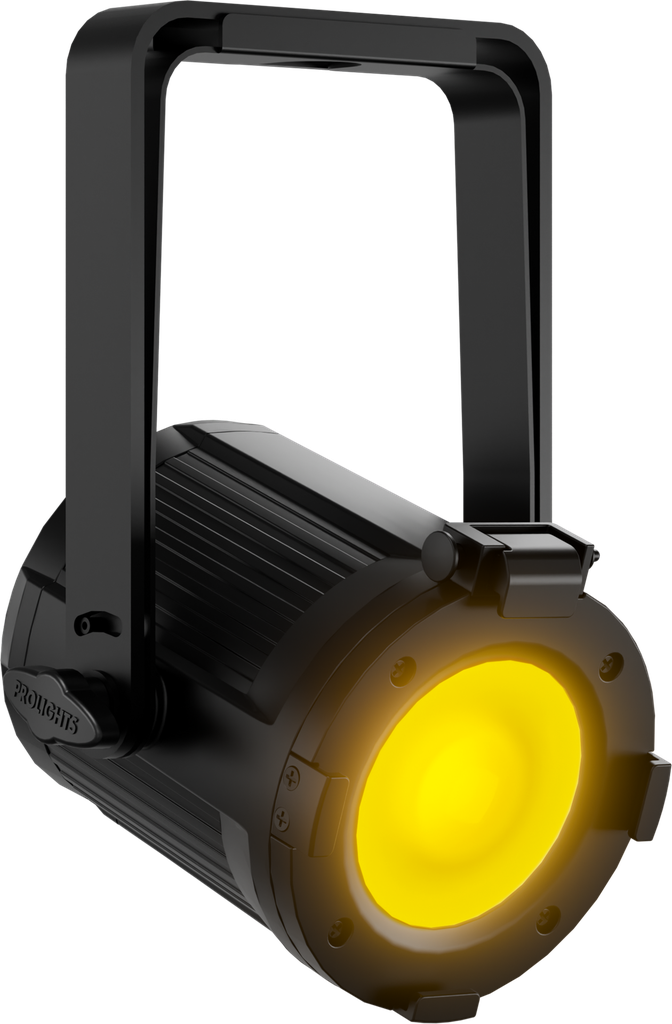

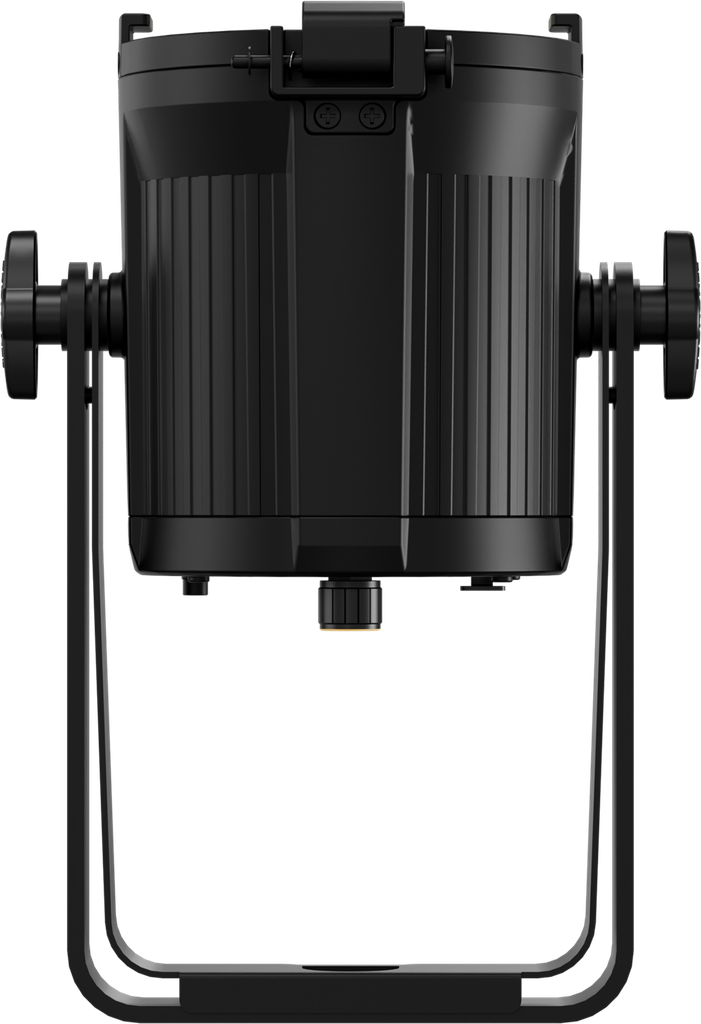

Prolights ECLPARDOTFC

20W RGB+WW LED pinspot, 6° beam angle

QUOTE ONLY

Add to wishlist

View on Manufacturer Website

SKU: ECLPARDOTFC

CATEGORY: Pars & Washes

BRAND: Prolights

DELIVERY For orders above AED 1,000

WARRANTY 2 years

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

EclPar DotFC is an ultra-compact, fan-free pinspot featuring a larger front lens and enhanced output. It delivers a bright, narrow projection with smooth colour mixing and advanced colour control.

A 20W RGB + Warm White LED paired with a 60 mm lens produces a halo-free 6° beam, staying tight and bright even over long throws ideal for highlights, accents, scenic elements, set pieces, and discreet stage lighting.

EclPar DotFC combines an RGB+WW LED source with the advantages of SpektraOs, providing advanced colour control, consistent colour reproduction, and high-fidelity whites with excellent colour rendering.

The fixture is passively cooled and completely silent. With a weight of only 1.2 kg and an ultra-compact form factor, it can be placed virtually anywhere. On-board DMX (XLR) in/out and power in/out connections make installation fast and enable easy daisy-chaining. The integrated push encoder also allows intuitive standalone operation without a control signal, ensuring quick setup and ease of use.

20W RGB + Warm White LED, 2,800 K - 10,000 K

Tight 6° beam with 60 mm lens, halo-free projection

SpektraOs for advanced colour control and high-fidelity white reproduction

Fan-free, 1.2 kg, with chassis-mounted DMX in/out and power in/out for easy daisy-chain wiring

EclPar DotFC is an ultra-compact, fan-free pinspot featuring a larger front lens and enhanced output. It delivers a bright, narrow projection with smooth colour mixing and advanced colour control.

Features:
20W RGB + Warm White LED, 2,800 K - 10,000 K
Tight 6° beam with 60 mm lens, halo-free projection
SpektraOs for advanced colour control and high-fidelity white reproduction
Fan-free, 1.2 kg, with chassis-mounted DMX in/out and power in/out for easy daisy-chain wiring

LIGHT SOURCE

Source:

1 x 20
W

RGB + Warm White LED
Source CCT:

2.800K - 10.000K
K
Luminous flux:

627

@Full
Lux:

1352
lx

@5 m full
CRI:

94,2 @3.200K; 91,1 @5.600K
R9:

97,2 @3.200K; 96,6 @5.600K
TM30 Rf:

91,7 @3.200K; 90,3 @5.600K
TM30 Rg:

105,9 @3.200K; 108,2 @5.600K
Source life expectancy:

> 90.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle:

6
°
Field angle:

11,5
°
Lens diameter:

60
mm

COLOUR SYSTEM

Spektra OS:

unmatched color precision and consistency
Colour mixing:

RGB + Warm White
CCT:

CCT control range from 2.800K to 10.000K, + / - green correction, tungsten emulation
White presets:

2.800 K ~ 10.000
K
Colour wheel:

gel filters included

DYNAMIC EFFECTS

Static mode:

selection of static dimmer, colors and color temperature
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment
Special features:

linear crossfade channel from any white to any colour; virtual CTO on colours

CONTROL

Supported Protocols:

DMX512, RDM
DMX channels:

1 / 2 / 5 / 6 / 9 / 12 / 13
ch
RDM:

for remote addressing and parameter configuration
Display:

LED display user interface
Stand Alone:

push encoder
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1-30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

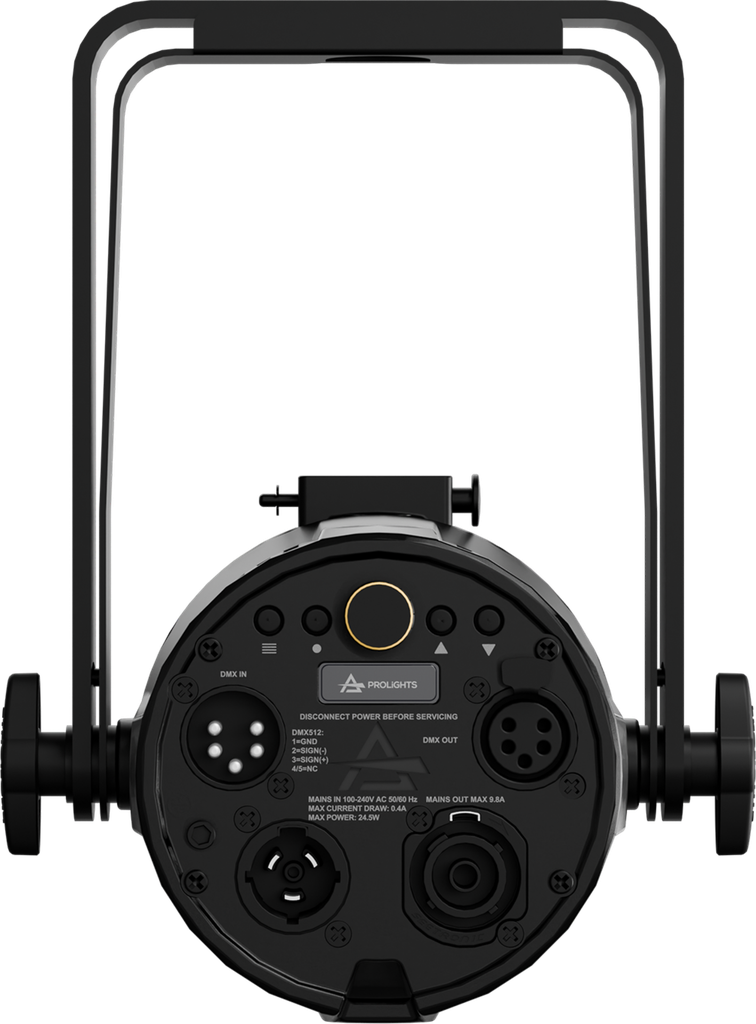

CONNECTIONS

Power connection:

Seetronic powerCON IN/OUT connectors
Signal connection:

Amphenol XLR 5p IN/OUT connectors

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

25
W
Standby power:

1 W
Power factor:

> 0,9

PHYSICAL

IP rating:

IP20
Cooling:

fan-free with natural convection
Housing:

Sturdy die-cast aluminium body
Finish:

black
Operating temperature:

Ta

-10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD):

165x221x144
mm
Weight:

1,2
kg

INSTALLATION

Suspension and fixing:

double hanging bracket suitable for safe hanging and for floor positioning
Other:

Front mount holder for accessories - see available accessories
