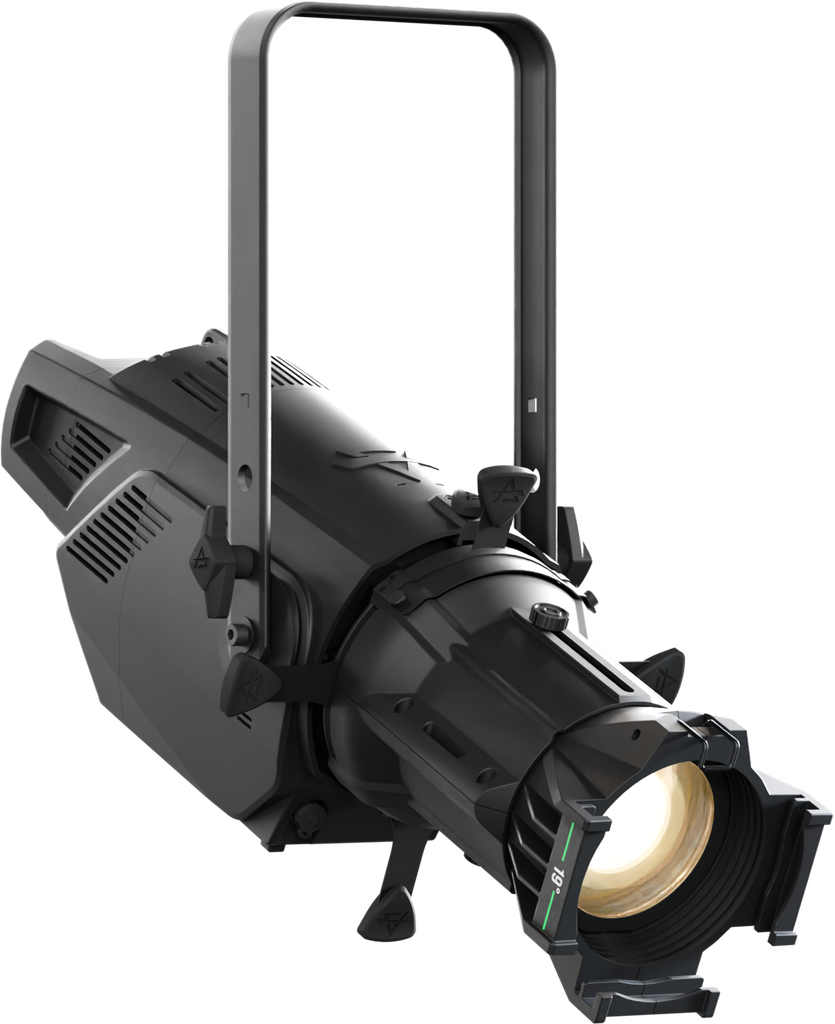

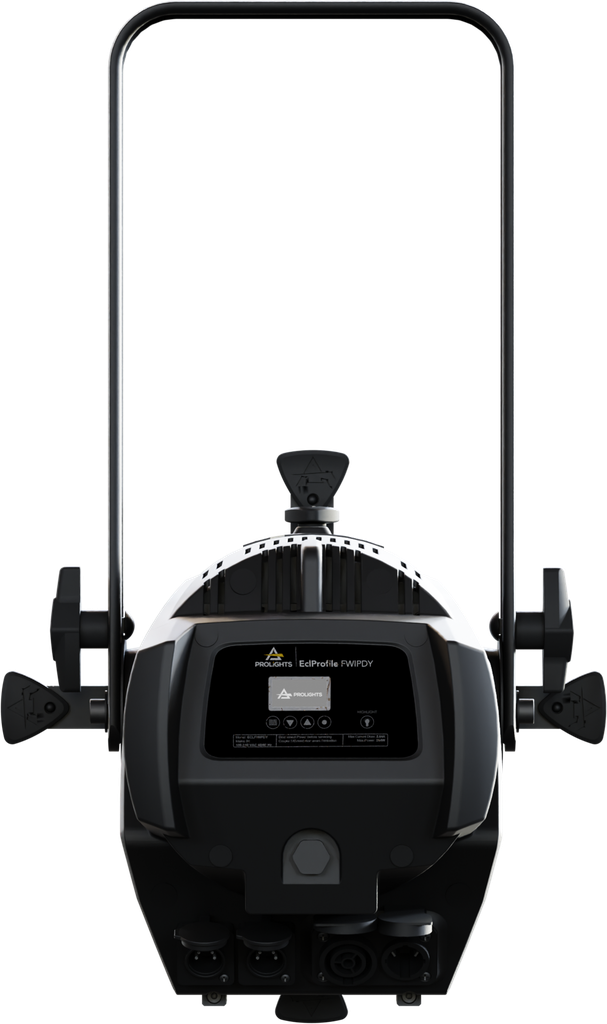

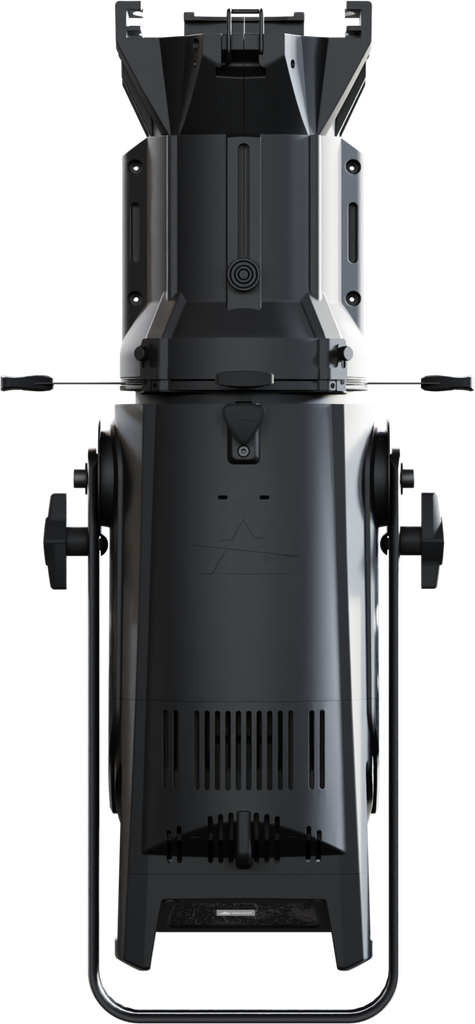

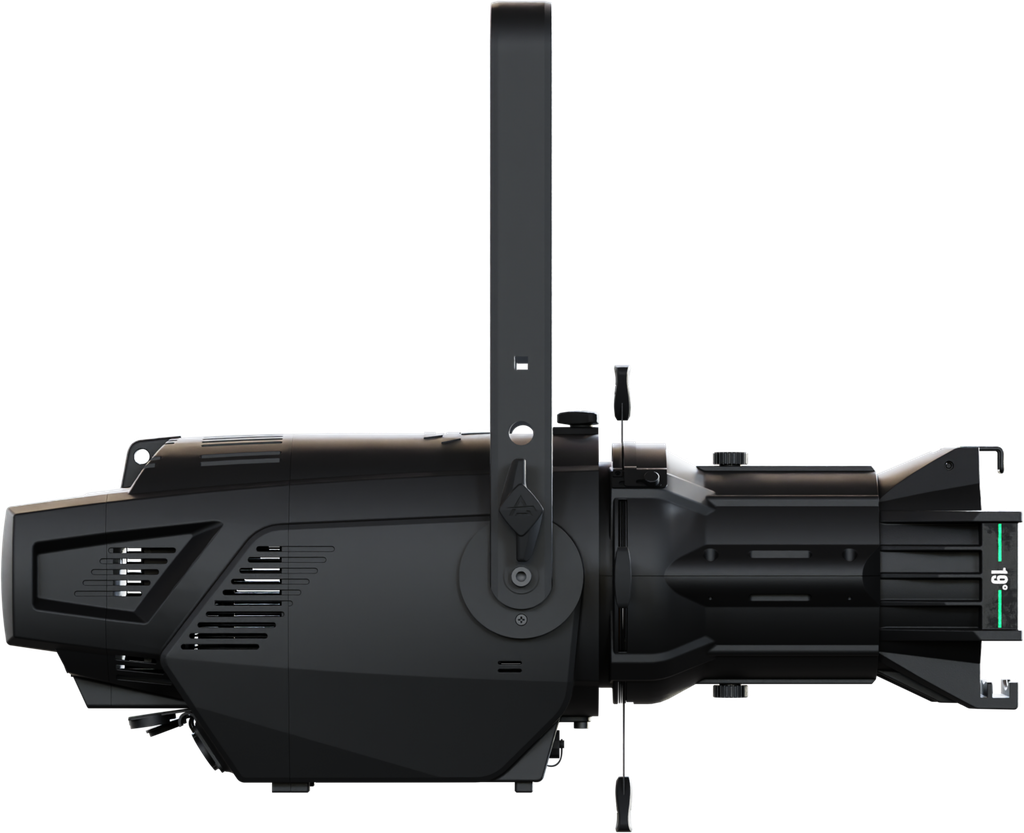

EclProfile FW IP VW is the IP Full White version of the new generation of Ecl Profile LED ellipsoidals with Variable White source variants. The EclProfile FW IP VW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.
EclProfile FW IP VW is the IP Full White version of the new generation of Ecl Profile LED ellipsoidals with Variable White source variants. The EclProfile FW IP VW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.
Features:IP rated for exterior applications
Rotating gobo IP65 (optional)
Linear white CCT from 2,700 K to 5,600 K.
High lumen output and superior quality of whites (high CRI, TLCI, TM30).
Silent operation and compatible with industry standard accessories.
- Source:91x3WVariable White LED
- Source CCT:from 2.700K to 6.500K
- Luminous flux:(26° only TU) 3'696 lm; (26° only DY) 4'406 lm; (26°) 7'951@Full
- Lux:(26° only TU) 1'289 lx; (26° only DY) 1'524 lx; (26°) 2'759lx@5 m full
- CRI:(only TU) 97,7; (only DY) 95,7; (@full) 96.3
- R9:(only TU) 86,2; (only DY) 90,9; (@full) 90,5
- TLCI:(only TU) 97; (only DY) 97; (@full) 98
- TM30 Rf:(only TU) >92; (only DY) >90; (@full) >92
- TM30 Rg:(only TU) >96; (only DY) >99; (@full) <102
- Source life expectancy:> 50.000 h
- Beam angle:optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°°
- Lens type:HD anti-reflection lenses with achromatic coating
- Focus:manual
- Other:see available accessories
- Colour mixing:warm white + cold white
- White presets:2.700K - 5.600K
- Static mode:selection of static dimmer
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
- Special features:HIGH mode, AUTO mode and SILENT mode fan management
- Rotating gobos:optional, see available accessories
- Gobo size:(B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness
- Supported Protocols:DMX512, RDM
- DMX channels:2 / 3 / 4 / 6 / 12ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Strobe / shutter:1 - 25Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):264W
- Output (at 230V):12units on a single power line
- Power factor:0,97
- IP rating:IP65 for temporary outdoor use
- Cooling:low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):324x540x660mm
- Weight:10kg
- Suspension and fixing:bracket for hanging and positioning
- Compliance:CE, RCM
