Prolights ECLFWHPVWBK

450W high quality VariableWhite LED ellipsoidal, compatible with PRL and PRLZ lenses

QUOTE ONLY

Add to wishlist

View on Manufacturer Website

SKU: ECLFWHPVWBK

CATEGORY: Profile

BRAND: Prolights

DELIVERY For orders above AED 1,000

WARRANTY 2 years

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

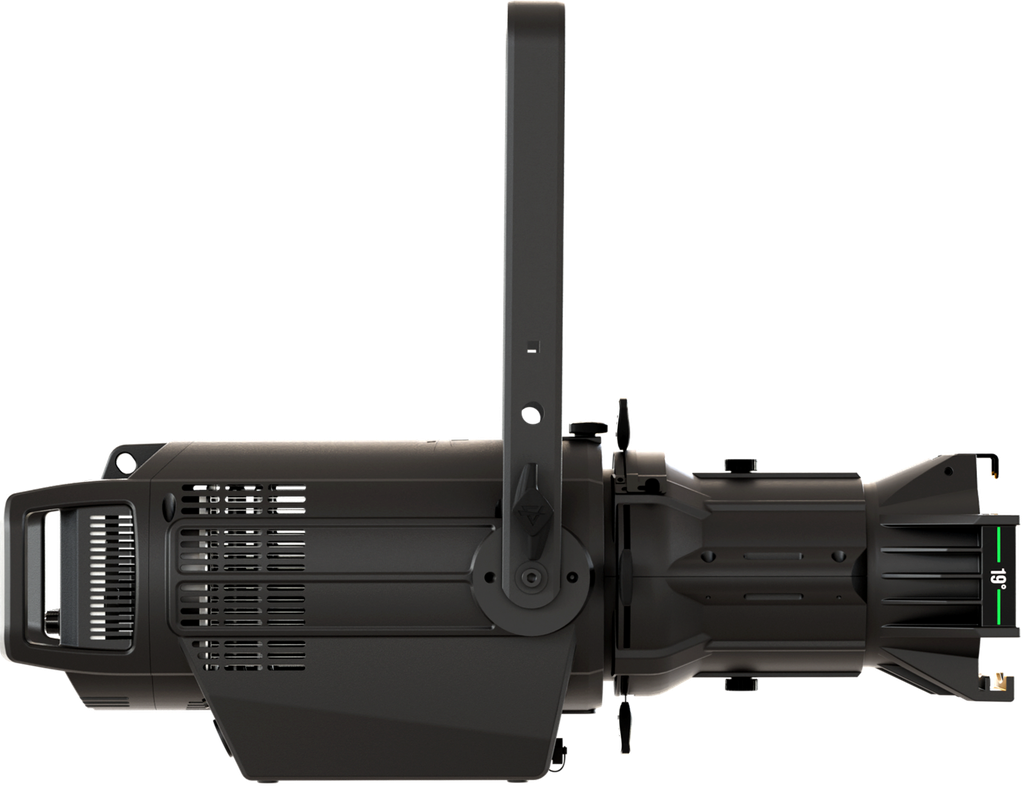

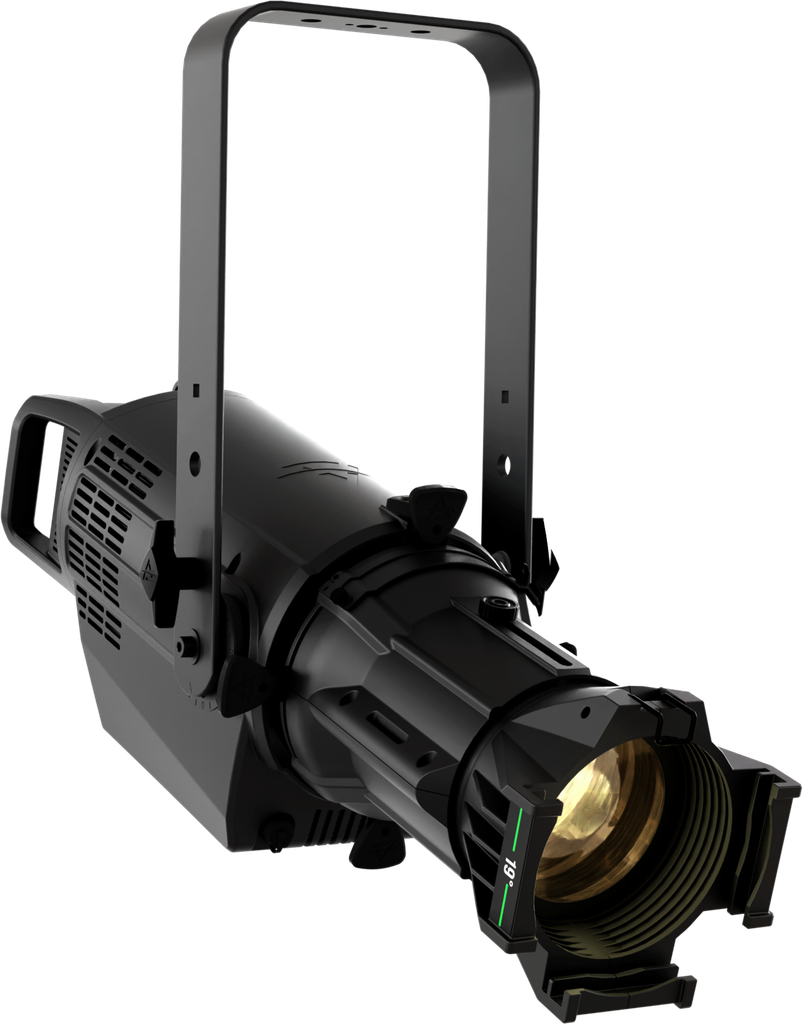

EclProfile FWHPVW is a true workhorse for white light applications. It features a 450 W LED engine delivering an impressive 16,600 lm output. The VariableWhite source provides excellent colour rendering for outstanding light quality and easy operation in broadcast studios and exhibitions/expos. Designed for long throw distances and higher trim heights, the FWHP is an ideal replacement for traditional HPL 750 W and 2 kW tungsten ellipsoidals, excelling in large venues.

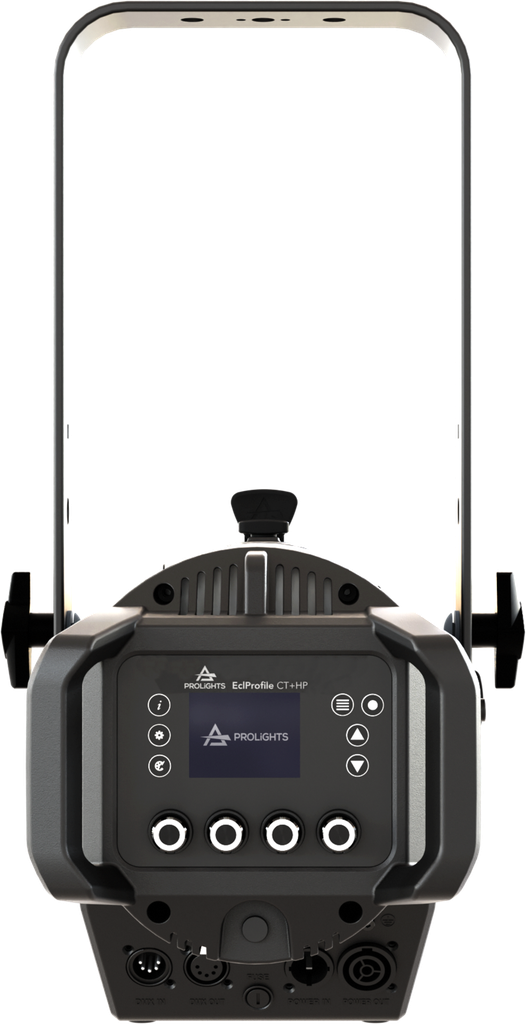

EclProfile FWHP delivers precise CCT reproduction with a user-friendly interface. The enhanced 2.4-inch display, paired with four RGB-backlit, push-to-select encoders, provides fast and intuitive control across multiple operating modes ensuring consistent and efficient operation for professionals.

Despite its increased output, the fixture maintains the compact footprint of its predecessor and remains compatible with industry-standard fixed and zoom optics, including PRL and PRLZ lenses. This enables seamless integration into existing inventories, making it a versatile and cost-effective solution for a wide range of lighting requirements.

450 W high-quality VariableWhite LED ellipsoidal, 16.600 lm

Linear white CCT from 2.700 K to 6.500 K

CRI and R9 up to 98

Silent operation, compatible with industry-standard accessories

Features:
450 W high-quality VariableWhite LED ellipsoidal, 16.600 lm
Linear white CCT from 2.700 K to 6.500 K
CRI and R9 up to 98
Silent operation, compatible with industry-standard accessories

LIGHT SOURCE

Source:

450
W

Variable White LED
Luminous flux:

(19°) 13'419 lm; (26°) 16'662 lm; (50°) 15'037 lm;

@5.600 K
Lux:

(19°) 6'667 lx; (26°) 4'537 lx; (50°) 1'236
lx

@5 m 5.600 K
CRI:

up to 98
R9:

up to 98
TLCI:

up to 99
TM30 Rf:

96 @3200K; 96 @5600K
TM30 Rg:

103 @3200K; 102 @5600K
Source life expectancy:

> 50.000 h

OPTICS

Lens type:

high-quality glass lens optics
Additional optics:

optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
Focus:

manual
Other:

see available accessories

COLOUR SYSTEM

Colour mixing:

tunable white
CCT:

linear from 2.800K to 6.500K

DYNAMIC EFFECTS

Special features:

4 fan modes available and output management

GOBOS

Rotating gobos:

optional, see available accessories
Gobo size:

(B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
DMX channels:

from 1 channel to 16
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Stand Alone:

4 pushable RGB backlit encoder
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 25

Hz, electronic
Selectable PWM:

1282 to 20000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX2 (not included) through dedicated software

CONNECTIONS

Power connection:

Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection:

Amphenol XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TimoTwo FX - CRMX, CRMX² (RX only) and W-DMX compatible, Bluetooth enabled

ELECTRICAL
