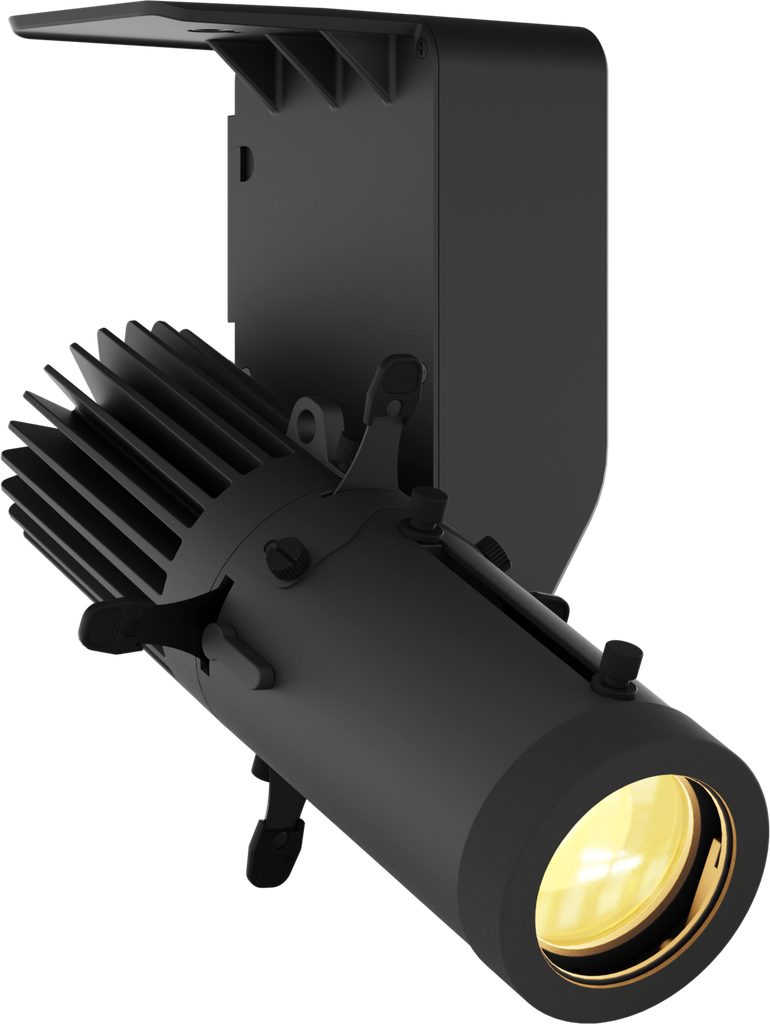

Prolights ECLDISPLAYUN27KB

Dmx/Dali/knob/PCD control, 25W White LED 2700K, BK, w/o: lens, track and cable

QUOTE ONLY

Add to wishlist

View on Manufacturer Website

SKU: ECLDISPLAYUN27KB

CATEGORY: Gallery Lights

BRAND: Prolights

DELIVERY For orders above AED 1,000

WARRANTY 2 years

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

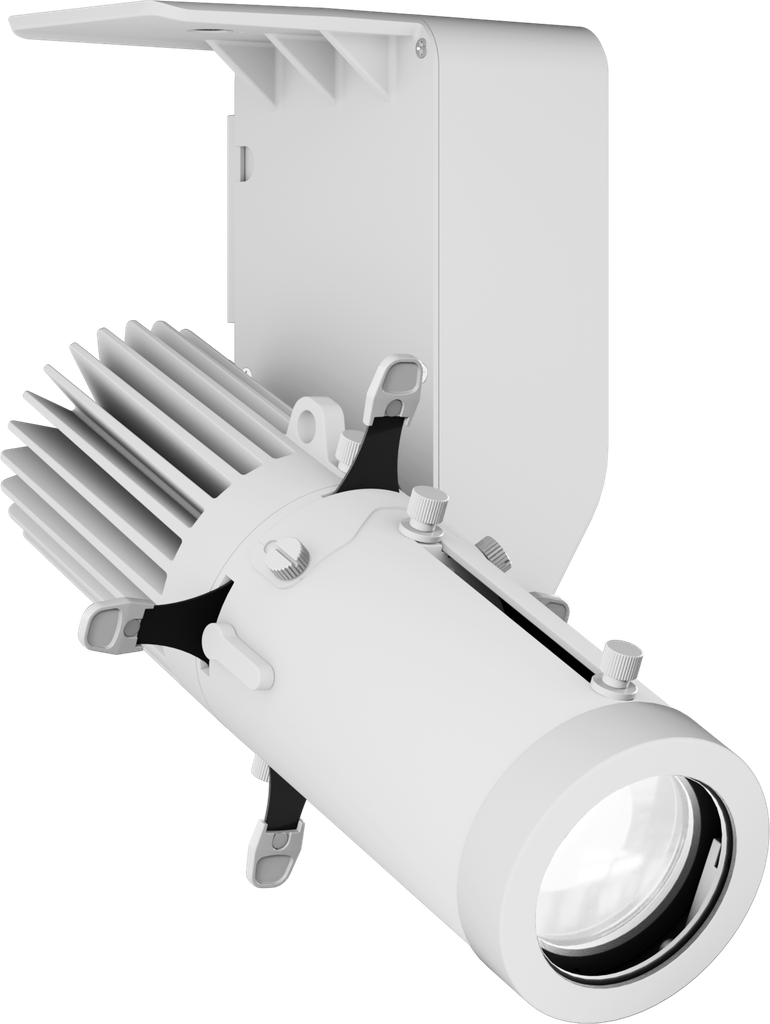

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.

The EclDisplay UN can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6, phase-cut dimming or local knob dimming control.

The EclDisplay UN includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

Universal control through RDM, DMX, DALI Type 6, phase-cut dimming and local knob dimming

25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing

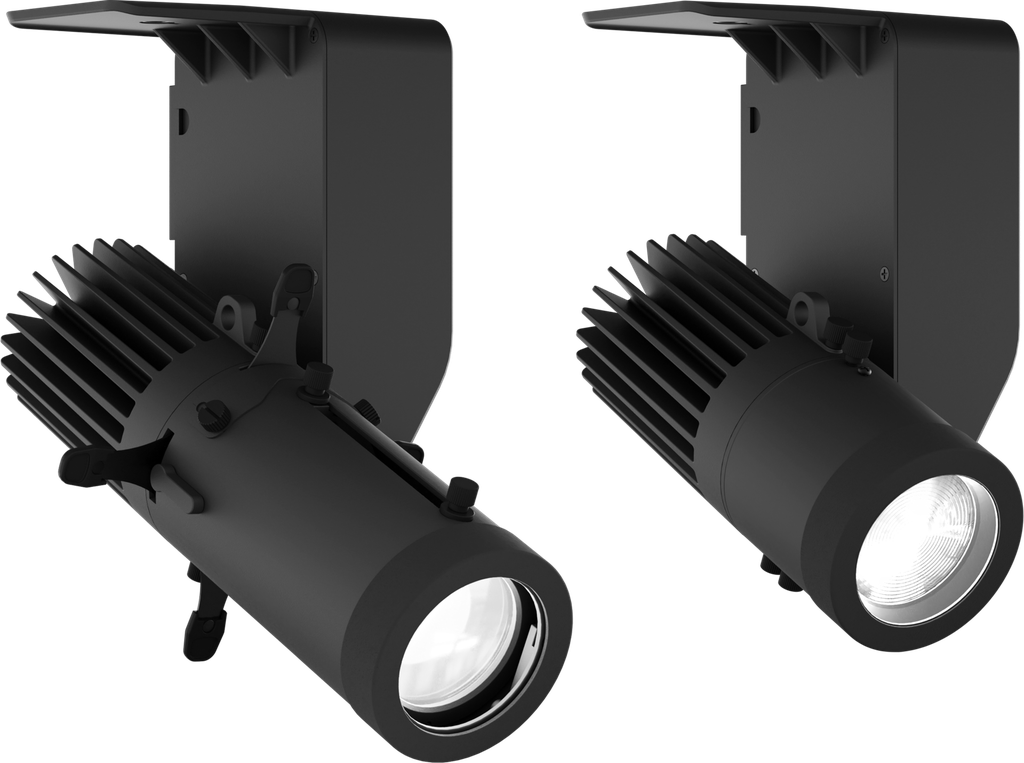

Multiple lens options: profile (zoom and static) or wash optics

The EclDisplay UN can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6, phase-cut dimming or local knob dimming control.

Features:
Universal control through RDM, DMX, DALI Type 6, phase-cut dimming and local knob dimming
25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
Multiple lens options: profile (zoom and static) or wash optics

LIGHT SOURCE

Source:

25
W

White COB LED
Luminous flux:

(2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676

@Full
Luminous flux:

(4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
Lux:

(2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241
lx

@5 m full
Lux:

(4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256
lx

@5 m full
CRI:

90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
TLCI:

87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
TM30 Rf:

> 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
TM30 Rg:

< 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8
°
Other:

360° lens rotation - optional 360° rotating barndoors and gel frame holder
Other:

(profile lens) shutter blades lockable
Other:

(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
