The EclProfile CT+HP elevates the benchmark in LED ellipsoidals by delivering 450 Watts of fixture power, effectively doubling its lumen output to an impressive 14,000 lumens. Retaining the renowned 6-color LED engine of the CT+ series, it offers superior color rendering for unparalleled light quality. Specifically designed for longer throw distances and higher hanging positions, the CT+HP is the ideal replacement for traditional HPL 750W and 2kW tungsten fixtures, excelling in large venues such as theaters, studios, and auditoriums.
The latest generation of Spektra OS equips the EclProfile CT+HP with cutting-edge UI and control features. Seamlessly aligned with the PROLIGHTS ecosystem, it offers advanced color mixing, precision CCT reproduction, and user-friendly operation. The enhanced 2.4-inch display, complemented by four RGB backlit, pushable encoders, ensures a streamlined user experience. This innovation delivers intuitive control across multiple operating modes, ensuring consistency and efficiency for professionals
Despite its increased output, the fixture maintains the compact dimensions of its predecessor, offering compatibility with industry-standard fixed-angle and zoomable lenses, including the PRL and PRLZ lenses. This ensures seamless integration with existing inventories, making it a versatile and cost-effective solution for diverse lighting needs.
The EclProfile CT+HP elevates the benchmark in LED ellipsoidals by delivering 450 Watts of fixture power, effectively doubling its lumen output to an impressive 14,000 lumens. Retaining the renowned 6-color LED engine of the CT+ series, it offers superior color rendering for unparalleled light quality. Specifically designed for longer throw distances and higher hanging positions, the CT+HP is the ideal replacement for traditional HPL 750W and 2kW tungsten fixtures, excelling in large venues such as theaters, studios, and auditoriums.
The latest generation of Spektra OS equips the EclProfile CT+HP with cutting-edge UI and control features. Seamlessly aligned with the PROLIGHTS ecosystem, it offers advanced color mixing, precision CCT reproduction, and user-friendly operation. The enhanced 2.4-inch display, complemented by four RGB backlit, pushable encoders, ensures a streamlined user experience. This innovation delivers intuitive control across multiple operating modes, ensuring consistency and efficiency for professionals
Despite its increased output, the fixture maintains the compact dimensions of its predecessor, offering compatibility with industry-standard fixed-angle and zoomable lenses, including the PRL and PRLZ lenses. This ensures seamless integration with existing inventories, making it a versatile and cost-effective solution for diverse lighting needs.
Features:450W 6 colors LED ellipsoidal
Spektra Os for High quality CCT reproduction and advanced color control

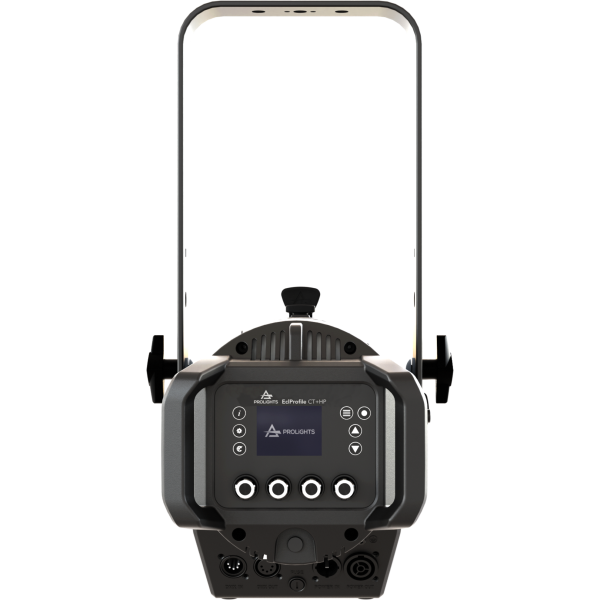

New UI with 2.4'' display and 4 backlit pushable encoder
Compatible with PRL and PRLZ lenses
- Source:450W6 colour LEDs source
- Luminous flux:(10°) 11'384 lm; (14°) 9'863 lm; (19°) 10'977 lm; (26°) 13'536 lm; (36°) 13'643 lm; (50°) 12'293 lm; (70°) 14'959@4.000 K
- Lux:(10°) 16'659 lx; (14°) 8'676 lx; (19°) 5'157 lx; (26°) 3'517 lx; (36°) 1'902 lx; (50°) 989 lx; (70°) 660lx@5m 4.000 K
- CRI:96
- R9:98
- TLCI:94,7
- Source life expectancy:> 50.000 h
- Lens type:high-quality glass lens optics
- Additional optics:optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
- Focus:manual
- Other:see available accessories
- Colour control:XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
- CCT:CCT control range from 1.800K to 20.000K, + / - green correction, tungsten emulation
- Special features:4 fan modes available and output management andlinear crossfade channel from any white to any colour; virtual CTO on colours
- Rotating gobos:optional, see available accessories
- Gobo size:(B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness
- Supported Protocols:DMX512, RDM, CRMX (optional)
- DMX channels:from 1 channel to 30ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Stand Alone:4 pushable RGB backlit encoder
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 25Hz, electronic
- Selectable PWM:1282 to 20000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included) through dedicated software
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Wireless Connection:optional LumenRadio TimoTwo FX - CRMX, CRMX² (RX only) and W-DMX compatible, Bluetooth enabled
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):470W
- Output (at 230V):5units on a single power line
- Standby power:11,6 W
- Power factor:> 0,94
- IP rating:IP20
- Cooling:heat pipe with low-noise fan
- Housing:Sturdy die-cast magnesium body
- Finish:black (RAL 9004)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):292x267x628mm
- Weight:8,5kg
- Suspension and fixing:bracket for hanging and positioning
- Compliance:CE, RCM, FCC
