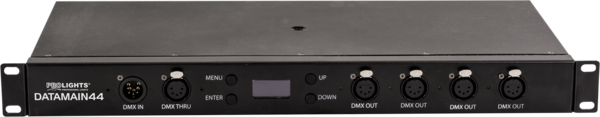

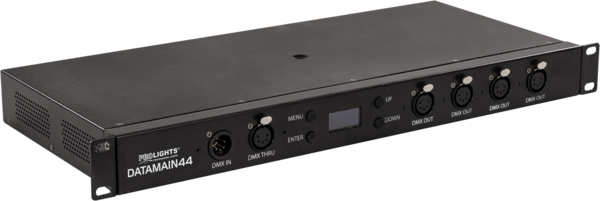

The DATAMAIN44 is a hybrid splitter that allows for the distribution of power and a DMX signal, all housed within one single unit. The DATAMAIN44 features a powerCON input and an XLR 5p input and four pairs of powerCON and XLR outputs; it also allows the control over each power output via DMX signal by using the DATAMAIN44 as a switch pack. All these features make the DATAMAIN44 an vital tool for every lighting designer.
The DATAMAIN44 is a hybrid splitter that allows for the distribution of power and a DMX signal, all housed within one single unit. The DATAMAIN44 features a powerCON input and an XLR 5p input and four pairs of powerCON and XLR outputs; it also allows the control over each power output via DMX signal by using the DATAMAIN44 as a switch pack. All these features make the DATAMAIN44 an vital tool for every lighting designer.
Features:1 DMX input - 4 DMX opto-insulated outputs
1 powerCON input
4 powerCON outputs, also controllable via DMX
Boosts and regenerates the DMX signal
- Display:LCD display
- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:3p + 5p 1in / 4out + thru
- Input:1 DMX 5p IN, 1 power IN with PowerCon

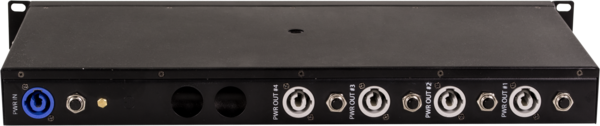

- Output:4 DMX 5p OUT opto-insulated, 1 DMX 5p THRU, 4 power OUT with PowerCon
- Mains power supply:100 - 240 V 50 / 60 Hz
- Output (at 230V):3680 W distributed over all 4 outputs
- Max power consumption (120V):4,8W
- Output (at 120V):1600 W distributed over all 4 outputs
- Dimensions (WxHxD):483x44x200mm
- Weight:2,75kg
- Rack unit:1 standard 19'' rack unit made of steel
- Compliance:CE, UKCA
