Prolights ASTRAPROF500LTIP

IP65 500W Moving Profile, with 6500K LED source, 4° - 50° zoom

QUOTE ONLY

Add to wishlist

View on Manufacturer Website

SKU: ASTRAPROF500LTIP

CATEGORY: Indoor Moving Lights

BRAND: Prolights

DELIVERY For orders above AED 1,000

WARRANTY 2 years

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

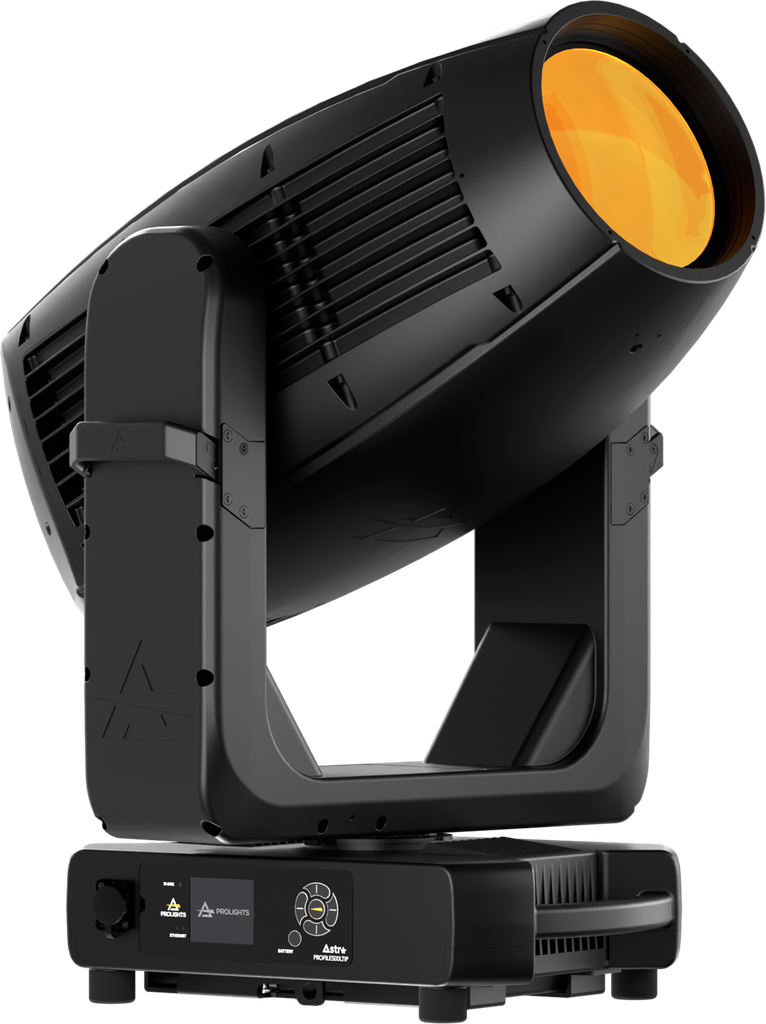

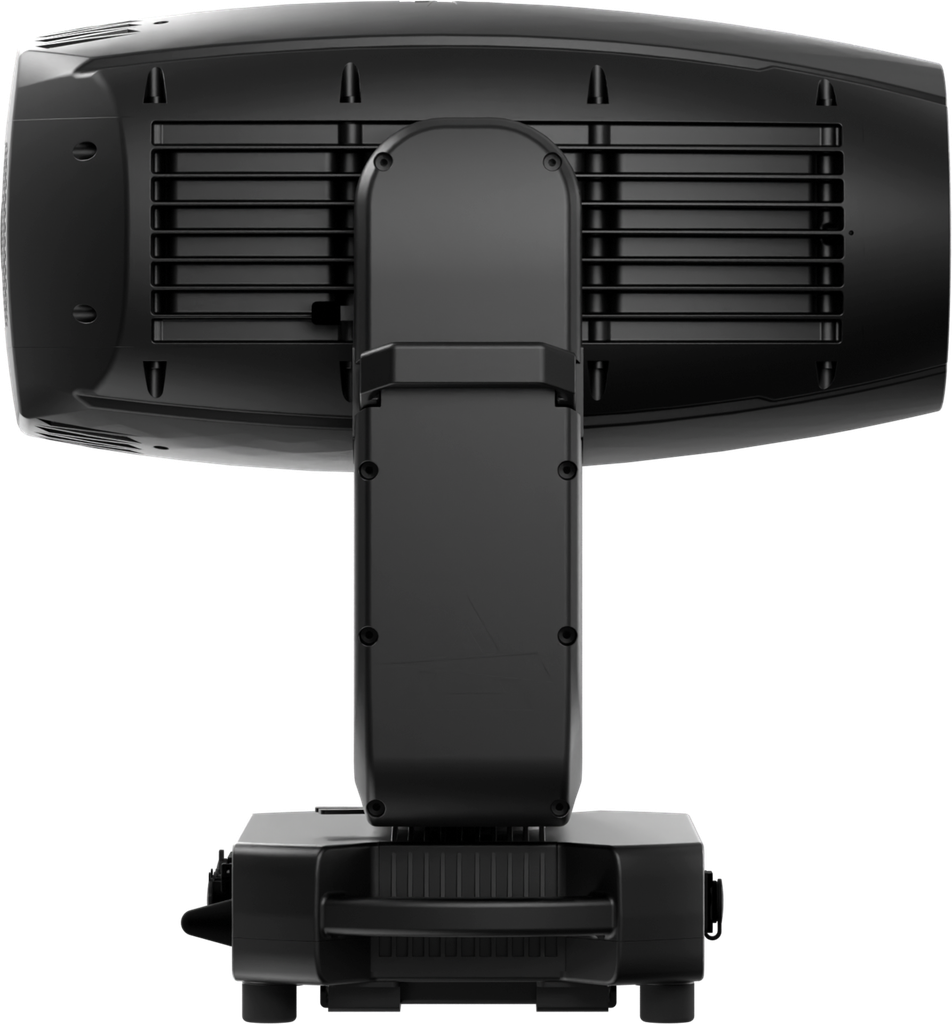

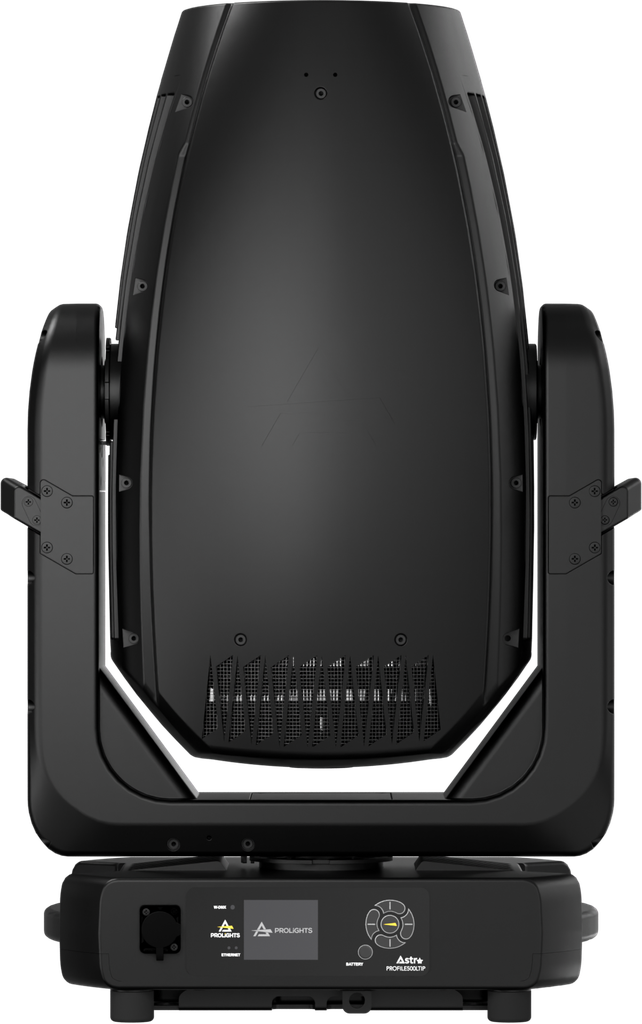

Astra Profile500LTIP is a high-power, versatile Long Throw and IP65-rated LED moving profile, designed to deliver exceptional brightness and robust performance in both indoor and outdoor environments.

Featuring a 500W white LED source at 6,500K, it produces a stunning 25'000 lumen output (goniometer), providing arena level output.

The 156 mm front lens combined with a custom designed long throw lens, projects a fat, even beam with fast zoom from from 4° to 50°, maintaining sharp projections and uniform beam quality across the entire zoom range.

Beam shaping is precise thanks to four framing shutters, while additional creative tools include a linear CMY system, linear CTO, one color wheel, a rotating gobo wheel, a fixed gobo wheel, animation wheel, two frost filters, two overlapping linear prisms for dynamic aerial effects, and an iris.

Astra Profile500LTIP offers precise beam shaping with four framing shutters, each with independent plane rotation and full curtain capability. Additional creative tools include a linear CMY system, linear CTO system, one color wheel, a rotating gobo wheel with seven gobos, an animation wheel, a frost and two overlapping linear prisms for dynamic aerial effects.

Housed in a die-cast magnesium alloy body with full IP65-rated construction for outdoor use, Astra Profile500LTIP is designed for reliability in any environment but keeps lightweight. With fast pan and tilt movement and internal features, high-resolution control, and integrated CRMX wireless connectivity plus Ethernet-based protocols, it ensures fast setup and flexible operation for live events and concerts, theatre and broadcast, corporate productions, and outdoor shows.

500 W white LED source, 6,500 K, 25'000 lm (goniometer)

156 mm front lens with fast 4°-50° zoom

CMY+CTO colour mixing, one colour wheel, 4 framing shutters, 1 rotating gobo wheel, 1 fixed gobo wheel, 1 animation wheel, 2 frost, 2 prisms, iris

IP65-rated construction for reliable outdoor use

Featuring a 500W white LED source at 6,500K, it produces a stunning 25'000 lumen output (goniometer), providing arena level output.

Features:
500 W white LED source, 6,500 K, 25'000 lm (goniometer)
156 mm front lens with fast 4°-50° zoom
CMY+CTO colour mixing, one colour wheel, 4 framing shutters, 1 rotating gobo wheel, 1 fixed gobo wheel, 1 animation wheel, 2 frost, 2 prisms, iris
IP65-rated construction for reliable outdoor use

LIGHT SOURCE

Source:

500
W

White LED
Source CCT:

6.500
K
Luminous flux:

(4,2°) 15'370 lm - (50°) 25'490 lm

@Full
Lux:

(4,2°) 121'742 lx - (50°) 2'074
lx
CRI:

> 70 Ra (CCT 5.600K) - up to 90 Ra (HiCRI color slot)
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

4,2° - 50,1
°

motorised linear zoom
Lens diameter:

156
mm
Lens type:

HD anti-reflection lenses with achromatic coating
Focus:

motorised 16-bit with tracking

COLOUR SYSTEM

Colour mixing:

CMY colour system on 3 gradually fading colour wheels
CCT:

linear CTO correction 2.700 K ~ 6.500 K
Colour wheel:

open + high CRI filter + 5 colour

colour filters

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Shutter system:

4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel:

animation wheel with CW and CCW rotation
FX generator:

2

prisms overlap for spectacular aerial effects
Circular prism:

4
-f

with bi-directional rotation
Linear prism:

6
-f

with bi-directional rotation
Frost:

dual soft-edge and heavy with one interchangeable element
Iris:

5 - 100
%

motorised iris

GOBOS

Rotating gobos:

7

rotating gobos + open, interchangeable, indexing
Gobo size:

25 mm outer / 20 mm image / up to 3 mm thickness
Fixed gobos:

8

fixed gobos + open

CONTROL

Supported Protocols:

DMX512, RDM, ArtNet, sACN, CRMX
DMX channels:

43
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface

MOVEMENT

Pan:

540
°

- 16-bit resolution
Tilt:

270
°

- 16-bit resolution
Position feedback:

automatic repositioning after external movement
Pan / tilt lock:

for transport and maintenance

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Display battery:

included, self-charging battery backup
Selectable PWM:

600 to 50000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive

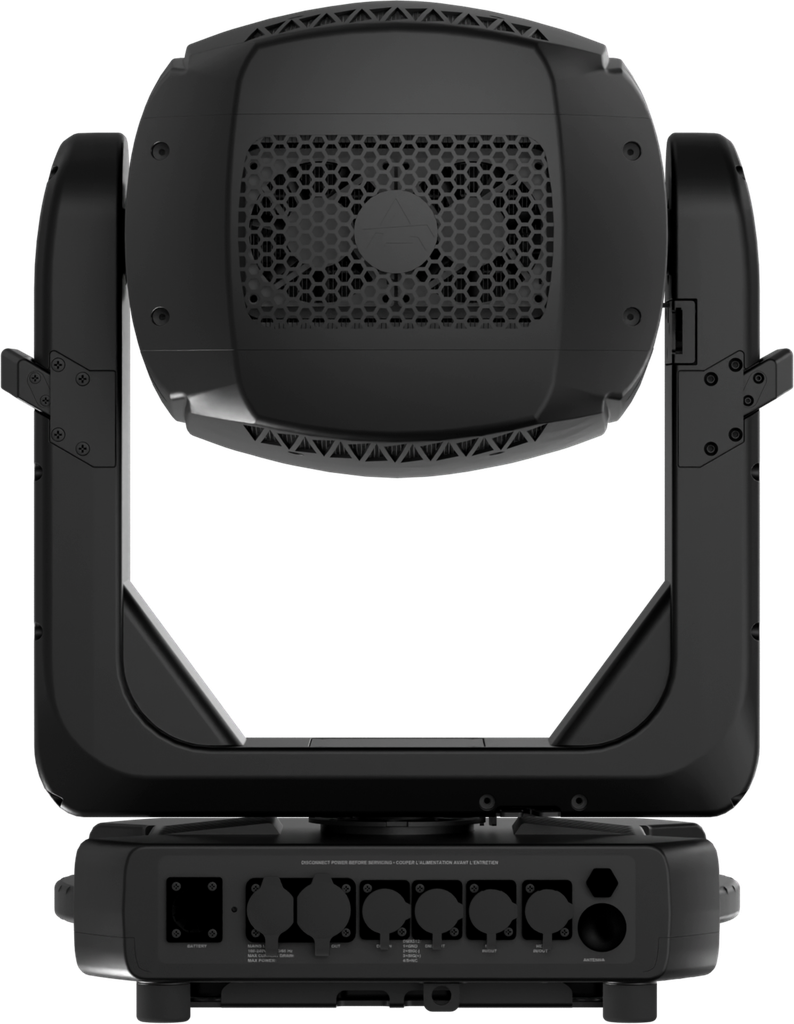

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection:

IP65 Seetronic

RJ45 IN/OUT
EtherFlow:

Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
