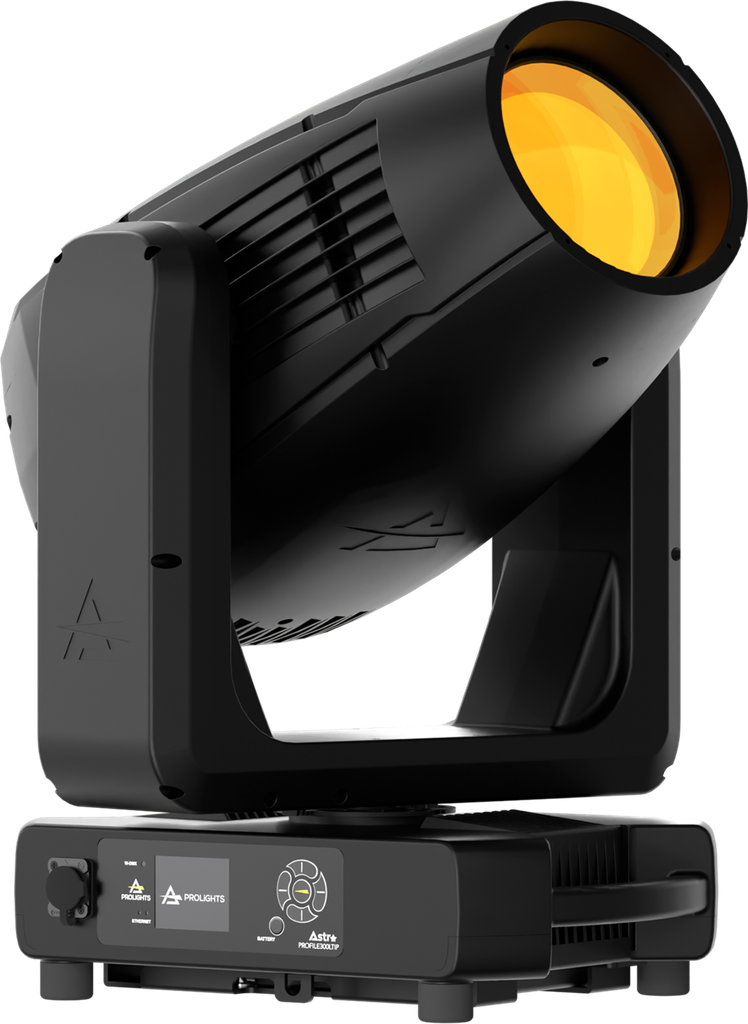

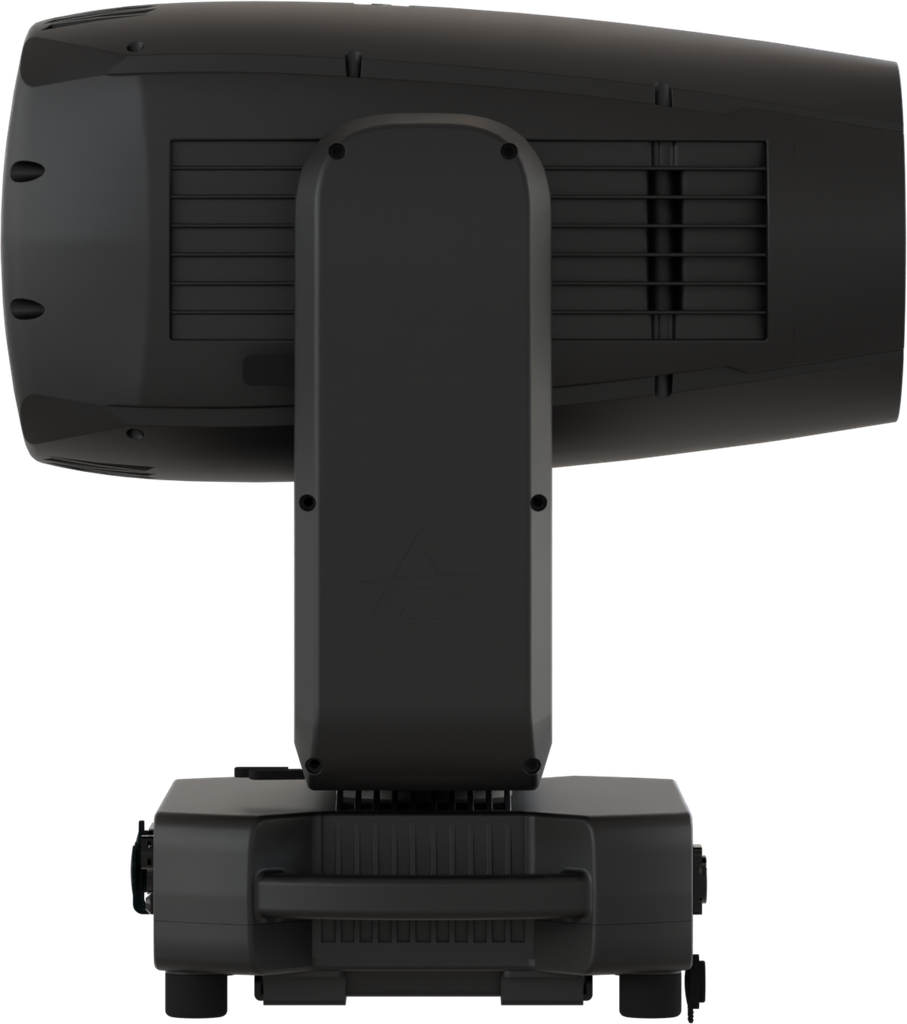

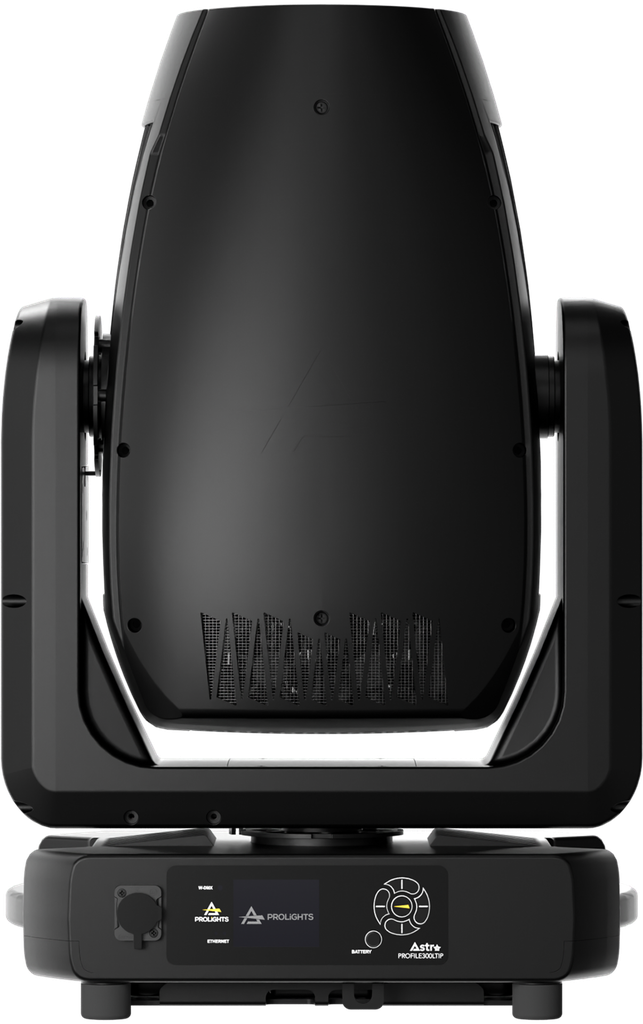

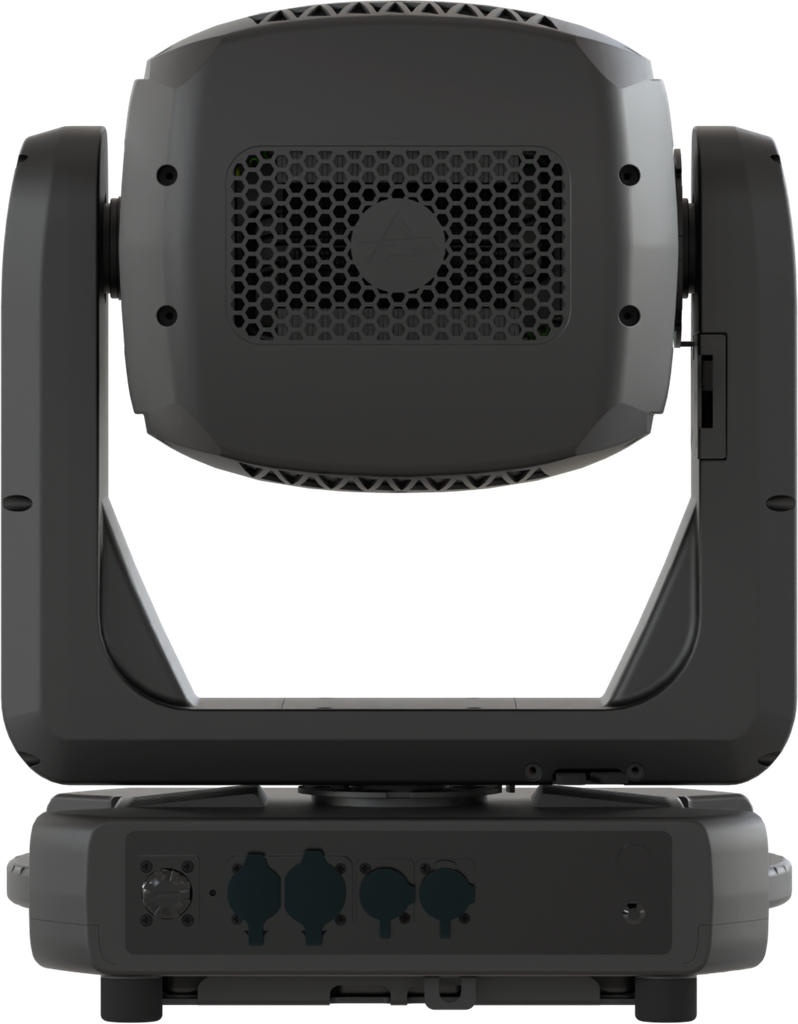

Astra Profile300LTIP is a compact, versatile Long Throw and IP65-rated LED moving profile, engineered to deliver bright and reliable performance in any indoor or outdoor environment.
Featuring a 300W white LED source at 6500K, it pushes an impressive 12'000 lumen output, ensuring exceptional brightness across small rigs or larger stages.
The 135 mm front lens, combined with a custom designed long throw lens, projects a fat, even beam with fast zoom from from 4° to 44°, maintaining sharp projections and uniform beam quality across the entire zoom range.
Astra Profile300LTIP offers precise beam shaping with four framing shutters, each with independent plane rotation and full curtain capability. Additional creative tools include a linear CMY system, linear CTO system, 12 color filters, a rotating gobo wheel with seven gobos, an animation wheel, a frost and two overlapping linear prisms for dynamic aerial effects.
Built with a die-cast magnesium alloy housing and a fully IP65-rated construction for outdoor use in a 26kg package, Astra Profile300LTIP is engineered to perform reliably in demanding environments. With fast pan and tilt movements, high-resolution control, and optional CRMX connectivity, it is a versatile solution for live events, concerts, theatre, broadcast and corporate productions.
Astra Profile300LTIP is a compact, versatile Long Throw and IP65-rated LED moving profile, engineered to deliver bright and reliable performance in any indoor or outdoor environment.
Featuring a 300W white LED source at 6500K, it pushes an impressive 12'000 lumen output, ensuring exceptional brightness across small rigs or larger stages.
The 135 mm front lens, combined with a custom designed long throw lens, projects a fat, even beam with fast zoom from from 4° to 44°, maintaining sharp projections and uniform beam quality across the entire zoom range.
Astra Profile300LTIP offers precise beam shaping with four framing shutters, each with independent plane rotation and full curtain capability. Additional creative tools include a linear CMY system, linear CTO system, 12 color filters, a rotating gobo wheel with seven gobos, an animation wheel, a frost and two overlapping linear prisms for dynamic aerial effects.
Built with a die-cast magnesium alloy housing and a fully IP65-rated construction for outdoor use in a 26kg package, Astra Profile300LTIP is engineered to perform reliably in demanding environments. With fast pan and tilt movements, high-resolution control, and optional CRMX connectivity, it is a versatile solution for live events, concerts, theatre, broadcast and corporate productions.
Features:300 W white LED source, 6,500 K, 12'000 lm (goniometer)
135 mm front lens with fast 4°-44° zoom
CMY+CTO colour mixing, 12 color filters, 4 framing shutters, 1 rotating gobo wheel, 1 animation wheel, 1 frost, 2 prisms
IP65-rated, 26Kg
- Source:300Whigh-power white LED
- Source CCT:6.500K
- Luminous flux:(3,9°) 8'313 lm - (44,1°) 12'065 lm@Full
- Lux:(3,9°) 88'597 lx (44,1°) 1'333lx@5 m full
- CRI:> 70 Ra (CCT 5.600K) - up to 90 Ra (HiCRI color slot)
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Zoom range:3,9° - 44,1°motorised linear zoom
- Lens diameter:135mm
- Lens type:HD anti-reflection lenses with achromatic coating
- Focus:motorised 16-bit with tracking
- Colour mixing:CMY colour system on 3 gradually fading colour wheels
- CCT:linear CTO correction 2.700 K ~ 6.500 K
- Colour wheel:12dichroic filters on 4 independent colour wheels
- Control Resolution:16-bit dimmer control
- Shutter system:4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
- Animation wheel:animation wheel with CW and CCW rotation
- FX generator:2prisms overlap for spectacular aerial effects
- Circular prism:4-fwith bi-directional rotation, indexing, interchangeable
- Linear prism:4-fwith bi-directional rotation, indexing, interchangeable
- Frost:linear 0-100% light interchangeable
- Rotating gobos:7rotating gobos + open, interchangeable, indexing
- Gobo size:20 mm outer / 16 mm image / up to 3 mm thickness
- Supported Protocols:DMX512, RDM, CRMX (optional)
- DMX channels:42ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Pan:540°- 16-bit resolution
- Tilt:270°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
- Pan / tilt lock:for transport and maintenance
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 50000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):491W
- Output (at 230V):7units on a single power line
- Standby power:68 W
- Power factor:>0,96
- IP rating:IP65 for temporary outdoor use
- Cooling:heat pipe with low-noise fan
- Housing:Weatherproof IP65 construction with die-cast magnesium alloy
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):393 x 620 x 282mm
- Weight:26kg
- Suspension and fixing:any position with quick-lock omega brackets
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
- Noise Level:noise test report available for download
- Compliance:CE
