Prolights ASTRAPAR7ZIPBK

7x40W IP65 RGB+WW zoom LED PAR, 4,5°-53° zoom, black

QUOTE ONLY

Price on request

Add to wishlist

View on Manufacturer Website

SKU: ASTRAPAR7ZIPBK

CATEGORY: Pars & Washes

BRAND: Prolights

DELIVERY For orders above AED 1,000

WARRANTY 2 years

SECURE PAYMENT Safe encrypted checkout

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

Astra Par7ZIP is a bright IP65 rated LED zoom PAR featuring a 7x40W RGB + WarmWhite LED source delivering phenomenal output and great flexibility for both indoor and outdoor application.

Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TLCI scores as well an extremely precise colour tuning.

Astra Par7ZIP is truly focusable through the motorized zoom system ranging from 4.5° to 53°, being a truly versatile workhorse for any application requiring an advanced control of the light and weatherproof.

The on board CRMX transceiver card allow also a simplified wiring and remote wireless control of the unit.

Astra Par7ZIP is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX and RDM.

7x40W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values

4.5° to 53° motorized linear zoom

Pixel control, precise white CCT and multiple FXs and colour features

IP65 for exterior application, with CRMX wireless transceiver on-board

Astra Par7ZIP is a bright IP65 rated LED zoom PAR featuring a 7x40W RGB + WarmWhite LED source delivering phenomenal output and great flexibility for both indoor and outdoor application.

Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TLCI scores as well an extremely precise colour tuning.

The on board CRMX transceiver card allow also a simplified wiring and remote wireless control of the unit.

Astra Par7ZIP is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX and RDM.

Features:
7x40W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
4.5° to 53° motorized linear zoom
Pixel control, precise white CCT and multiple FXs and colour features
IP65 for exterior application, with CRMX wireless transceiver on-board

LIGHT SOURCE

Source:

7x40
W

RGB + Warm White LED
Luminous flux:

preliminary data: (4,5°) 1'513 lm - (53°) 2'604

@Full
Lux:

preliminary data: (4,5°) 12'541 lx - (53°) 304
lx

@5 m full
CRI:

preliminary data: 94,8 @ 3'200K; 92,9 @ 5'600K
R9:

preliminary data: 97,6 @ 3'200K; 79,8 @ 5'600K
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

4,5° - 53
°

motorised linear zoom
Lens type:

honeycomb gapless plano-convex optics

COLOUR SYSTEM

Colour mixing:

RGBW / FC
CCT:

CCT control, + / - green correction, tungsten emulation
White presets:

2.800 K ~ 10.000
K
Colour wheel:

gel filters included

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Pixel patterns:

pre-programmed static and dynamic pixel patterns
FX generator:

adjustable foreground/background colour, index, speed, direction

CONTROL

Supported Protocols:

DMX512, RDM, CRMX
DMX channels:

1 / 2 / 6 / 12 / 14 / 21 / 33
ch
Pixel control:

OFF, ring and pixel2pixel selectable options
RDM:

for remote addressing and parameter configuration
Display:

LCD high resolution colour display

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Display battery:

included, self-charging battery backup
Selectable PWM:

600 to 50000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX2 (not included)

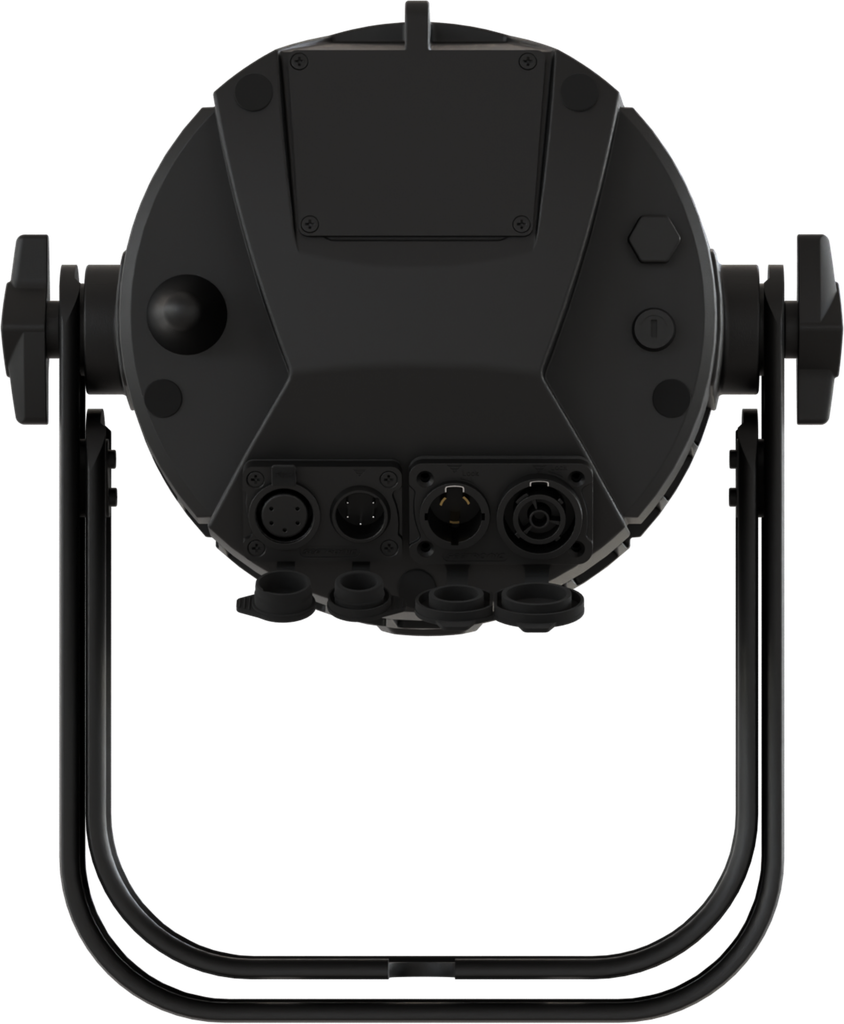

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

Seetronic XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

263
W
Output (at 230V):

8

units on a single power line
Standby power:

18W
Power factor:

> 0,93

PHYSICAL

IP rating:

IP65 for temporary outdoor use
Cooling:

forced-air with low-noise fan
Housing:

Weatherproof IP65 construction
Finish:

black (RAL 9004)
Operating temperature:

Ta

-20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD):

291x347x300
mm
Weight:

(TBC) 9,3
kg

INSTALLATION

Suspension and fixing:

double hanging bracket suitable for safe hanging and for floor positioning
Other:

Front mount holder for accessories as Barndoor, filterframe

CERTIFICATIONS / REPORTS
