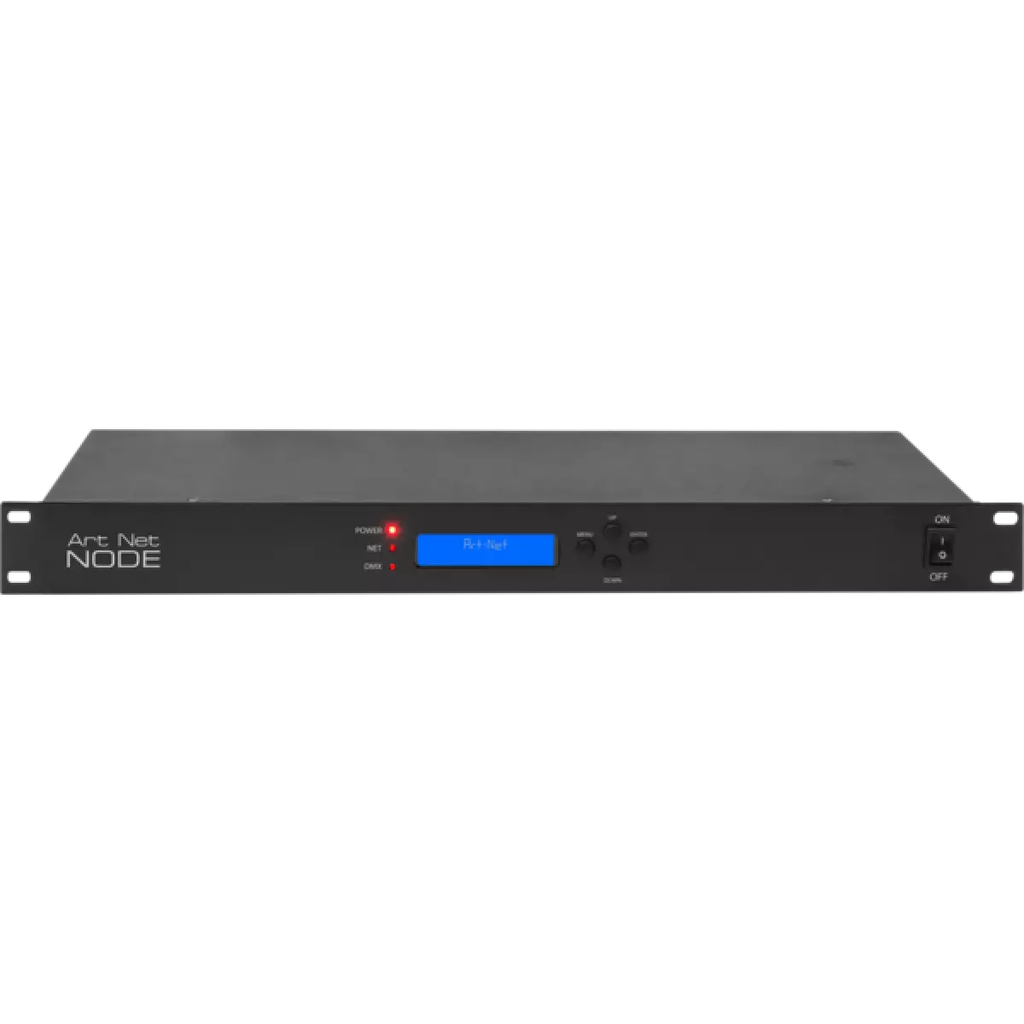

ARTNETNODE is a versatile rack-mountable ArtNet/sACN to DMX adapter with an integrated optical DMX splitter. It has two DMX inputs and eight opto-isolated DMX outputs which can be assigned to either of the DMX inputs or to the Art-Net input.
ARTNETNODE is a versatile rack-mountable ArtNet/sACN to DMX adapter with an integrated optical DMX splitter. It has two DMX inputs and eight opto-isolated DMX outputs which can be assigned to either of the DMX inputs or to the Art-Net input.
Features:8 universes supported
Input: 1 x RJ45, 2 x DMX512
Output: 8 x DMX512
CONTROL
- Supported Protocols:Art-Net, sACN
- Display:LCD display
- Other:available with 3 / 5 pole XLR connectors

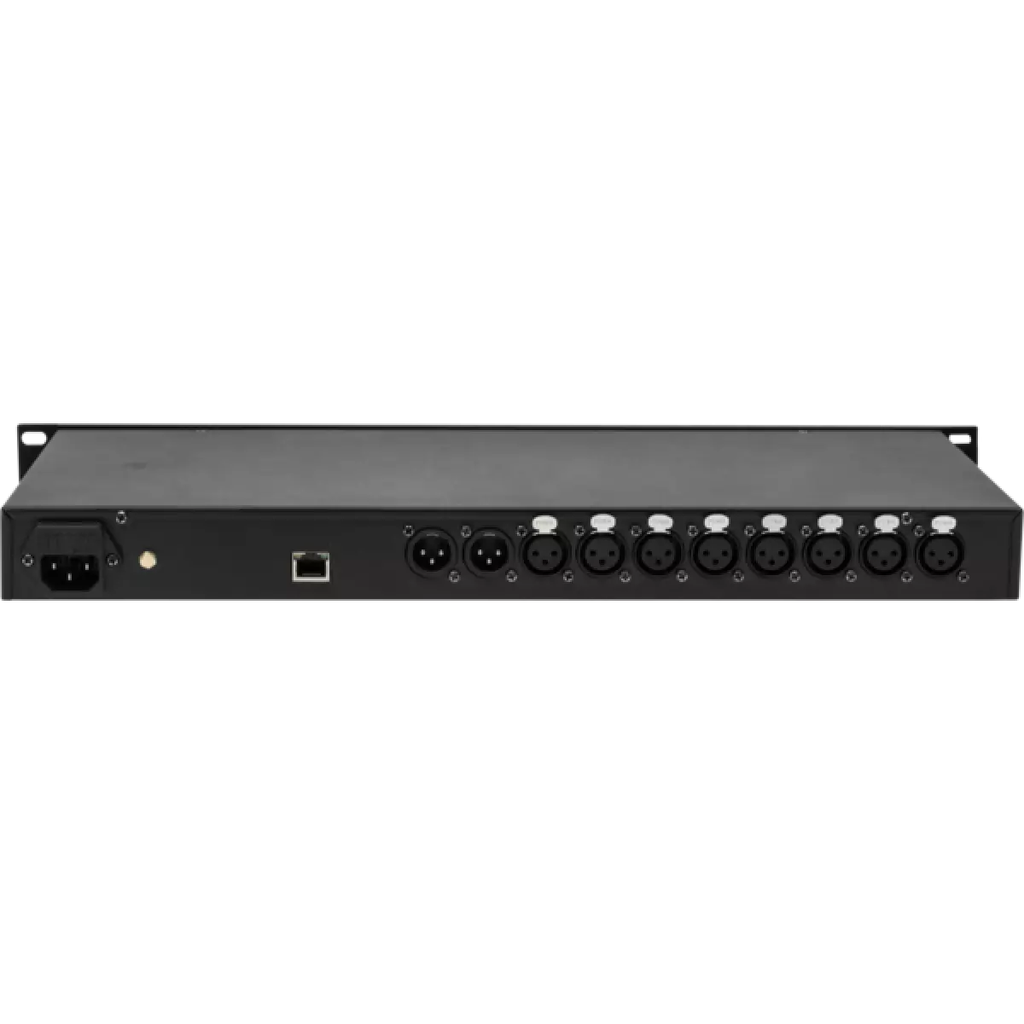

CONNECTIONS
- Power connection:IEC 10 A IN
- Input:1 x RJ45, 2 x DMX512
- Output:8 x DMX512
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):18W
PHYSICAL
- Housing:Metal
- Finish:black
- Dimensions (WxHxD):480x45x162mm
- Weight:1,8kg
INSTALLATION
- Suspension and fixing:rack unit
- Rack unit:19"
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA
