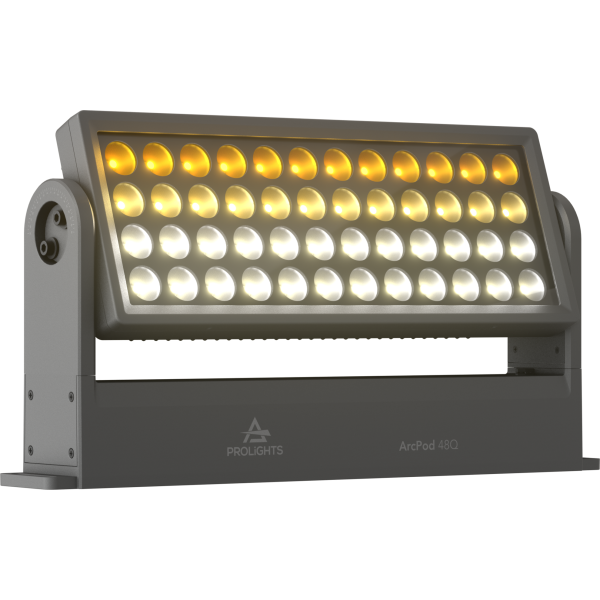

ArcPod 48Q is a compact high-power exterior wash light featuring an outstanding brightness of 23'000 lumens. It is equipped with 48x10W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 48Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 48Q an incredibly flexible and versatile device for any outdoor install.
ArcPod 48Q is a compact high-power exterior wash light featuring an outstanding brightness of 23'000 lumens. It is equipped with 48x10W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 48Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 48Q an incredibly flexible and versatile device for any outdoor install.
Features:48x10W RGBW / FC LEDs delivering 23'000 lumens
LED emitters controllable in 4 sections
Compact form factor and fanless
- Source:48x10WRGBW LEDs
- Luminous flux:(10°) 18'421 lm; (15°) 22'977 lm; (25°) 20'741 lm; (45°) 16'408@Full
- Lux:(10°) 37'370 lx; (15°) 30'888 lx; (25°) 12'884 lx; (45°) 2'739lx@3 m full
- Lux:(10°) 13'453 lx; (15°) 11'120 lx; (25°) 4'638 lx; (45°) 986lx@5 m full
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:15°
- Field angle:27°
- Additional optics:10° - 25° - 45° (optional) -see available accessories
- CCT:CCT control through dedicated DMX channel
- White presets:2.800 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built macros with adjustable speed
- FX generator:up to 4 linearcontrollable sections
- Static mode:selection of static colour
- Supported Protocols:DMX512, RDM
- DMX channels:5 / 7 / 10 / 17 / 22ch
- Pixel control:up to 4 linearcontrollable sections
- RDM:for remote addressing and parameter configuration
- Display:user interface through DATAMASTER external coder (not included)
- Master/Slave:for synchronised operation of more units linked in a chain

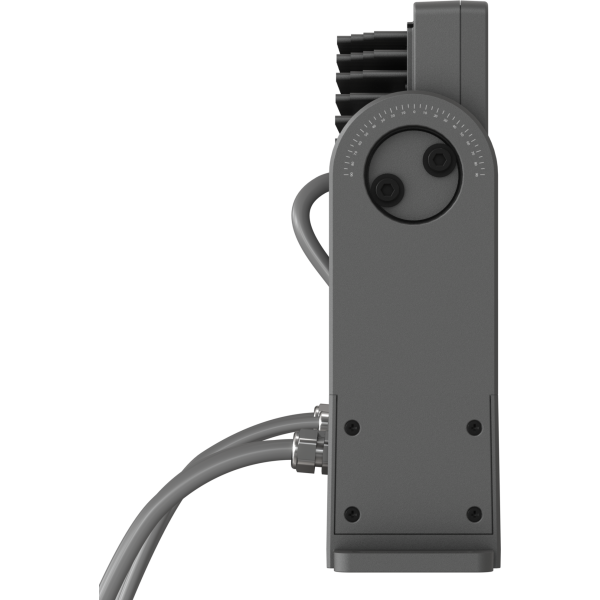

- Tilt:0 - 130°with manual adjustment
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 ~ 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade with:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:1,8 mmoulded IP power IN/OUT connectors
- Signal connection:1,8 mmoulded IP signal IN connector
- Adaptors:XLR and BARE END 16A adaptors included
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):540W
- Output (at 230V):4units on a single power line
- Power factor:0,95
- IP rating:IP66 for outdoor installations
- IK rating:IK08 impact rating
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:basalt grey (RAL 7012), also available with C5-M marine grade coating
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):584x304x93mm
- Weight:14kg
- Compliance:CE, UKCA, RCM, cTUVus, FCC
