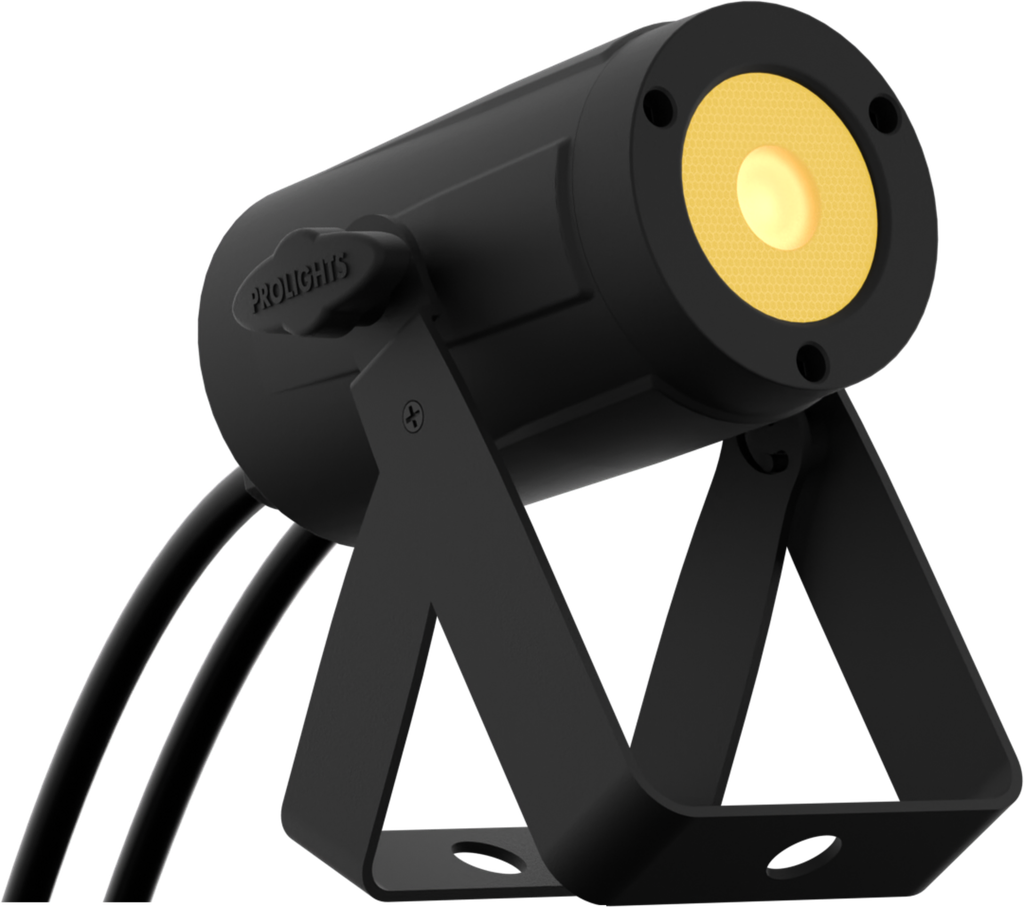

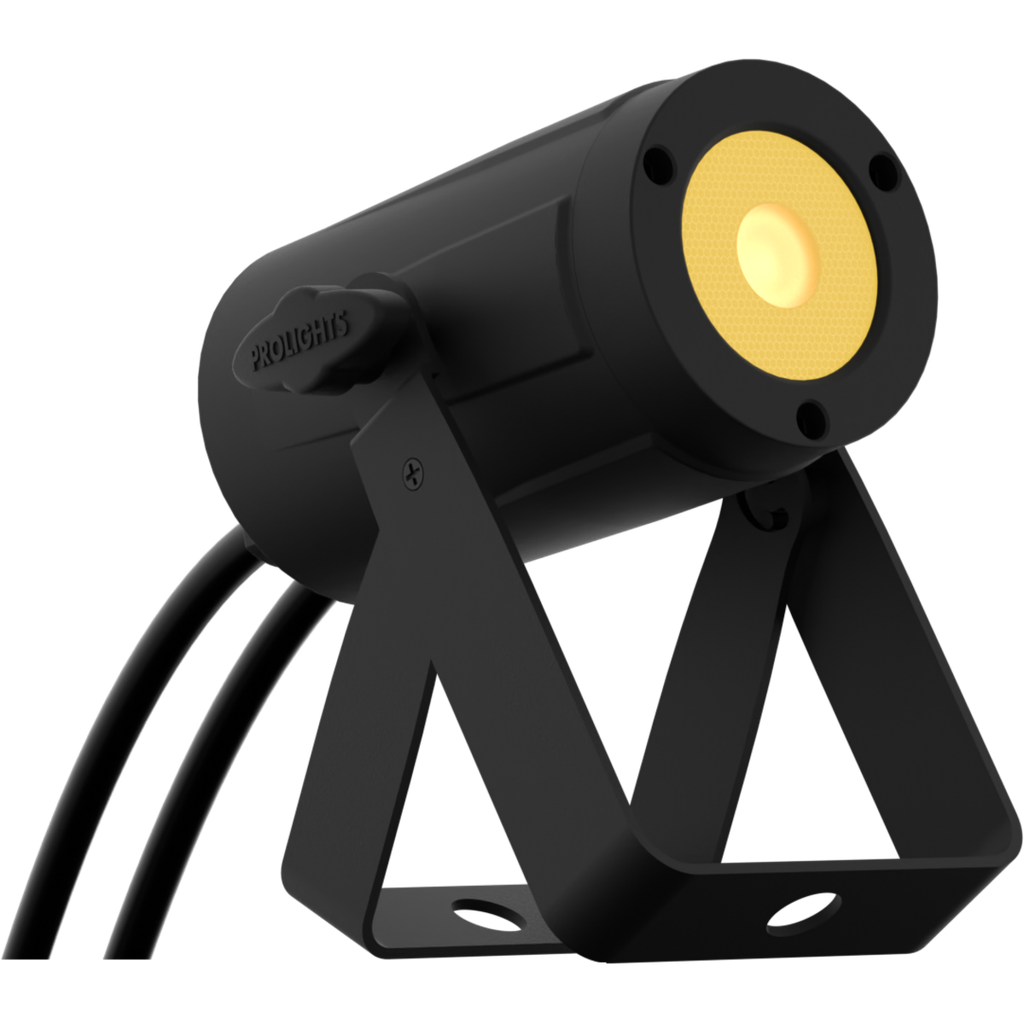

Accent 1Q is an high-density accent light with narrow optic design, conceived to house an high power CREE 10W RGBW/FC LED source in an unprecedented pocket shape. The colour calibration system based on RGBW multi-chip source, offers an advanced chromatic generation and a full control over colour saturation and temperature.
Accent 1Q is an high-density accent light with narrow optic design, conceived to house an high power CREE 10W RGBW/FC LED source in an unprecedented pocket shape. The colour calibration system based on RGBW multi-chip source, offers an advanced chromatic generation and a full control over colour saturation and temperature.
Features:10W RGBW/FC CREE LED
10° narrow beam angle ideal for accent lighting
Compact and lightweight (900 g)
Electronics and UI on-board
LIGHT SOURCE
- Source:10WRGBW LED
- Luminous flux:590
- Lux:312lx@5 m full
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:13,3°
- Field angle:25,5°
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- White presets:3.200 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512
- DMX channels:4 / 6 / 10ch

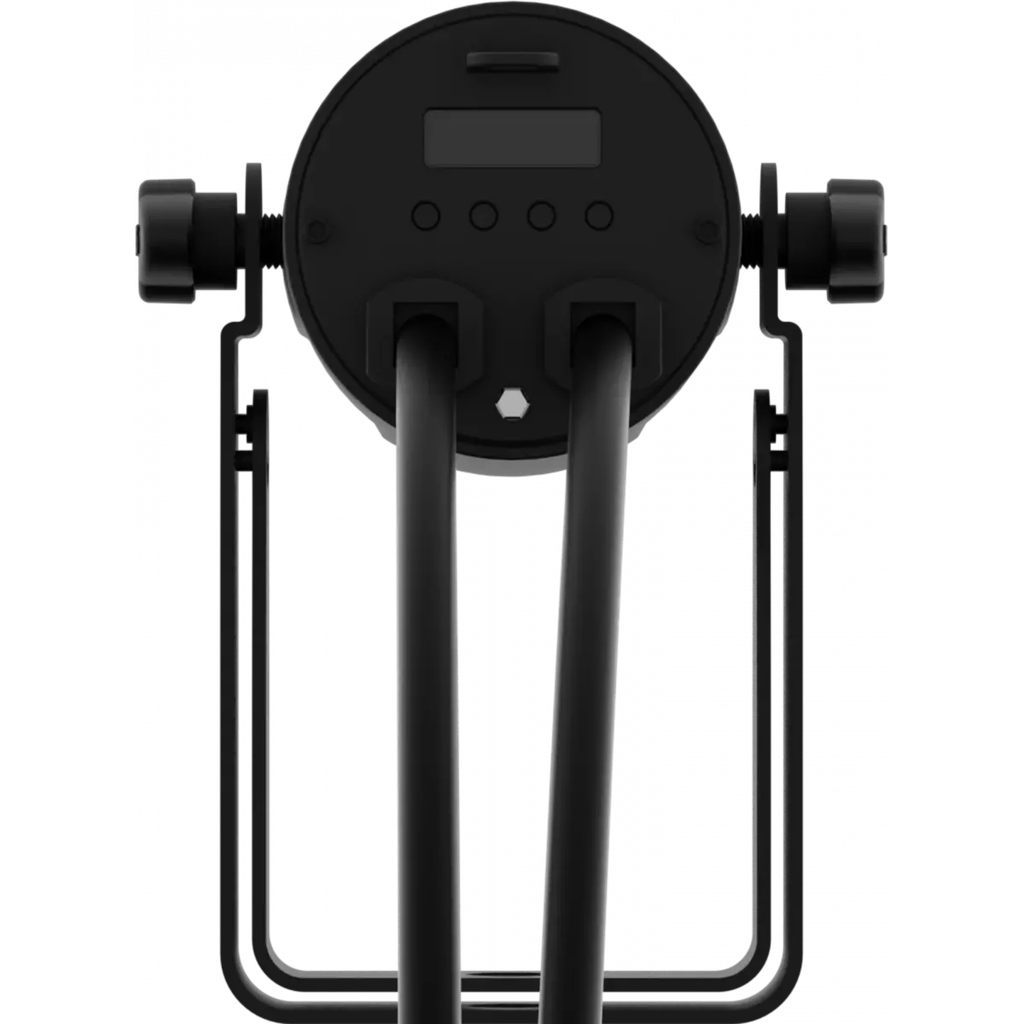

- Display:LCD display
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
CONNECTIONS
- Power connection:moulded IP power IN connector
- Signal connection:Seetronic XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):14,6W
- Max power consumption (120V):15,4W
PHYSICAL
- IP rating:IP30
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):110x67x172mm
- Weight:0,89kg
INSTALLATION
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA
