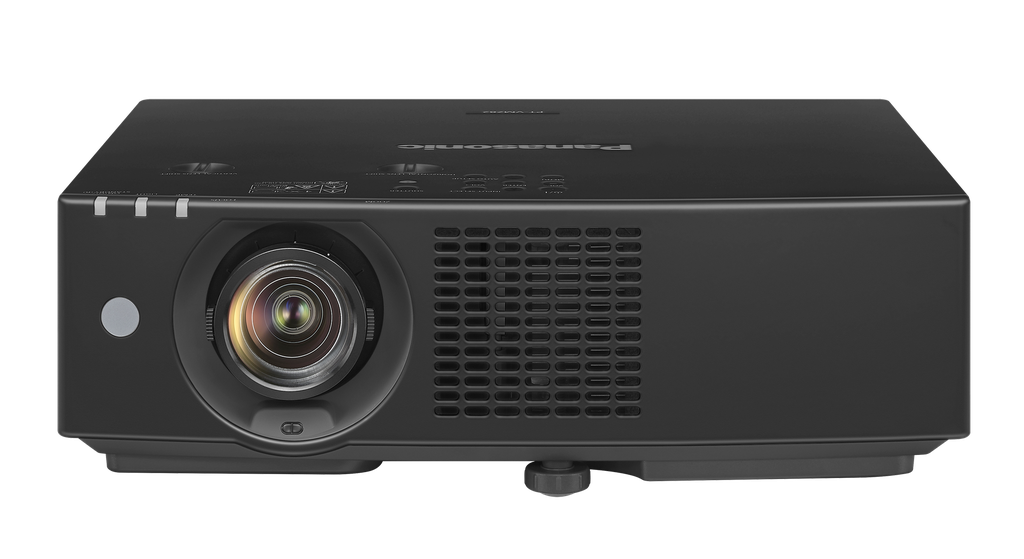

Panasonic PT-VMZ82

PT-VMZ82 — 3LCD Laser Projector, WUXGA, 8,000 lm

The flagship of the VMZ82 Series and the world's smallest and lightest 8,000 lm projector in its class, in the same 399 x 115 x 348 mm body as the models below it. It's the generational replacement for the VMZ71 line and the gap is real: 27% more energy efficient at 21.2 lm/W, 5,000,000:1 dynamic contrast, and a set of installer-focused features the older series didn't have — a built-in gyro Angle Monitor so one person can set the projection angle, a rebuilt Screen Adjustment GUI with independent curved-screen correction, and built-in scheduling. Aimed at bright offices, lecture theatres and larger classrooms where dimming the lights isn't an option, plus sports-sim and gallery work thanks to the new Vivid Green mode and curved correction.

Key Features:

• 8,000 lm (ANSI) WUXGA with 5,000,000:1 dynamic contrast — no dimming, no blinds
• World's smallest and lightest in its 8,000 lm class, 7.4 kg, black or white cabinet
• 27% more efficient than the VMZ71 Series at 21.2 lm/W in Normal mode
• Approx. 59% recycled resin in the main body; foam-free recyclable packaging
• 20,000 h to 50% output (24,000 h ECO) with washable long-life ECO Filter
• 1.6x zoom (1.09–1.77:1) plus Digital Zoom Extender to 2.21:1 and Digital Image Shift — often lets you reuse an existing mount
• Lens shift +44% V / ±20% H, 6-Point Screen Adjustment, 4-Corner, Grid and independent curved-screen correction via a new GUI
• Angle Monitor gyro sensor shows pitch and roll on screen — a one-person install
• 4K DIGITAL LINK (HDBaseT™) plus 4K signal input over both HDMI™ inputs with CEC
• IPv6, Art-Net DMX, PJLink™ Class 2, Crestron Connected® V2, XiO Cloud and Extron XTP® support
• Data cloning to up to 99 sub-projectors over LAN or USB
• Built-in scheduling, Auto Power On, Image Detection power saving and ~1 second Quick Startup
• QR-code wireless pairing and PressIT compatibility (both optional)
• Daylight View Basic, Vivid Green mode, 21:9 widescreen support, DICOM Simulation

Lens: Fixed 1.6x manual zoom, built in (no optional lens options).

Specifications:

• Projector type: 3LCD (transparent LCD panel x 3, R/G/B)
• Light output: 8,000 lm (ANSI)
• Resolution: WUXGA (1920 x 1200 px)
• Contrast ratio: 5,000,000:1
• Screen size: 0.76–7.62 m (30–300 in), 16:10 — 100 in from 2.35 m
• Lens: 1.6x manual zoom, 1.09–1.77:1, F 1.58–1.91
• Keystone: V ±25°, H ±35°

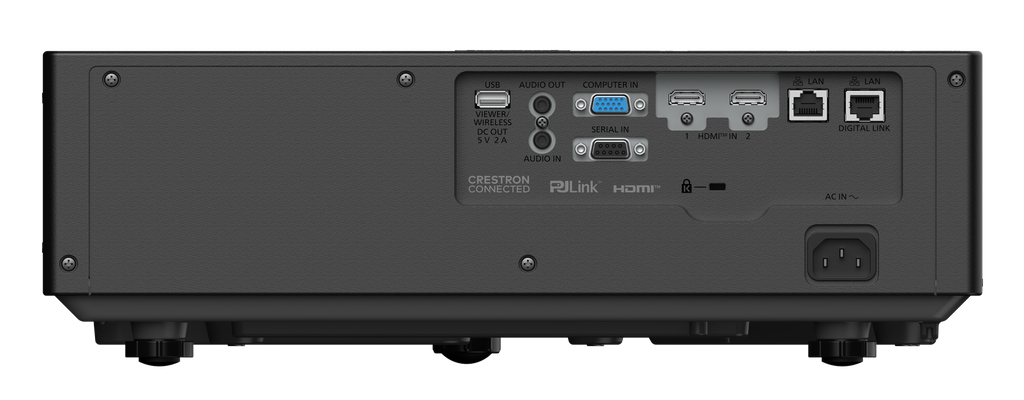

• Terminals: HDMI™ x 2, D-sub 15-pin, DIGITAL LINK/LAN, LAN, USB Type A, RS-232C, audio in/out
• Speaker: 10 W monaural
• Power: AC 100–240 V, max. 400 W
• Noise: 39 dB (Normal) / 34 dB (Quiet 1) / 29 dB (Quiet 2)
• Dimensions (W x H x D): 399 x 115 x 348 mm
• Weight: Approx. 7.4 kg
• Operating temperature: 0–45 °C

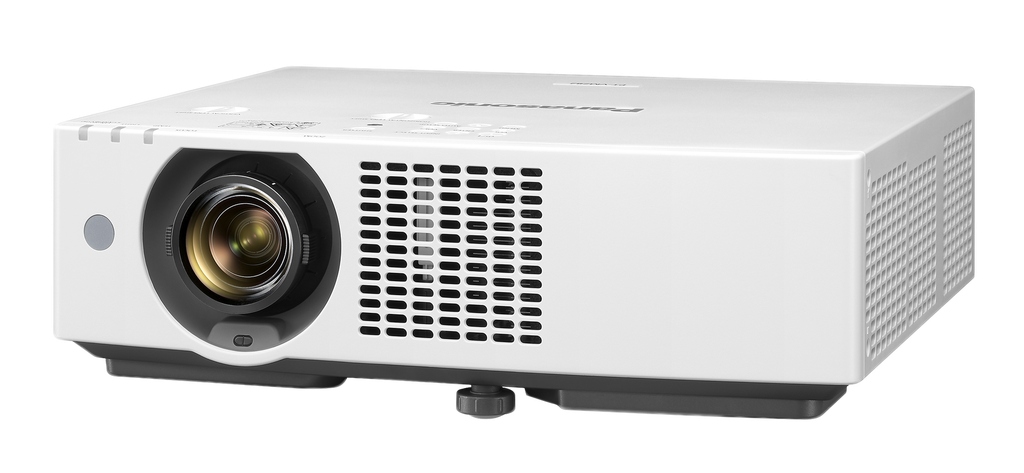

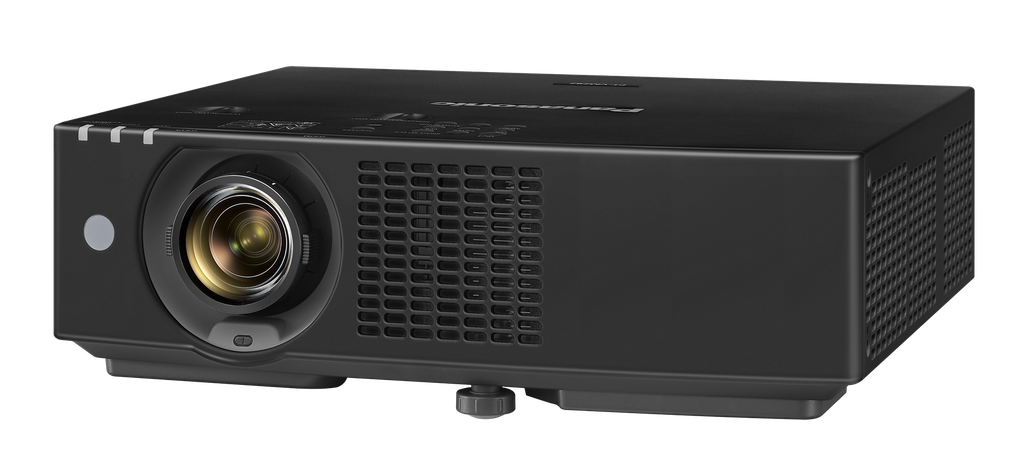

• Body colour: White or black
