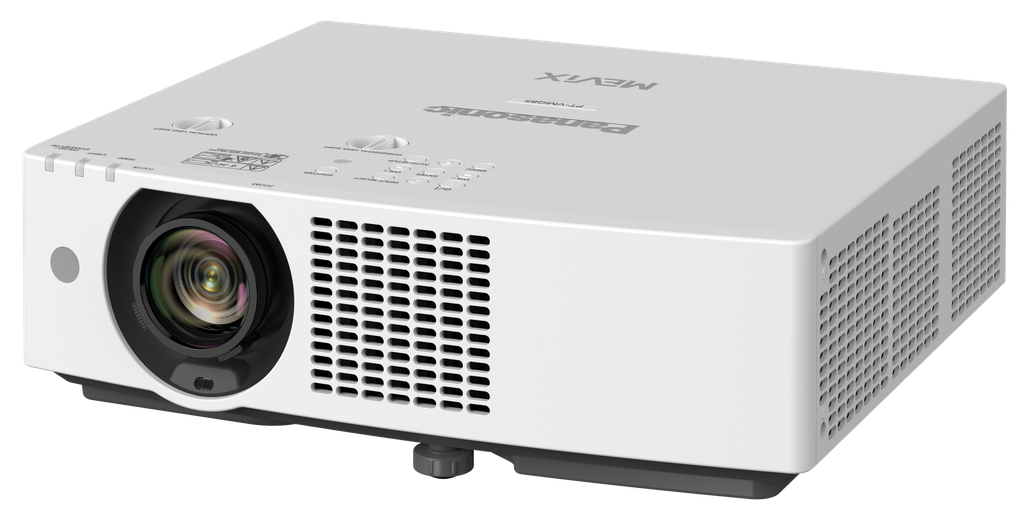

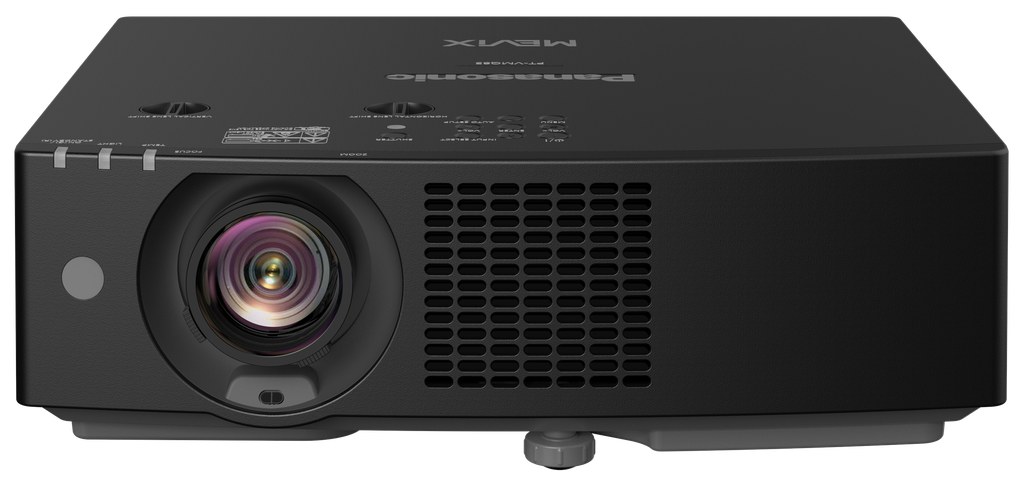

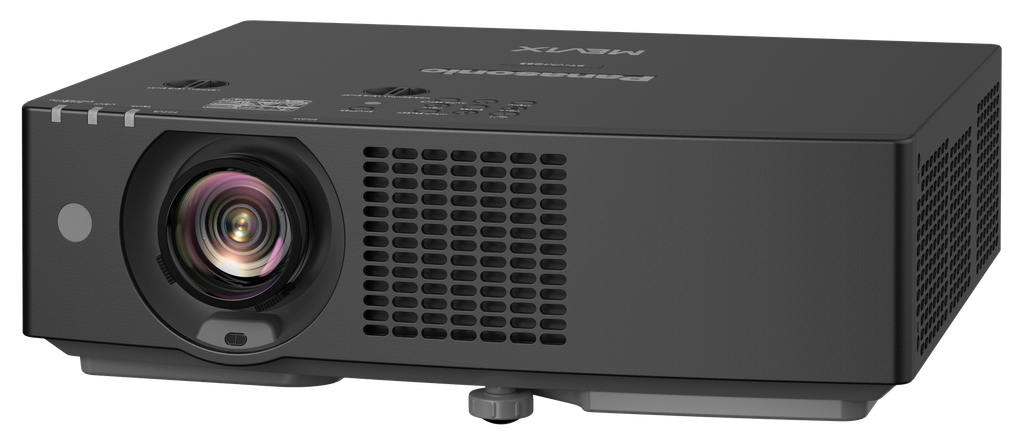

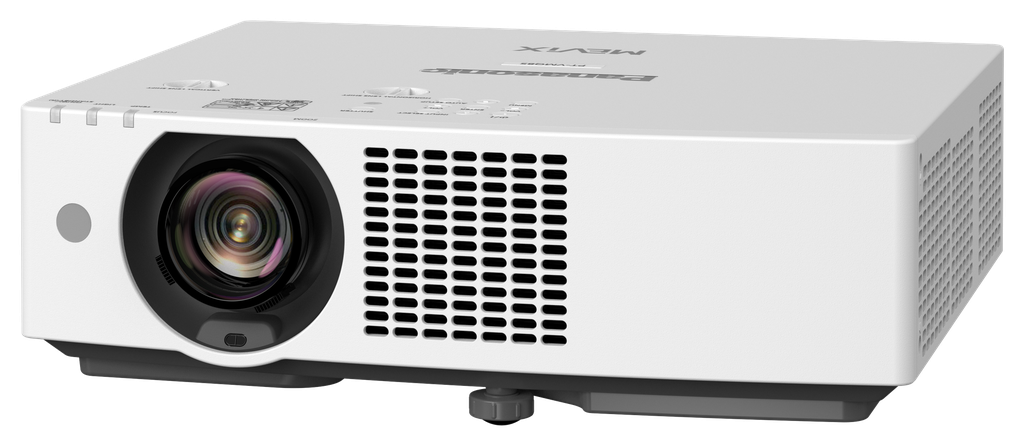

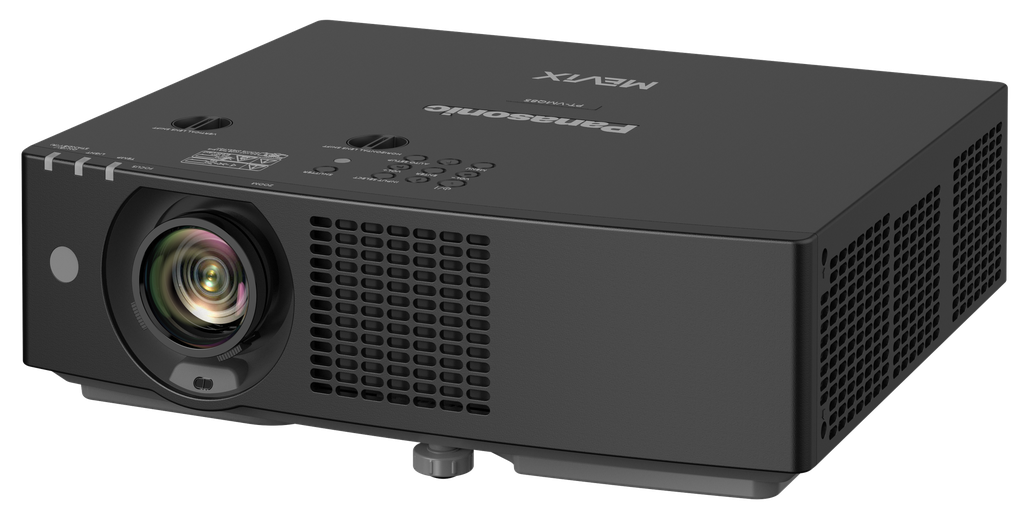

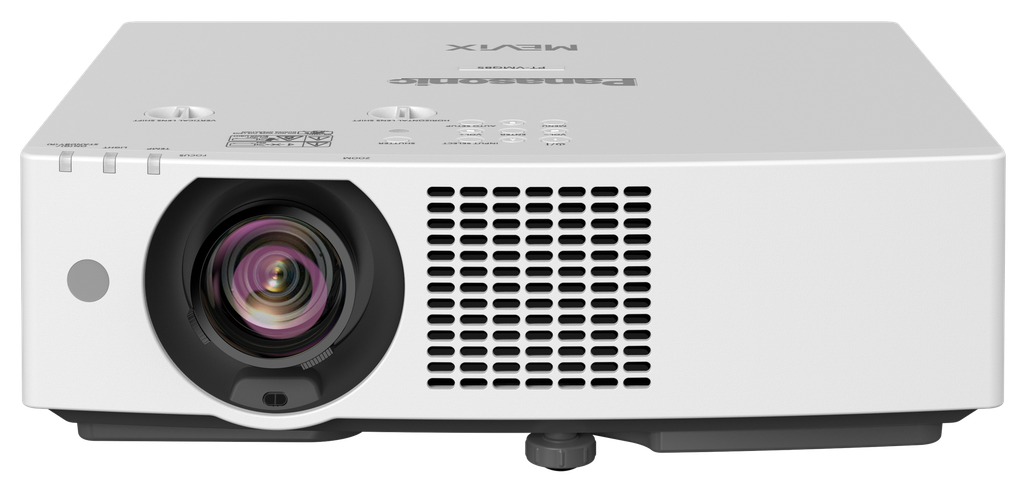

Panasonic PT-VMQ85

Panasonic's first 4K LCD projector — smallest and lightest in its class at under 8 kg. 2-axis pixel-shifting delivers sharp 4K visuals at 8,000 lm, a good fit for corporate, education, and experiential/museum spaces. Includes a Vivid Green Mode tuned for golf simulation setups

Key Features:

• 8,000 lm (ANSI) / 8,400 lm (center), Native 4K (3840 x 2400 px) with 2-axis pixel-shifting
• Smallest and lightest 4K LCD projector in its class at over 8,000 lm
• Vivid Green Mode enhances natural greens, purpose-built for golf simulation applications
• 1.6x optical zoom with wide-range lens-shift for flexible installation
• Angle Monitor simplifies single-person setup and alignment
• 4K DIGITAL LINK and two CEC-compatible HDMI inputs, supports 21:9/27:9 widescreen formats
• Up to ~20 lm/W efficiency, plus Image Detection that automatically dims light output on static images to save power
• Approx. 50% recycled resin in plastic body parts, recyclable paper trays replace foam in shipping

Specifications:

• Projector type: LCD projector
• Panel size: 0.64 inch (16:10)
• Light output: 8,000 lm / 8,000 lm (ANSI) / 8,400 lm (center)
• Time to 50% brightness: 20,000 hrs (Normal/Quiet), 24,000 hrs (Eco)
• Resolution: 4K (3840 x 2400 px) with pixel-shifting
• Contrast ratio: 5,000,000:1 (Full On/Off)
• Screen size: 0.76–7.62 m (30–300 in), 16:10
• Lens: 1.6x manual zoom, throw ratio 1.09–1.77:1, F=1.58–1.91, f=15.30–24.60 mm
• Lens-shift: Vertical +44%, Horizontal ±20%
• Keystone correction: Vertical ±25°, Horizontal ±35°
• Power supply: Single-phase AC 100–240V, 50/60Hz
• Maximum power consumption: 415 W (TBD)
• Operation noise: 39 dB (Normal/Eco), 34 dB (Quiet 1), 29 dB (Quiet 2)
• Dimensions (W x H x D): 399 x 115 x 348 mm
• Weight: Approx. 7.6 kg
• Operating temperature: 0–45°C
• Applicable software: Multi Monitoring & Control Software, Presenter Light Software (Windows), Wireless Projector App (iOS/Android)
