Panasonic PT-RQ45KEJ

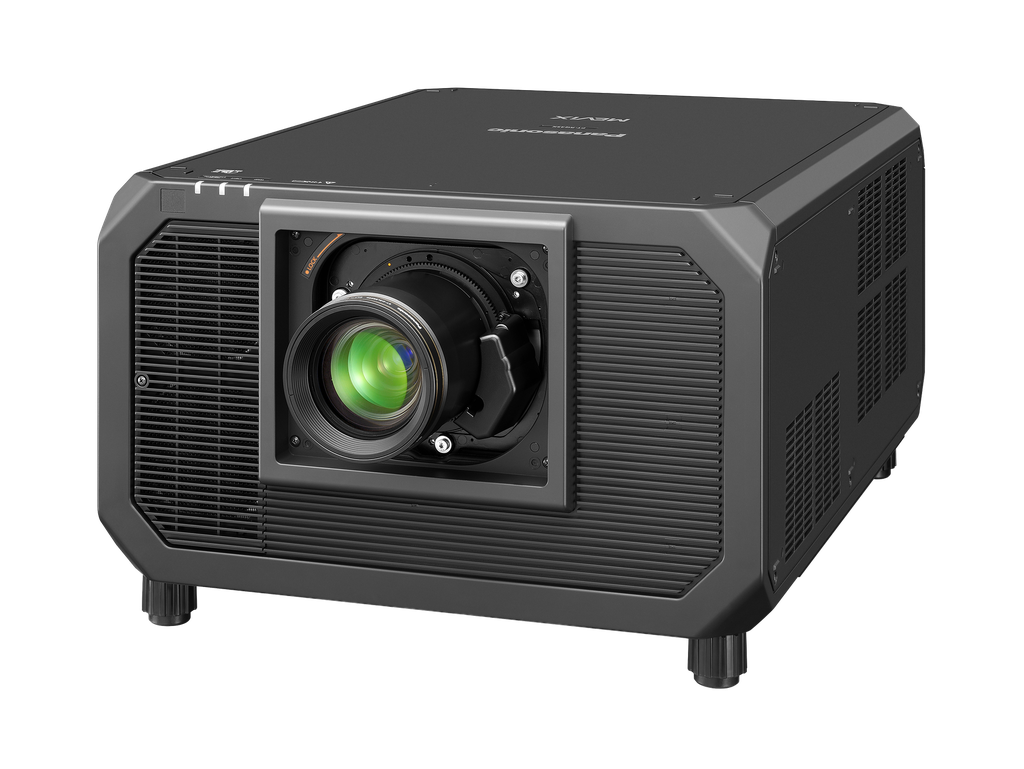

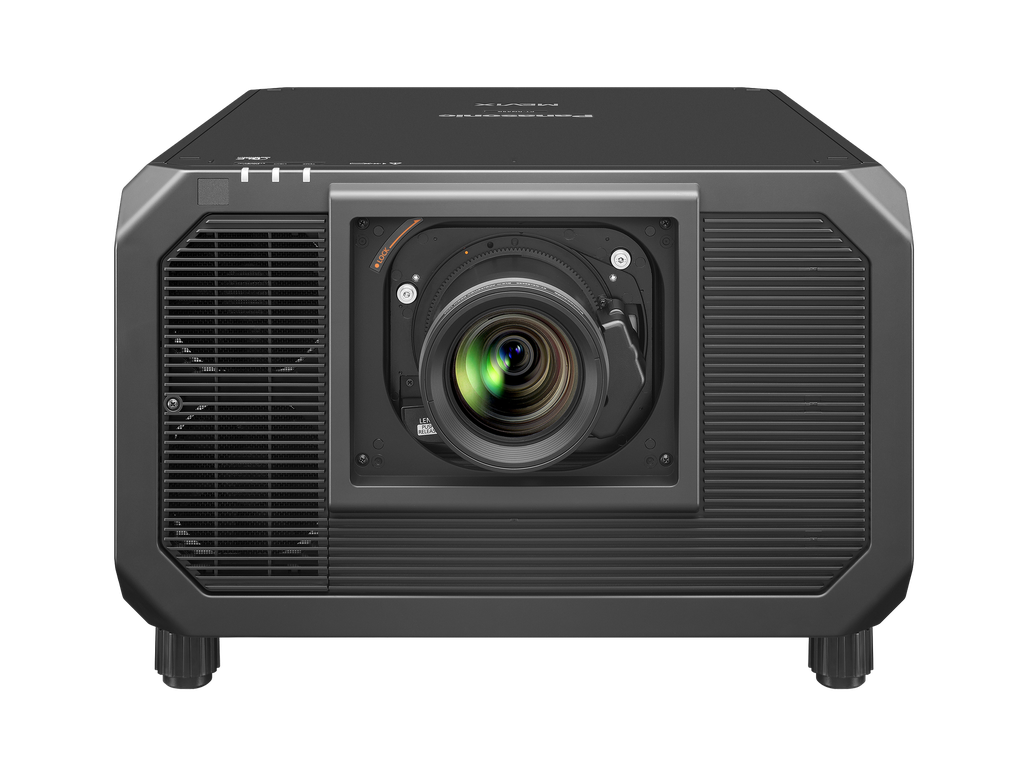

PT-RQ45K — 3-Chip DLP™ 4K+ Projector, 42,000 lm

The PT-RQ45K sets a new benchmark for high-brightness projection: it's the world's smallest and lightest 42,000 lm projector, delivering more output from a body size nearly identical to the PT-RQ35K2/RQ35K Series. That means rental companies and owner-operators can upgrade their fleet's brightness without touching transport cases, frames, or storage logistics, and it's compatible with existing lenses from the RQ35K2/RQ35K line, so fleet upgrades stay simple. Native 4K+ resolution, an Intel® SDM slot, and a full suite of workflow features make it built for the toughest live event and installation environments. Available from CY2026 Q3.

Key Features:

• 42,000 lm (ANSI) / 45,000 lm output, Native 4K (3840 x 2400 px) with Quad Pixel Drive
• World's smallest and lightest projector in its brightness class — same footprint as PT-RQ35K2/K Series
• First Panasonic projector with 12G-SDI input as standard, plus Intel® SDM standard-compatible slot for optional media processors
• 5-inch color Information Monitor LCD for on-unit settings, projection angle, video preview, and real-time status
• Modular design cuts servicing time significantly versus previous models, ideal for rental turnaround
• Contrast Sync and Shutter Sync now supported over LAN, reducing cabling requirements
• Smart Projector Control app support for up to 64 projectors from a smartphone or tablet, plus USB Control Connect and NFC prep without AC power
• Backup Input mode for automatic signal failover (HDMI or SDI) with no screen blanking
• Failover Circuitry on laser modules keeps projection running even if a single diode fails
• IP5X Dust Protected rating, coated circuit boards, and independent liquid-cooling for red and blue lasers — built for harsh, coastal, or high-dust environments
• 25,000:1 dynamic contrast, 91% DCI color-gamut coverage, and support for 1080p/240Hz playback with input-to-output latency as low as 8ms
• Compatible with current-generation D3LE-series lenses and the ET-D75LE95 ultra-short-throw lens; throw distances from 4.64m to 180m depending on lens

Specifications:

• Projector type: 3-Chip DLP™ projector
• Light output: 45,000 lm / 42,000 lm (ANSI)
• Resolution: 4K (3840 x 2400 px) with Quad Pixel Drive ON
• Contrast ratio: 25,000:1 (typ.)
• Screen size: 1.78–25.40 m (70–1000 in), depending on lens
• Lens: Optional (not included)
• Power supply: Single Phase AC 100–240V, 50/60Hz
• Maximum power consumption: Approx. 3,170 W
• Dimensions (W x H x D): Approx. 598 x 352 x 780 mm
• Weight: Approx. 66 kg
• Operating temperature: 0–45°C
• Applicable software: Visual Software Suite, Multi Monitoring & Control Software, Smart Projector Control (iOS/Android)
