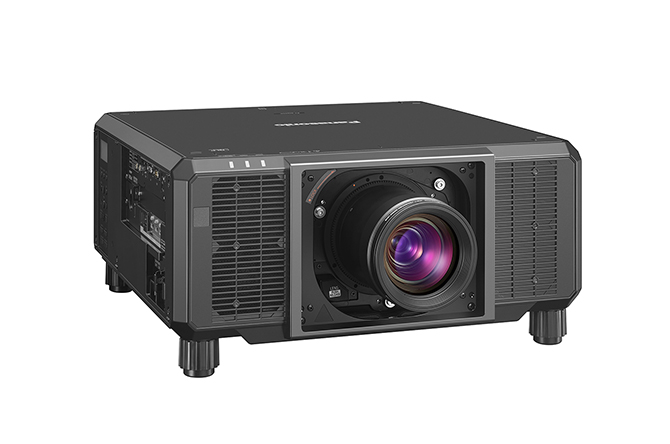

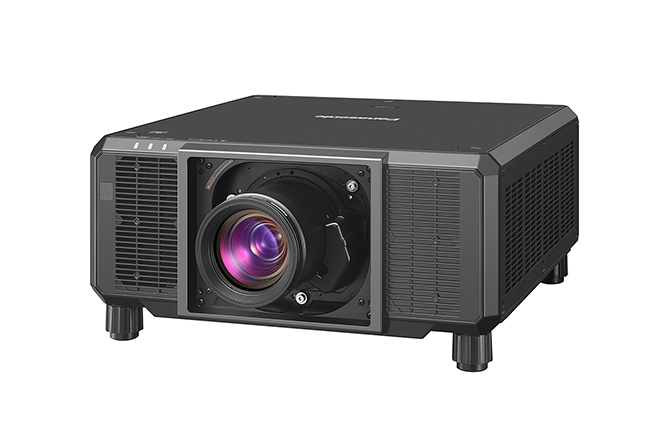

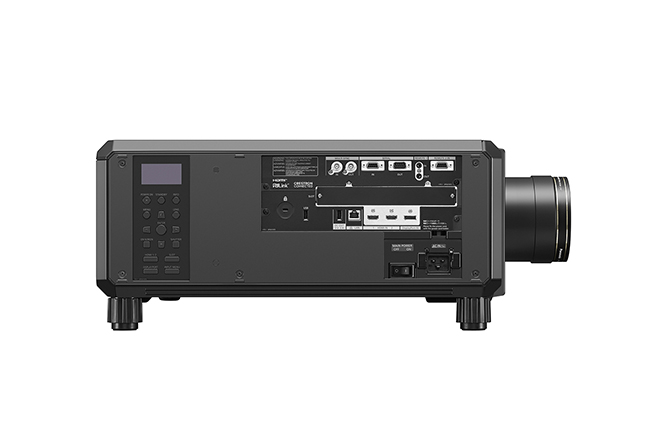

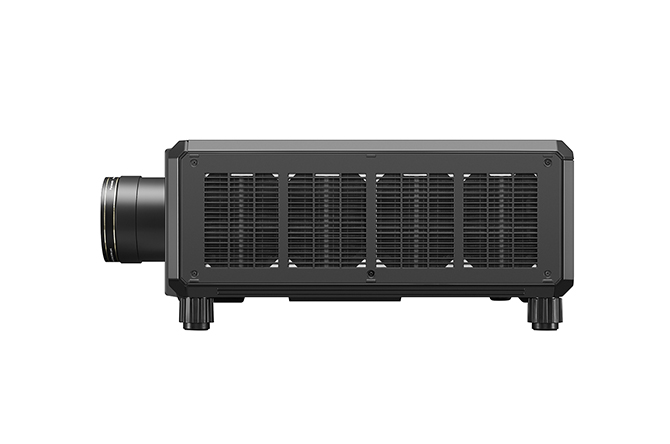

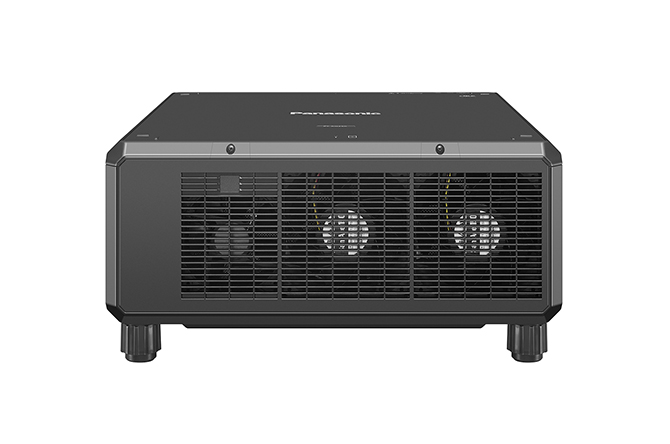

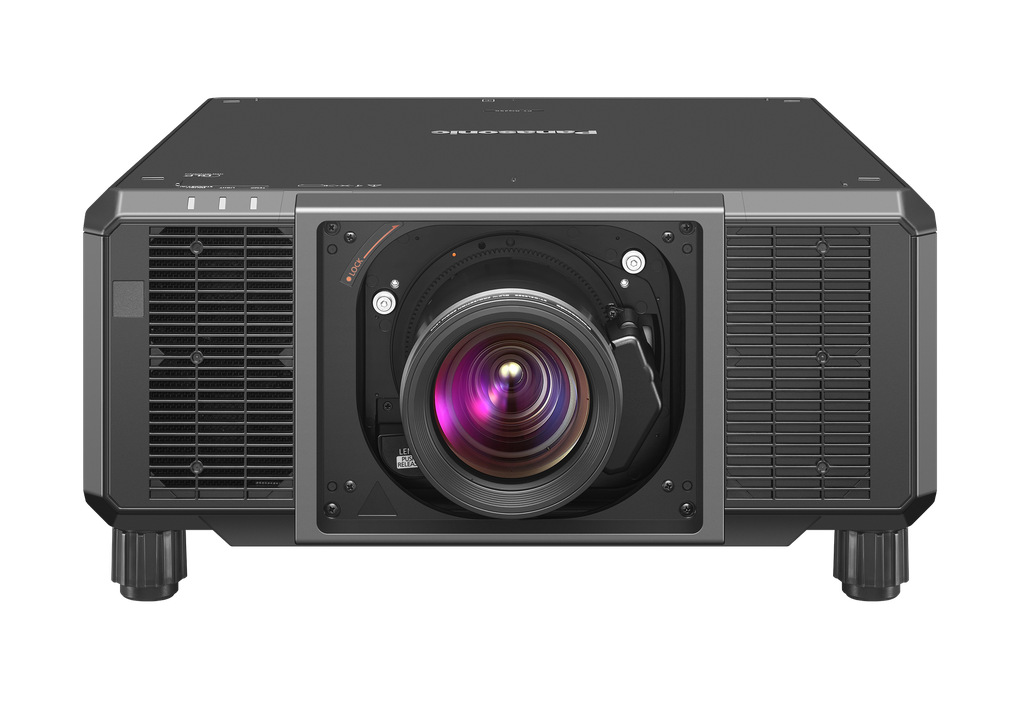

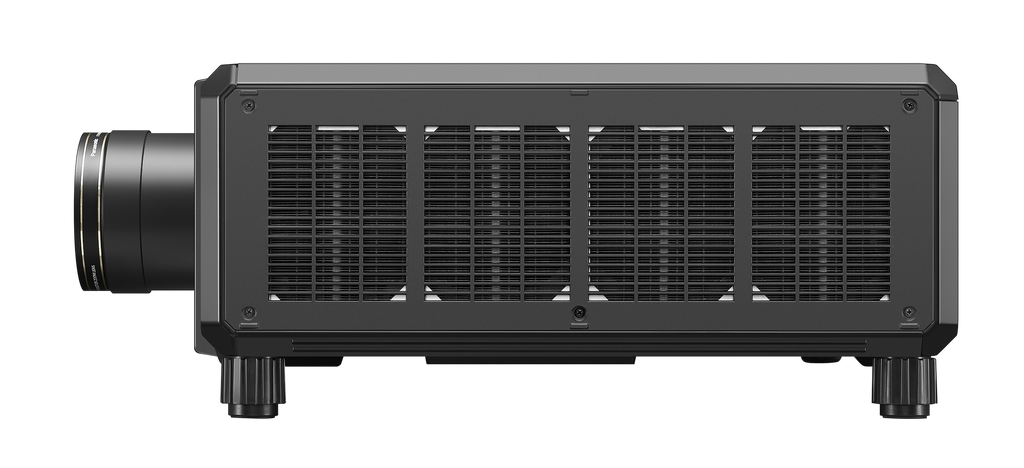

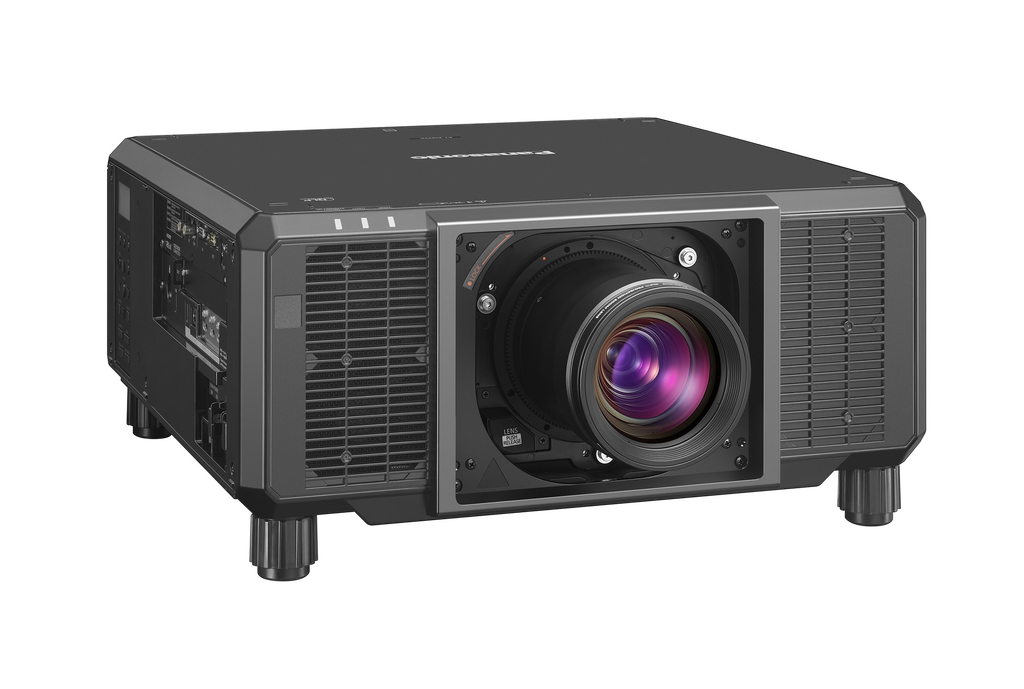

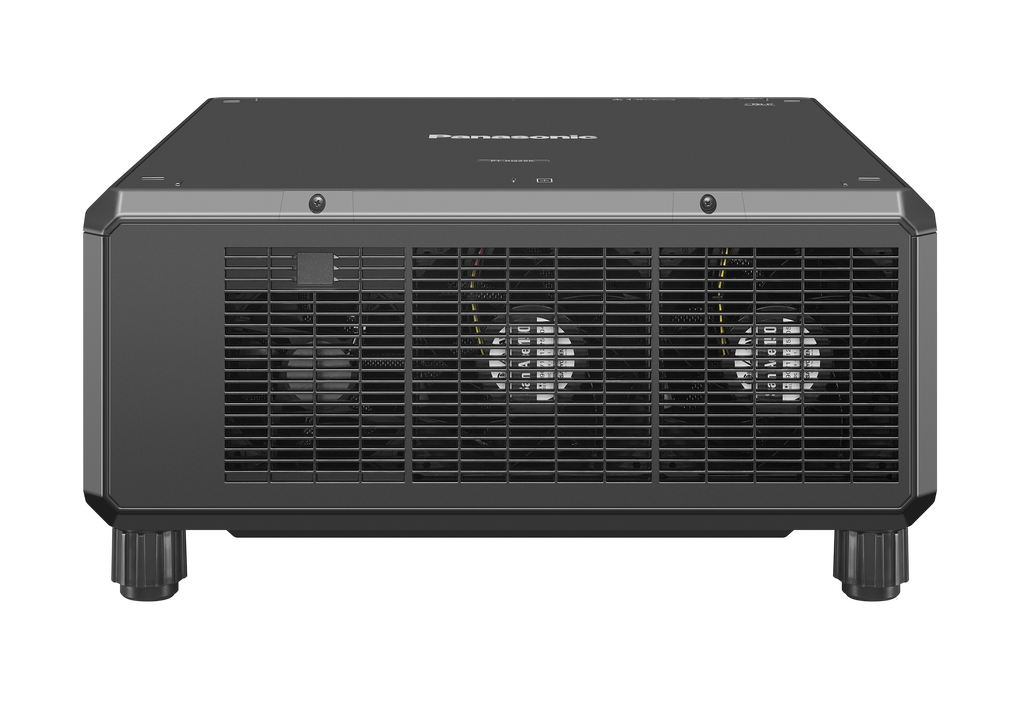

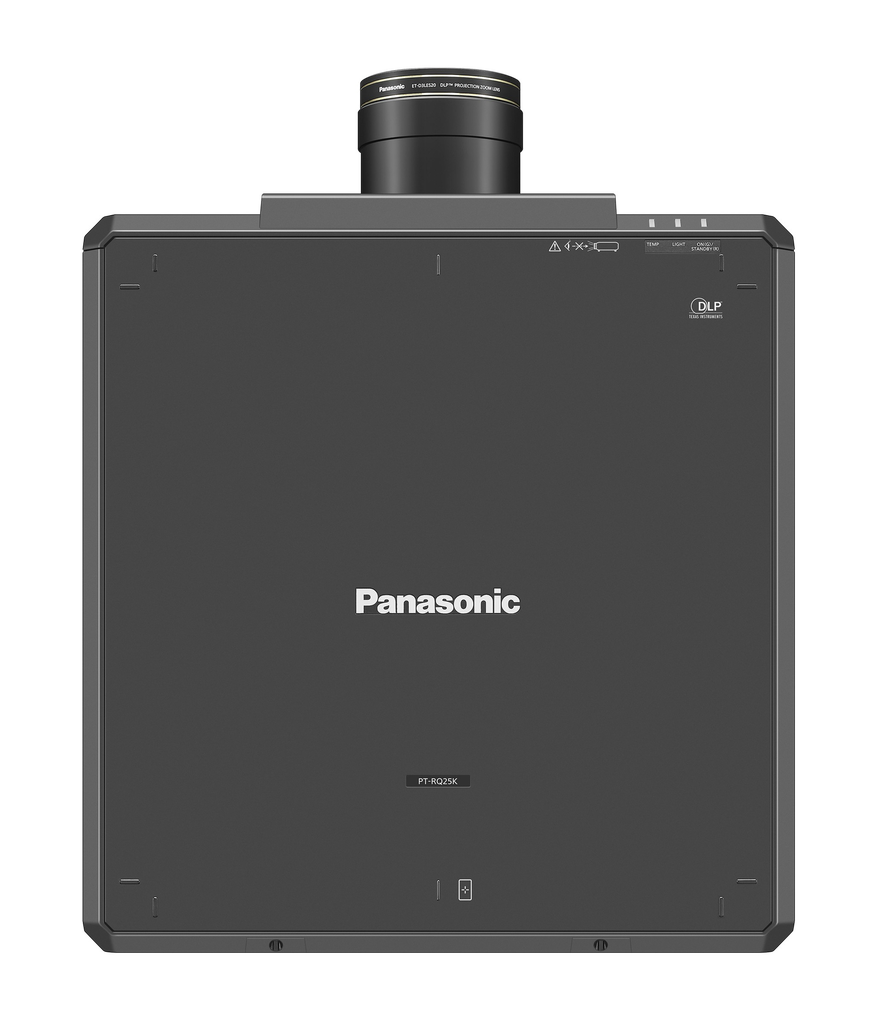

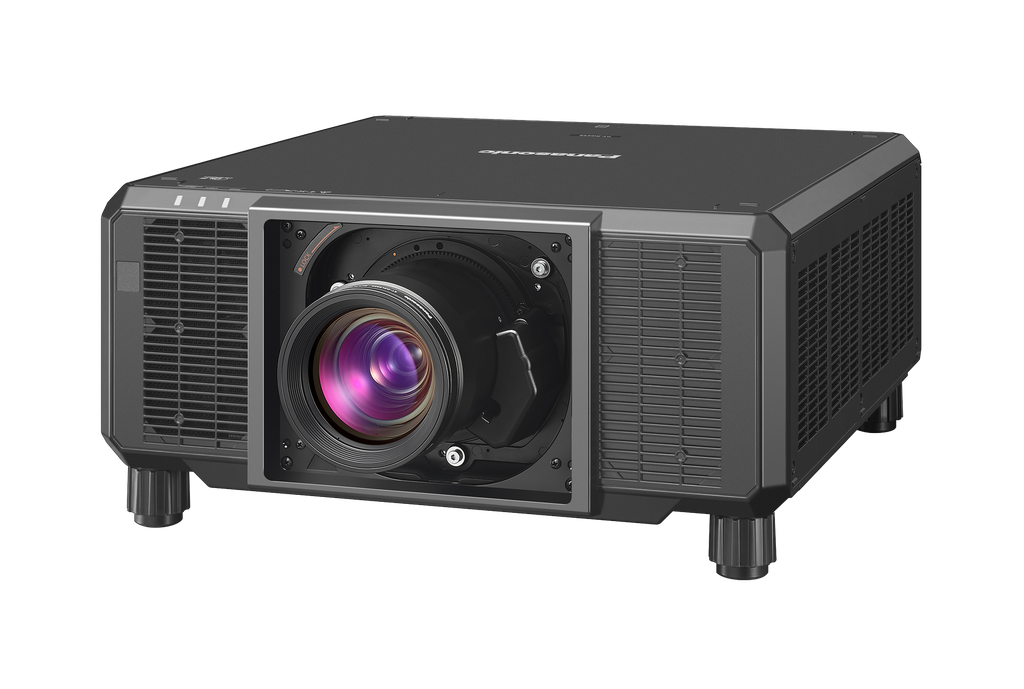

Panasonic PT-RQ25KEJ

PT-RQ25K — 3-Chip DLP™ 4K+ Projector, 20,000 lm

The PT-RQ25K is the world's smallest and lightest 20,000 lm 3-Chip DLP™ 4K projector, 40% smaller and 35% lighter than the previous PT-RQ22K, and barely bigger than Panasonic's 10,000-lm-class 1-Chip models. That size and weight cut means it can be transported, handled, and installed by just two people, opening up spatial design possibilities in locations that were previously too tight for 3-Chip DLP™ gear. It's built for the same demanding rental and touring environments as its bigger siblings in the RQ45K/RQ35K2 range, just scaled down to a lighter footprint and price point.

Key Features:

• 20,000 lm (ANSI) / 21,000 lm (center), Native 4K (3840 x 2400 px) with Quad Pixel Drive
• World's smallest and lightest 20,000 lm 3-Chip DLP™ 4K projector, transportable and installable by two people
• Intel® SDM-ready slot for optional Digital Link, 12G-SDI, PressIT wireless, and third-party function boards, keeps connectivity flexible for future needs
• Remote Preview LITE lets you check signal integrity on a laptop before projection, without needing to walk up to the screen
• Improved Dynamic Contrast (25,000:1) with frame-by-frame scene analysis for sharper light/dark detail
• Multi Laser Drive Engine with Failover Circuitry keeps the module running even if a single diode fails
• Free 360-degree installation through any axis
• NFC-enabled for quick network setup before AC power is even connected

Compatible Lenses: Full 3-Chip DLP™ lens lineup under 35,000 lumens (excludes RQ50K-dedicated optics)

Specifications:

• Projector type: 3-Chip DLP™ projector
• Light output: 20,000 lm (ANSI) / 21,000 lm (center)
• Resolution: 4K (3840 x 2400 px) with Quad Pixel Drive ON
• Contrast ratio: 25,000:1 (typ.)
• Screen size: 1.78–25.40 m (70–1000 in), depending on lens
• Lens: Optional (not included)
• Power supply: AC 100–120V / AC 200–240V, 50/60Hz
• Maximum power consumption: 1,490 W (200–240V) / 1,080 W (100–120V)
• Operation noise: 46 dB (Normal) / 43 dB (Eco) / 46 dB (Quiet)
• Dimensions (W x H x D): Approx. 550 x 220 x 570 mm
• Weight: Approx. 35 kg
• Operating temperature: 0–45°C
• Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control (iOS/Android)
