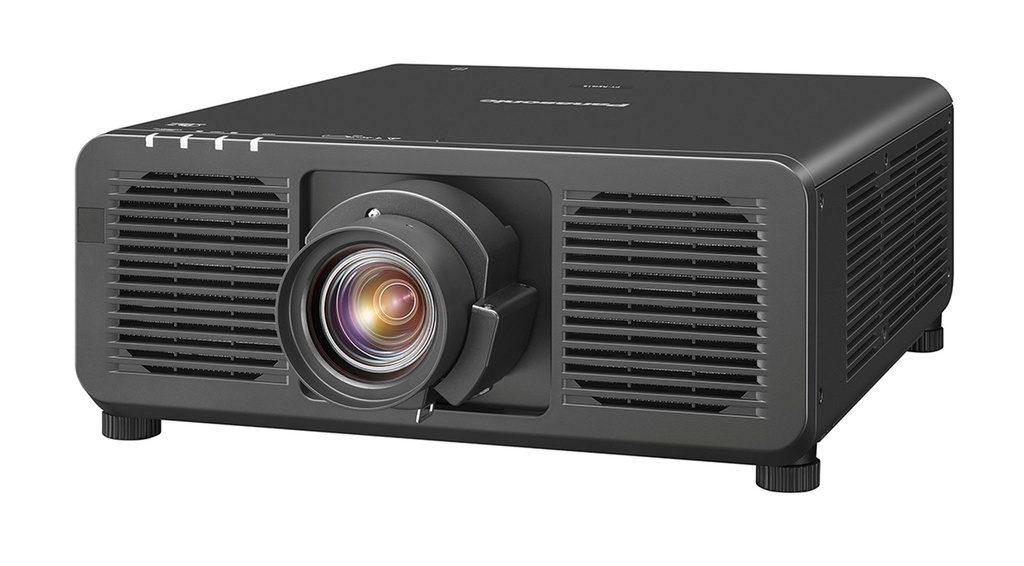

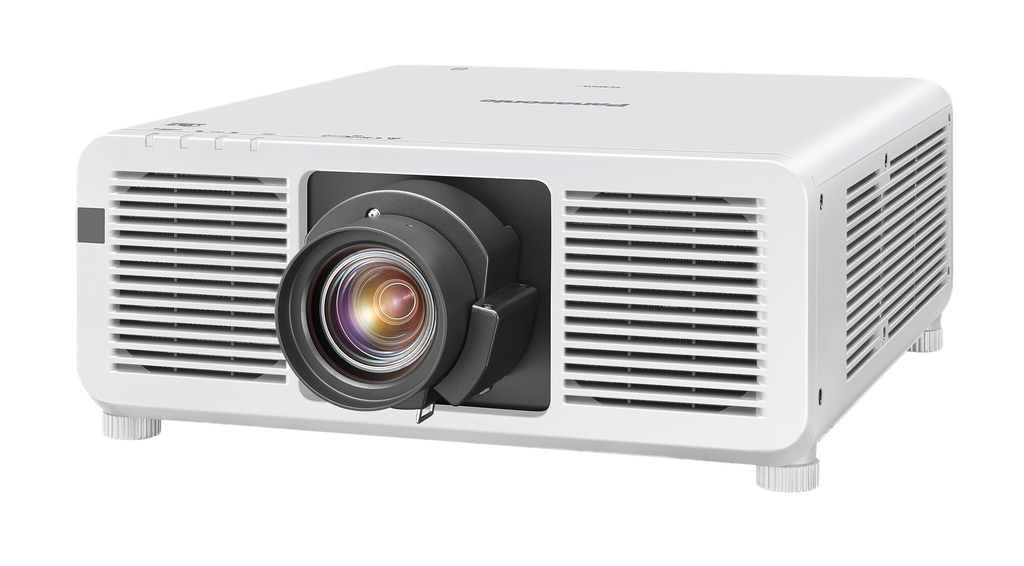

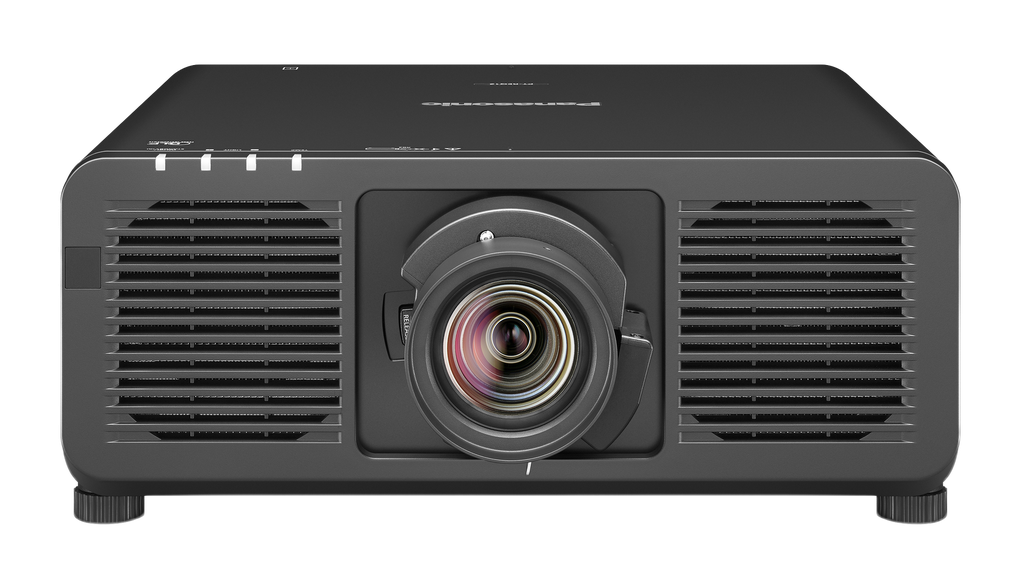

Panasonic PT-REQ10

Panasonic's compact 1-Chip DLP laser projector from the REQ15 series, delivering 10,000 lm on standard AC 100–240V power. Built for large-scale immersive production, XR attractions, and rental/staging work, it pairs 4K Quad Pixel Drive imaging with Panasonic's C1 series lens lineup and an Intel SDM slot for AVoIP and media processor integration.

Key Features:

• 10,000 lm (ANSI) / 10,300 lm (center), 4K (3840 x 2400 px) via Quad Pixel Drive
• Full brightness on standard AC 100–240V power — no high-voltage rewiring needed
• Supplied powered zoom lens (throw ratio 1.36–2.10:1), compatible with the full C1 series lens lineup, Lens Memory, and Auto Lens Identification
• 2K/240Hz playback with 6ms or less latency — built for eSports, real-time tracking, and projection-mapping SDK use
• Evolved Dynamic Contrast at 25,000:1, plus Gradation Smoother to reduce banding
• Backup Input Redundancy — auto-switches to a backup HDMI feed in under 0.3s with no screen blank
• IP5X dust-protected optical engine and liquid cooling for 20,000-hour maintenance-free operation
• Intel SDM standard-compatible slot for AVoIP, SDI, and HDBaseT function boards
• NFC-based setup prep, Smart Projector Control app (control up to 64 projectors)
• Multi-Laser Drive Engine with failover circuitry, Geo Pro geometric adjustment tools included

Specifications:

• Projector type: 1-Chip DLP
• Panel size: 0.8 in (16:10)
• Light output: 10,000 lm (ANSI) / 10,300 lm (Center)
• Time to 50% brightness: 20,000 hrs (Normal/Quiet), 24,000 hrs (Eco)
• Resolution: 4K (3840 x 2400 px) with Quad Pixel Drive
• Contrast ratio: 25,000:1 (Full On/Off, Dynamic Contrast 3)
• Screen size: 70–700 in (with supplied lens)
• Lens: Powered zoom, throw ratio 1.36–2.10:1 (supplied lens), powered focus
• Lens shift: Vertical ±60% (with ET-C1W400/W500/S600/T700) or ±50% (with ET-C1W300/U100); Horizontal ±29% or ±23% depending on lens
• Keystone correction: Vertical ±40° (reduced with certain lenses)
• Terminals: 2x HDMI (HDCP 2.3, 4K/60p), 1x DisplayPort (HDCP 2.3, 4K/60p), Multi Projector Sync In/Out, RS-232C Serial In/Out, Intel SDM slot
• Power supply: AC 100–240V, 50/60Hz
• Maximum power consumption: 870 W (840 W at AC 200–240V)
• Operation noise: 36 dB (Normal/Eco), 33 dB (Quiet)
• Dimensions (W x H x D): 498 x 212 x 648 mm (with supplied lens); 498 x 212 x 538 mm (REQ10L, without lens)
• Weight: Approx. 28.7 kg (with supplied lens); 27.0 kg (REQ10L, without lens)
• Operating temperature: 0–45°C
• Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System, Early Warning Software, Geometry Manager Pro, Smart Projector Control
