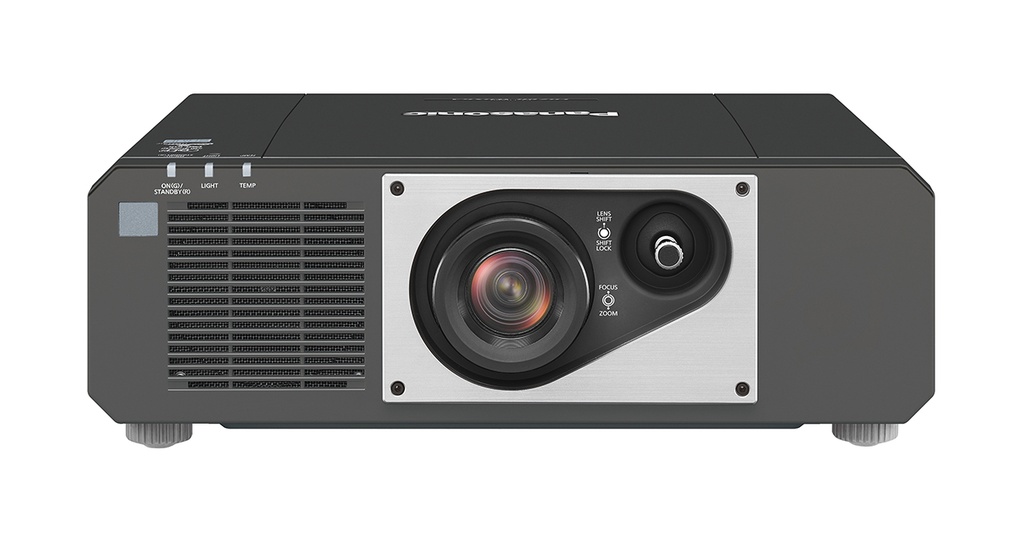

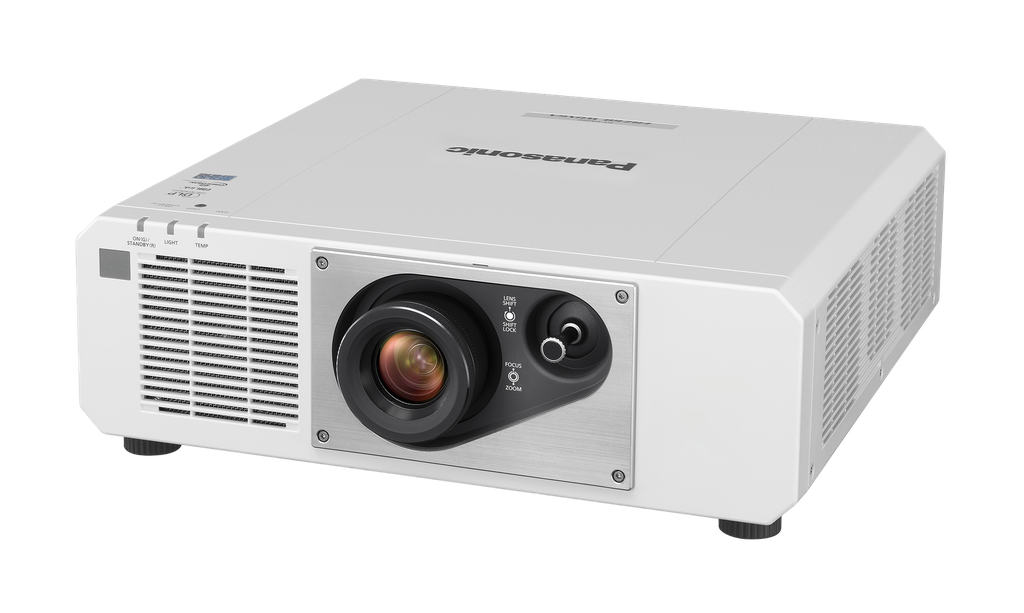

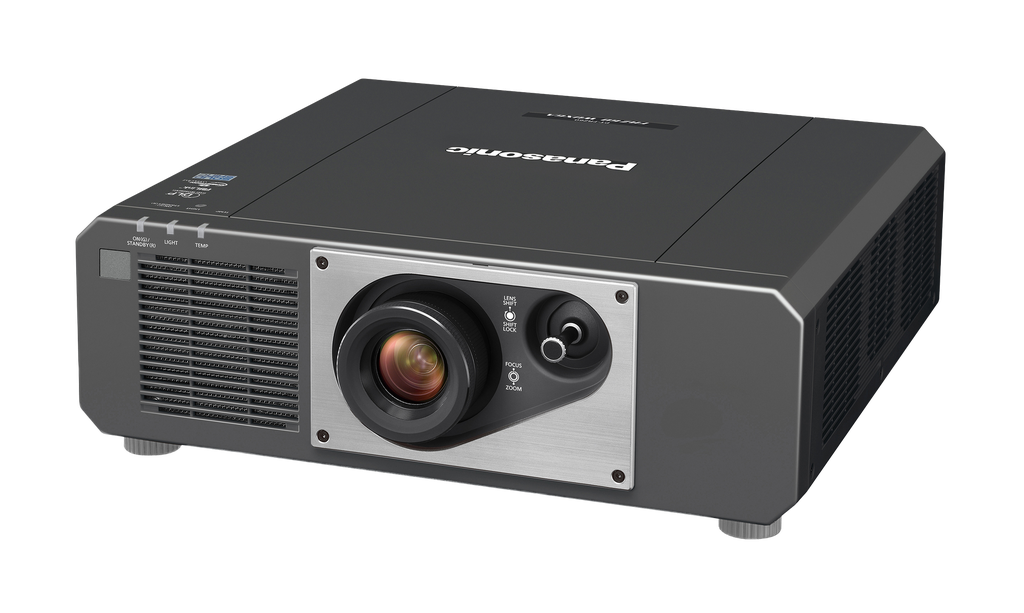

Panasonic PT-FRZ60

Panasonic's WUXGA 1-Chip DLP laser projector for education and corporate spaces, built for easy management and simple integration. Quartet Colour Harmonizer and Rich Colour Enhancer keep images bright and accurate even in well-lit rooms, and the filterless, dust-resistant design supports 20,000 hours of maintenance-free operation.

Key Features:

• 6,000 lm (ANSI) / 6,200 lm (center), WUXGA (1920 x 1200 px)
• 2.0x zoom lens (throw ratio 1.46–2.94:1) with wide V/H lens-shift (V: +64%/-44%, H: +34%/-27%)
• Quartet Colour Harmonizer + Rich Colour Enhancer for accurate, vivid color in bright rooms
• Supports uncompressed 4K/60p input via HDCP 2.3-compliant HDMI or DIGITAL LINK terminal
• Multi-Laser Drive Engine with failover circuitry
• Filterless heat-pipe cooling, hermetically sealed optical block — 20,000-hour maintenance-free operation
• Lens, lens-shift range, and brackets are identical to the previous PT-RZ570 — drop-in replacement with no install rework
• Free 360° installation

Specifications:

• Projector type: 1-Chip DLP
• Panel size: 0.67 in (16:10)
• Light output: 6,000 lm (ANSI) / 6,200 lm (Center)
• Time to 50% brightness: 20,000 hrs (Normal)
• Resolution: WUXGA (1920 x 1200 px)
• Contrast ratio: 20,000:1 (Full On/Off)
• Screen size: 1.02–7.62 m (40–300 in), 16:10
• Lens: 2.0x manual zoom, throw ratio 1.46–2.94:1, F 2.0–3.4, f 21.5–43.0 mm
• Lens shift: Vertical +64%/-44%, Horizontal +34%/-27%
• Keystone correction: Vertical ±40°, Horizontal ±20°
• Power supply: AC 100–240V, 50/60Hz
• Maximum power consumption: 540 W
• Operation noise: 35 dB (Normal), 30 dB (Quiet)
• Dimensions (W x H x D): 498 x 168 x 492 mm
• Weight: Approx. 16.1 kg
• Operating temperature: 0–45°C
• Applicable software: Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software
