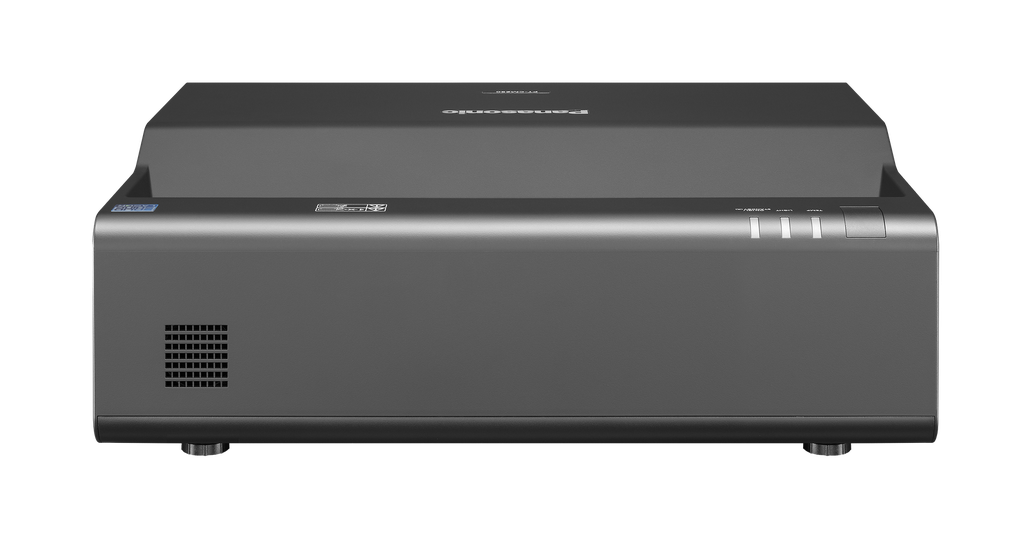

Panasonic PT-CMZ50

PT-CMZ50 — 3LCD Ultra-Short-Throw Laser Projector, WUXGA, 5,200 lm

The extreme end of short throw: a 0.235:1 lens that puts an 80-inch image on the wall from about 1 cm of body-to-wall clearance. It mounts effectively flush, which makes it the answer for low-ceiling huddle rooms and hybrid classrooms where there's no room for a ceiling drop and no shadow tolerance — the lens sits ahead of the presenter, so nobody stands in the beam or gets dazzled. Where it separates from the TMZ400 is capability, not just brightness: powered centre and periphery focus by remote (important at this throw ratio, where edge sharpness is the hard part), DIGITAL LINK, an HDMI OUT with edge blending for two-projector widescreen, 21:9 and 27:9 native support for video-conference layouts, and Detail Clarity Processor 4. At 25 dB in Quiet it's also one of the quietest units in the range, which matters when people are sitting a metre from it.

Key Features:

• Ultra-short throw at 0.235:1 — 80-inch image from about 1 cm body-to-wall, installs almost flush
• 5,200 lm (ANSI) WUXGA with 3,000,000:1 dynamic contrast
• 25 dB in Quiet mode (34 dB Normal) — roughly a third the perceived loudness of a comparable lamp projector
• Powered centre focus and powered periphery focus by remote, for even sharpness edge to edge
• HDMI OUT with edge blending — pair two units for native-resolution widescreen across two screens
• Accepts 21:9 (2560 x 1080) and 27:9 (3240 x 1080) signals for video-conference layouts at eye level
• Detail Clarity Processor 4 sharpens fine text and detail across four frequency bands
• Digital Zoom Extender to 0.288:1 plus ±10% digital image shift, adjustable without touching the unit
• 4-Corner, V/H keystone and curved-screen correction by remote
• 4K/30p input over both HDMI™ inputs and DIGITAL LINK (HDBaseT™)
• Optional ET-WBC100 wall mount, part pre-assembled, with ±5° tilt and rotation adjustment
• 20,000 h to 50% output (24,000 h ECO), washable ECO Filter, ~31% better watts-per-lumen than comparable lamp models
• ~1 second Quick Startup and Direct Off via the room breaker
• QR-code wireless pairing (optional AJ-WM50 module) and PressIT compatibility

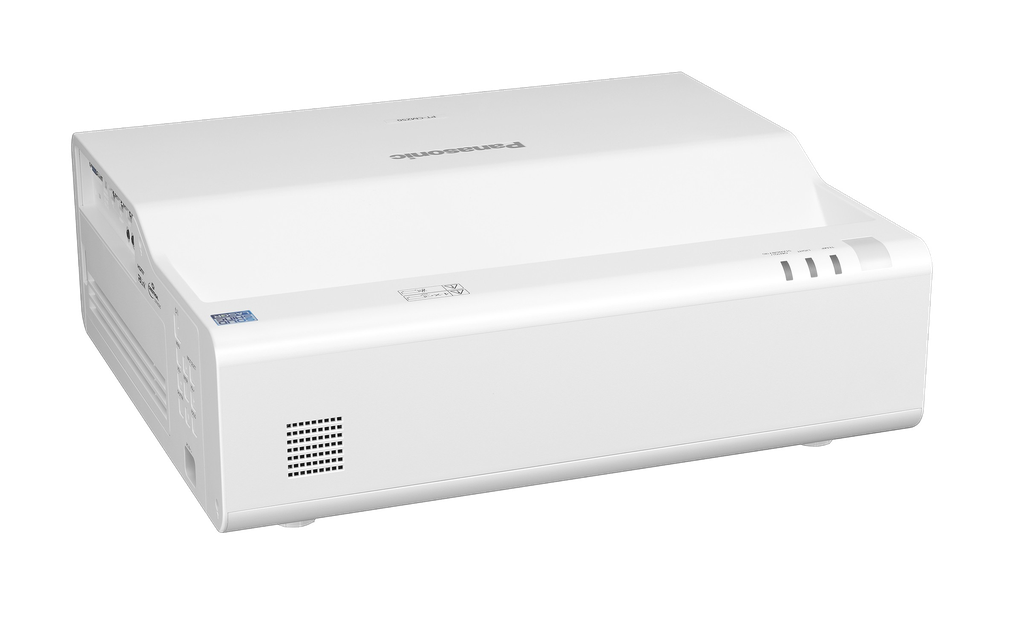

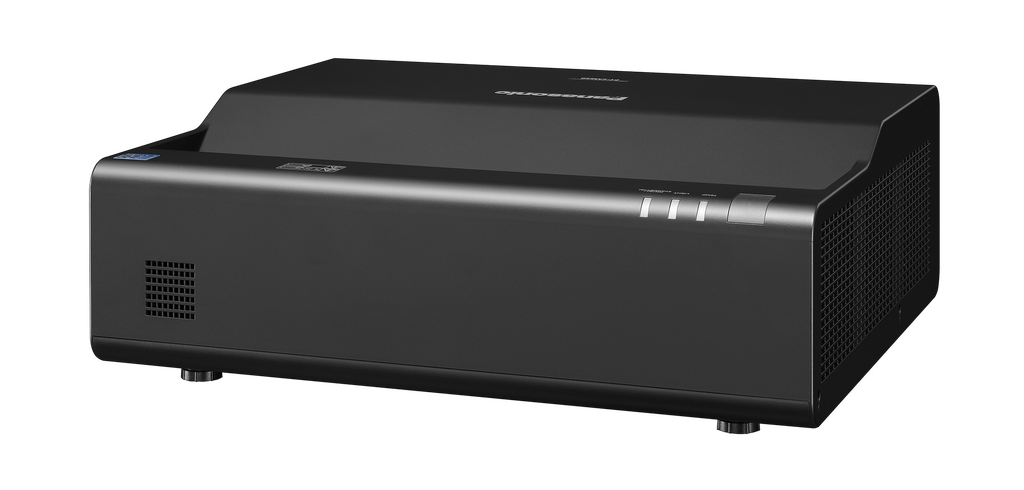

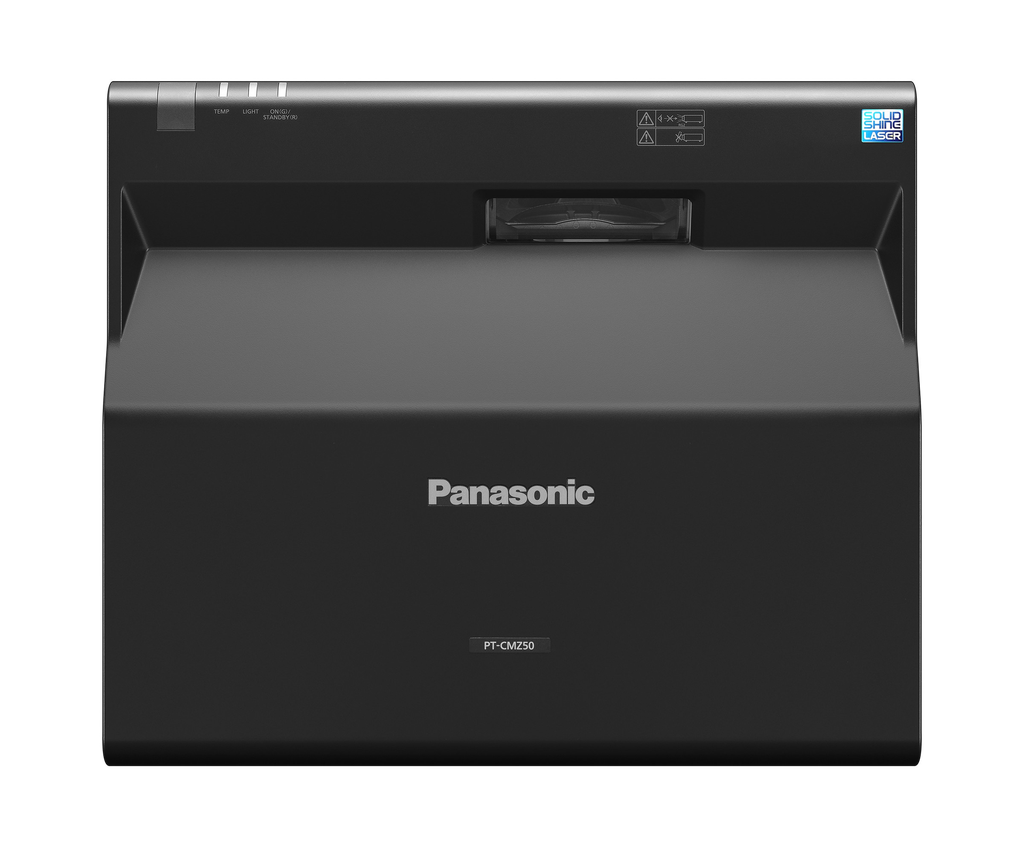

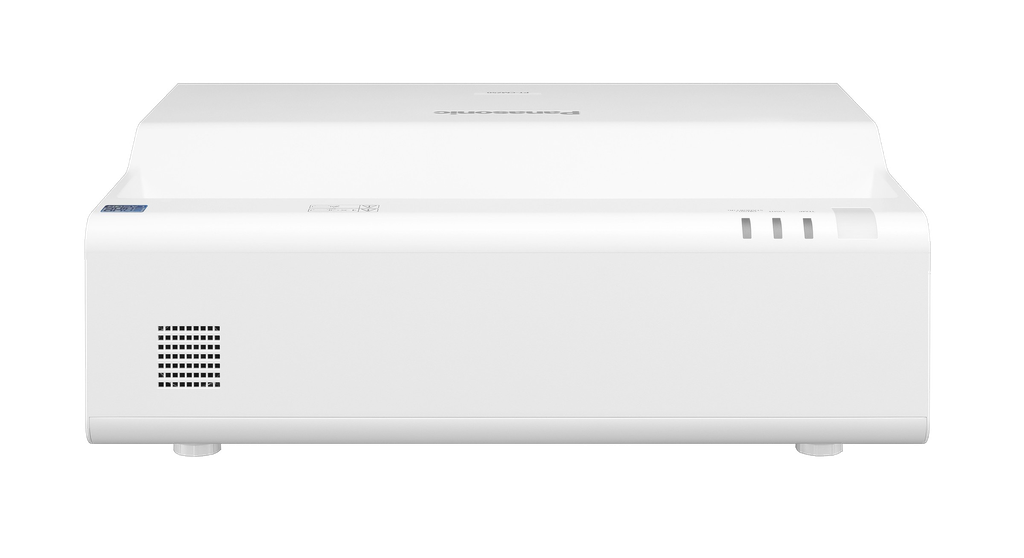

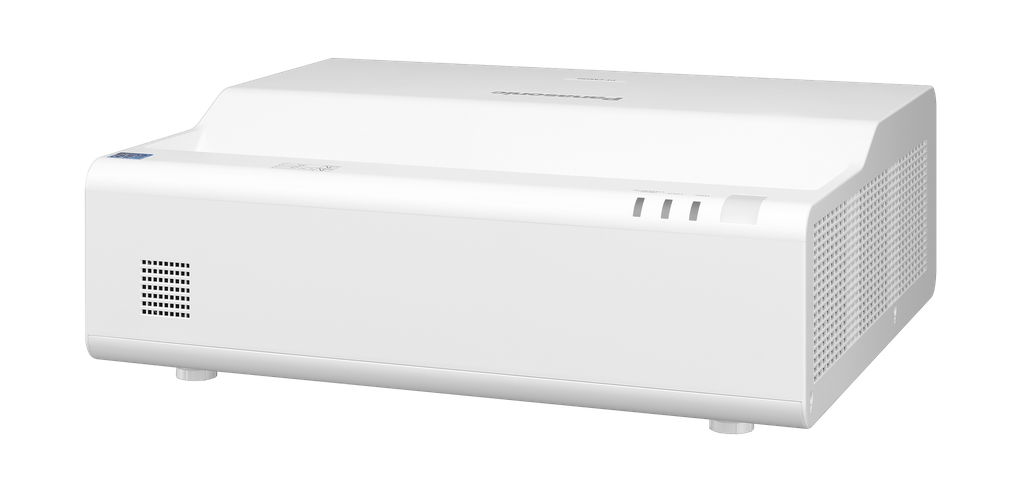

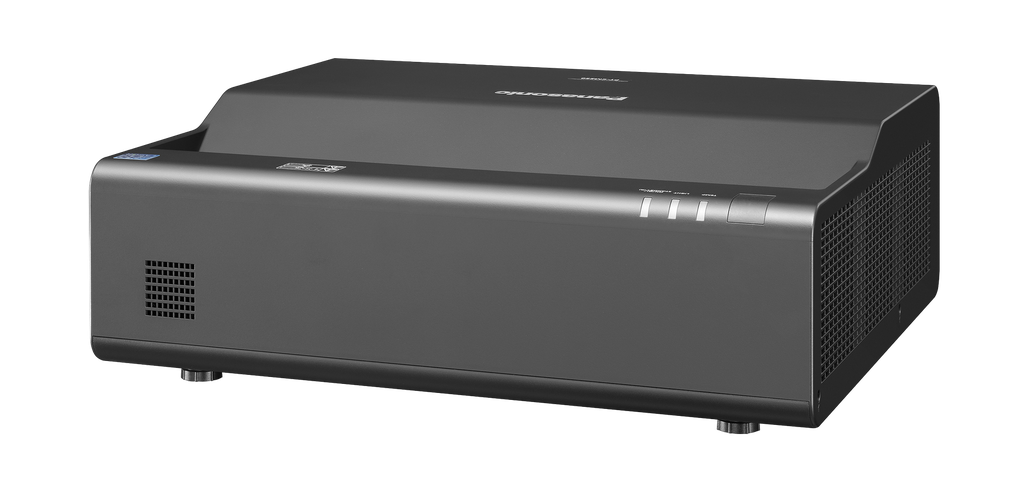

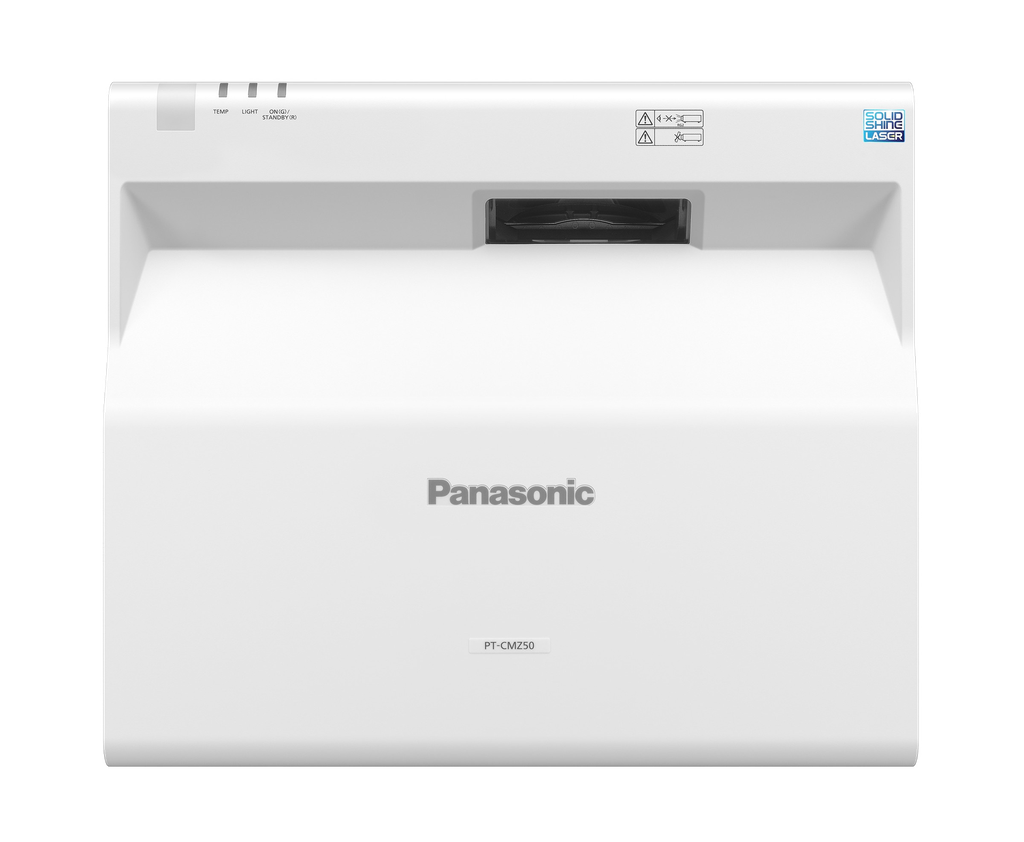

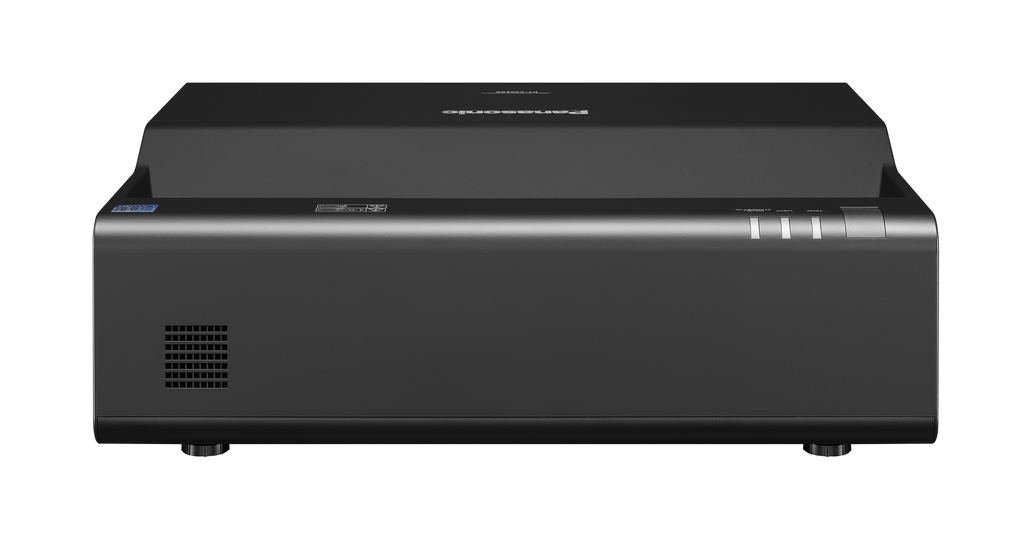

• Black or white cabinet with no protrusions; mic input, 10 W speaker, DICOM Simulation

Lens: Fixed ultra-short-throw lens, 0.235:1, powered focus (no zoom, no lens shift, no optional lens options).

Specifications:

• Projector type: 3LCD (transparent LCD panel x 3, R/G/B)
• Light output: 5,200 lm (ANSI)
• Resolution: WUXGA (1920 x 1200 px)
• Contrast ratio: 3,000,000:1
• Screen size: 2.03–3.05 m (80–120 in), 16:10
• Lens: Fixed 0.235:1, F 1.7, powered focus
• Lens shift: none
• Keystone: V ±3°, H ±3°
• Terminals: HDMI™ IN x 2, HDMI™ OUT x 1, D-sub 15-pin, DIGITAL LINK/LAN, LAN, USB Type A, RS-232C, audio in/out
• Speaker: 10 W monaural
• Power: AC 100–240 V, max. 325 W
• Noise: 34 dB (Normal) / 25 dB (Quiet)
• Dimensions (W x H x D): Approx. 495 x 160 x 421 mm
• Weight: Approx. 9.5 kg
• Operating temperature: 0–45 °C
