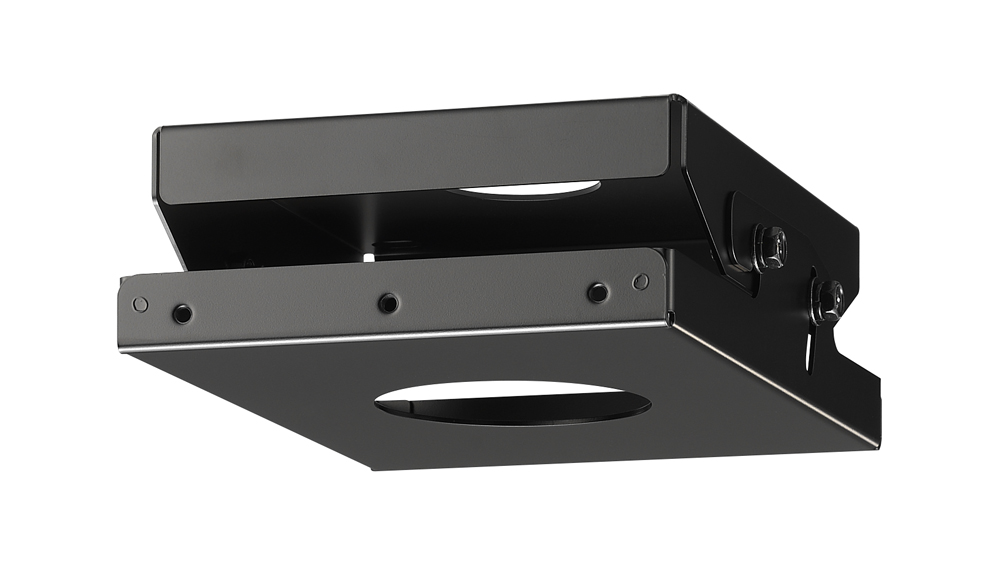

ET-PKD520S — Low Ceiling Mount Bracket for Large-Venue Projectors
Key Features:
- Low-profile ceiling mounting: projector sits close to the slab, no drop pipe, minimal intrusion into sightlines
- Wide asymmetric vertical tilt, +5° upward to -17° downward, for steep downward aiming in tall venues
- ±2.5° horizontal tilt and ±1° pan for precise on-site levelling and alignment
- Mechanical alignment preserves full resolution — no digital keystone or shift compromise
- Covers the 3-Chip DLP™ large-venue range: PT-RQ25K, RZ24K, RQ18K, RZ17K, RZ14K, RQ22K, RZ21K/RS20K, RZ16K, RQ13K, RZ12K, RS11K
- Also compatible with the earlier lamp-based PT-DZ21K2, DS20K2, DW17K2 and DZ16K2
- Shares a spec sheet with the ET-PKD521B projector mount base
Specifications:
- Accessory type: Low ceiling mount bracket
- Vertical tilt range: +5° (upward) / −17° (downward)
- Horizontal tilt range: ±2.5°
- Panning range: ±1°
- Dimensions (W x H x D): 350 x 106 x 535 mm
- Weight: Approx. 6.7 kg
