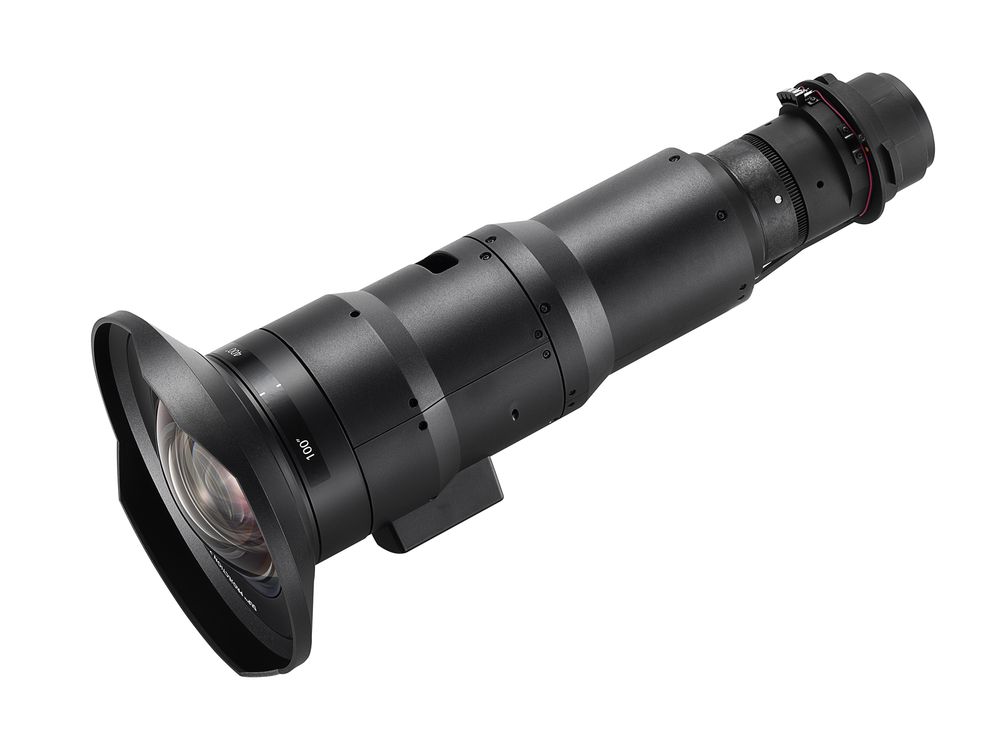

Panasonic ET-DLE020

The ET-DLE020 utilizes a sophisticated periscope-style "L-shaped" mirror system to achieve a remarkably low throw ratio of 0.280–0.299:1 (WUXGA). Unlike fixed UST lenses, the DLE020 features a 1.07x optical zoom, allowing technicians to fine-tune image geometry and size without physically shifting the projector.

Built for high-brightness laser projectors (up to the 12,000-lumen class), it supports Zero-Offset projection, meaning the image can start exactly at the lens center to maximize vertical screen coverage in low-ceiling environments.

Superior Flexibility for Easy Installation

Conventional ultra-short-throw lenses demand accurate, time-consuming projector installation positioning with no margin for error. The ET-DLE020’s optical zoom, however, provides an installation margin of ±45 mm (±1.77˝) and easy image adjustment at a throw-ratio of 0.280–0.299:1 (WUXGA, 16:10), all with zero image offset. It combines with Panasonic laser projectors^*1 to support Wide-range Vertical and Horizontal Lens-Shift, more than doubling movable shift area of comparable lenses, increasing installation flexibility, and expediting setup.

High Reliability for Continuous Operation

The ET-DLE020 features an aspherical all-glass lens that’s heat- and scratch-resistant. Durable construction enhances reliability for long-term use, and when combined with our dust-resistant laser projectors*, assures consistently brilliant images under continuous operation.

On-Axis Rear Projection

The ET-DLE020’s straight mirrorless design makes screen-centered projector installation possible in rear-projection applications.

Note: Hot spots may occur depending on the screen.

Zero Offset and Flexible Setup for Multi-Screen Projection

Install your Panasonic 1-Chip DLP™ laser projector on-ceiling and close to the wall for full top-to-bottom screen coverage with zero offset and minimal shadowing, even in low-ceiling applications. Zoom and wide-range V/H Lens Shift joins flexible edge-blending adjustment for multi-screen projection.
