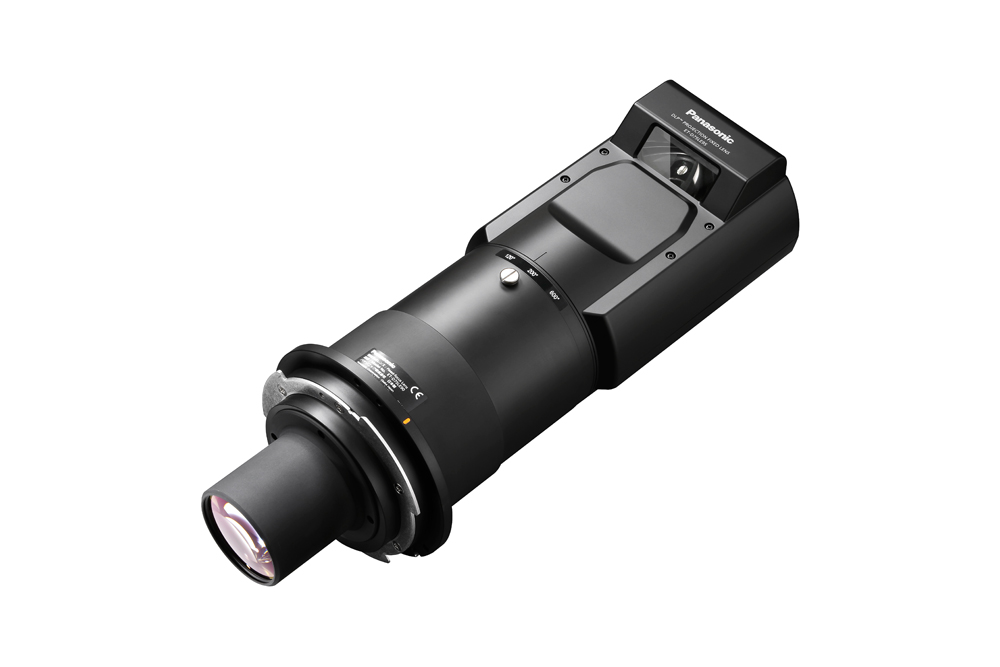

ET-D75LE95 — Ultra Short-Throw Lens for 3-Chip DLP™ Projectors
This is the one to reach for when the room genuinely doesn't give you any distance to work with. It's currently the world's shortest throw among detachable lenses for 3-Chip DLP™ projectors, letting you produce a 200-inch image from just 1.5 m away from the screen. Compared to Panasonic's ET-D75LE50 short-throw lens, it cuts throw distance by roughly 60%, opening up spaces that were previously off-limits for high-brightness 3-Chip projection, floors, tight stages, structures for projection mapping, transport hubs, anywhere front-projection used to be a non-starter. It also supports both vertical and horizontal edge blending, so multi-projector immersive setups stay on the table even in these tight spaces.
Key Features:
- 200-inch diagonal image from just 1.5 m (5.0 ft) distance
- Supports vertical and horizontal edge blending for multi-projector immersive setups
- Screen sizes up to 600 inches diagonal supported
- Reduces throw distance by approx. 60% versus the ET-D75LE50 short-throw lens
- Ideal for floor projection, projection mapping, stage backdrops, exhibitions, and digital signage in well-lit environments
- Requires at least 500 mm clearance behind the projector's rear panel for proper ventilation
Specifications:
- Lens type: Fixed-Focus Lens
- F-number: 2.5
- Focal length: 7.5 mm
- Throw ratio (4K+): 0.390:1
- Throw ratio (WUXGA / Full HD): 0.364:1 (0.436:1 on PT-RQ25K Series)
- Throw ratio (SXGA+): 0.390:1
- Throw ratio (WXGA): 0.400:1
- Dimensions (W x H x D): ø154 x 463.5 mm
- Weight: Approx. 5.7 kg
