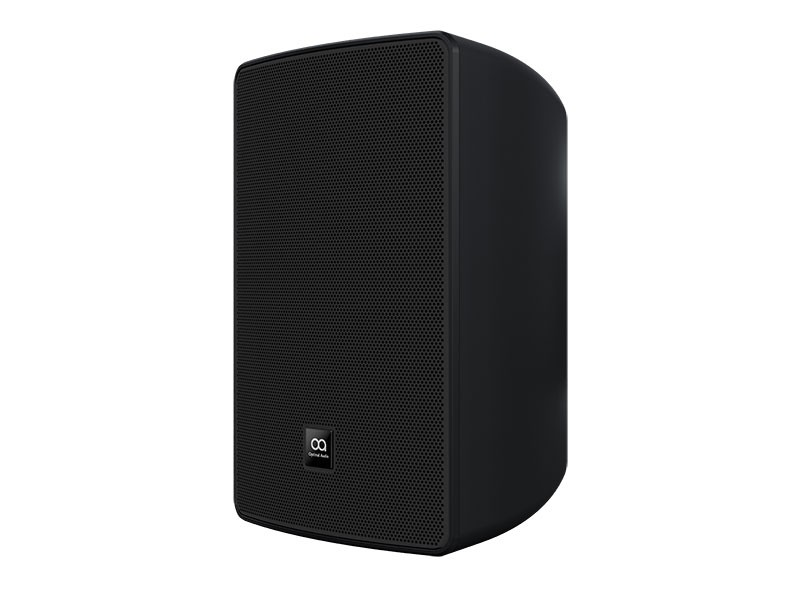

Two-way, full range, passive, 6.5” loudspeaker
Cuboid 6 is a full range, two way, passive 6.5″ loudspeaker for distributed applications with high-quality background music and speech reproduction.

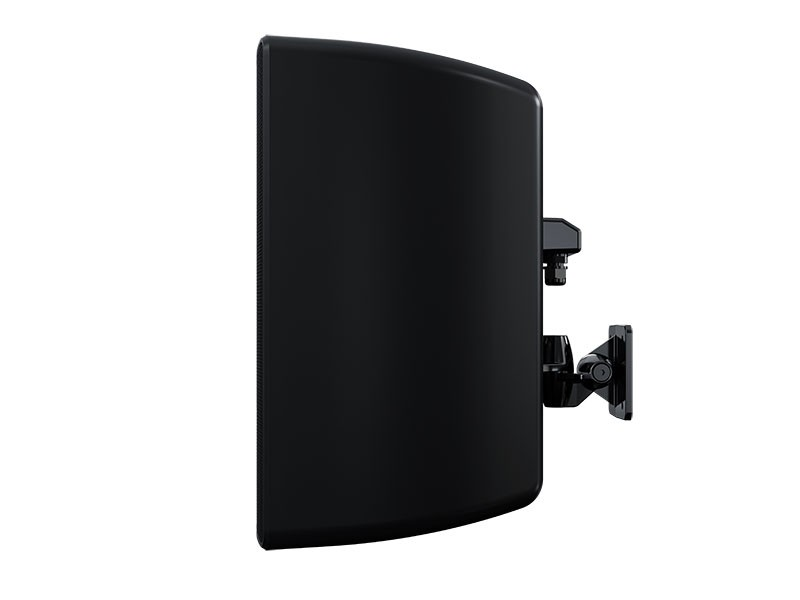

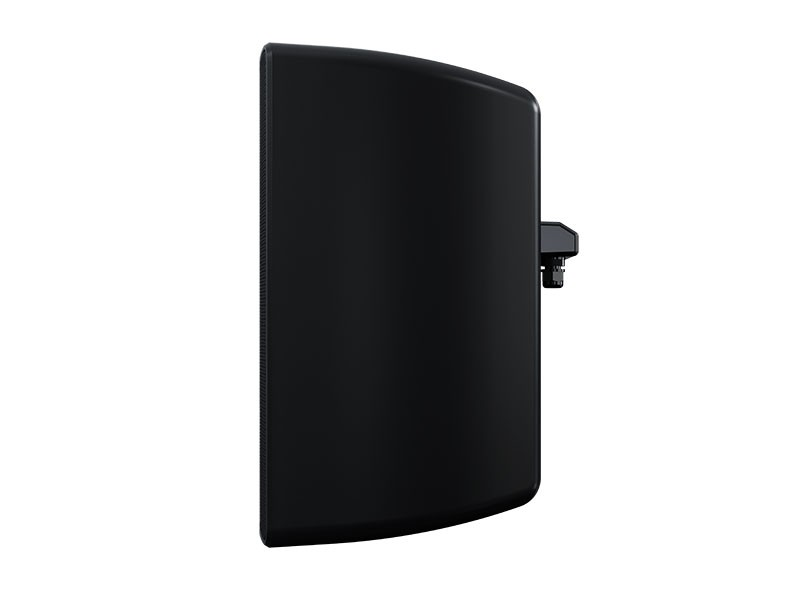

With its attractive design and included mounting hardware, Cuboid 6 can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 6 features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.
For enhanced bass performance, Cuboid 6 can be teamed with Sub 6 or Sub 10. A SmartAmp or powered Zone will provide amplification and loudspeaker protection via onboard presets. When coupled with Zone and WebApp , system set up and end user control is straightforward, and can be further supplemented by ZonePad wall controllers.
Key features
- Discreet size, high performance
- Portrait or landscape mounting options
- Wall bracket included
- Max SPL 105dB (continuous) 111dB (peak)
- 130° horizontal x 120° vertical coverage
- IP54 for outdoor use with accessory terminal cover
Specifications
| TYPE | Two-way, full range, passive 6.5” loudspeaker |
| FREQUENCY RESPONSE (with preset) | 90Hz – 20kHz +/-3dB, -10dB @ 70Hz |
| DRIVERS | LF: 6.5”(165mm) coated paper, ferrite motor system HF: 1” (25.4mm) Silk Dome, neodymium motor system |
| IP RATING | IP54 when used with accessory terminal cover |
| RATED POWER | 60 W (AES) 240W (peak) |
| NOMINAL IMPEDANCE | 8 Ohms |
| SENSITIVITY (1W/1m) | 89dB |
| MAXIMUM SPL | 107dB (continuous) 113dB (peak) |
| CROSSOVER | 3.4kHz |
| RECOMMENDED HIGH PASS FILTER | 24dB Per Octave @ 50 Hz |
| DISPERSION (-6dB) | 130°H x 120°V |
| ENCLOSURE | ABS |
| FINISH | Black and White finish |
| PROTECTIVE GRILLE | Painted Aluminium |

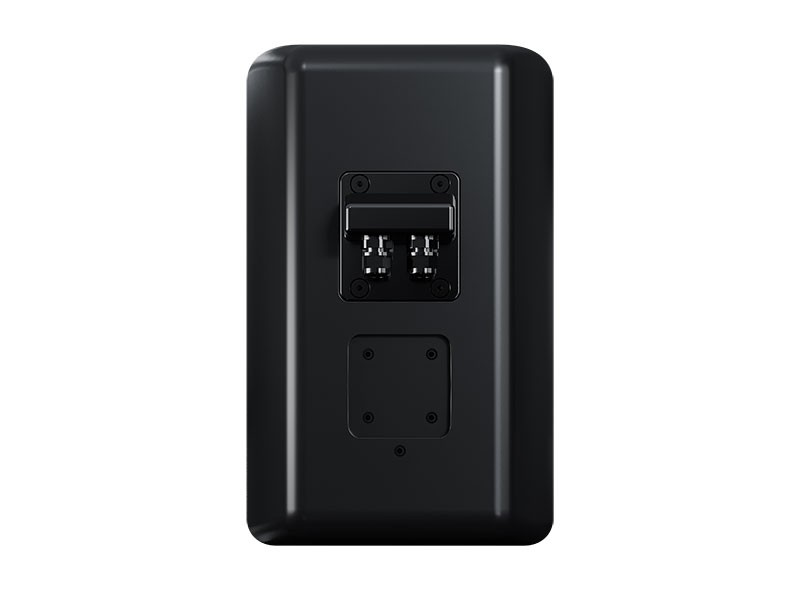

| CONNECTORS | 4 pin Euroblock |
| PIN CONNECTIONS (INPUT) | Positive and negative in with link out terminals |
| FITTINGS | M4 mounting points for wall bracket |
| DIMENSIONS | (W)200 x (H)320 x (D)190mm (W)7.9” x (H)12.6” x (D)7.5” |
| WEIGHT | 3.82kg (8.4lb) |
