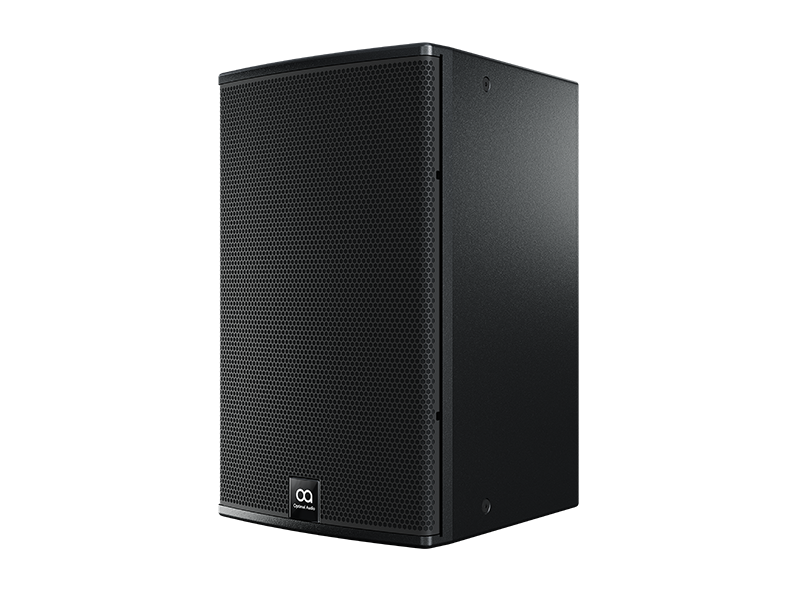

Optimal Audio CUBOID12-B

Two-way, full range, passive, 12" loudspeaker

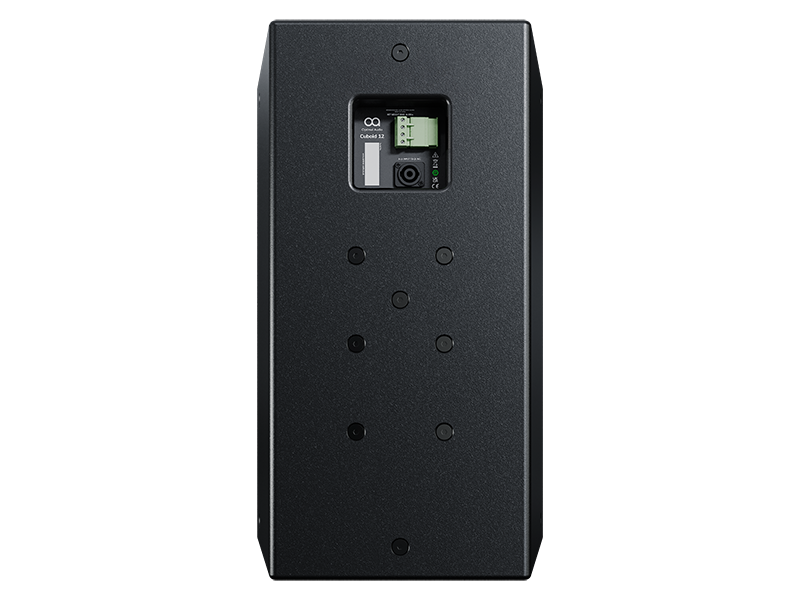

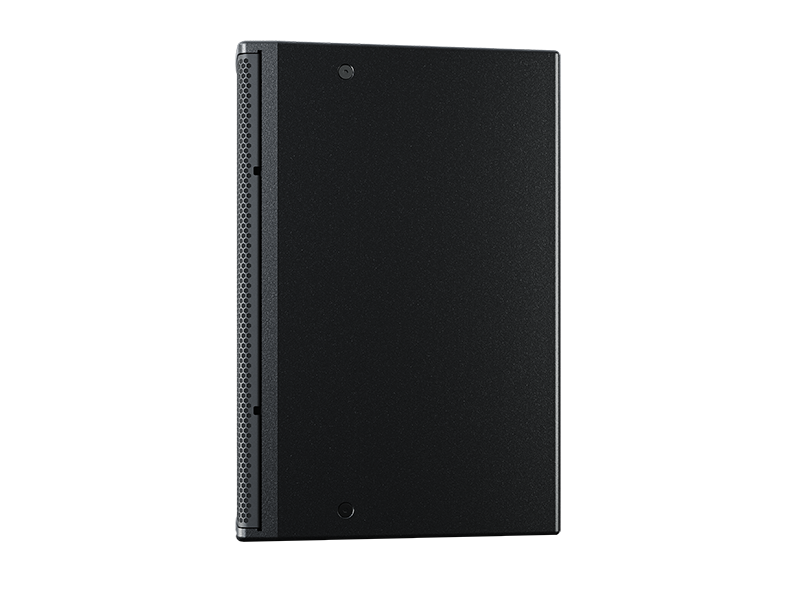

Cuboid 12 is a full range, two-way, passive, 12″ loudspeaker designed for short to medium throw commercial installations. For short to medium throw distances, it delivers rich and detailed sound with punch and precision. With its wooden cabinet, steel grille and optional mounting hardware the professionally presented Cuboid 12 can be fixed in either portrait or landscape mode for a flexible, simple installation.

Cuboid 12 features a 12” (300mm) low frequency (LF) driver for added bass and midband with a 1″ (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.

For enhanced bass performance, Cuboid 12 can be teamed with Sub 15 or Sub 18. A SmartAmp or powered Zone will provide amplification and loudspeaker protection via onboard presets. When coupled with Zone and WebApp , system set up and end user control is straightforward, and can be further supplemented by ZonePad wall controllers.

Key features

• Wooden cabinet
• Portrait or landscape mounting options
• Rotatable high-frequency horn
• 62Hz – 20kHz frequency response ±3dB
• Maximum SPL 123dB (continuous), 129dB (peak)
• 80° horizontal x 50° vertical coverage

Specifications
