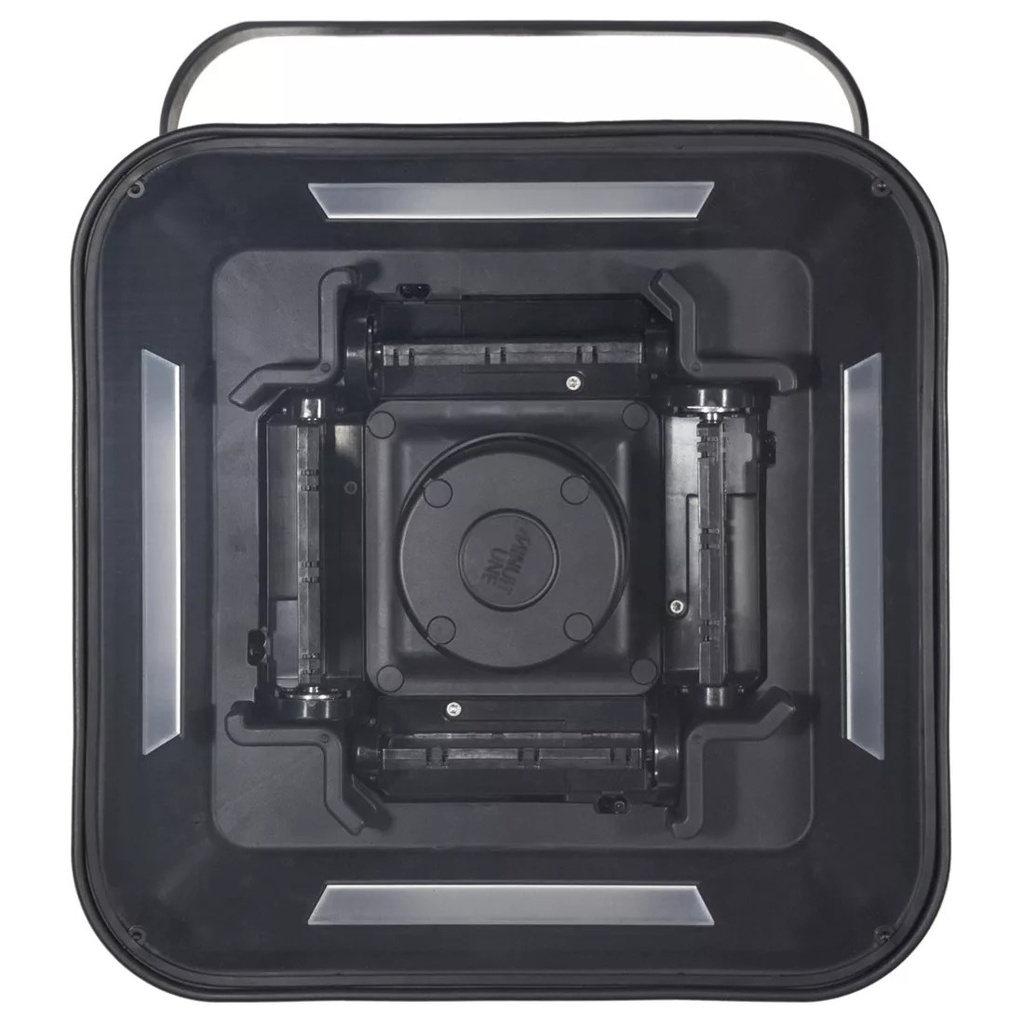

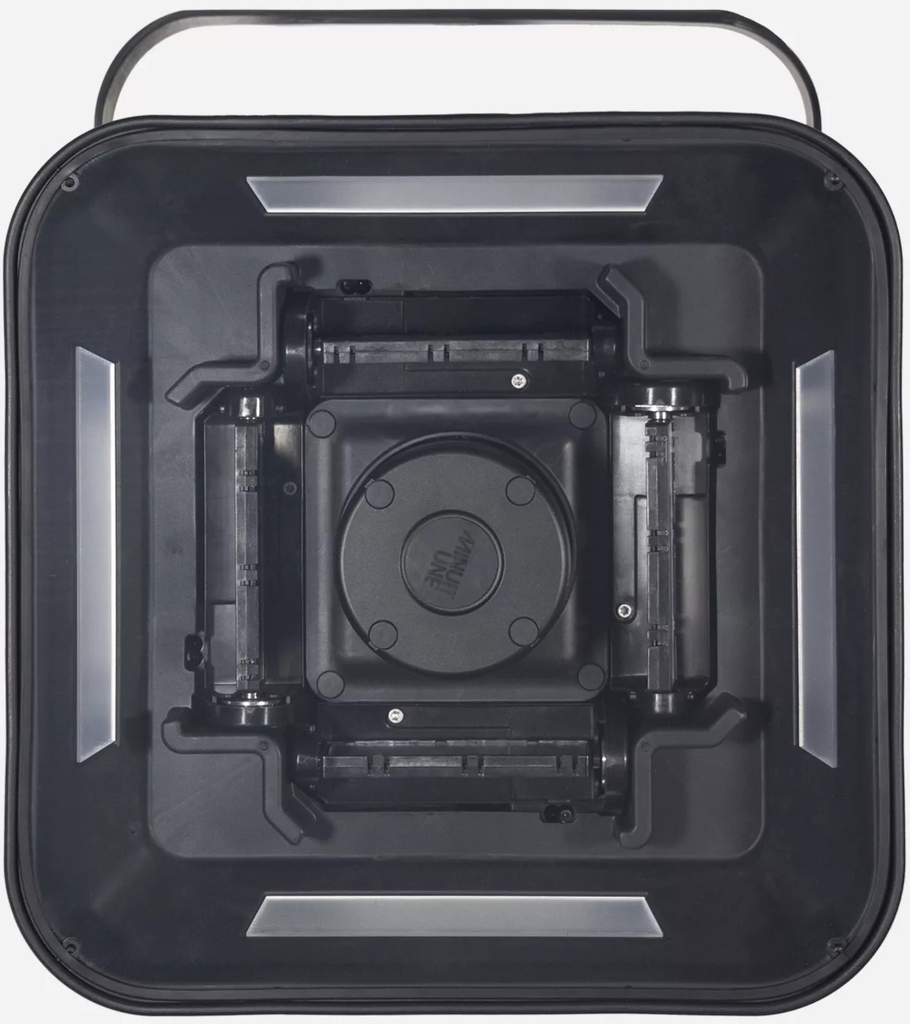

The IVL Dice by Minuit Une is a compact laser-based luminaire for volumetric lighting: 38 cm (15 inch), 200 W, 49 DMX channels. Four motorized tilts produce four independent light planes and fill a small or mid-sized venue from a very small footprint.
Key Features
4 independent tilts, each with a mirror side and a frosted side
9 electronic gobos: 1 to 256 beams, with control of beam size, indexing and rotation
2 independent dimmers and 2 independent RGB controls per tilt, plus strobe
Class 3R laser product (EN/IEC 60825-1), smooth RGB spectrum
No moving head; modular construction, modules replaced independently and quickly
Optical parts isolated from haze for low cleaning care
Technical Specifications
Housing: 384 x 384 x 238 mm; with the adjustable yoke: 384 x 433 x 238 mm
Weight: 10.6 kg
Light source: Class 3R laser, 450 nm / 520 nm / 635 nm, scan rate 330 Hz
Mirror output: 4 independent mirrors, 84° linear aperture per tilt, operating angle 105°
Frost output: 4 independent frost filters, operating angle 105°
Tilt motors: 4 stepper motors, 16-bit resolution; mirror to frost side in 0.25 s
DMX: 33 channels (mode 1) or 49 channels (mode 2); standard or fast mode
Power: 100 to 240 V, 50/60 Hz, 200 W maximum
Connections: Neutrik powerCON TRUE1 in/out, 5-pin XLR DMX in/out
Protection rating: IP20; LCD colour menu display; update by micro-SD card
Ambient temperature: 0 °C to 40 °C
