For applications that typically require a throw between 15-30m (50-100ft), a full-blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL.

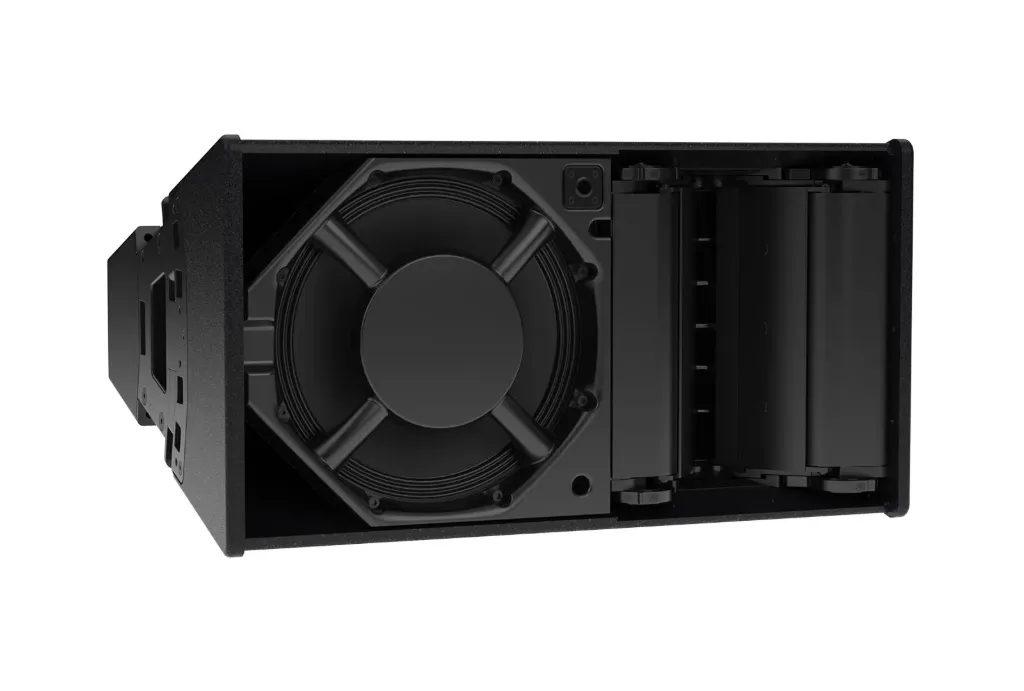

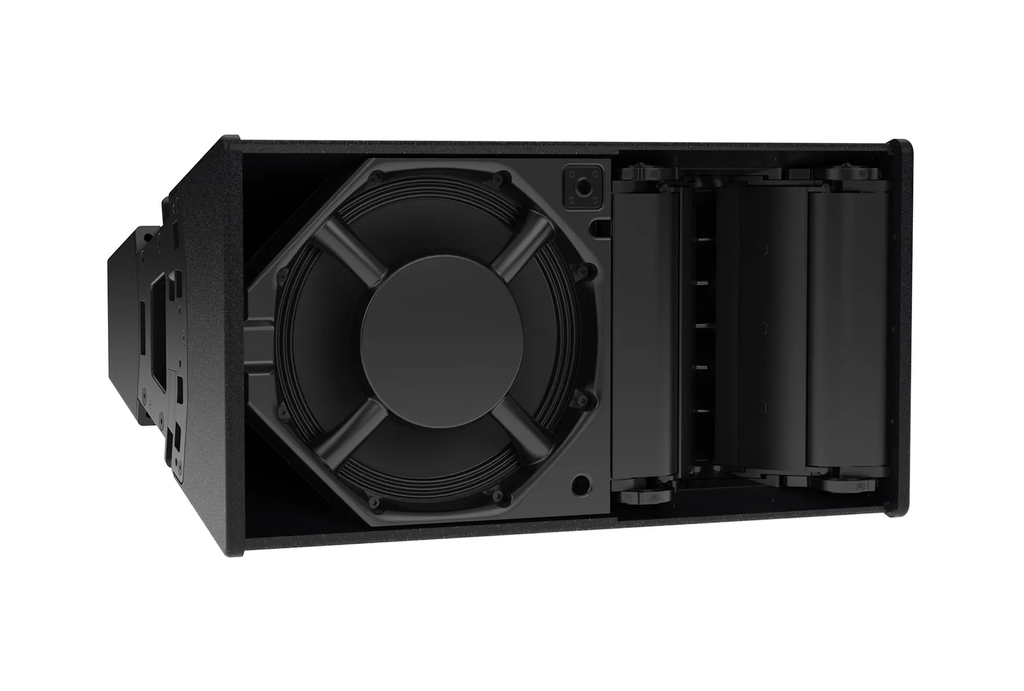

TORUS T1230 is a constant curvature array, designed to fill that gap perfectly, combining optimised coverage, SPL and cost efficiency.
T1230 offers a fixed vertical pattern of 30° with a flexible horizontal pattern that can be manually adjusted between 90° and 60° or 75° (asymmetrical) via the Dynamic Horn Flare™.
Features
- Two-way passive, constant curvature array element
- Compact enclosure with high output capability
- 1 x 12” (300mm) LF driver plus 3 x 1.4” (35mm)/1” (25mm) exit HF drivers
- Dynamic Horn Flare™ manually adjustable between 90° and 60° or 75° (asymmetrical) for flexible horizontal coverage
- Fixed 30° vertical dispersion pattern
- Phase plug for increased mid-band output

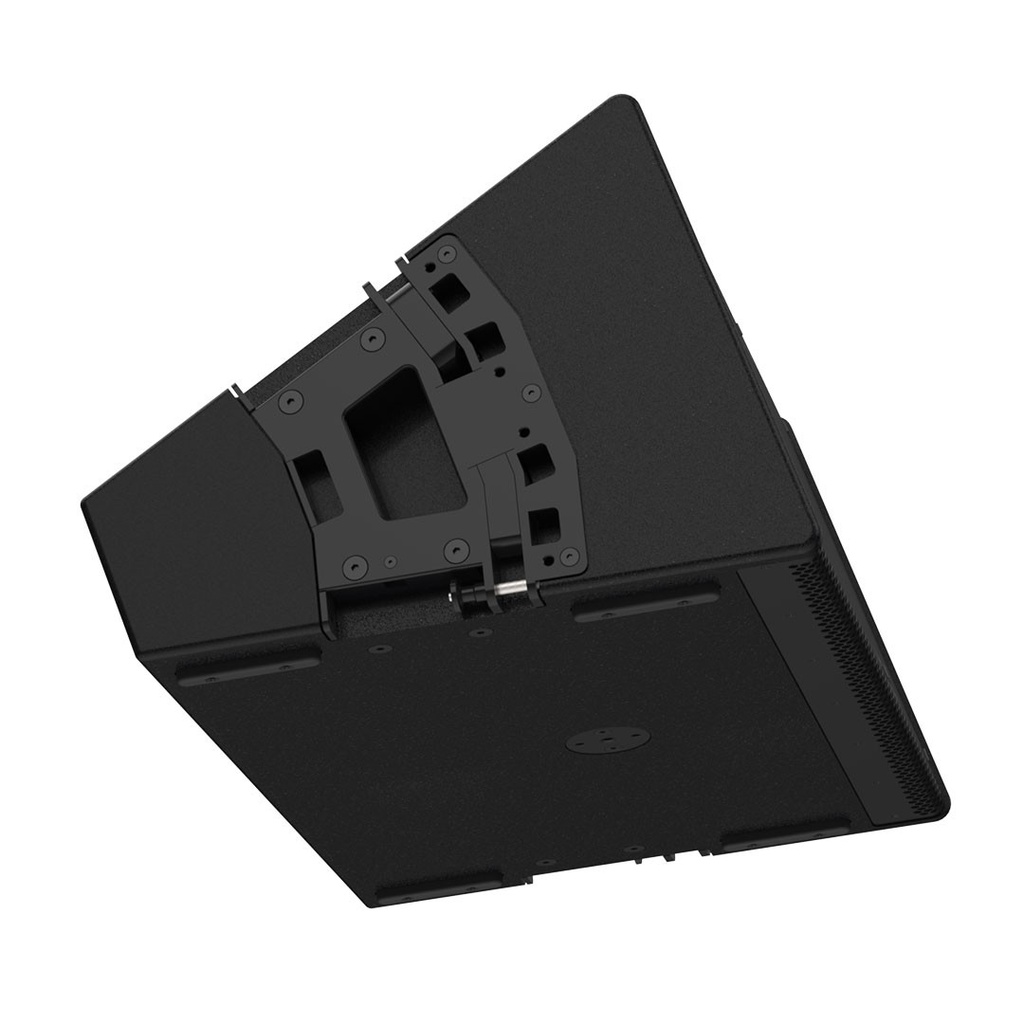

- Easy-to-use integral rigging for quick set-up
- Integral fittings to facilitate pole-mounting
- Optimised coverage via DISPLAY 3
- Powered by iKON amplifiers
Applications
- Medium-throw live sound and music playback
- Theatre sound
- Fixed installations
- Fills, centre clusters and delays
- Portable DJ and corporate events
| color | Black, White |
No reviews yet.
Specifications
| color | Black, White |
