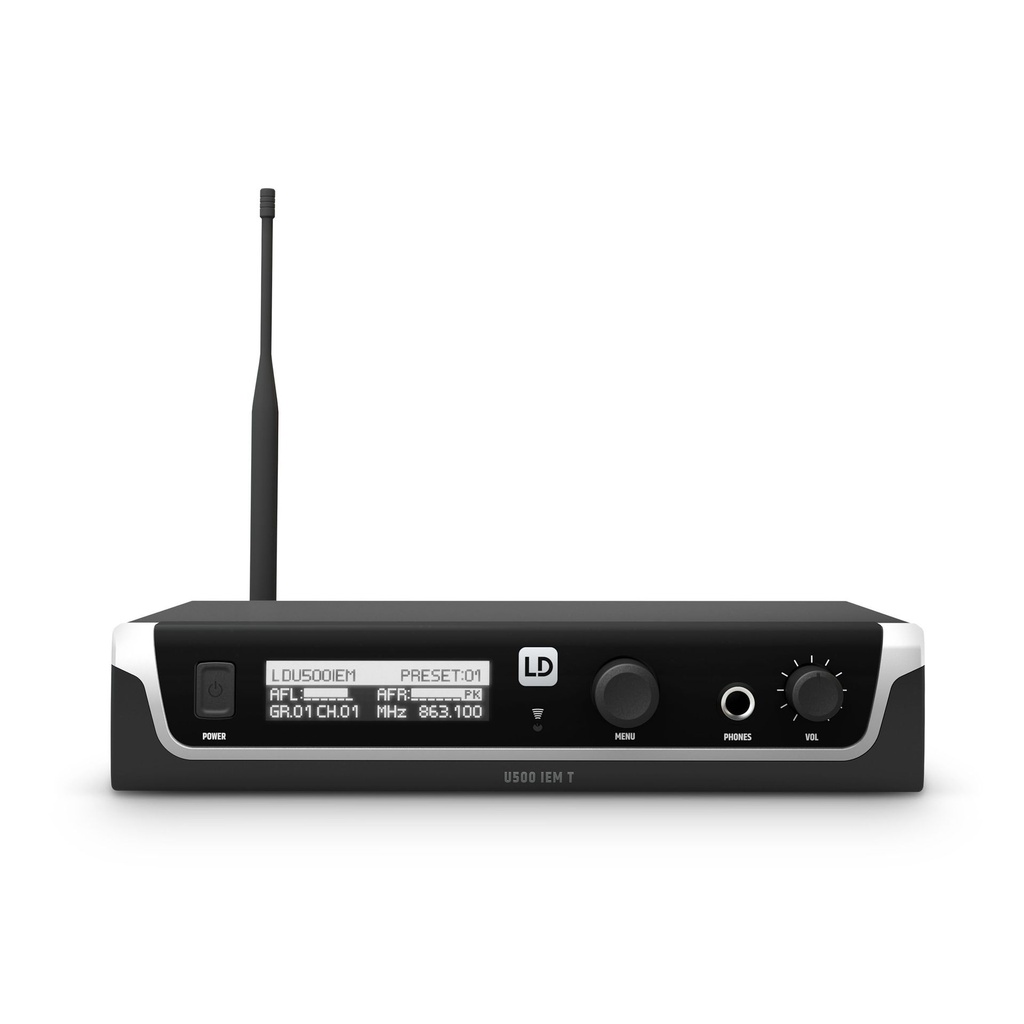

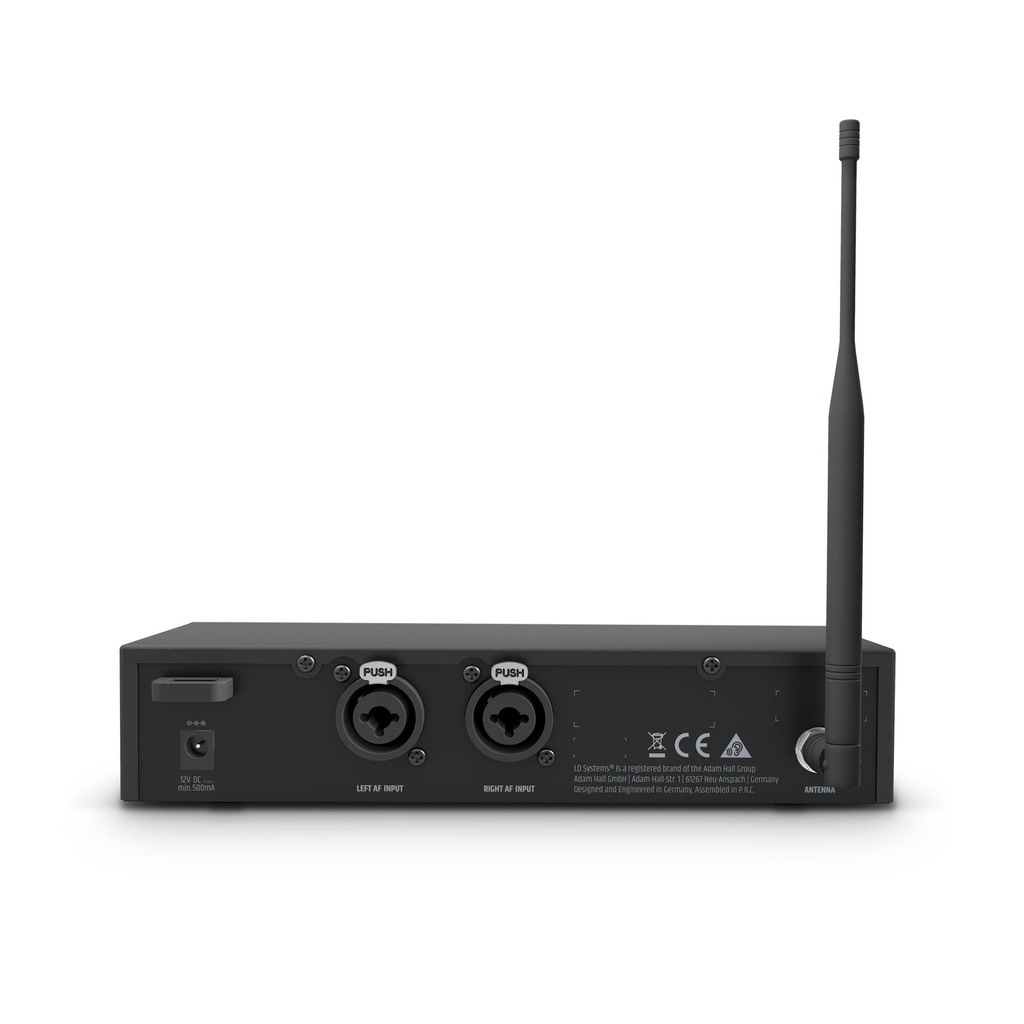

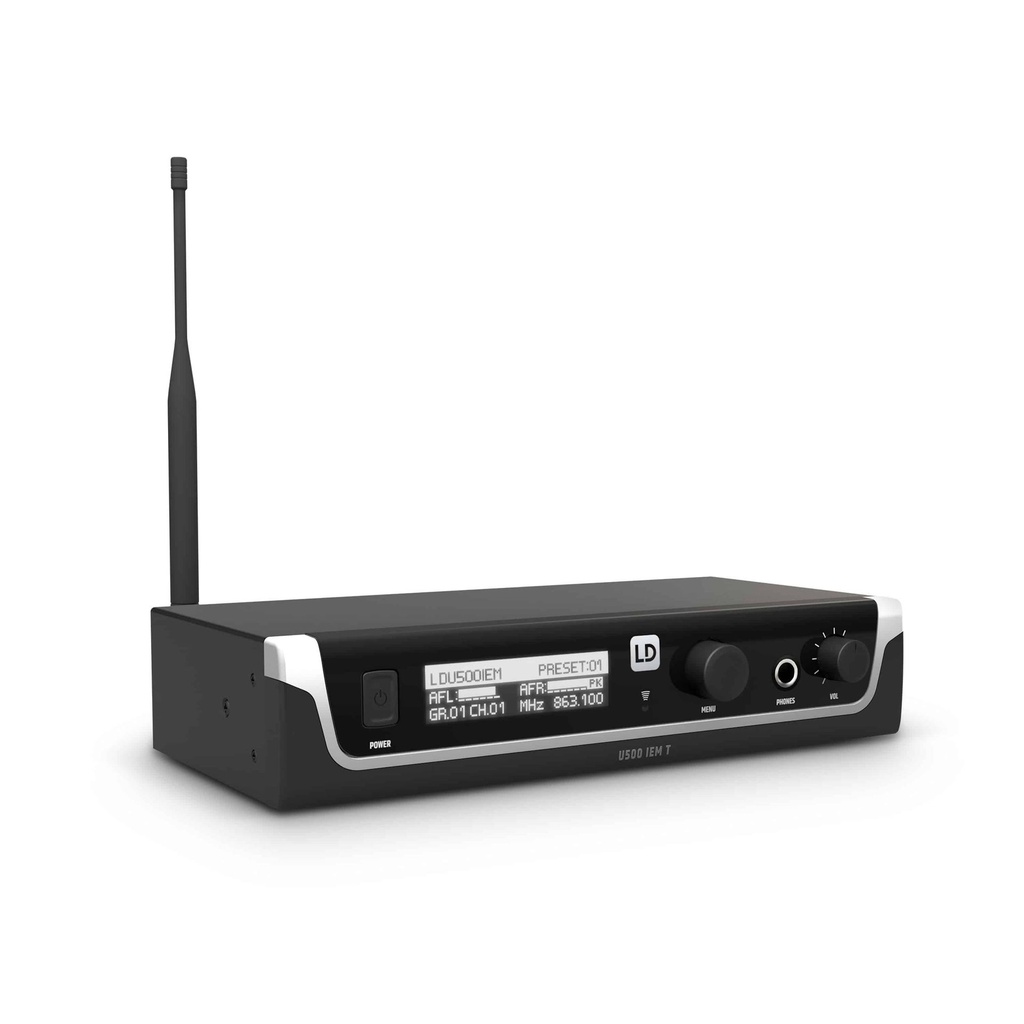

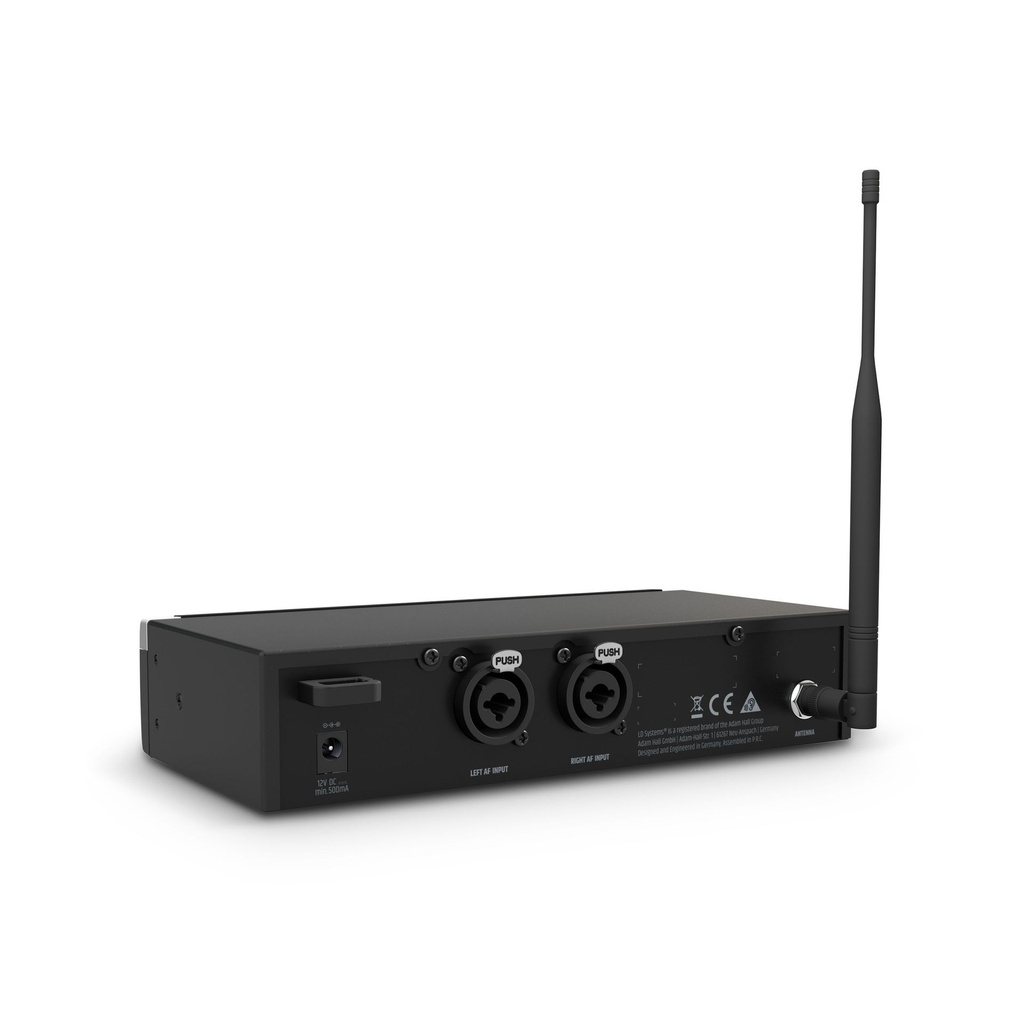

LD Systems U506 IEM T

Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems noise floor is exceptionally low.

To deliver pristine, precise audio U500® IEM Transmitters include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and provide a convenient direct monitoring headphone output.

• Reliable in-ear monitoring with more than 100 m range
• 96 available channels
• 2, 10 or 30 mW ERP selectable transmission power
• Convenient infrared frequency syncing
• Individual user name assignment and memory for 10 custom presets
• Extended frequency response
• 3-band EQ with parametric mids
• Switchable limiter
• Stereo and mono modes of operation
• High-contrast OLED display
• Transmitter with direct monitoring headphone output
• Bodypack receiver with three selectable squelch levels
• 10 h of bodypack receiver operation on two AA batteries
• Simultaneous operation of up to 12 systems
• U500® IEM transmitter compatible with U300® IEM bodypacks

General

Radio transmission

Inputs

Signal processing

Mains operation

Dimensions & weight

Other properties
