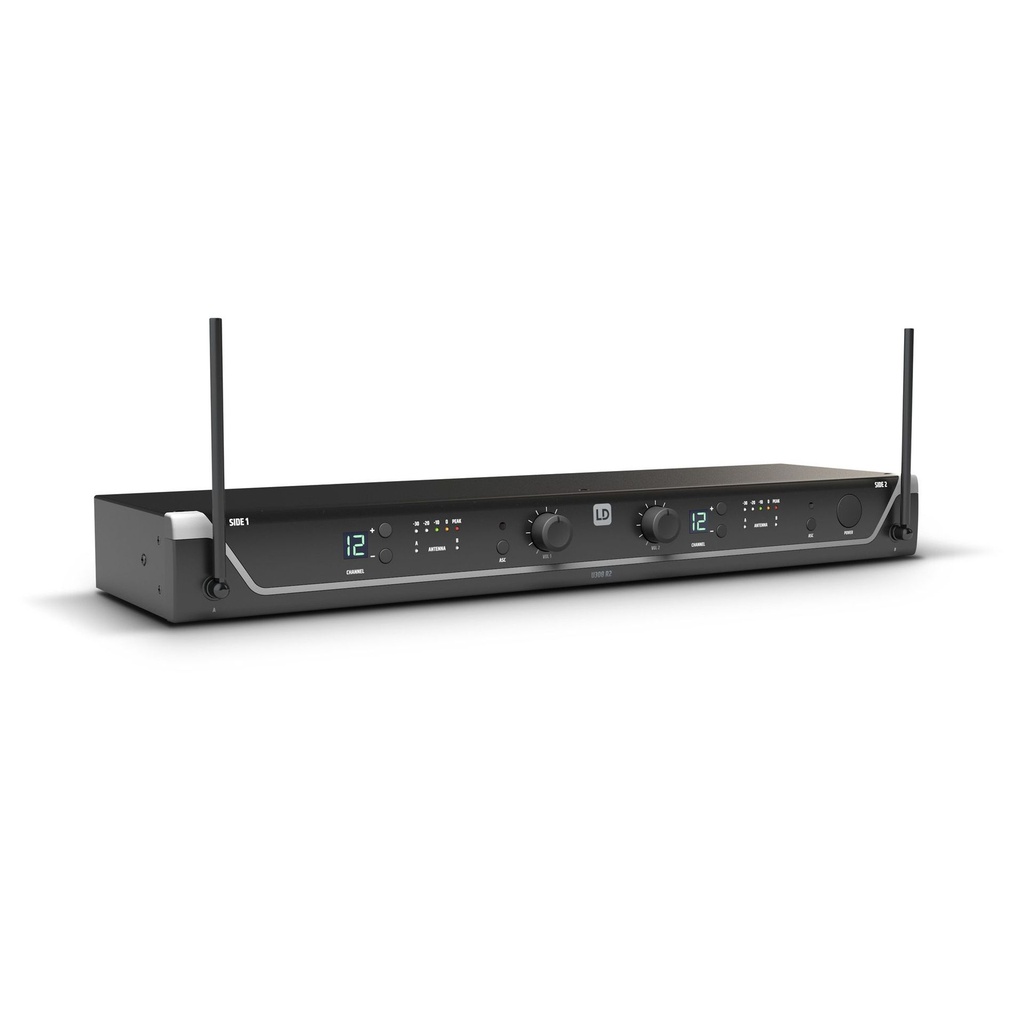

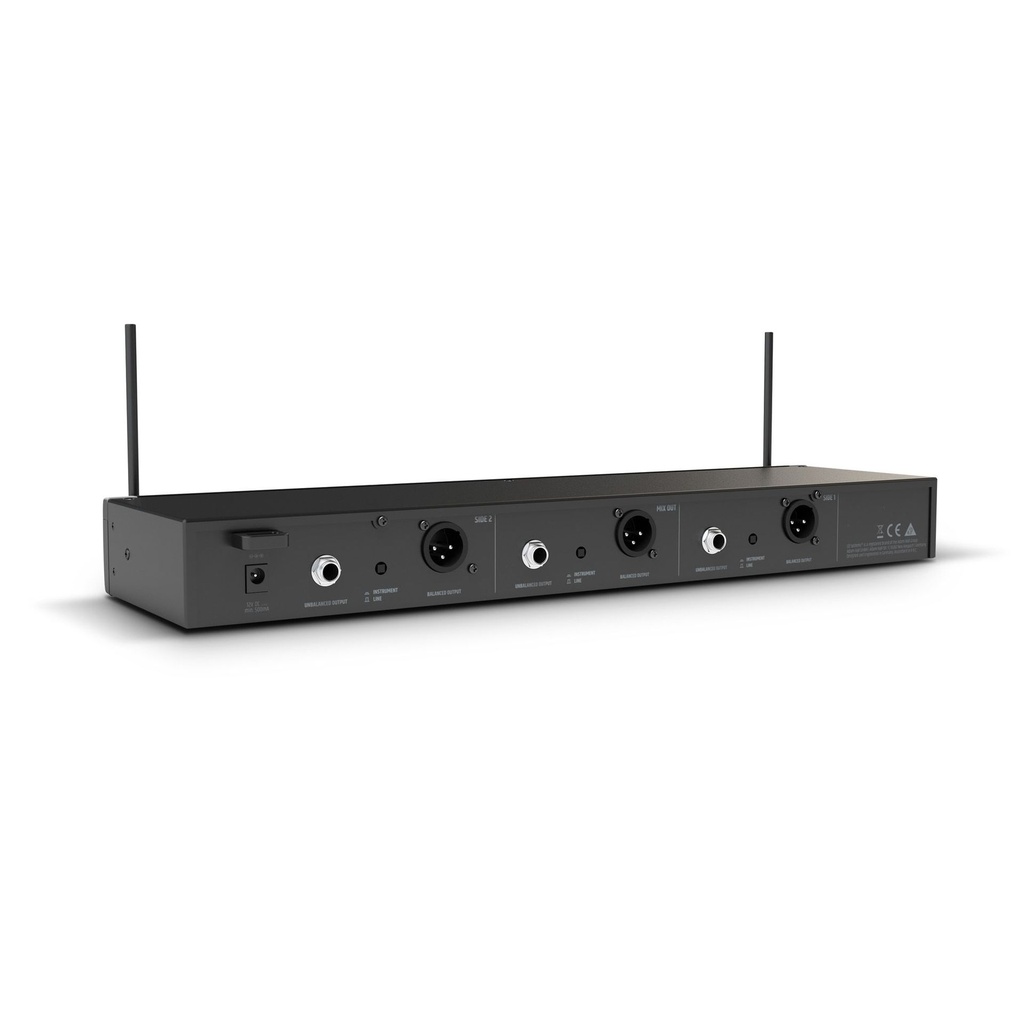

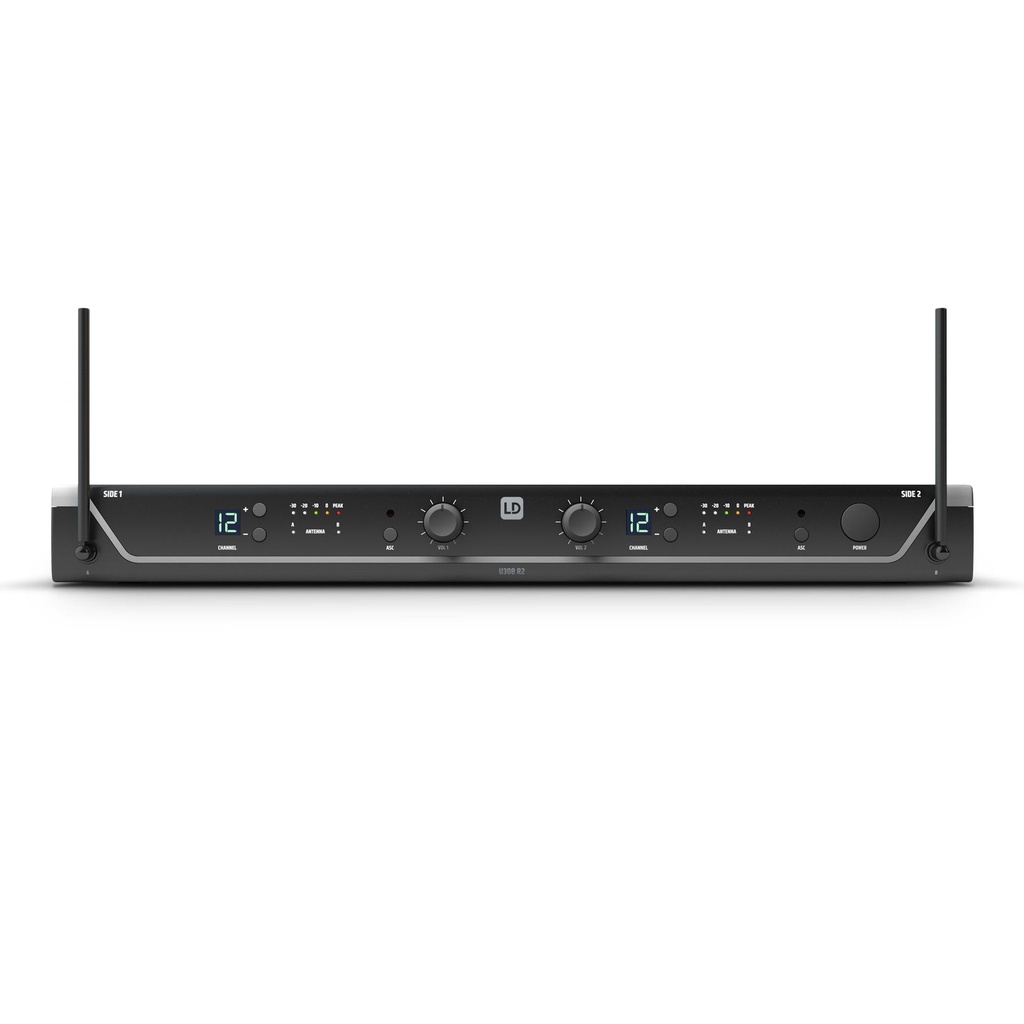

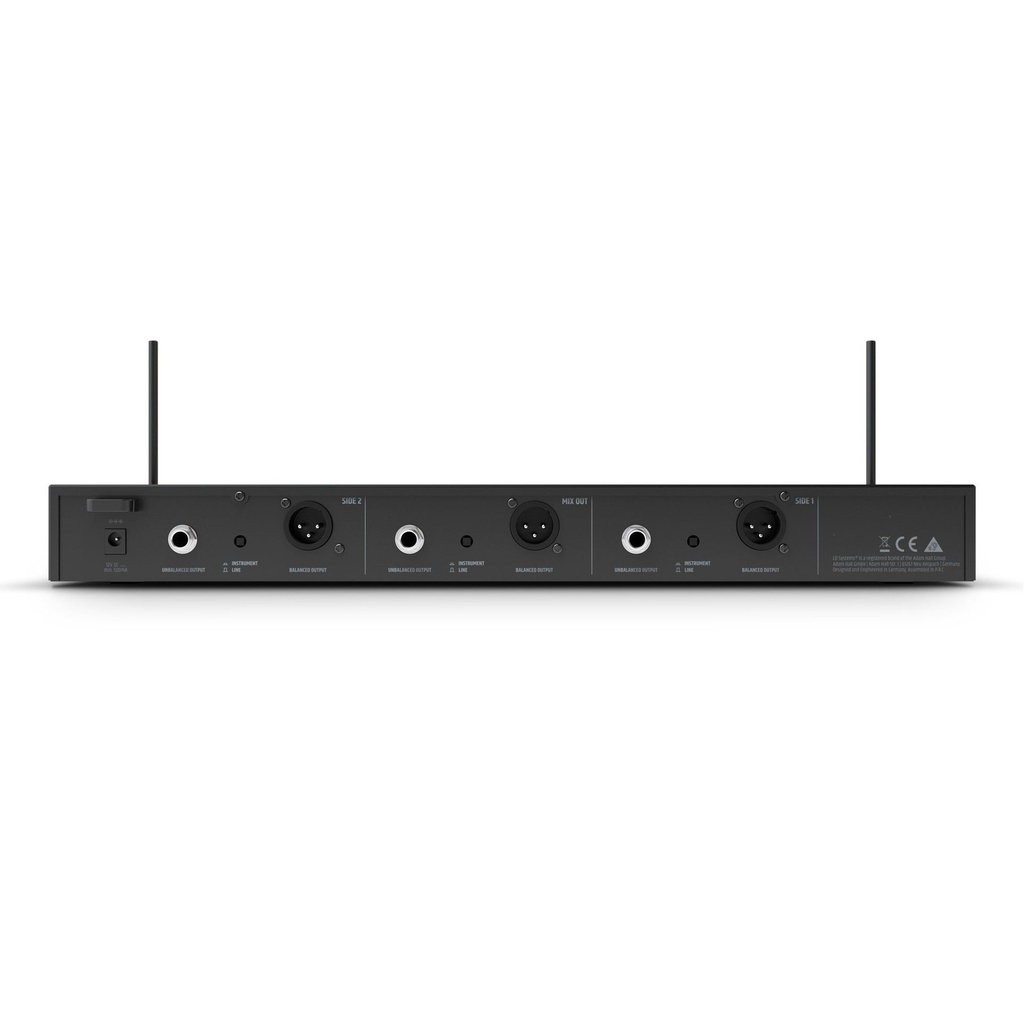

The U300 R2 series 12-channel UHF dual-receiver operates with FM technology in the frequency bands 863 - 865 MHz + 823 - 832 MHz and features a 35 Hz to 16 kHz frequency response. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection with the handheld transmitter microphone or bodypack from the same series. A squelch with pilot tone ensures disruption-free operation. The U308 R2 dual-receiver features elegant metal housing with a bright LCD channel display, channel selectionkeys and LEDs that display audio signal strength and active antenna.Two balanced XLR and two unbalanced 6.35 mm jack outputs are located on the rear panel, which can be switched to instrument level for direct connection to guitar and bass amplifiers. A power adapte is included.
General
| Product type | Wireless Microphone System Accessories |
|---|---|
| Type | Receivers |
| Modulation Type | FM |
| Transmission frequency range | 863 - 865, 823 - 832 |
| Channels | 12 |
| Groups | 1 |
| Antenna inputs | 2 x fixed |
| Frequency response | 35 - 16000 |
| Noise reduction | Squelch |
| Transmission optimization | Pilot tone |
| Total Harmonic Distortion (THD) | < 0.3 % |
| Signal-to-noise ratio | 104 dB |
| Audio output, balanced | 3 x XLR |
| Audio output, unbalanced | 6.3 mm jack, switchable unbalanced output level ( Line/Instrument ) |
| Audio mix output, balanced | XLR |
| Audio mix output, unbalanced | 6.3 mm jack |
| Max. output level | +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu |
| Controls | Power On/Off, Channel up, Line/Instrument Level, 2 x Volume, Channel down |
| Indicators | Antenna A/B, LCD display, 5-LED VU-Meter |
| Operating voltage | 12 V DC, 500 mA |
| Width | 410 mm |
| Height | 43 mm |
| Depth | 120 mm |
| Accessories (included) | 2 x AA batteries, Power supply |
| Other features | IR frequency synchronisation, Pilot tone |
