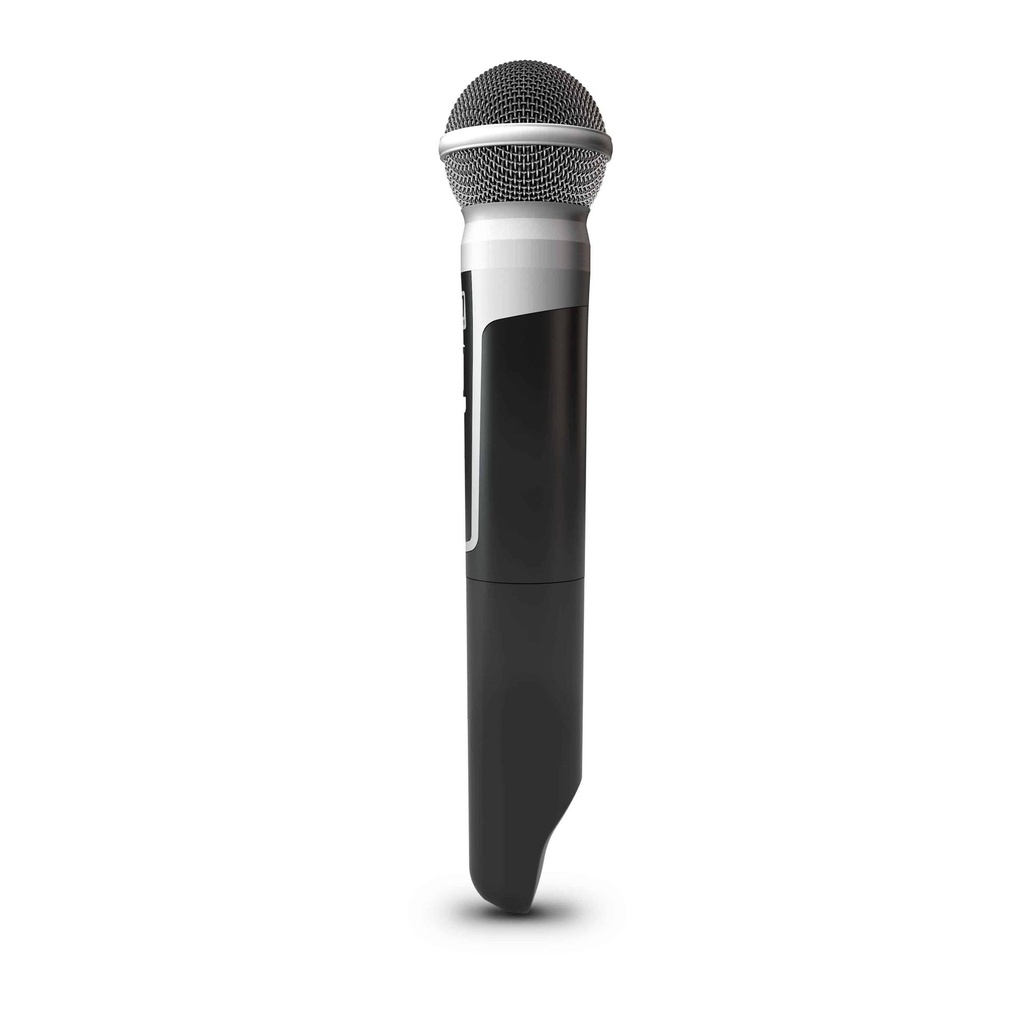

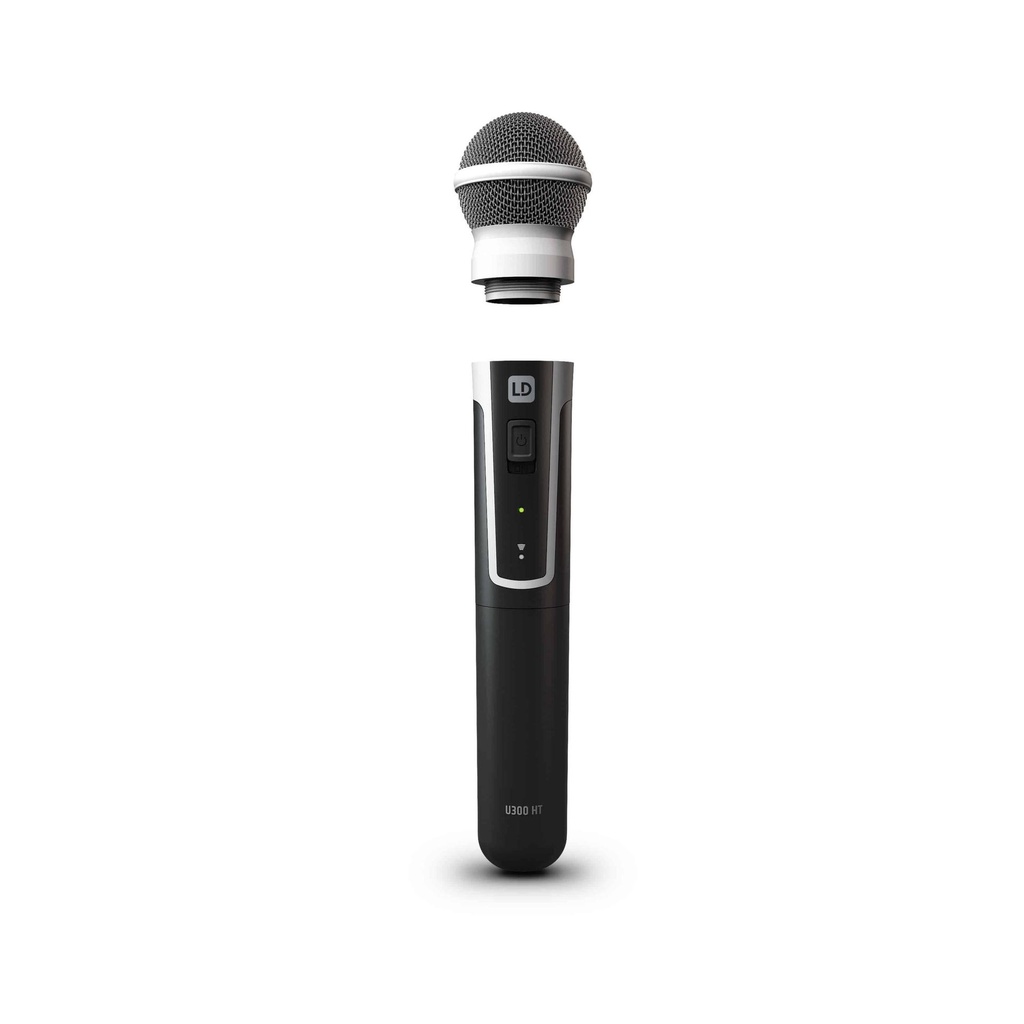

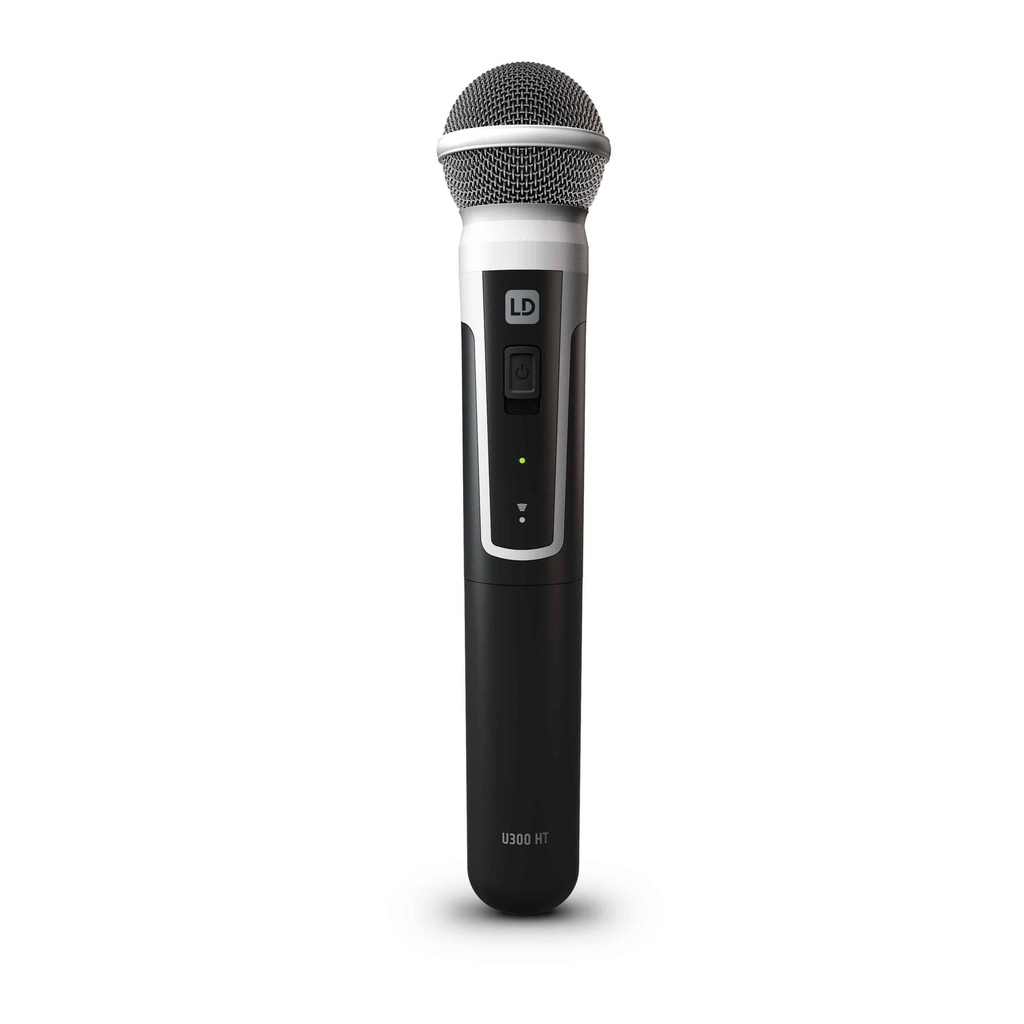

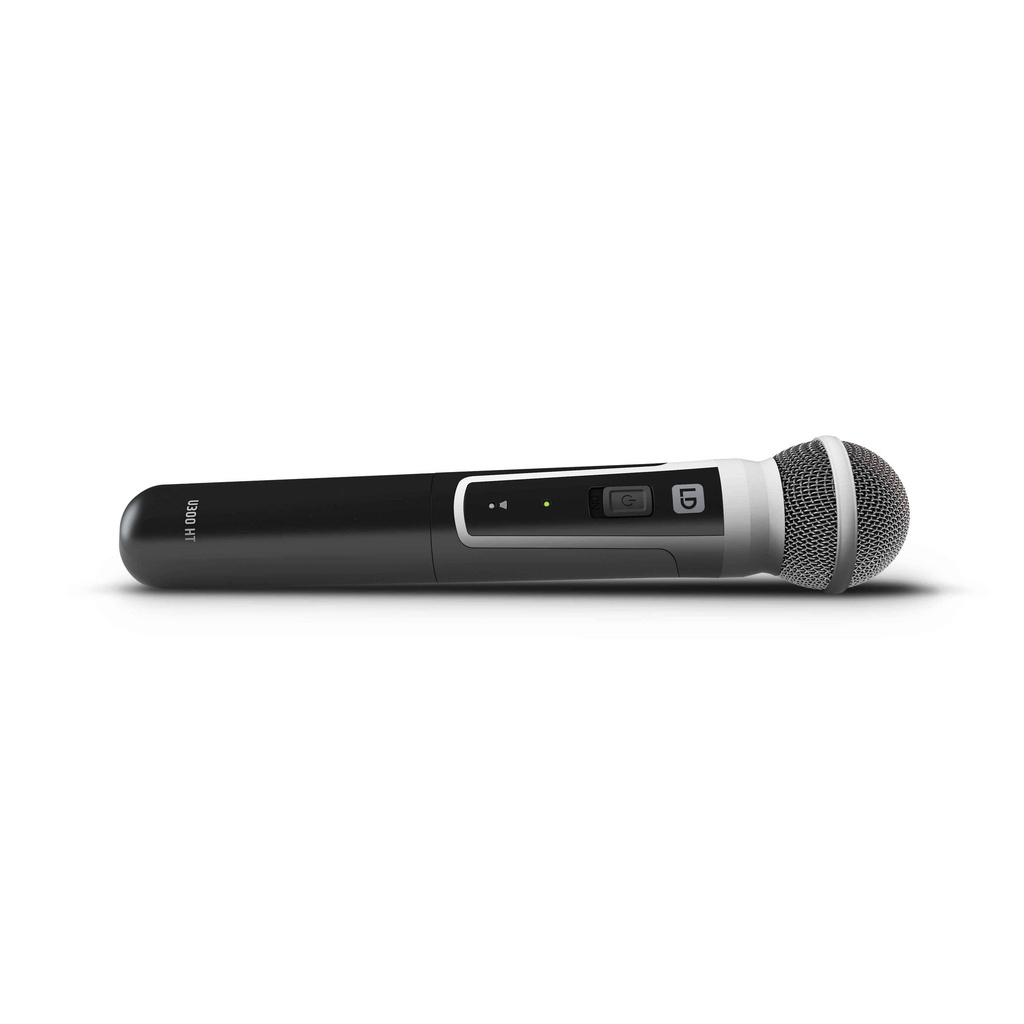

The U300®-series handheld transmitter microphone operates in the frequency bands 823–832 MHz + 863–865 MHz and features a dynamic capsule with cardioid characteristic, 10 mW output and a 55 Hz to 16 KHz frequency response. It runs on two AA batteries with an operating time of over 10 hours. It is conveniently synchronised via infrared with the U308 receiver, and a pilot tone ensures disruption-free operation. The U308 handheld transmitter is easily adjustable for singing and spoken word thanks to the changeable U500®-series-compatible microphone capsule.
General
| Directivity | Cardioid |
|---|---|
| Capsule type | Dynamic |
| Material | Aluminum continuous casting |
| Wireless frequencies | 823 - 832 MHz / 863 - 865 MHz |
| Frequency response (-10 dB, rel. Avg) | 55 Hz |
| Colour | Black |
| Accent colour | Silver |
Radio transmission
| Channel groups number | 1 |
|---|---|
| Channels | 12 |
| Frequency synchronization via IR | 0 |
Battery operation
| Batteries | 2 x 1.5 V AA/LR6 @ max.10 h |
|---|---|
| Built in battery tester | 0 |
Dimensions & weight
| Length | 257 mm |
|---|---|
| Diameter | 50 mm |
| Weight | 235 g |
