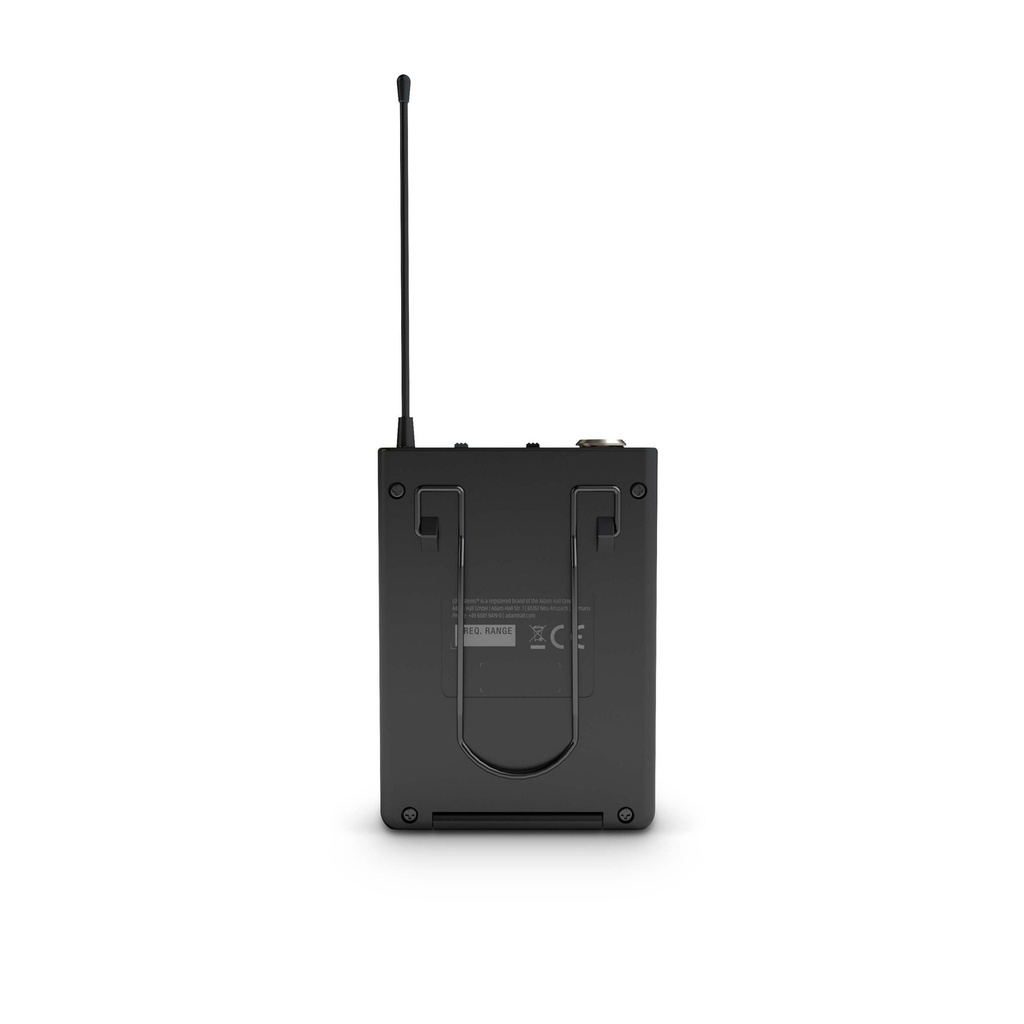

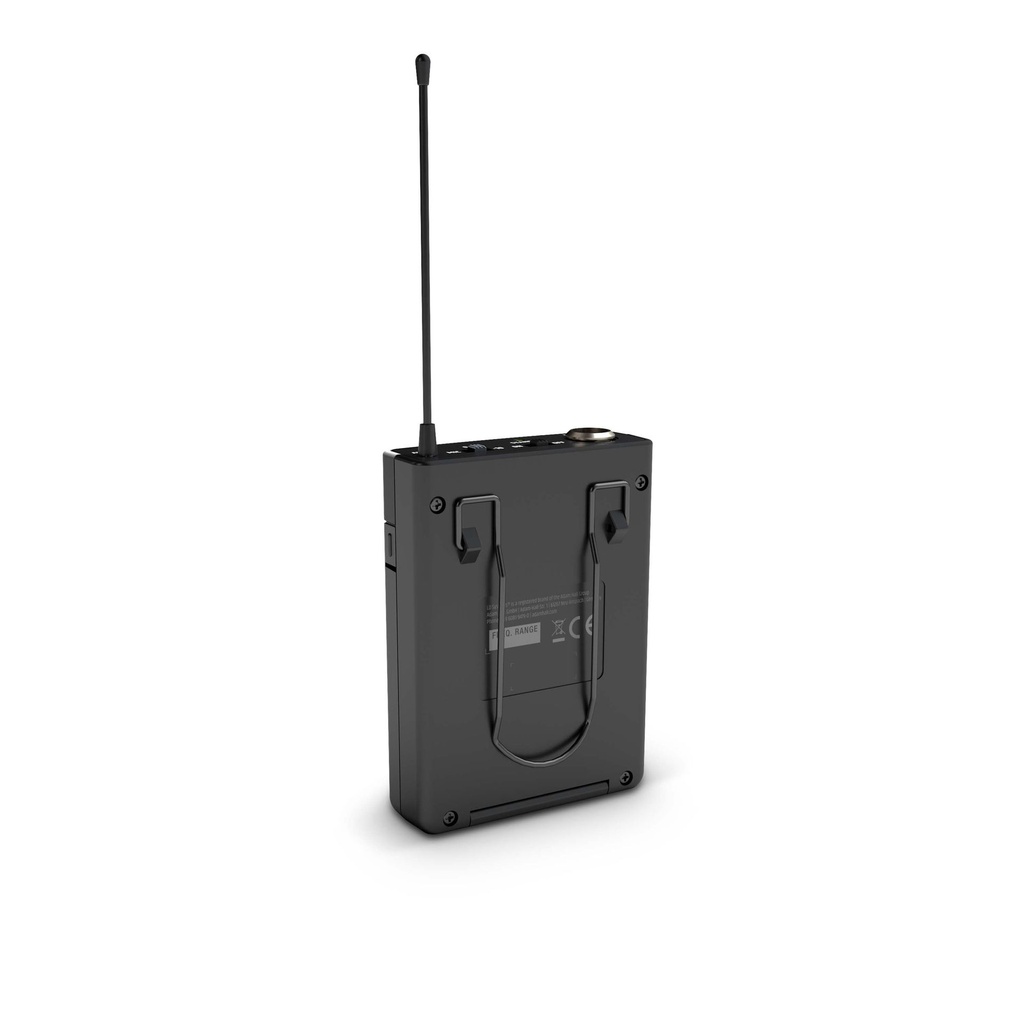

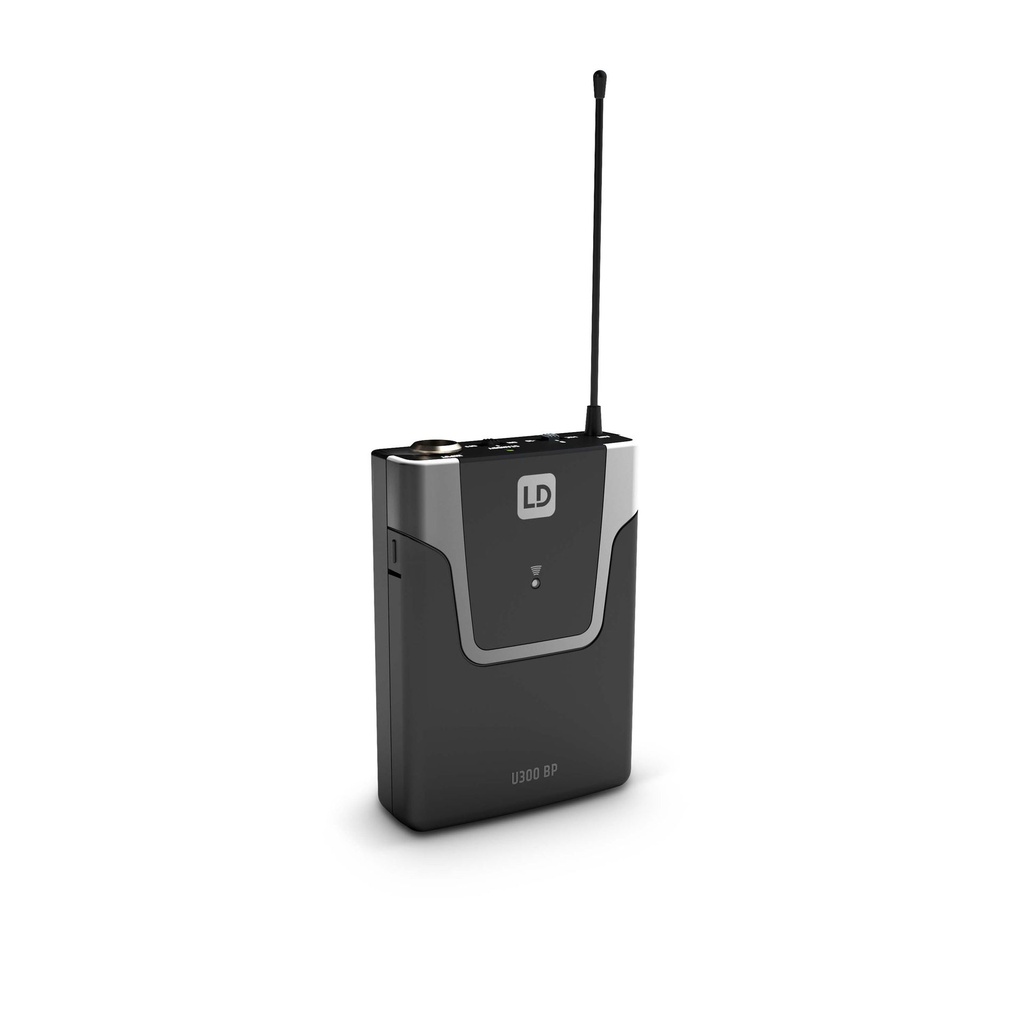

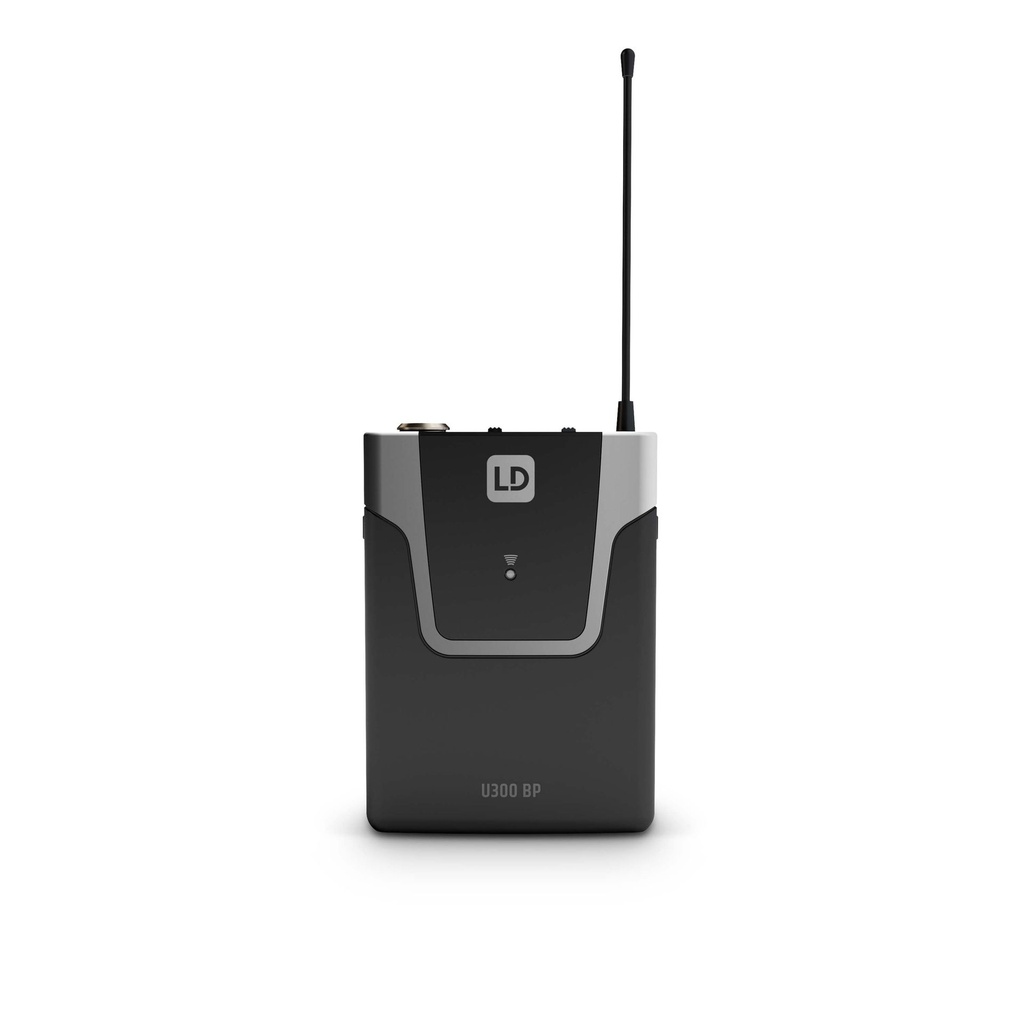

Operating in the 823 - 832 MHz, 863 - 865 MHz band, this U300 Series bodypack transmitter features a miniature XLR input with 3-position level selector to accommodate microphones as well as active and passive instrument pickups. It has an output power of 10 mW and 25 Hz - 16 kHz frequency response to handle 5-string bass guitars with a low B string. The U308 BP provides over 10 hours of continuous operation on two AA batteries, easy IR syncing with the U308 receiver and pilot tone transmission to eliminate RF interference. The bodypack's on/off switch includes a convenient standby position for temporary muting.
General
| Material | ABS |
|---|---|
| Wireless frequencies | 823 - 832 MHz / 863 - 865 MHz |
| Frequency response (-6 dB, rel. Avg) | 25 Hz |
| Colour | Black |
| Accent colour | Silver |
Radio transmission
| Channel groups number | 1 |
|---|---|
| Channels | 12 |
| Transmitting power | 10 mW |
| Antennas | 1 (fixed) |
| Frequency synchronization via IR | 0 |
Inputs
| Input connector types | Mini XLR female |
|---|
Signal processing
| Min. Signal-to-noise ratio (SNR) | 104 dB |
|---|
Battery operation
| Batteries | 2 x 1.5 V AA/LR6 @ max.10 h |
|---|---|
| Built in battery tester | 0 |
Dimensions & weight
| Width | 65 mm |
|---|---|
| Height | 91 mm |
| Depth | 25 mm |
| Weight | 85 g |
